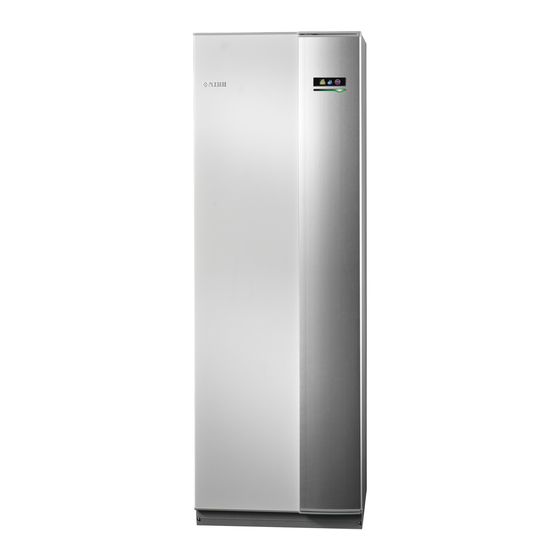

Nibe F1345 Manual

Ground source heat pump
Hide thumbs Also See for F1345:

Advertisement

NIBE™
F1345
GROUND SOURCE HEAT PUMP
2 STAGE HEAT PUMP WITH ROCK,
EARTH, LAKE OR GROUND WATER
AS HEAT SOURCE.
• Less than 3 kg refrigerant per cooling section/installation.
This means no inspection requirement.
• The two scroll compressors can supply up to 65°C to the
heating system.
• Double compressors give better power control, longer oper-
ating intervals, less wear and greater operational security.
• Display unit with easy-to-read colour screen.
– See status and make settings via SMS with the SMS 40
accessory.
– Control the heat pump externally, with for example BMS,
via the accessory MODBUS 40.
• The heat pump is available in the following sizes: 24, 30, 40
and 60 kW.
• Up to 540 kW with 9 x F1345 in the same system.
• Soft start relays and load monitor factory installed.
• Internally installed low energy circulation pumps (not brine
pump for 40 or 60 kW).
• Prepared for pool heating with POOL 40 accessory.
• Prepared for control of up to four heating systems with
ECS40/ECS41 accessory.
• Coefficient Of Performance (COP) up to 4.51 at 0/35 C
according to EN 14511.
• Separate cooling modules for compressors and brine pumps
give reliable service and lower noise levels.
• Easy to remove the cooling modules.
• NIBE Uplink compatible
NIBE F1345
NIBE F1345 is a heat pump for heating large buildings, such as
apartment buildings, churches and industrial premises. F1345 is
a flexible product with advanced control equipment and can be
adapted to several system solutions. The ground, bedrock or lakes
can be used as the heat source. Groundwater can also be used as
a heat source, but this requires an intermediate heat exchanger.
Another area of use could also be ventilation recovery in multi-
occupancy buildings. F1345 can control up to four different
climate systems (requires accessory), for example a lower flow
temperature in the underfloor heating loops than in the radiators.
F1345 is also prepared for control of an external additional heater.
At hot water production this can be prioritised, selectable with
one or more compressors. This permits simultaneous production
of heat and hot water.

Advertisement

Table of Contents
loading

Summary of Contents for Nibe F1345

  • Page 1 • The heat pump is available in the following sizes: 24, 30, 40 and 60 kW. • Up to 540 kW with 9 x F1345 in the same system. • Soft start relays and load monitor factory installed. • Internally installed low energy circulation pumps (not brine pump for 40 or 60 kW).
  • Page 2: Installation Method

    Normally, there is one well for drawing up water and one for returning it. 2 NIBE F1345...
  • Page 3: Principle Of Operation

    F1345 is constructed on a heater. If there is a greater need for heating/hot water than the...
  • Page 4 Position F1345 on a firm base that can take the weight, preferably on a concrete floor or foundation. Use the heat When being moved into a building, F1345 may be leant back 45°. pump’s adjustable feet to obtain a stable set-up.
  • Page 5: Pipe Dimensions

    GOOD TO KNOW ABOUT NIBE F1345 Dimensions 80 145 EP15-XL1 EP15-XL7 EP15-XL2 EP15-XL6 Pipe dimensions Connections EP14-XL1 (XL1) Heating medium supply, external thread G2” EP14-XL7 EP14-XL2 (XL2) Heating medium return, external thread G2” EP14-XL6 (XL6) Brine in, external thread G2”...
  • Page 6 GOOD TO KNOW ABOUT NIBE F1345 Equipment EP15-XL1 EP15-XL2 EP15-XL7 EP15-XL6 AA4-XJ4 AA4-XJ3 EP15-PF2 EP15-FB1 EP15 EP14-XL1 XJ10 EP14-XL7 EP14-XL2 EP14-XL6 EP14-PF2 EP14 K2/K5 AA26 6 NIBE F1345...
  • Page 7 GOOD TO KNOW ABOUT NIBE F1345 XJ 1 Connector, electrical supply to compressor, Pipe connections cooling module EP14 Connection, heating medium flow XJ 2 Connector, electrical supply to compressor, Connection, heating medium return cooling module EP15 Connection, brine in XJ 3...
  • Page 8 GOOD TO KNOW ABOUT NIBE F1345 Pump capacity diagram Heating medium side 24 kW 30 kW External available pressure, kPa External available pressure, kPa Externt tillgängligt tryck Externt tillgängligt tryck 100% 100% 100% 100% Flow, l/s Flow, l/s Flöde, l/s Flöde, l/s...
  • Page 9 GOOD TO KNOW ABOUT NIBE F1345 40 kW 60 kW External available pressure, kPa External available pressure, kPa Externt tillgängligt tryck Externt tillgängligt tryck 100% 100% 100% 100% Flow, l/s Flow, l/s Flöde, l/s Flöde, l/s 2 circulation pumps 2 circulation pumps...
  • Page 10 GOOD TO KNOW ABOUT NIBE F1345 Pump capacity diagram Brine side 24 kW 30 kW External available pressure, kPa External available pressure, kPa Externt tillgängligt tryck Externt tillgängligt tryck 100% 100% 100% 100% Flow, l/s Flow, l/s Flöde, l/s Flöde, l/s...
  • Page 11 GOOD TO KNOW ABOUT NIBE F1345 40 kW 60 kW External available pressure, kPa External available pressure, kPa Externt tillgängligt tryck Externt tillgängligt tryck Flow, l/s Flöde, l/s Flow, l/s Flöde, l/s Electrical output per circulation pump, W Electrical output per circulation pump, W...
  • Page 12: Display Unit

    Back button, D The back button is used to: Display • go back to the previous menu. Status lamp • change a setting that has not been confirmed. OK button Back button Control knob Switch F1345 12 NIBE F1345...
  • Page 13: Menu System

    The start guide ensures that the start-up is carried out correctly and cannot be bypassed. The start guide can be started later in menu 5.7. NIBE F1345 13...
  • Page 14: Pipe Installation

    65 °C. The pressure expansion vessel should be dimensioned as set out F1345 is not equipped with shut off valves; these must be in the following diagram, to prevent operating disturbances. The installed outside the heat pump to facilitate any future servicing.
  • Page 15 This however entails different pipe or electrical installations. Fixed condensing If F1345 is to work towards the water heater with fixed condensing you must connect an external flow sensor (BT25) according to the descrip- tion in the installer handbook In addition, menu settings must be made (see installer handbook).
  • Page 16 INSTALLATION NIBE F1345 can be connected in several different ways, some of which are shown below. Further option information is available in the respective assembly instruc- tions for the accessories used. F1345 docked with electric additional heat and water heater...
  • Page 17 INSTALLATION 2x F1345 docked with oil addition, pool and water heater (floating condensing) The heat pump (EB100) prioritises charging of hot water with half the power (cooling module EP14) via a reversing valve (EB100-QN10). When the water heater/accumulator tank (CP10 and CP11) are fully charged (EB100-QN10) switches to the heating circuit.
  • Page 18 This are rough example values. On installation the correct calculations must be made according to local conditions. F1345 can be docked to an external unit with its own heating controls. In that case, the heat pump delivers heat up to a The length of the collector hose varies depending on the rock/soil fixed temperature level.
  • Page 19: Basic Functions

    Room control If the water heater is docked to F1345 when there F1345 can be supplemented with a room sensor (BT50). The room tem- is a demand for hot water, the heat pump gives perature sensor has up to three functions: this priority and devotes half its output to water Show current room temperature in the heat pump's display.
  • Page 20 The heat pump is always delivered as master and up to 8 slaves can be connected to it and supply up to 540 kW (with 9 x F1345 60 kW) in the same system. In systems with several heat pumps each pump must have a unique name, that is only one heat pump can be "Master"...
  • Page 21: Extended Functions

    This function requires reversing valve for cooling, circu- Up to two different pool systems can be connected to F1345 and con- lation pump, shunt valve and accessory ACS 45. trolled individually, it does require two POOL 40-accessories.
  • Page 22 (settable in the control system). For excess VPB can be connected to obtain hot water charging via heat exchanger. temperatures F1345 calculates a surplus in the form of degree minutes, The heat pump prioritises charging from the solar panel.
  • Page 23 Outdoor air collector AMB 30 is connected to NIBE F1345 for only out- door air operation or in combination with rock/ground collector (hybrid operation).
  • Page 24: Technical Specifications

    2 x 2.4 Cut-out value pressostat HP Difference pressostat HP Cut-out value pressostat LP Difference pressostat LP Cut-out value, pressure transmitter LP (without AMB 30) Cut-out value, pressure transmitter LP (with AMB 30) Difference, pressure transmitter LP 24 NIBE F1345...
  • Page 25: Working Range, Compressor Operation

    The compressor provides a supply temperature up to 65 °C, the remainder (up to 70 °C) is obtained using the additional heat. Water temperature Vattentemperatur °C °C Köldbärare in, temperatur Framledning Flow temperature Returledning Return temperature °C Köldbärare in, temperatur Brine in, temperature Framledning Returledning NIBE F1345 25...
  • Page 26: Supplied Components

    Exhaust air module This accessory is used when These accessories may require FLM is an exhaust air module F1345 is installed in houses with Part no. 067 195 accessories card AXC 50. specially designed to combine two or more different climate...
  • Page 27 POOL 40 is an accessory that Filling valve kit for filling brine in RMU 40 means that control and Solar 42 means that F1345 can enables pool heating with F1345. the collector hose for rock heat monitoring of the heat pump be connected to solar heating.
  • Page 28 SS-EN ISO 14001:2004 Box 14 285 21 Markaryd This brochure is a publication from NIBE. All product illustrations, facts and specifications are SWEDEN based on current information at the time of the publication’s approval. NIBE makes reservations Tel. +46 433 - 73 000 for any factual or printing errors in this brochure.
