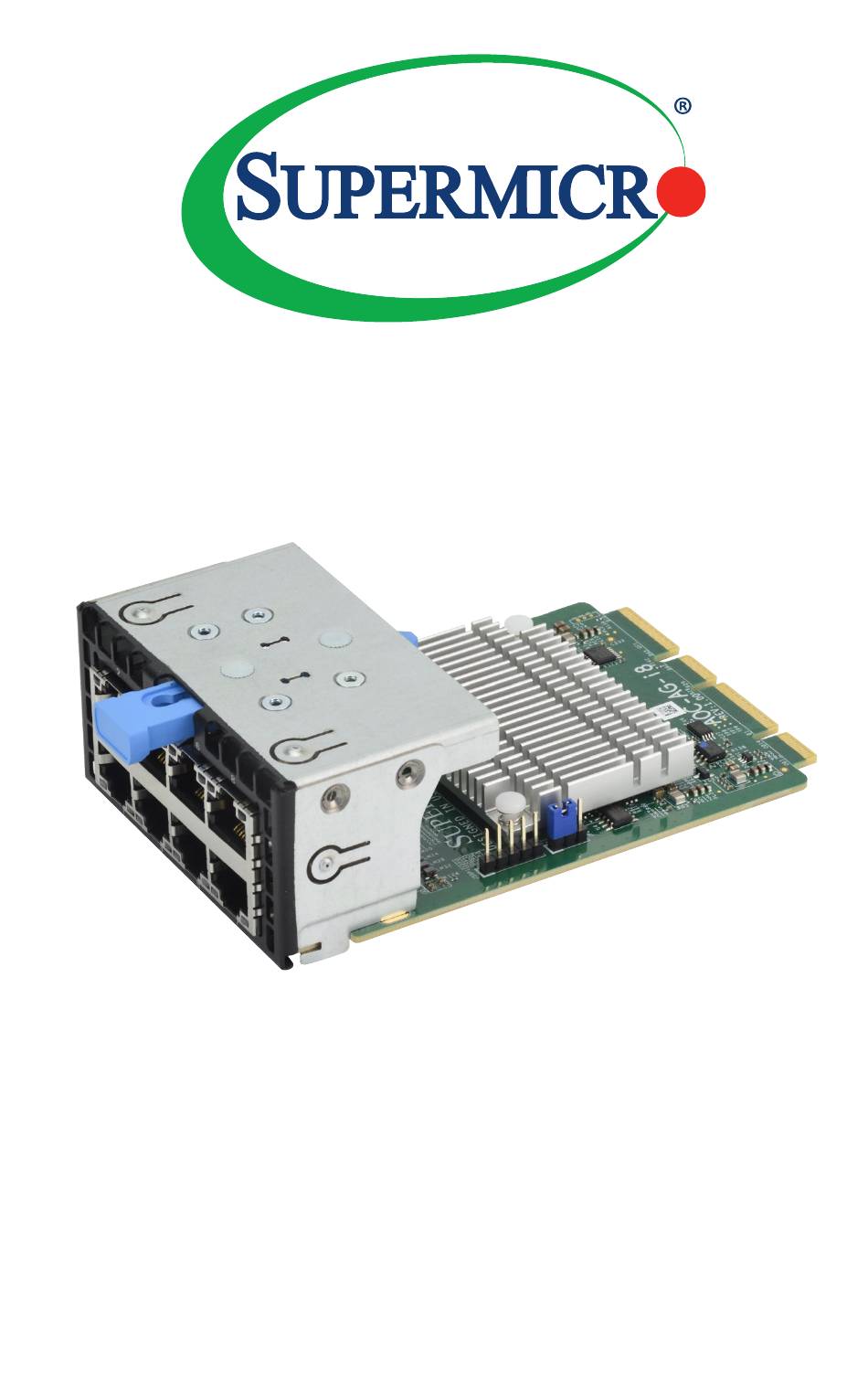

- Page 1 AOC-AG-i8 User's Guide Revision 1.0...
- Page 2 CR (Manganese Dioxide) Lithium coin cells. “Perchlorate Material-special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate”. The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency communication devices or other critical systems whose failure to perform be reasonably expected to result in significant injury or loss of life or catastrophic property damage.
- Page 3 I/O technologies for server, storage, and IoT systems. The AOC-AG-i8 is a highly flexible and scalable controller with eight Gigabit Ethernet ports. Based on the Intel GbE network controller i350,...
- Page 4 AOC-AG-i8 Add-on Card User's Guide Conventions Used in the User's Guide Pay special attention to the following symbols for proper system installation and for safety instructions to prevent damage to the system or injury to yourself: Note: Additional information given for proper system setup.
- Page 5 Preface Confidential Supermicro Networking Adapter List Dimension Power Model Type Form Factor Interface Controller Connection (w/o Brackets) (L x H) AOC-SGP-i2 Standard LP PCI-E x4 Intel® i350 AM2 2 RJ45 (1Gb/port) 3.9” (99mm) x 2.73” (69mm) AOC-SGP-i4 Standard LP PCI-E x4 Intel®...
- Page 6 AOC-AG-i8 Add-on Card User's Guide Contacting Supermicro Headquarters Address: Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Website: www.supermicro.com Europe Address: Super Micro Computer B.V.
-
Page 7: Table Of Contents
Preface Table of Contents Preface Chapter 1 Overview Overview ......................1-1 Product Highlights ................... 1-1 Technical Specifications .................. 1-2 Available SKUs ....................1-4 Chapter 2 Hardware Components Add-On Card Image and Layout ..............2-1 Major Components ..................2-2 LED Indicators and Connectors ..............2-3 Jumpers ...................... -
Page 8: Chapter 1 Overview
Overview Congratulations on purchasing your add-on card from an acknowledged leader in the industry. Supermicro products are designed with the utmost attention to detail to provide you with the highest standards in quality and performance. For product support and updates, please refer to our website at http://www.supermicro.com/ products/nfo/networking.cfm#adapter. -
Page 9: Technical Specifications
AOC-AG-i8 Add-on Card User's Guide Technical Specifications General • Advanced I/O Module (AIOM) form factor • Intel® i350 GbE controller • Eight RJ45 ports Ethernet Features • IEEE 802.3 auto-negotiation for speed, duplex, and flow control • IEEE 802.3x and 802.3z compliant flow control support •... - Page 10 • Intelligent interrupt generation Management Features • Preboot eXecution Environment (PXE) support • iSCSI remote boot support • Asset Management support on Supermicro® platforms • NC-SI for remote management OS Support • Windows • RedHat Linux • SUSE Linux •...
-
Page 11: Available Skus
AOC-AG-i8 Add-on Card User's Guide Cable Support • RJ45 category 5/5e up to 100m Power Consumption • Typical 7.4W; maximum 8.8W Operating Conditions • Operating temperature: 0°C to 55°C (32°F to 131°F) • Storage temperature: -40°C to 70°C (-40°F to 158°F) •... -
Page 12: Chapter 2 Hardware Components
Chapter 2: Hardware Components Chapter 2 Hardware Components Add-On Card Image and Layout The side view of the AOC-AG-i8 The front view of the AOC-AG-i8... -
Page 13: Major Components
5. JPL2 3. JSDP1 6. PCI-E 2.0 x8 Major Components The following components are on the AOC-AG-i8: 1. Two Intel® i350 controllers 2. Eight RJ45 ports (1Gb/s per port) 3. AIOM (Advanced IO module) form factor 4. JPL1 LAN port Enable/Disable 5. -
Page 14: Led Indicators And Connectors
Chapter 2: Hardware Components LED Indicators and Connectors LAN Ports There are eight 1GbE LAN ports on the AOC-AG-i8. These LAN ports support con- nection speeds of 1Gbps. Use a direct-attach RJ45 type LAN cable. LAN Port LED Indicators Each LAN port has two LEDs to indicate speed and data activity. Refer to the table below for LED colors and definitions. - Page 15 AOC-AG-i8 Add-on Card User's Guide JSDP1 Use Header JSDP1 to connect to a cable and communicate with the SDP of the LAN chips on the AOC-AG-i8. See the table below for header settings. JSDP1 Header Pin Definitions Pin# Definition B_SDP2_0...
-
Page 16: Jumpers
Use Jumpers JPL1 and JPL2 to enable or disable LAN ports on the AOC-AG-i8. On the AOC-AG-i8, these jumpers will enable or disable LAN ports 1, 2, 3, 4, 5, 6, 7 and 8. See the table below for jumper settings. The default setting is Enabled. -
Page 17: Chapter 3 Installation
Chapter 3: Installation Chapter 3 Installation Static-Sensitive Devices Electrostatic Discharge (ESD) can damage electronic com ponents. To avoid dam- aging your add-on card, it is important to handle it very carefully. The following measures are generally sufficient to protect your equipment from ESD. Precautions •... -
Page 18: Before Installation
AOC-AG-i8 Add-on Card User's Guide Before Installation Before you install the add-on card, follow the instructions below. 1. Power down the system. 2. Unplug the power cord. 3. Use industry-standard anti-static equipment such as gloves or a wrist strap and follow the precautions on page 3-1 to avoid damage caused by ESD. - Page 19 Chapter 3: Installation B. Installing an AIOM module (Reinstalling an AIOM module into an empty slot) 1. Position the AIOM module in front of the empty slot and gently push onto the metal bracket (do not use the blue latch). The AIOM module should slide into the chassis until the card securely seated in the connector.
- Page 20 AOC-AG-i8 Add-on Card User's Guide C. Installing an AIOM module (An AIOM slot with an AIOM slot cover) 1. Remove the AIOM slot cover by pulling it with two handles. 2. Position the AIOM module in front of the empty slot and gently push onto the metal bracket (do not use the blue latch).
-
Page 21: Installing Drivers On Windows (For Intel® I350-Am4)
Chapter 3: Installation Installing Drivers on Windows (for Intel® i350-AM4) Follow the steps below to install the drivers for the Windows operating systems. Download the drivers from Intel Download Center or the Supermicro site at https:// www.supermicro.com/wftp/Networking_Drivers. 1. Run CDR-NIC. - Page 22 AOC-AG-i8 Add-on Card User's Guide Build a Binary RPM Package 1. Run ‘rpmbuild -tb <filename.tar.gz>’ 2. Replace <filename.tar.gz> with the specific filename of the driver. Note: For the build to work properly, the current running kernel MUST match the version and configuration of the installed kernel sources. If you have just recompiled the kernel, reboot the system at this time.
-
Page 23: Installing Drivers On Freebsd (For Intel® I350-Am4)
Chapter 3: Installation 1. Load the module: For kernel 2.6.x, use the modprobe command: modprobe igb <parameter>=<value> For 2.6 kernels, the insmod command can be used if the full path to the driver module is specified. For example: insmod /lib/modules/<KERNEL VERSION>/kernel/drivers/net/ igb/igb.ko In addition, when using 2.6-based kernels, make sure that older igb drivers are removed from the kernel before loading the new module. - Page 24 AOC-AG-i8 Add-on Card User's Guide 1. To load the driver onto a running system, perform the following steps: cd igb-x.x.x make cd igb-x.x.x/src make load 2. To assign an IP address to the interface, enter the following: ifconfig igb<interface_num> <IP_address>...
- Page 25 Chapter 3: Installation 1. If you want to compile the driver into the kernel, enter: cd igb-x.x.x/src mkdir /usr/src/sys/dev/igb cp if_igb* /usr/src/sys/dev/igb cp igb* /usr/src/sys/dev/igb cp Makefile.kernel /usr/src/sys/modules/igb/Makefile Edit the /usr/src/sys/conf/files.i386 file, and add the following line: dev/igb/igb_hw.c optional igb dev/igb/igb_ee.c optional igb dev/igb/if_igb.c optional igb Remove the following lines from the /usr/src/sys/conf/files.i386 file, if they exist:...
