Summary of Contents for Supermicro AOC-S40G-i1Q

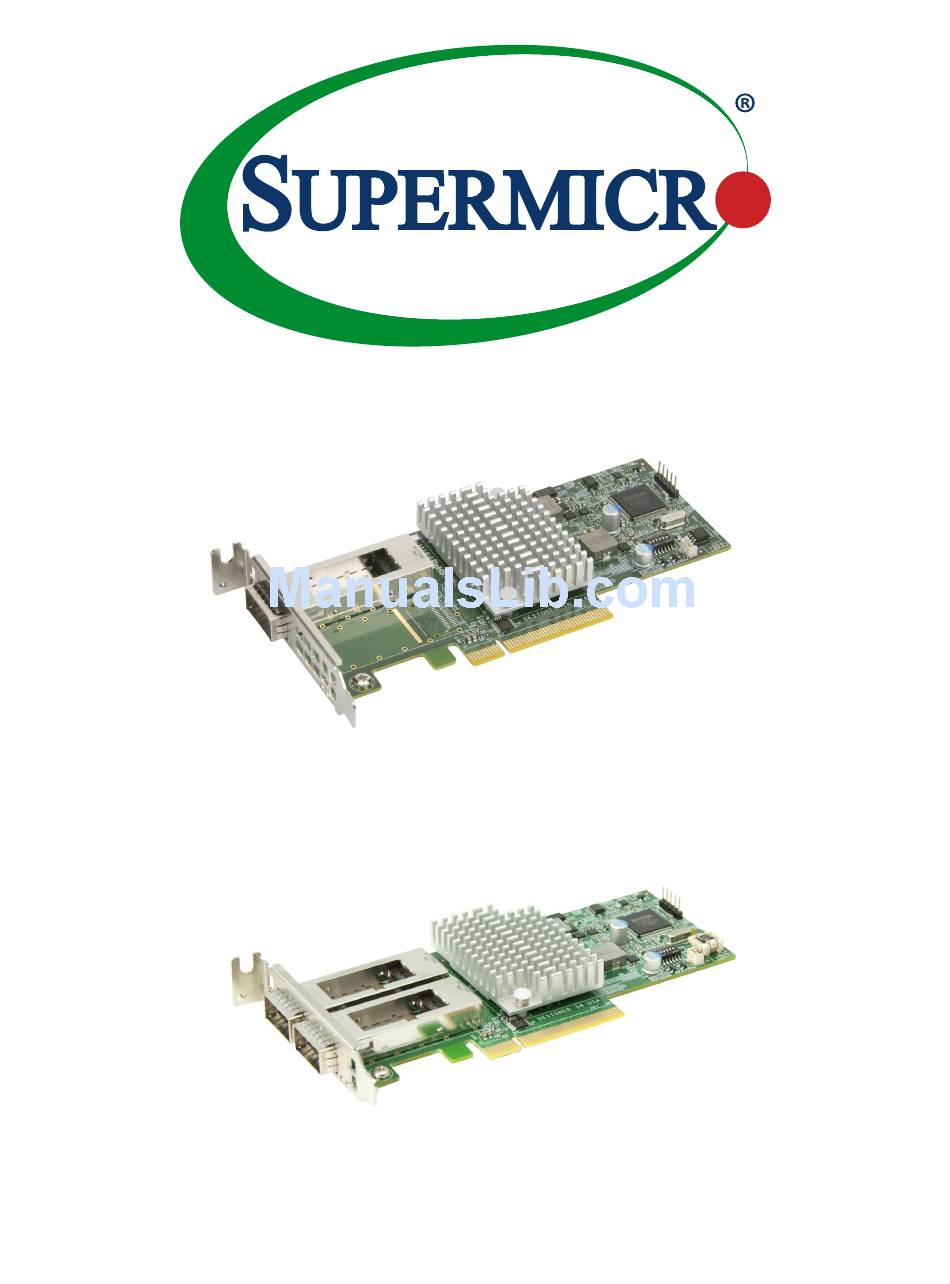

- Page 1 AOC-S40G-i1Q AOC-S40G-i2Q USER’S GUIDE Revision 1.0b...
- Page 2 This product, including software and documentation, is the property of Supermicro and/or its licensors, and is supplied only under a license. Any use or reproduction of this product is not allowed, except as expressly permitted by the terms of said license.
- Page 3 Preface About This User's Guide This user's guide is written for system integrators, IT technicians and knowledgeable end users. It provides information for the installation and use of the AOC-S40G-i1Q/i2Q add-on card. About This Add-On Card The AOC-S40G-i1Q/i2Q 40-Gigabit Ethernet Adapter is the most flexible and scalable Ethernet adapter for today’s demanding data center environments.
-
Page 4: Naming Convention
Naming Convention Naming Convention for SIOM Network Adapters A O C – MH IBF – 2 Q G – 2 3 – 6 7 8 Character Representation Options Product Family AOC: Add On Card Form Factor S: Standard, P: Proprietary, C: MicroLP, M: Super IO Module (SIOM), MH: SIOM Hybrid Product Type/Speed G: GbE (1Gb/s), TG: 10GbE (10Gb/s), 25G: 25GbE (25Gb/s),... -
Page 5: Contacting Supermicro
AOC-S40G-i1Q/i2Q User's Guide Contacting Supermicro Headquarters Address: Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Website: www.supermicro.com Europe Address: Super Micro Computer B.V. -
Page 6: Table Of Contents
Preface Table of Contents Naming Convention ........................4 SMC Networking Add-on Cards ....................4 Chapter 1 Overview 1.1 Introduction ..........................8 1.2 Product Highlights .........................8 1.3 Specifications ........................9 General ..........................9 I/O Features ........................9 Virtualization Features ......................9 Storage Interface Features ....................10 Manageability Features .....................10 Advanced Software Features ....................10 OS Support ........................10 Cables Support .........................11... - Page 7 AOC-S40G-i1Q/i2Q User's Guide 3.4 Installing the Add-On Card ....................19 3.5 Installing the Drivers in Linux .....................20 Build a Binary RPM Package ....................20 3.6 Building the Driver Manually ....................20 3.7 Returning Merchandise for Service ..................22...
-
Page 8: Chapter 1 Overview
Congratulations on purchasing your add-on card from an acknowledged leader in the industry. Supermicro products are designed with the utmost attention to detail to provide you with the highest standards in quality and performance. For product support and updates, please refer to our website at http://www.supermicro.com/products/nfo/networking.cfm#adapter. -
Page 9: Specifications
Chapter 1: Overview 1.3 Specifications General • Intel ® XL710 40GbE controller • Half-length low-profile standard form factor • 1 QSFP+ port (i1Q model) or 2 QSFP+ ports (i2Q model) • PCI-E 3.0 x8 (8 GT/s) • Load balancing on multiple CPUs •... -
Page 10: Storage Interface Features
Simple Network Management Protocol (SNMP) and remote Network Monitoring (RMON) static counters Manageability Features • Asset Management support on Supermicro ® X10 generation platforms • Controller asset tags such as part number, revision, serial number, and MAC address • Controller thermal sensor Advanced Software Features •... -
Page 11: Cables Support
Chapter 1: Overview • FreeBSD 9 and 10 IA-32, X86-64, and IA-64 Cables Support • QSFP+ direct attach twinax copper cables up to 7m • Fiber-optic cables (with required optional transceivers) Power Consumption • Typical power consumption: 4.9W • Maximum power consumption: 7W Operation Conditions •... -
Page 12: Smc Platform Support
Supermicro ® motherboards with PCI-E x8 slot • Supermicro ® server systems with low-profile or full-height PCI-E x8 expansion slot Note: This product is intended to be used with Supermicro® server systems. For the most current product information, visit: www.supermicro.com... -
Page 13: Chapter 2 Hardware Components
Chapter 2: Hardware Components Chapter 2 Hardware Components 2.1 Add-On Card Images and Layouts The AOC-S40G-i1Q Image LED3 AOC-S40G-i1Q REV: 1.00 Intel XL710 LAN Chipset LED1 DESIGNED IN USA The AOC-S40G-i1Q Layout Note: All graphics shown in this manual were based upon the latest PCB revision available at the time of publication of the manual. - Page 14 AOC-S40G-i1Q/i2Q User's Guide The AOC-S40G-i2Q Image LED3 AOC-S40G-i2Q REV: 1.00 Intel XL710 LAN Chipset LED1 DESIGNED IN USA LED2 The AOC-S40G-i2Q Layout...
-
Page 15: Major Components
Chapter 2: Hardware Components 2.2 Major Components The following major components are installed on the AOC-S40G-i1Q/i2Q: 1. QSFP Port 1 2. QSFP+ Port 2 (on i2Q model only) 3. LAN LED1 4. LAN LED2 (on i2Q model only) 5. Intel XL710 Controller 2.3 Connectors: LAN Port and LED Indicators... -
Page 16: Led Indicators
AOC-S40G-i1Q/i2Q User's Guide The AOC-S40G-i2Q Layout LED3 AOC-S40G-i2Q REV: 1.00 LAN1 Intel XL710 LAN Chipset LAN2 LED1 LED1 DESIGNED IN USA LED2 LED2 2. LED Indicators Each LAN port has a corresponding LED to indicate speed and data activity. LED1 is for LAN port 1 and LED2 is for LAN port 2 (on i2Q models only). -
Page 17: Chapter 3 Installation
Chapter 3: Installation Chapter 3 Installation 3.1 Static-Sensitive Devices Electrostatic Discharge (ESD) can damage electronic com ponents. To avoid damaging your add-on card, it is important to handle it very carefully. The following measures are generally sufficient to protect your equipment from ESD. Precautions •... -
Page 18: Before Installation
AOC-S40G-i1Q/i2Q User's Guide 3.2 Before Installation To install the add-on card properly, be sure to follow the instructions below. 1. Power down the system. 2. Remove the power cord from the wall socket. 3. Use industry-standard anti-static equipment (such as gloves or wrist strap) and follow the precautions listed on page 17 to avoid damage caused by ESD. -
Page 19: Installing The Add-On Card
1. Run the CDR-NIC. (If you do not have a product CD-ROM, download drivers from the Supermicro Support Website and then transfer them to your system.) 2. When the SUPERMICRO window appears, click on the computer icon next to the product model. -
Page 20: Installing The Drivers In Linux
AOC-S40G-i1Q/i2Q User's Guide 3.5 Installing the Drivers in Linux Follow the steps below to install the driver to a Linux system. Build a Binary RPM Package 1. Run ‘rpmbuild -tb <filename.tar.gz>’ 2. Replace <filename.tar.gz> with the specific filename of the driver. - Page 21 Chapter 3: Installation Note: IXGBE_NO_LRO is a compile time flag. The user can enable it at compile time to remove support for LRO from the driver. The flag is used by adding CFLAGS_EXTRA=- ”DIXGBE_NO_LRO” to the make file when it’s being compiled. make CFLAGS_EXTRA=”-DIXGBE_NO_LRO”...
-
Page 22: Returning Merchandise For Service
Shipping and handling charges will be applied for all orders that must be mailed when service is complete. For faster service, you can also request a RMA authorization online (http://www.supermicro. com/RmaForm/). - Page 23 (Disclaimer Continued) The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency com- munication devices or other critical systems whose failure to perform be reasonably expected to result in significant injury or loss of life or catastrophic property damage.
