- Page 1 AOC-MHFI-i1C User's Guide Revision 1.0...
- Page 2 Santa Clara County in the State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.
- Page 3 Also known as the Omni-Path Host Fabric Interface (HF), this add-on card is available in SIOM form factor and operates at 100Gbps throughput. The AOC-MHFI-i1C is the most compact and powerful networking adapter in the market today.
- Page 4 AOC-MHFI-i1C Add-on Card User's Guide Conventions Used in the User's Guide Pay special attention to the following symbols for proper system installation and for safety instructions to prevent damage to the system or injury to yourself: Note: Additional information given for proper system setup.
- Page 5 Preface Confidential Supermicro Networking Adapter List Dimension Power Model Type Form Factor Interface Controller Connection (w/o Brackets) (L x H) AOC-SGP-i2 Standard LP PCI-E x4 Intel® i350 AM2 2 RJ45 (1Gb/port) 3.9” (99mm) x 2.73” (69mm) AOC-SGP-i4 Standard LP PCI-E x4 Intel®...
- Page 6 AOC-MHFI-i1C Add-on Card User's Guide Contacting Supermicro Headquarters Address: Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Website: www.supermicro.com Europe Address: Super Micro Computer B.V.
-
Page 7: Table Of Contents
Preface Table of Contents Preface Chapter 1 Overview Overview ......................1-1 Product Highlights ................... 1-1 Technical Specifications .................. 1-2 Optional Parts List ................... 1-4 Available SKUs ....................1-4 Similar Products ....................1-4 Chapter 2 Hardware Components Add-On Card Image and Layout ..............2-1 Major Components .................. -
Page 8: Chapter 1 Overview
Overview Congratulations on purchasing your add-on card from an acknowledged leader in the industry. Supermicro products are designed with the utmost attention to detail to provide you with the highest standards in quality and performance. For product support and updates, please refer to our website at http://www.supermicro.com/ products/nfo/networking.cfm#adapter. -
Page 9: Technical Specifications
AOC-MHFI-i1C Add-on Card User's Guide Technical Specifications General • Super I/O Module (SIOM) Form Factor • PCI-E 3.0 x16 bus interface • End point device type Advanced Interrupts • MSI-X • INTx ASIC • Single Intel® OP HFI ASIC Max Data Rate •... - Page 10 Supported Platforms • Supermicro® motherboards with Super I/O module slot • Supermicro® server systems with Super I/O module slot (See SIOM compat- ibility matrix online) http://www.supermicro.com/support/resources/AOC/AOC_Compatibility_SIOM.cfm Note: This product is only sold as part of an integrated solution with Supermicro server systems.
-
Page 11: Optional Parts List
AOC-MHFI-i1C Add-on Card User's Guide Available SKUs SKUs Part Number Description AOC-MHFI-i1C Single-port Omni-Path Host Fabric adapter AOC-MHFI-i1C BKT-0106L Swappable bracket for 2U+ chassis AOC-MHFI-i1CM Single-port Omni-Path Host Fabric adapter AOC-MHFI-i1CM BKT-0104L Internal bracket Similar Products Product Part Form Speed... -
Page 12: Chapter 2 Hardware Components

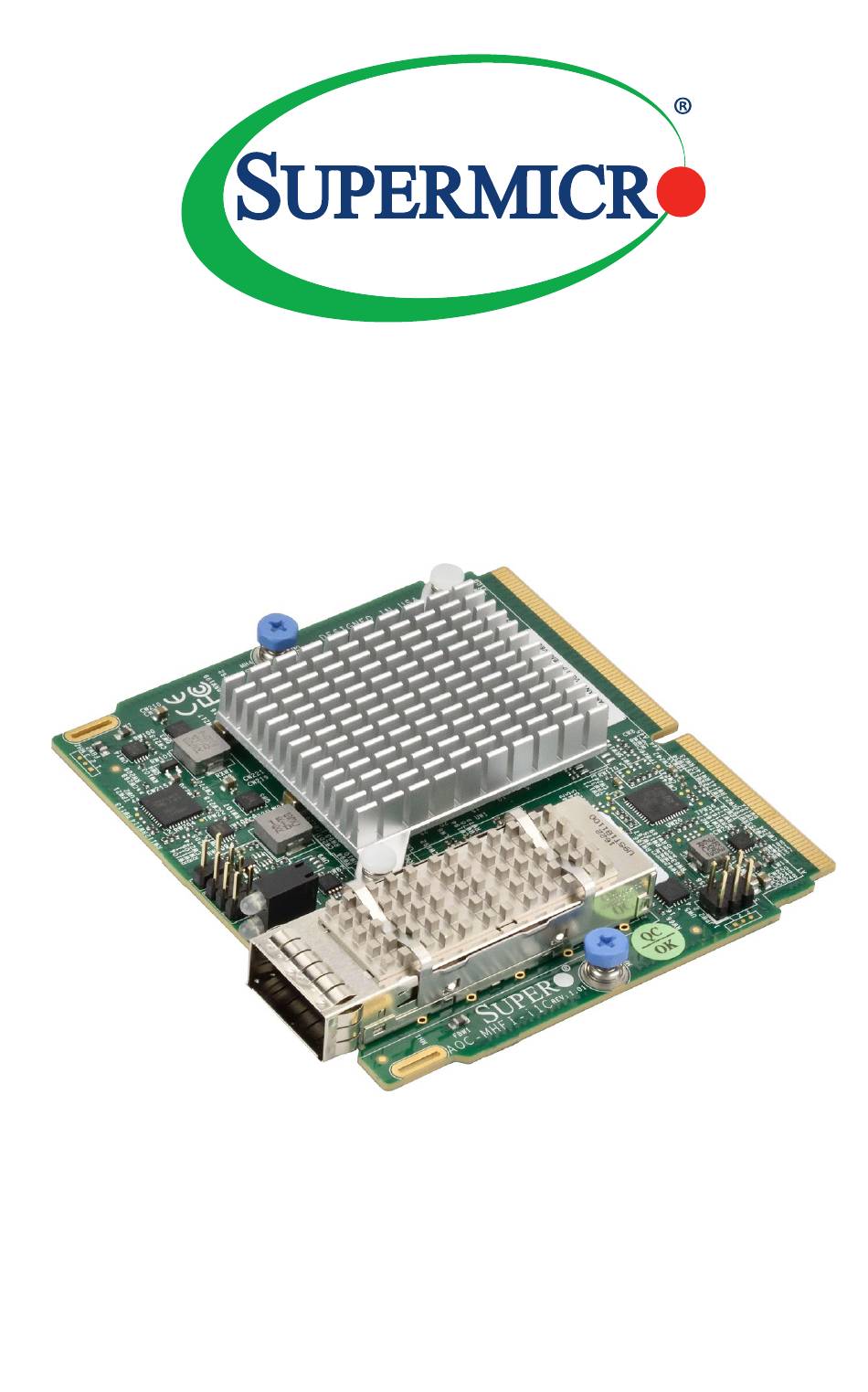

Chapter 2: Hardware Components Chapter 2 Hardware Components Add-On Card Image and Layout The AOC-MHFI-i1C Image JPW1 Intel ASIC JPW2 The AOC-MHFI-i1C Layout 1. Intel ASIC 4. LED Indicator 2. ST Micro MCU 5. ZL8800 Voltage Regulator 3. QSFP28 Port... -
Page 13: Major Components
AOC-MHFI-i1C Add-on Card User's Guide Major Components The following components are on the AOC-MHFI-i1C: 1. Intel ASIC 2. ST Micro MCU 3. QSFP28 port 4. LED indicator 5. ZL8800 voltage regulator 6. ZL8800 Output EN... -
Page 14: Connectors And Led Indicators
Chapter 2: Hardware Components Connectors and LED Indicators QSFP28 Port The AOC-MHFI-i1C has one QSFP28 port located at JW1. This port supports con- nection speeds of 100Gb/s. Use a QSFP28 cable. LED Indicators Each QSFP28 port has a corresponding LED. The AOC-MHFI-i1C has one LED indicator located at DW1. - Page 15 AOC-MHFI-i1C Add-on Card User's Guide ZL8800 Voltage Regulator Programming Header The ZL8800 voltage regulator programming header is located at JPW1 on the AOC card. Use this header to program voltage output. ST Micro MCU Programming Header The ST Micro MCU programming header is located at JPW2. Use this header to program the MCU.
-
Page 16: Chapter 3 Installation
Chapter 3: Installation Chapter 3 Installation Static-Sensitive Devices Electrostatic Discharge (ESD) can damage electronic com ponents. To avoid dam- aging your add-on card, it is important to handle it very carefully. The following measures are generally sufficient to protect your equipment from ESD. Precautions •... -
Page 17: Before Installation
AOC-MHFI-i1C Add-on Card User's Guide Before Installation Before you install the add-on card, follow the instructions below. 1. Power down the system. 2. Unplug the power cord. 3. Use industry-standard anti-static equipment such as gloves or a wrist strap and follow the precautions on page 3-1 to avoid damage caused by ESD. - Page 18 Install the motherboard in the chassis Note: Supermicro recommend that the SIOM card shown above be in- stalled by a system integrator or by the manufacturer. 4. Secure the add-on card to the chassis. If required, use the screws that you previously removed.
-
Page 19: Installing Intel Omni-Path Software On Linux
Path Fabric Software". 4. In the "Available Downloads" list, select the file(s) you need for the OS you have installed on your fabric. If you are using the Supermicro site, select the file to download. Note: There are two types of software that are available. For more infor-... -
Page 20: Intel® Omni-Path Software Installation
Chapter 3: Installation Intel® Omni-Path Software Installation The following procedure installs ULPs and drivers with all default options automati- cally. To customize your installation, please refer to the Intel Release Notes page, which can be found on the Intel® Omni-Path Fabric Software website. Perform the following procedure to install the Intel®... - Page 21 (Disclaimer Continued) The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency com- munication devices or other critical systems whose failure to perform be reasonably expected to result in significant injury or loss of life or catastrophic property damage.
