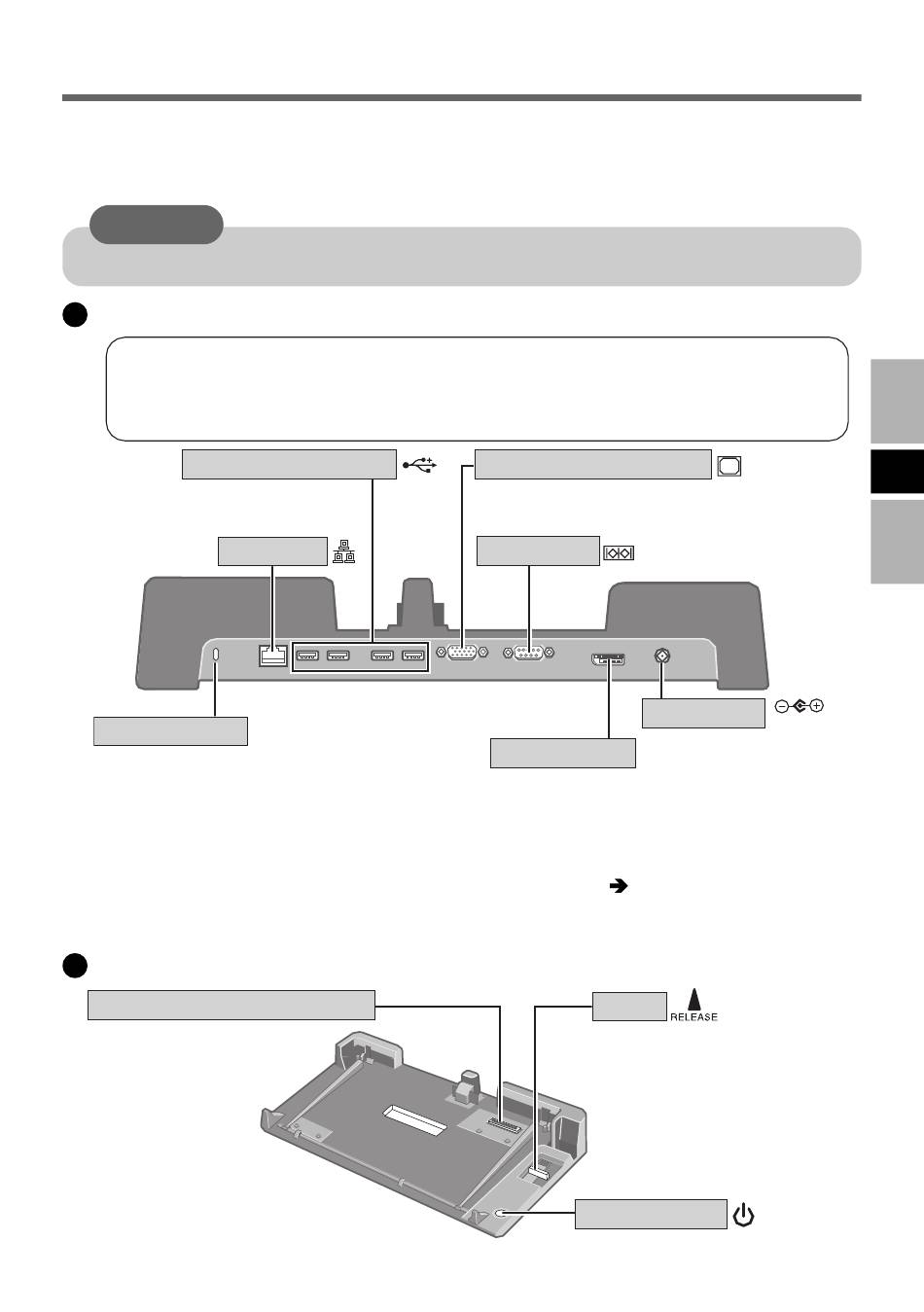

Names and Functions of Parts

The port replicator allows your peripheral devices to function exactly as if they were con-
nected directly to the computer. (Refer to "Description of Parts" in the "Operating Instruc-
tions" accompanying the computer.)
CAUTION
Do not touch the expansion bus connector, pins or springs of the port replicator.
Rear
When using the LAN function with the computer attached to the port replicator,
use the port replicator's LAN Port.
Do not use the computer's LAN Port although it is visible when opening the
cover of the rear of the computer and using the Modem Port.
USB Ports (4 ports)
LAN Port
Security Lock
A Kensington cable can be connected.
For more information, read the manual
that comes with the cable.
1
*
Display may be impossible using some connected external displays. For display switching when an
external display compatible with analog interface and external display compatible with DisplayPort
are connected at the same time, refer to "Switching the Display" (
2
*
Not applicable to <CF-52A/B/C/D series>.
Front/Right Side
Expansion Bus Connector
This connects to the
expansion bus con-
nector on the bottom
of the computer.
LOCK
External Display Port
Connect the external display
compatible with analog interface.
Serial Port
DC-IN Jack
DisplayPort
DisplayPort
Connect the external display
compatible with DisplayPort.
page 10).
Lever
Slide the lever all the way
back to release the computer.
Power Switch
This operates identically to the
power switch on the computer.
1
E
*
DC IN 15.6V
1
2
*
*
7
