- Page 1 L1 Service Manual Communication Ltd. Neon DTEK 50 STH100-1/STH100-2 PRD62980/R188 PRD62981/R189 Rev. Page Neon PRD62980/62981 Level 1 Service Manual 1/30 All rights reserved. Transfer, copy, use or communication of this file is prohibited without authorization.
- Page 2 L1 Service Manual Communication Ltd. Note: this manual is non-contractual and TCL Communication Ltd. can modify it without prior notice on the characteristics of described equipments. 2016/6/14 Preliminary draft Peter Ye Rev. Date Modification description Prepared By Checked By Approved By Rev.
- Page 3 L1 Service Manual Communication Ltd. Rev. Page Neon PRD62980/62981 Level 1 Service Manual 3/30 All rights reserved. Transfer, copy, use or communication of this file is prohibited without authorization.
-
Page 4: Table Of Contents
L1 Service Manual Communication Ltd. Content 1. General ............................. 5 2. Portable Label ..........................9 2.1 IMEI label sample:........................... 9 2.4 Accessory ............................10 2.4.1 Charger ............................ 10 2.4.2 Stereo Headset ........................10 2.4.3 End user USB cable ......................11 2.5 Maintenance policy ........................ -
Page 5: General

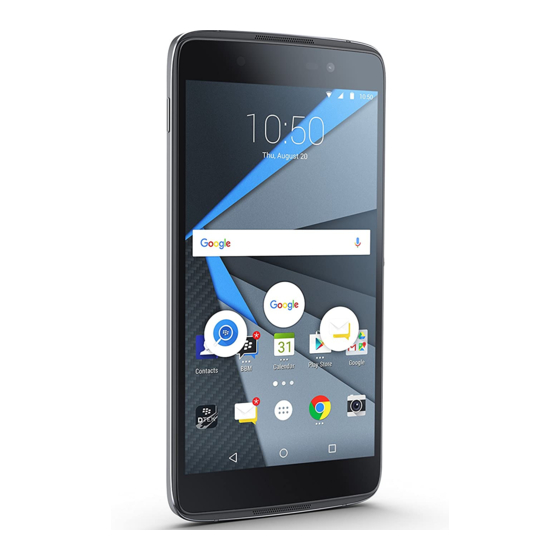

L1 Service Manual Communication Ltd. 1. General Neon PRD–62980/PRD-62981 is a smart phone with MSM8952 platform (4x A53 1.7GHz + 4x A53 1.2GHz), and BT/WLAN/MP3, social network service etc functions. It can work with the GSM850/900/1800/1900, UMTS 1/2/5/8 for Global, and LTE FDD: 1/2/4/5/7/12 USA. Detail features Project name NEON... - Page 6 L1 Service Manual Communication Ltd. NTSC View angle (Degree) Screen to body ratio 80%(TBC) Contrast Ratio(Nominal/Sunlight) >1000:1 Color Reproduction (0.30, 0.32) +/- 0.03 Touch icon backlight LED indicator Touch technology Capacitive (Palm & grip rejection) Touch Points TP Accuracy Edge: 1.5mm; Center: 1mm Border/Bezel Size 1.9mm Full Lamination/ Non-Full...
- Page 7 L1 Service Manual Communication Ltd. Other features AVC, BWE, one touch mix v2, waves Card slot Nano+Nano/SD SIM Card Number SIM Slot 1 4FF (Nano-SIM) SIM Slot 2 4FF(Nano-SIM) or TF card Available Ports TF card slot Hot swap Audio Jack 3.5mm audio jack Charging Port Micro-USB...
- Page 8 L1 Service Manual Communication Ltd. Lens Apeture size f/2.2 Lens (Wide angle/ FOV) 84° Number of Elements 4P Lens Optics Camera Flash Flash type Flash light Video 1080 @30fps Other features Selfie flash Capacity (mAh) 2610 Battery Battery type Softpack Charging Technology 5V2A Wi-Fi / WLAN...
-
Page 9: Portable Label
L1 Service Manual Communication Ltd. 2. Portable Label 2.1 IMEI label sample: Rev. Page Neon PRD62980/62981 Level 1 Service Manual 9/30 All rights reserved. Transfer, copy, use or communication of this file is prohibited without authorization. -
Page 10: Accessory
L1 Service Manual Communication Ltd. 2.4 Accessory 2.4.1 Charger 2.4.2 Stereo Headset Rev. Page Neon PRD62980/62981 Level 1 Service Manual 10/30 All rights reserved. Transfer, copy, use or communication of this file is prohibited without authorization. -
Page 11: End User Usb Cable
L1 Service Manual Communication Ltd. 2.4.3 End user USB cable 2.5 Maintenance policy This chapter describes the maintenance of the Neon PRD62980 series phones authorized at L1 repair center. The maintenance operations can only be performed in approved repair canters.Main L1 maintenance operations are as following: 2.5.1 For handset: Warranty check... -
Page 12: For Standard Accessories (Charger, Headset And Usb Cable)
L1 Service Manual Communication Ltd. 2.5.2 For standard accessories (charger, headset and USB cable) Warranty check Functional check Replacement of defective accessories 2.5.3 If input the following codes on handset, you can: Code Description *#06# Display IMEI number *#2886# Enter Auto Test mode *#3228# Check current software version ###232#... -
Page 13: Cell Phone Maintenance
L1 Service Manual Communication Ltd. 2.6 Cell phone maintenance Equipments for handset test. Handset with full power. One SIM card. It is recommended the following tools: One PC with Windows Windows 7/Windows 10. One ampere meter for charger current test. 2.7 Invoice check 1. -
Page 14: Imei Check
L1 Service Manual Communication Ltd. If IMEI sicker (commercial label) is lost but the phone can be power on, input “*#2886#” at dial mode and then select “MANU” “Traceability” to check date code, IMEI info, CU-REF, PTH(PTM), etc. If the phone can’t power on, please read data code by using Sugar tool. Please refer to SW download process in term 3 for details. -
Page 15: Accessories Inspection
L1 Service Manual Communication Ltd. LCD broken, casing broken, cover broken Dropped. Keypad tear off, LCD lens, connectors fallen off Gap: External physical damage relating to abnormal use, like front case and frame opened Others: Damage caused by disassembly like wrong part assembly, lost of components ... - Page 16 L1 Service Manual Communication Ltd. Press *#2886# in dial screen and then you will see the interface displaying the SW version. Select “Auto” to start the auto test, or select “MANU” to do the MMI test manually. If one of the tests failed during “Auto” test mode, it will show “Failed: XXX”, press “Next” to go on test and press “END”...
- Page 17 L1 Service Manual Communication Ltd. You will see the LCD display three colors: RED, GREEN and BLUE if it functions well; Press “Pass” to continue; III. You will see the LCD displays grey level if it functions well; Press “Pass” to continue; You will see the LCD displays black if it functions well;...
- Page 18 L1 Service Manual Communication Ltd. Camera LED will turn on if it functions well; Press “Pass” to continue. Charge Led I. The charge LED(LED1&LED2& front LED) will turn on if it functions well; II. Press “Pass” to continue. Hall I.
- Page 19 L1 Service Manual Communication Ltd. XI. Make a noise near the SEC MIC, you will hear it from the bottom receiver if it functions well; XII. Press “Pass” to continue. Vibrator You can feel the phone’s vibrating if it functions well; Press “Pass”...
- Page 20 L1 Service Manual Communication Ltd. IV. Press “Pass” to continue; V. Make a noise near the headset mic, you will hear it from headset if it functions well; VI. Press “Pass” to continue; VII. Remove headset according to the instruction and press “Pass” to continue. ...
- Page 21 L1 Service Manual Communication Ltd. III. The compass will always point north whatever the phone is put at which direction if it functions well; IV. Press “Pass” to continue. Light Sensor I. It will show the value of ambient light and the value will change according to the phone’s environment (Bright or Dark), then it will say “dark: OK”, “bright: OK”...
- Page 22 L1 Service Manual Communication Ltd. Press “Pass” to continue. Bluetooth Bluetooth will search automatically and it will display device address if it functions well; Press “Pass” to continue. WIFI I. It will search for WIFI hotspot and it will display searched result on the screen if it functions well;...
-
Page 23: Software Download
L1 Service Manual Communication Ltd. I. it auto check the phone has been written Efuse or not. Normally, Mobile Efuse show Enable is pass II. press “Pass” HDCP Key Check I. It auto check the phone has written KDCP key or not. Normally, the phone show like this is pass 3. -
Page 24: Equipments Requested When Download
L1 Service Manual Communication Ltd. 3.1 Equipments requested when download： ⑴ A handset with full power; ⑵ PC with windows system; ⑶ A USB cable. 3.2 Install of download Tool 1. get the Driver install Exe from TS Website: https://css.tclmobile.cn/. 2, press Power on + volume down key at the same time, then the phone entry the fastboot mode like Then use USB cable connect the phone to PC below picture. - Page 25 L1 Service Manual Communication Ltd. Rev. Page Neon PRD62980/62981 Level 1 Service Manual 25/30 All rights reserved. Transfer, copy, use or communication of this file is prohibited without authorization.
-
Page 26: Sw Download Process
L1 Service Manual Communication Ltd. 3.3 SW download process I. Power off the handset. II. press Power on + volume down key at the same time, then the phone entry the fastboot mode(below Then use USB cable connect the phone to PC picture), III.Open the Engineering software download tool. - Page 27 L1 Service Manual Communication Ltd. Click the Download.—download ongoing as below picture Download finish- one port and multi-port Rev. Page Neon PRD62980/62981 Level 1 Service Manual 27/30 All rights reserved. Transfer, copy, use or communication of this file is prohibited without authorization.
- Page 28 L1 Service Manual Communication Ltd. 3.4 Kill switch tool introduce Kill switch tool is provided by Blackberry, if BBRY has deploy this tool for you, then you can use Rev. Page Neon PRD62980/62981 Level 1 Service Manual 28/30 All rights reserved. Transfer, copy, use or communication of this file is prohibited without authorization.
- Page 29 L1 Service Manual Communication Ltd. Rev. Page Neon PRD62980/62981 Level 1 Service Manual 29/30 All rights reserved. Transfer, copy, use or communication of this file is prohibited without authorization.
- Page 30 L1 Service Manual Communication Ltd. If you have any question or problem, please feel free to contact us (tct_gcc_techSupport@tcl.com) . Thanks for your cooperation. TCL Communication Ltd. Global Customer Service TS Dept. Jun.5 , 2016 Rev. Page Neon PRD62980/62981 Level 1 Service Manual 30/30 All rights reserved.
