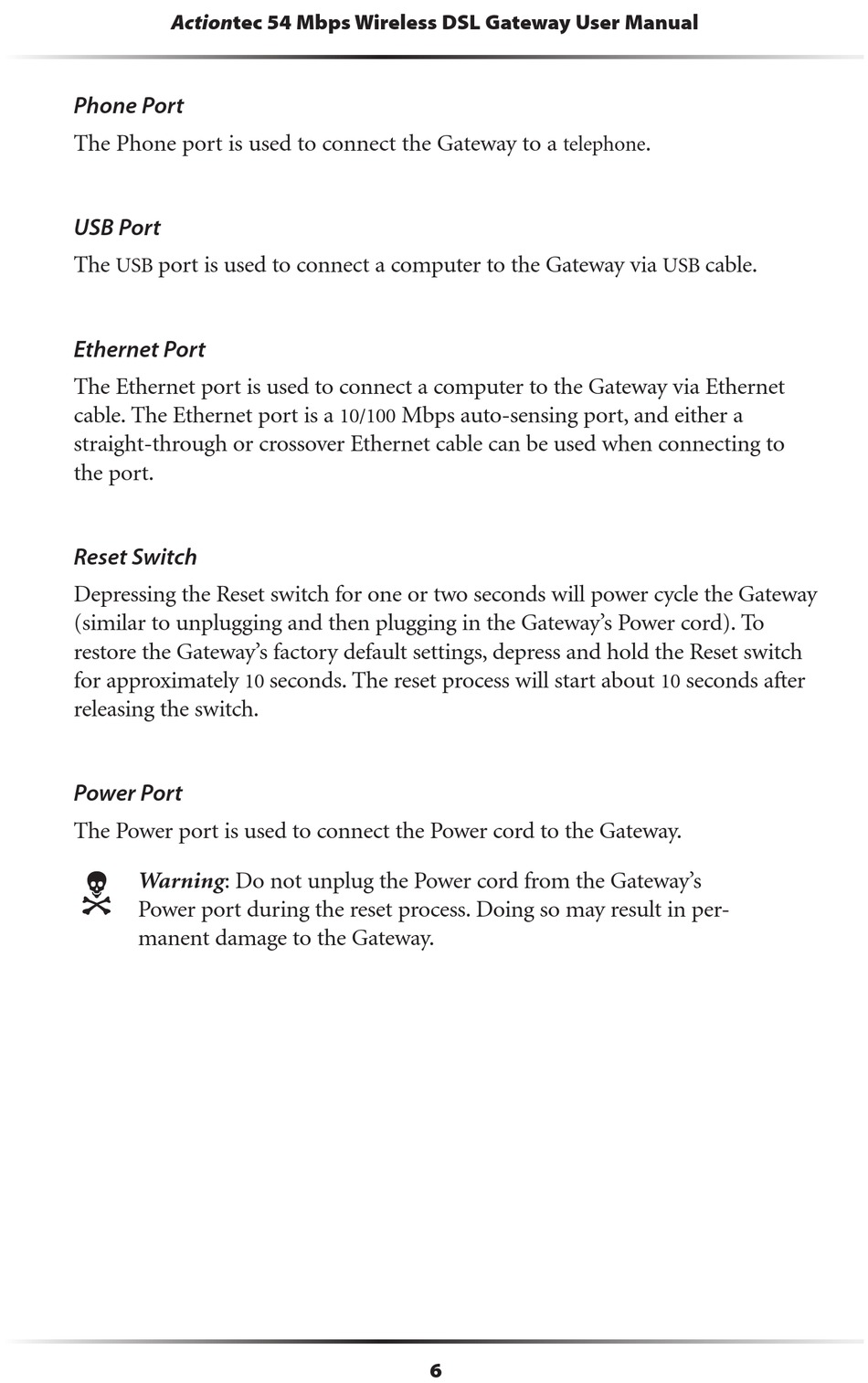

Actiontec 54 Mbps Wireless DSL Gateway User Manual
Phone Port
The Phone port is used to connect the Gateway to a
USB Port
The port is used to connect a computer to the Gateway via
USB
Ethernet Port
The Ethernet port is used to connect a computer to the Gateway via Ethernet
cable. The Ethernet port is a
straight-through or crossover Ethernet cable can be used when connecting to
the port.
Reset Switch
Depressing the Reset switch for one or two seconds will power cycle the Gateway
(similar to unplugging and then plugging in the Gateway's Power cord). To
restore the Gateway's factory default settings, depress and hold the Reset switch
for approximately
releasing the switch.
Power Port
The Power port is used to connect the Power cord to the Gateway.
N
Warning: Do not unplug the Power cord from the Gateway's
Power port during the reset process. Doing so may result in per-
manent damage to the Gateway.
Mbps auto-sensing port, and either a
10/100
seconds. The reset process will start about
10
telephone
6
.
cable.
USB
seconds after
10
