Getting to Know the Gateway

This section contains a quick description of the Gateway's lights, ports, etc.
The Gateway contains several indicator lights (
of ports on its rear panel.

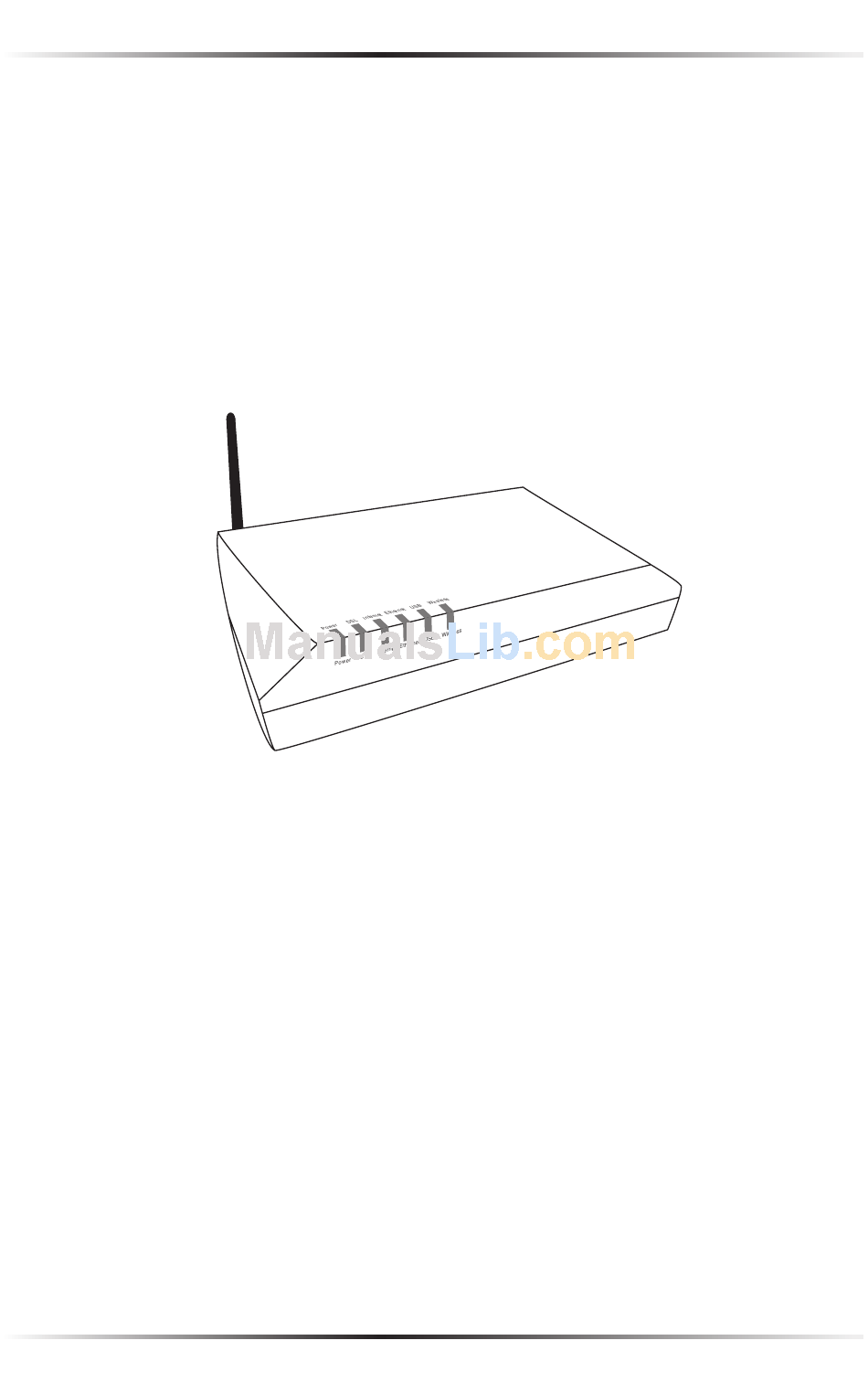

Front Panel
The front panel of the Gateway features six lights: Power,
Ethernet, , and Wireless.
USB
Power Light
The Power light displays the Gateway's current status. If the Power light glows
steadily green, the Gateway is receiving power and fully operational. When the
Power light flashes rapidly, the Gateway is initializing. If the Power light is not
illuminated when the Power cord is plugged in, the Gateway has suffered a criti-
cal error and technical support should be contacted.
DSL Light
The light illuminates when the Gateway is connected to a
DSL
s) on its front panel and a series
LED
DSL
4
, Internet,
line.
DSL
