BlastIR Wireless

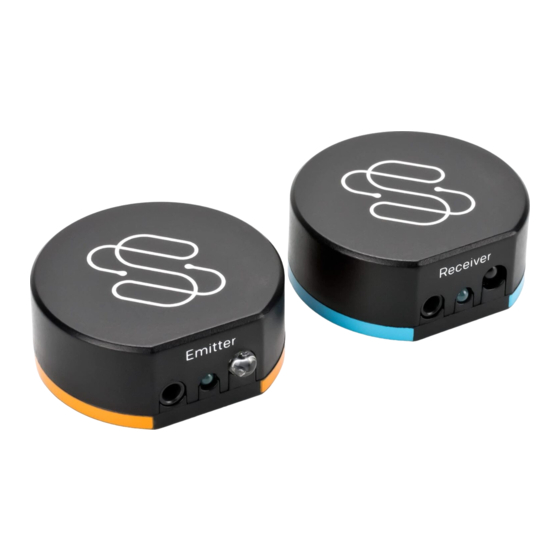

The BlastIR Wireless is designed to get your remote
control's signal where it needs to go. Control your
home theater video sources like Blu-Ray, DVD,
video players and receivers, and anything else that
uses a standard IR remote control through walls and
other obstructions by extending the IR signal wirelessly
with this kit. With our unique Multizone technology, you
have even more control over where you want your IR
signals to go and where not to go.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BlastIR Wireless and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sewell BlastIR Wireless

Summary of Contents for Sewell BlastIR Wireless

  • Page 1 BlastIR Wireless The BlastIR Wireless is designed to get your remote control's signal where it needs to go. Control your home theater video sources like Blu-Ray, DVD, video players and receivers, and anything else that uses a standard IR remote control through walls and other obstructions by extending the IR signal wirelessly with this kit.

  • Page 2: Box Contents

    Box Contents BlastIR Wireless IR Receiver BlastIR Wireless IR Emitter Dual IR Emitter Cable IR Receiver Cable (2) Airstick™ Microsuction Tape (2) 3M Adhesive (2) 5V .5A Power Supply (2) USB to DC Cable...
  • Page 3 Setup: Step One Insert power cable here on both units Connect each unit to power using either the included power supplies or the USB to DC cables. It is easy to mistake the IR cable port on the front for the power port. Please ensure that the power adapter is plugged into the appropriate port at the back.
  • Page 4 Setup: Step Two Place the blue unit next to your display.
  • Page 5 Setup: Step Three Place the orange unit in front of the device that you wish to control. Ensure that the IR emitter has a clear line of sight to the IR “eye” of your device.
  • Page 6 Optional IR Cables IR Receiver IR Emitter Cable Cable If you want to extend the reach or hide the receiver or emitter, connect the appropriate color-coded cable to the device. The blue IR receiver cable will add another receiver you can point your remote at.
  • Page 7 *Please carefully line up when placing. To keep the BlastIR Wireless in one place, we have included Airstick™ and 3M™ adhesive. Airstick™ is used as pictured above and it is designed to be reusable and leave no residue. The 3M™ adhesive is used the same...

  • Page 8: Multi Zone

    Wireless Emitters that are set to the same zone. The Blast IR Wireless supports up to ten unique zones of communication. Setting the zone to “0” will allow communication to previous models of the BlastIR Wireless. After changing the zone, please reset the device.

  • Page 9: Possible Setups

    Possible Setups...

  • Page 10: Port Diagram

    Port Diagram Status LED Status LED Optional IR Optional IR emitter cable receiver cable port port Built-in Built-in IR Emitter IR Receiver...

  • Page 11: Fcc Statement

    - Using equipment or parts not meeting the product’s specifications may cause damage, deterioration or malfunction. - Refer all servicing to qualified service personnel at Sewell Direct. - To prevent fire or shock hazard, do not expose the unit to rain, moisture or install this product near water.

  • Page 12: Need Help

    Need Help? Phone 800. 709. 1345 Email support@sewelldirect.com Chat sewelldirect.com/support Live support available Monday through Friday 9AM-8PM EST If you have anything less than a 5-star experience, please let us be the first to know and we’ll make it right! sewelldirect.com/support...
