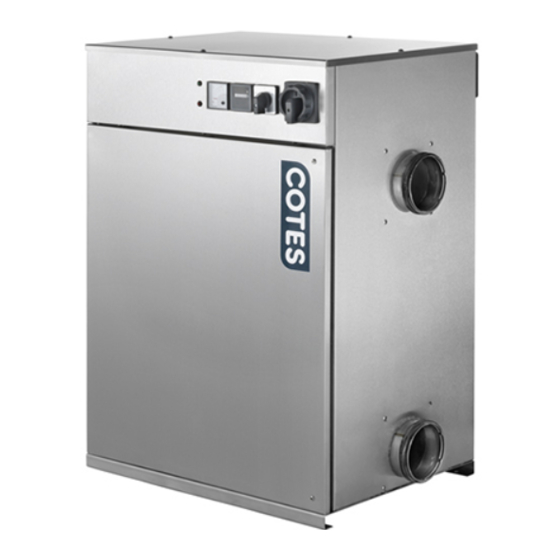

Cotes CR100 Installation And Instruction Manual
  1. Manuals
  2. Brands
  3. Cotes Manuals
  4. Dehumidifier
  5. CR100
  6. Installation and instruction manual

Cotes CR100 Installation And Instruction Manual

Hide thumbs

Advertisement

Table of Contents

C
TES
INSTALLATION AND INSTRUCTION MANUAL
FOR CR100 DEHUMIDIFIER.
PRODUCTION NUMBER :
STOCK NUMBER: 100002
DOCUMENT NO. 100.05E
04.05.00
H
B
D
E
Postgiro:
466-0722
CVR-nr./VAT-no.:
15 20 03 32
PAGE
CONTENTS :
1
1.
Principle of operation
3
2.
Applications
4
3.
Dimensions, in and outlet connections
5
4.
Technical data, specifications
6
5.
Components diagram, main components
8
6.
Capacity diagram
7.
Electric features :
9
7.1 Scematic electrical diagram
10
7.2 Wiring in cabinet
11
7.3 Power line filter
12
7.4 Electric components
12
7.5 Connection of humidistat
12
7.6 Electric connection, energy consumption
13
8.
Installation
14
9.
Start-up procedure
15
10.
Maintenance
15
11.
Trouble shooting
16
12.
Service/repair
16
12.1 Safety instructions
16
12.2 Access to service/repair
16
12.3 Replacing of process air fan
16
12.4 Replacing of reg.-air fan
17
12.5 Replacing of rotor and heater
17
13.
Sound data
H
U
M
I
D
I
Bank:
Caspar Brands Plads 9, 4220 Korsør
& air flows.
F
I
C
A
T
I
Danske Bank
Konto/Acc:
Swift:
HB COTES A S
O
N
S
Y
S
Internet:
3212 3212298972
E-mail:
DABADKKK
Værkstedsvej
5
DK-
Skælskør
4230
Tel +
45 58 19 63 22
Fax +
45 58 19 58 44
T
E
M
S
www.hbcotes.com
dehum@hbcotes.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CR100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cotes CR100

Summary of Contents for Cotes CR100

  • Page 1 HB COTES A S Værkstedsvej Skælskør 4230 Tel + 45 58 19 63 22 Fax + 45 58 19 58 44 INSTALLATION AND INSTRUCTION MANUAL FOR CR100 DEHUMIDIFIER. PRODUCTION NUMBER : STOCK NUMBER: 100002 DOCUMENT NO. 100.05E PAGE CONTENTS :...

  • Page 2: Principle Of Operation

    - the diagram shows then dry air condition of X= 3,9 g/kg - removed per kg air is then: 8,7 - 3,9 = 4,8 g/kg Capacity of CR100 at this condition: Dry air flow is nominal 100 m3/h = (x 1,2) = 120 kg/h...

  • Page 4: Applications

    Page 3 2. APPLICATIONS. Dehumidifiers in the CR range is used for dehumidification of ambient air at normal atmospheric pressure. This can be an installation for moisture control in an unheated store room, in a water work building, production room for hygro- scopic materials...

  • Page 6: Further Specifications

    Page 5 4. TECHNICAL DATA, SPECIFICATIONS CR100. Dry air, free blowing ..: 140 m3/h Dry air, nominal ....: 100 m3/h Reg.-air, nominal ..... : 35 m3/h External pressure, dry air ..: 110 Pa External pressure, reg.-air ... : 50 Pa Capacity at 20C, 60 %RH ..
  • Page 8 Page 7 COMPONENTS DIAGRAM, CR100. (ref. to drawing R353) PCS. DESCRIPTION. Terminals Am.meter, 10A Selector switch, man.,0, aut. Hour counter Reg.-air fan Process air fan Motor for gear Gear, Saia J1M PTC heater Rotor, SG 220/50, Cotes Pulley, SPZ 63-1 Drive belt, Ø6/805...

  • Page 13: Power Line Filter

    Page 12 7.4 ELECTRIC COMPONENTS, CR100. Refers to electric diagrams: R1558 .. : Power and supply circuit R1998 .. : Wiring R1057 .. : Power line filter 110215: Selector switch, Manual, 0, Automatic. Sälzer M220-61025-019M. 20A. 111833: Relay, Finder 60.13, 11P, 230V/50, 10A AC1 110400: Motor for gear, 230V/50, Saia UFR40.230,...

  • Page 14: Installation

    Page 13 7.6 ELECTRIC CONNECTION. The dehumidifier CR100 is connected 230V, 1N+PE. The dehumi- difier is supplied with a 2m cable for the power supply. Power consumption is 1,0KW, external fuses 10A. This cable is connected to the internal terminals placed in the compartment under the top cover.

  • Page 15: Start-Up Procedure

    Page 14 NB : If the dehumidifier should be connected to another air treatment system, the air pressure of this system will influence the dehumidifier. You should then contact your supplier before installation for advice. 9. START-UP PROCEDURE. 9.1 ELECTRIC. Before starting-up the dehumidifier, check that all electric connections are made correctly.

  • Page 16: Maintenance

    - controlled by an external humidistat. MAINTENANCE. Dehumidifier CR100 only needs a minimum of maintenance. All components are service free, which means no lubrication or adjustment. Only three things should be checked under normal operati- - air filters should be replaced at least every 2.

  • Page 17: Service/Repair

    Page16 11.2 If the dehumidifier is not operating it is probably the external humidistat which has broken. This is a normal situation when the desired humidity is obtained. To check : adjust the humidistat for 20 %RH, and the dehumidifier should start operating. Adjust again for the desired humidity.

  • Page 18: Sound Data

    The sound level is the measured 1m outside the front of the cabinet, and 1,6m above the floor. The Sound level is : 50 dB(A). MANUFACTURED BY : HB COTES A/S Værkstedsvej 5 DK-4230 Skælskør. Phone +45 58 19 63 22 +45 58 19 58 44 www.hbcotes.com...
