Mounting The Switch On A Desktop - 3Com Switch 4210 Series Getting Started

24 C 2: I
HAPTER NSTALLING THE
Mounting the Switch
on a Desktop
S
WITCH

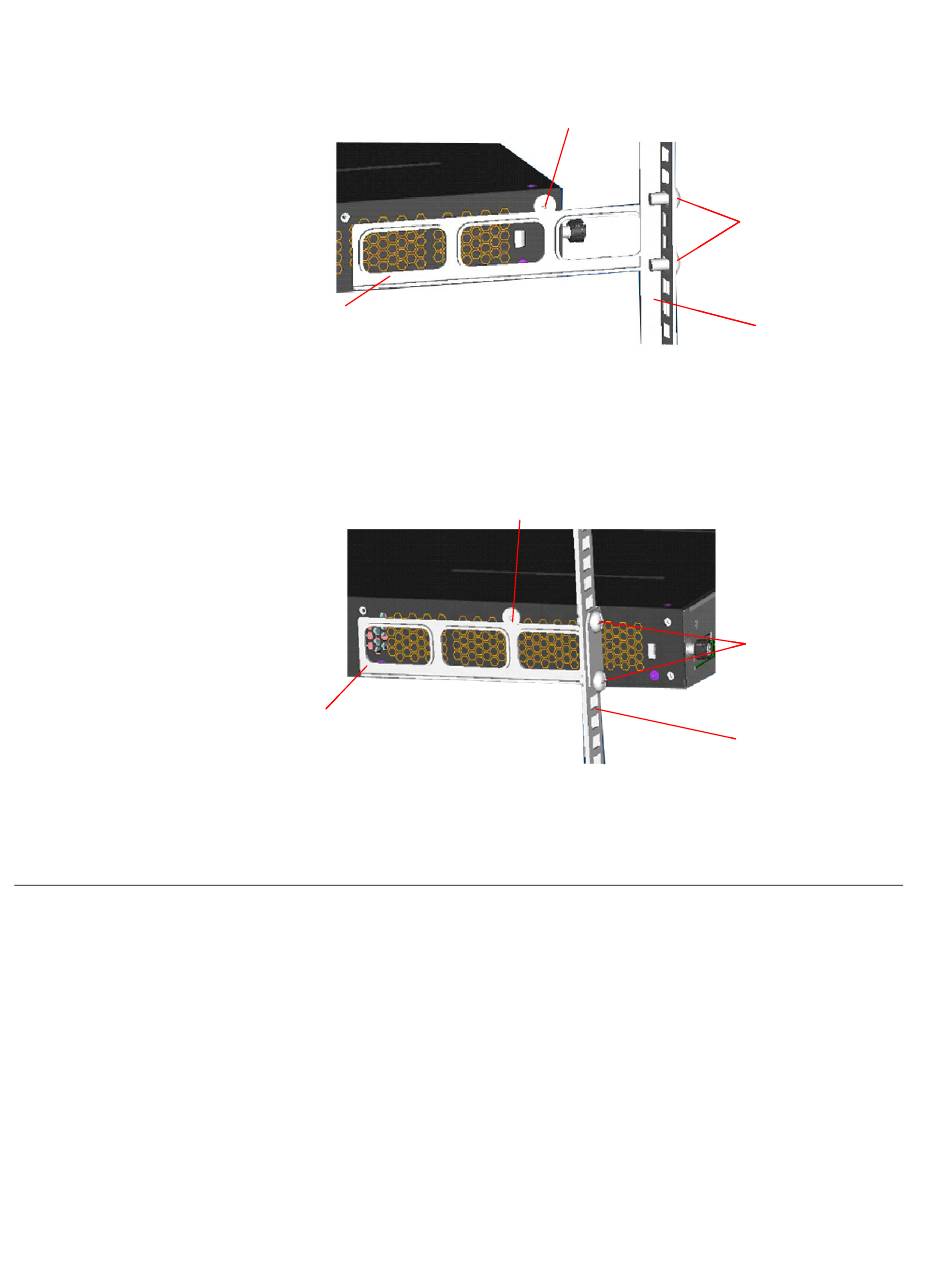

Figure 20 Installation completed 1
Rear bracket Rear bracket
Screw 1: Fix the rear bracket to the mount
angle.
Figure 21 Installation completed 2
Rear bracket Rear bracket
Screw 1: Fix the rear bracket to the mount
angle.
In many cases, standard 19-inch racks are not available. Therefore, switches are
often placed on a desktop. To place your switch on a desktop, you simply need to:
Make sure that the surface is clean, flat, and sturdy.
■
Makes sure that the environment is well ventilated and allow 10 cm (3.9 in.) of
■
space around the chassis for heat dissipation.
Do not place heavy objects on your switch.
■
When stacking, the vertical distance between two switches must be at least 1.5
■
cm (0.59 in).
Screw 2 Screw 2
Screw 2 is mounted to the switch.
Screw 2 Screw 2
Rear mount angle Rear mount angle
Screw 2 is mounted to the switch.
Screw 1 Screw 1
Rear mount Rear mount
angle angle
Screw 1 Screw 1
