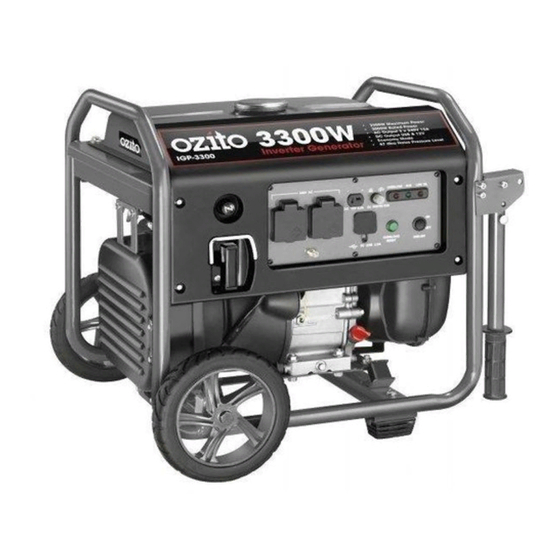

- Page 1 INVERTER GENERATOR 3300W ASSEMBLY & SAFETY WARNINGS IGP-3300 1116...
- Page 2 KNOW YOUR PRODUCT TOOLS & ACCESSORIES 18. O/E Spanners - 2 x 8x10mm, 21. Convertable Screwdriver INVERTER GENERATOR 1 x 16x18mm, 1 x 17x19mm 22. Battery Charging Cable 1. Frame 10. Battery Charging Socket 19. T-Spanner 23. Spark Plug Wrench 2.
- Page 3 ASSEMBLY Fitting the Support Feet 1. Insert the support foot bolt WARNING! DURING ASSEMBLY ENSURE THE GENERATOR IS with the hole in the base of SWITCHED OFF. the frame. Fasten the support foot in position with the support foot nut. 1.
- Page 4 ELECTRICAL SAFETY 4. To raise or lower the handle, press and hold the handle release as you adjust the PRESS PRESS handles posistion. WARNING! When using mains-powered tools, basic safety precautions, including the following, should always be followed to reduce risk of fire, electric shock, personal injury and material damage. Read the whole manual carefully and make sure you know how to switch the tool off in an emergency, before operating the tool.
- Page 5 WARNING! Do not parallel connect other cables to receptacles, use special jack, or it may cause an electrical RISK OF FIRE shock. WARNING! The muffler becomes very hot during operating and remains hot for a while after stopping the engine. Be careful not to touch the muffler while it is hot. Let the engine cool before storing the generator indoors.
- Page 6 RISK OF INJURY AND PROPERTY DAMAGE RISK FROM LIFTING WHEN TRANSPORTING GENERATOR Hazard What could happen How to prevent it Lifting a very heavy Serious injury can result from When lifting, always keep the Hazard What could happen How to prevent it attempting to lift a heavy object.
- Page 7 Page 12...
- Page 8 Support Feet Weight: 37kg ozito.com.au Tools & Accessories IGP-3300 WARRANTY IN ORDER TO MAKE A CLAIM UNDER THIS The benefits provided under this warranty are in addition to other rights and remedies which are available to you at law. WARRANTY YOU MUST RETURN THE PRODUCT...
- Page 9 KNOW YOUR PRODUCT SETUP & PREPARATION INVERTER GENERATOR 1. LUBRICATION 1. Frame 10. AC Socket x 2 2. Choke 11. Battery Charging Socket 3. Recoil Starter 12. DC Circuit Breaker Reset Checking the Oil 4. Fuel Tank Cap 13. States LED’s 5.
-
Page 10: Starting The Engine
OPERATION 2. FUEL 3. STARTING & STOPPING Preparing to Start WARNING! PETROL IS VERY FLAMMABLE. DO NOT SMOKE OR CAUSING ANY SPARKS OR FLAMES NEAR Before starting the engine, disconnect all appliances from the FUEL. MAKE SURE THAT YOU STOP THE ENGINE generator. -
Page 11: Stopping The Engine
4. CONTROL PANEL Stopping the Engine Run Indicator LED Before stopping the engine, turn of any equipment. ¥ The power indicator LED (green) illuminates when power is available to outputs. 1. Switch off engine by moving the engine switch to the OFF position. Overload Indicator LED 2. - Page 12 AC and DC. An overloaded DC circuit will trip the DC circuit breaker. If this happens, disconnect the DC load before pushing in the circuit breaker to resume operation. When reconnecting appliances, reduce the load which previously overloaded the generator. IGP-3300...
- Page 13 MAINTENANCE The purpose of the maintenance and adjustment schedule is to keep 4. CONTROL PANEL cont. the generator in the best operating condition. Inspect or service as scheduled in the table below. USB Outlet WARNING! SHUT OFF THE ENGINE BEFORE PERFORMING ANY MAINTENANCE.
- Page 14 TRANSPORTING & STORAGE Air Filter Service When Transporting Generator A dirty air cleaner will restrict air flow to the carburettor. To prevent ¥ When transporting a short distance, carburettor malfunction, service the air cleaner regularly. Service more it is advised that you use the frequently when operating the generator in extremely dirty areas.
- Page 15 Spare parts can be ordered from the Special Orders Desk at your local Bunnings Warehouse. For further information, or any parts not listed here, visit www.ozito.com.au or contact Ozito Customer Service: Australia 1800 069 486 New Zealand 0508 069 486...
- Page 16 IGP-3300 1. The IGP-3300 is a 4 stroke 2. Remove the fuel cap and pour 3. Unscrew the dipstick and fill Generator and before starting unleaded petrol (91 RON). Do not the oil tank until it reaches the requires... overfill the fuel tank, check the max indicator on the dipstick.
