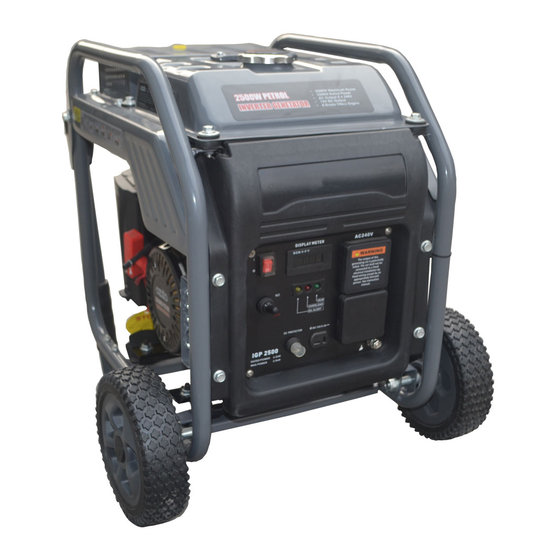

Petrol inverter generator
Hide thumbs Also See for IGP-2500:

Advertisement

PETROL INVERTER
GENERATOR
2500W
ASSEMBLY &
SAFETY WARNINGS
IGP-2500
0218

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IGP-2500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ozito IGP-2500

  • Page 1 PETROL INVERTER GENERATOR 2500W ASSEMBLY & SAFETY WARNINGS IGP-2500 0218...
  • Page 2 KNOW YOUR PRODUCT INVERTER GENERATOR 1. Frame 11. Fuel Tap 2. Choke 12 Display Meter 3. Recoil Starter 13. DC Overload Reset 4. Fuel Gauge 14. Engine On/Off Switch 5. Fuel Tank Cap 15. RCBO / AC Power Switch 6. Control Panel 16. 12Volt DC Outlet 7.
  • Page 3 TOOLS & ACCESSORIES 19. Oil Filler Bottle 22. Spare Spark Plug 20. Battery Charging Cable 23. Generator Oil 21. Spark Plug Wrench CONTENTS Know Your Product............Page 2-3 Assembly Procedure............Page 4-6 Safety Warnings for Generators........Page 7-12 Page 3...
  • Page 4 ASSEMBLY WARNING! DURING ASSEMBLY ENSURE THE GENERATOR IS SWITCHED OFF. 1. Carefully remove contents from the packaging. 2. Select a firm, level surface on which to assemble the generator. Fitting the Wheels 1. A ssemble one wheel onto the large diameter end of the wheel shaft, ensuring the side of the wheel with the raised centre faces the middle of the shaft. Place the washer into the wheel hub and then screw the bolt tightly into the wheel shaft. You can then place the wheel cap over the bolt head. 2. I nsert the other end of the wheel shaft through the mounting holes in the frame and tighten the nut onto the shaft using 15mm and 17mm spanner. Note: Do not over tighten this nut causing the wheel to not rotate.
  • Page 5 Fitting the Support Feet 1. Place the support foot under the frame aligning with the holes in the side frame. Insert the support foot bolts through the holes and fasten tightly with the nut. 2. R epeat this step with the second support foot on the other side. Fitting the Transport Handles 1.
  • Page 6 4. T he transport handle will pivot allowing it to hang out of the way when not in use. These handles can be used to transport the generator easily. Page 6...
  • Page 7 GENERAL POWER TOOL SAFETY WARNINGS NOTE: The following warnings apply when using power tools with the generator supply. WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains- operated (corded) power tool or battery-operated (cordless) power tool. 1.
  • Page 8: Electrical Safety

    ELECTRICAL SAFETY WARNING! When using mains-powered tools, basic safety precautions, including the following, should alwaysbefollowedtoreduceriskoffire,electricshock,personalinjuryandmaterialdamage. Read the whole manual carefully and make sure you know how to switch the tool off in an emergency, before operating the tool. Save these instructions and other documents supplied with this tool for future reference. The petrol generator has been designed to output 240V only. Always check that the power supply corresponds to the voltage on the rating plate. Note: The supply of 230V and 240V tools are interchangeable for Australia and New Zealand. Using an Extension Lead Always use an approved extension lead suitable for the power output from this generator. Before use, inspect the extension lead for signs of damage, wear and ageing. Replace the extension lead if damaged or defective. When using an extension lead on a reel, always unwind the lead completely. Use of an extension lead not suitable for the power input of the tool or which is damaged or defective may result in a risk of fire and electric shock. It is recommended at a minimum that 1.5mm Heavy Duty extension leads are used with the Generator and that the length is kept as minimal as possible to prevent power loss. All extension leads must incorporate an earthing conductor to ensure that there is no voltage difference between the generating set and any equipment powered by the generating set.
  • Page 9 • T he electrical continuity of the ‘earthing’ core should be checked periodically from pin to socket to ensure continued electrical safety. • S ome electrical appliances, e.g. portable drills, are marked or ‘double insulated’, in which case there will not be an earthing conductor in its mains lead (even though it may have a 3-pin plug). • M aintain normal safety precautions with appliances and accessories as for use on normal reticulated normal supply. • L ocate set in convenient place, avoiding long extension leads and possible damage to leads by pedestrian or vehicular traffic. WARNING! Do not parallel connect other cables to receptacles, use special jack, or it may cause an electrical shock. WARNING! Themufflerbecomesveryhotduringoperatingandremainshotforawhileafterstoppingthe engine.Becarefulnottotouchthemufflerwhileitishot.Lettheenginecoolbeforestoringthegeneratorindoors. WARNING! Exhaustcontainspoisonouscarbonmonoxide.Donotoperategeneratorinconfinedarea.Besure to operate the generator in a well-ventilated environment or with an aerator.
  • Page 10: Risk Of Fire

    RISK OF FIRE Hazard What could happen How to prevent it Attemptingtofill Fuel and fuel vapours can Turn engine off and allow it to become ignited by coming in cool before adding fuel to the the fuel tank while contact with hot components tank. Equip area of operation the engine such as the muffler, engine with a fire extinguisher certified is running...
  • Page 11: Risk Of Electrocution And Fire

    RISK OF ELECTROCUTION AND FIRE Hazard What could happen How to prevent it Improper storage of Extension cord can come into contact with Remove extension cord from the generator extension cord. hot engine parts resulting in damage. Using and store separately away from generator. a damaged extension cord can result in electrocution or death.
  • Page 12: Risk Of Hot Surfaces

    RISK OF INJURY AND PROPERTY DAMAGE WHEN TRANSPORTING GENERATOR Hazard What could happen How to prevent it Fuel or oil can leak or spill and Transport fuel only in an Fire, Inhalation, could result in fire or breathing approved fuel container. Always Damage to Vehicle hazard, serious injury or death place generator on a protective Surfaces can result.
  • Page 13 Weight: 26kg Generator Oil ozito.com.au Tools & Accessories IGP-2500 WARRANTY IN ORDER TO MAKE A CLAIM UNDER THIS The benefits provided under this warranty are in addition to other rights and remedies which are available to you at law. WARRANTY YOU MUST RETURN THE PRODUCT...
  • Page 14 KNOW YOUR PRODUCT SETUP & PREPARATION INVERTER GENERATOR 1. Frame 11. Fuel Tap 1. LUBRICATION 2. Choke 12 Display Meter 3. Recoil Starter 13. DC Overload Reset 4. Fuel Gauge 14. Engine On/Off Switch Checking the Oil 5. Fuel Tank Cap 15.
  • Page 15: Starting The Engine

    OPERATION 2. FUEL 3. STARTING & STOPPING Preparing to Start WARNING! PETROL IS VERY FLAMMABLE. DO NOT SMOKE OR CAUSE ANY SPARKS OR FLAMES NEAR Before starting the engine, disconnect all appliances from the FUEL. MAKE SURE THAT YOU STOP THE ENGINE generator. AND ALLOW IT TO COOL BEFORE REFUELLING THE GENERATOR.
  • Page 16: Stopping The Engine

    SHUT OFF THE POWER WHEN THE TEST BUTTON IS • Substantial overloading that continuously lights the overload PRESSED, DO NOT USE THE GENERATOR. IF THIS indicator light (red) may damage the generator. Marginal OCCURS, SHUT THE GENERATOR DOWN AND CONTACT overloading that temporarily lights the overload indicator LED (red) OZITO CUSTOMER SERVICE. may shorten the service life of the generator. Stop the engine if the overload indicator light (red) switches ON and investigate the overload source. Overload Reset Stopping the Engine If the overload switch has tripped and cuts off the power, be sure that Before stopping the engine, turn off any equipment.
  • Page 17 1300W AC power is in use. If you use both at the Refrigerator 700W 2000W same time, be sure not to exceed the total Water Pump 800W 2000W power for AC and DC. An overloaded DC circuit will trip the DC circuit breaker. If this Air Compressor (1HP) 1100W 4000W happens, disconnect the DC load before Circular Saw 1200W 2100W pushing in the ‘DC Overload Reset’ button to Heater 2000W 2000W resume operation. Mitre Saw 2100W 3200W When reconnecting appliances, reduce the load which previously Electric Stove 2400W 2400W overloaded the generator. *Table details are approximate. Always check your appliance for the accurate wattage. IGP-2500...
  • Page 18 MAINTENANCE Oil Change The purpose of the maintenance and adjustment schedule is to keep the generator in the best operating condition. Drain the oil while the engine is still warm to ensure rapid and complete Inspect or service as scheduled in the table below. draining. WARNING! SHUT OFF THE ENGINE BEFORE WARNING! MAKE SURE TO TURN THE ENGINE SWITCH PERFORMING ANY MAINTENANCE.
  • Page 19 2. L et the generator run without any loads for 1 minute. by turning it anti-clockwise. 3. I f the circuit breaker trips in the 1 minute period, do not continue to use the generator. Shut the generator down and contact Ozito Customer Service. 4. If the circuit breaker tests correctly, the electrical equipment or extension cords may be faulty. Replace faulty electrical equipment and cords before further use. Have qualified personnel check all 3. Clean the electrode with a electrical equipment and cords for any defects.
  • Page 20 Spare parts can be ordered from the Special Orders Desk at your local Bunnings Warehouse. For further information, or any parts not listed here, visit www.ozito.com.au or contact Ozito Customer Service: Australia 1800 069 486 New Zealand 0508 069 486...
