INVERTER
GENERATOR
2500W
INSTRUCTION MANUAL
SPECIFICATIONS
Engine:
4-stroke OHV 1-cylinder
Displacement:
196cc
Max. Power:
2,500W (2min)
Rated Power:
2,200W
Power Factor:
1.0
AC Output:
2 x 240V~50Hz, 9.2A
DC Output:
1 x 12V, 8.3A
Fuel Capacity:
5 litres
Fuel Type:
91 RON unleaded petrol
Sump Capacity:
0.6 litres
Oil Type:
4-stroke SAE30, 15W40
Sound Pressure Level: 68dBA @ 7m
Weight:
26kg
ozito.com.au
1
IN ORDER TO MAKE A CLAIM UNDER THIS
WARRANTY YOU MUST RETURN THE PRODUCT
TO YOUR NEAREST BUNNINGS WAREHOUSE WITH
YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO
RETURNING YOUR PRODUCT FOR WARRANTY
PLEASE TELEPHONE OUR CUSTOMER SERVICE
HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
TO ENSURE A SPEEDY RESPONSE PLEASE
HAVE THE MODEL NUMBER AND DATE OF
PURCHASE AVAILABLE. A CUSTOMER SERVICE
REPRESENTATIVE WILL TAKE YOUR CALL
AND ANSWER ANY QUESTIONS YOU MAY
HAVE RELATING TO THE WARRANTY POLICY
OR PROCEDURE.
OZITO
Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175.
DISPLAY METER
AC 240V
I
0
ON
OFF
+
DC 2V 3.3A
-
DC PROTECTOR
IGP 2500
RATED POWER 2.2kW
MAX. POWER
2.5kW
WARRANTY
The benefits provided under this warranty are in addition
to other rights and remedies which are available to you at law.
Our goods come with guarantees that cannot be excluded
at law. You are entitled to a replacement or refund for a major
failure and for compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the goods repaired
or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
Generally you will be responsible for all costs associated with
a claim under this warranty, however, where you have suffered
any additional direct loss as a result of a defective product you
may be able to claim such expenses by contacting our customer
service helpline above.
1 YEAR WARRANTY
Your product is guaranteed for a period of 12 months from
the original date of purchase. If a product is defective it will
be replaced in accordance with the terms of this warranty.
Warranty excludes consumable parts, for example: Wheels.
WARNING
The following actions will result in the warranty being void.
• If the tool has been operated on a supply voltage other
than that specified on the tool.
• If the tool shows signs of damage or defects caused
by or resulting from abuse, accidents or alterations.
• Failure to perform maintenance as set out within the
instruction manual.
• If the tool is disassembled or tampered with in any way.
• Professional, industrial or high frequency use.
STANDARD EQUIPMENT
DISPLAY METER
AC 240V
I
0
ON
OFF
DC PROTECTOR
+
DC 2V 3.3A
-
IGP 2500
RATED POWER 2.2kW
MAX. POWER
2.5kW

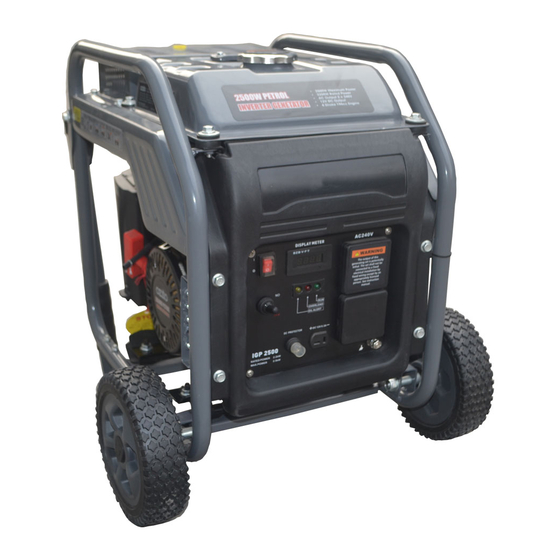

Inverter Generator
Wheels & Wheel
Fasteners
Transport Handles
Support Feet
Generator Oil
Tools & Accessories
IGP-2500
0919
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ozito IGP-2500
Summary of Contents for Ozito IGP-2500
- Page 1 Weight: 26kg Generator Oil ozito.com.au Tools & Accessories IGP-2500 WARRANTY IN ORDER TO MAKE A CLAIM UNDER THIS The benefits provided under this warranty are in addition to other rights and remedies which are available to you at law. WARRANTY YOU MUST RETURN THE PRODUCT...
-
Page 2: Know Your Product
KNOW YOUR PRODUCT SETUP & PREPARATION INVERTER GENERATOR 1. Frame 11. Fuel Tap 1. LUBRICATION 2. Choke 12 Engine On/Off Switch 3. Recoil Starter 13. Display Meter 4. Fuel Gauge 14. AC Socket x 2 Checking the Oil 5. Fuel Tank Cap 15. AC Power Switch 6. -
Page 3: Operation
OPERATION 2. FUEL 3. STARTING & STOPPING Preparing to Start WARNING! PETROL IS VERY FLAMMABLE. DO NOT SMOKE OR CAUSE ANY SPARKS OR FLAMES NEAR Before starting the engine, disconnect all appliances from the FUEL. MAKE SURE THAT YOU STOP THE ENGINE generator. AND ALLOW IT TO COOL BEFORE REFUELLING THE GENERATOR. -
Page 4: Control Panel
4. CONTROL PANEL Stopping the Engine Run Indicator LED Before stopping the engine, turn off any equipment. • T he power indicator LED (green) illuminates when power is available to outputs. 1. S witch off engine by moving the engine switch to the OFF position. Overload Indicator LED 2. F or transport or storage, turn the fuel tap to the OFF position. • I f the generator is overloaded or if there is a short in the connected appliance, the overload indicator LED (red) will go ON and current to the connected appliance will be shut off. The output indicator LED (green) will turn off. The power indicator LED (green) illuminates... -
Page 5: 12Volt Dc Outlet
POTENTIALLY EXPLODE, RESULTING IN SERIOUS INJURY. DISPLAY METER AC 240 Note: DC receptacle can be used while the AC power is in use. If you use both at the same time, be sure not to exceed the total power for AC and DC. An overloaded DC DC 2V 3.3A DC PROTECTOR circuit will trip the DC circuit breaker. If this IGP 2500 RATED POWER 2.2kW MAX. POWER 2.5kW happens, disconnect the DC load before pushing in the ‘DC Overload Reset’ button to resume operation. When reconnecting appliances, reduce the load which previously overloaded the generator. IGP-2500... -
Page 6: Maintenance
MAINTENANCE Oil Change The purpose of the maintenance and adjustment schedule is to keep the generator in the best operating condition. Drain the oil while the engine is still warm to ensure rapid and complete Inspect or service as scheduled in the table below. draining. WARNING! SHUT OFF THE ENGINE BEFORE WARNING! MAKE SURE TO TURN THE ENGINE SWITCH PERFORMING ANY MAINTENANCE. -
Page 7: Troubleshooting
2. L et the generator run without any loads for 1 minute. by turning it anti-clockwise. 3. I f the circuit breaker trips in the 1 minute period, do not continue to use the generator. Shut the generator down and contact Ozito Customer Service. 4. If the circuit breaker tests correctly, the electrical equipment or extension cords may be faulty. Replace faulty electrical equipment and cords before further use. Have qualified personnel check all 3. Clean the electrode with a electrical equipment and cords for any defects. -
Page 8: Transporting And Storage
Spare parts can be ordered from the Special Orders Desk at your local Bunnings Warehouse. For further information, or any parts not listed here, visit www.ozito.com.au or contact Ozito Customer Service: Australia 1800 069 486 New Zealand 0508 069 486...
Need help?
Do you have a question about the IGP-2500 and is the answer not in the manual?
Questions and answers
No lights are on when running
If there are no lights on when running the Ozito IGP-2500, it may indicate an issue with power availability. Check if the generator is producing power by verifying the power indicator LED (green). If the green LED is off, ensure the generator is properly started and that the AC Power Switch is in the ON position. Additionally, check if the circuit breaker has tripped and reset it if necessary. If the issue persists, contact Ozito Customer Service.
This answer is automatically generated
How much oil will it hold
