2.1 Control panel

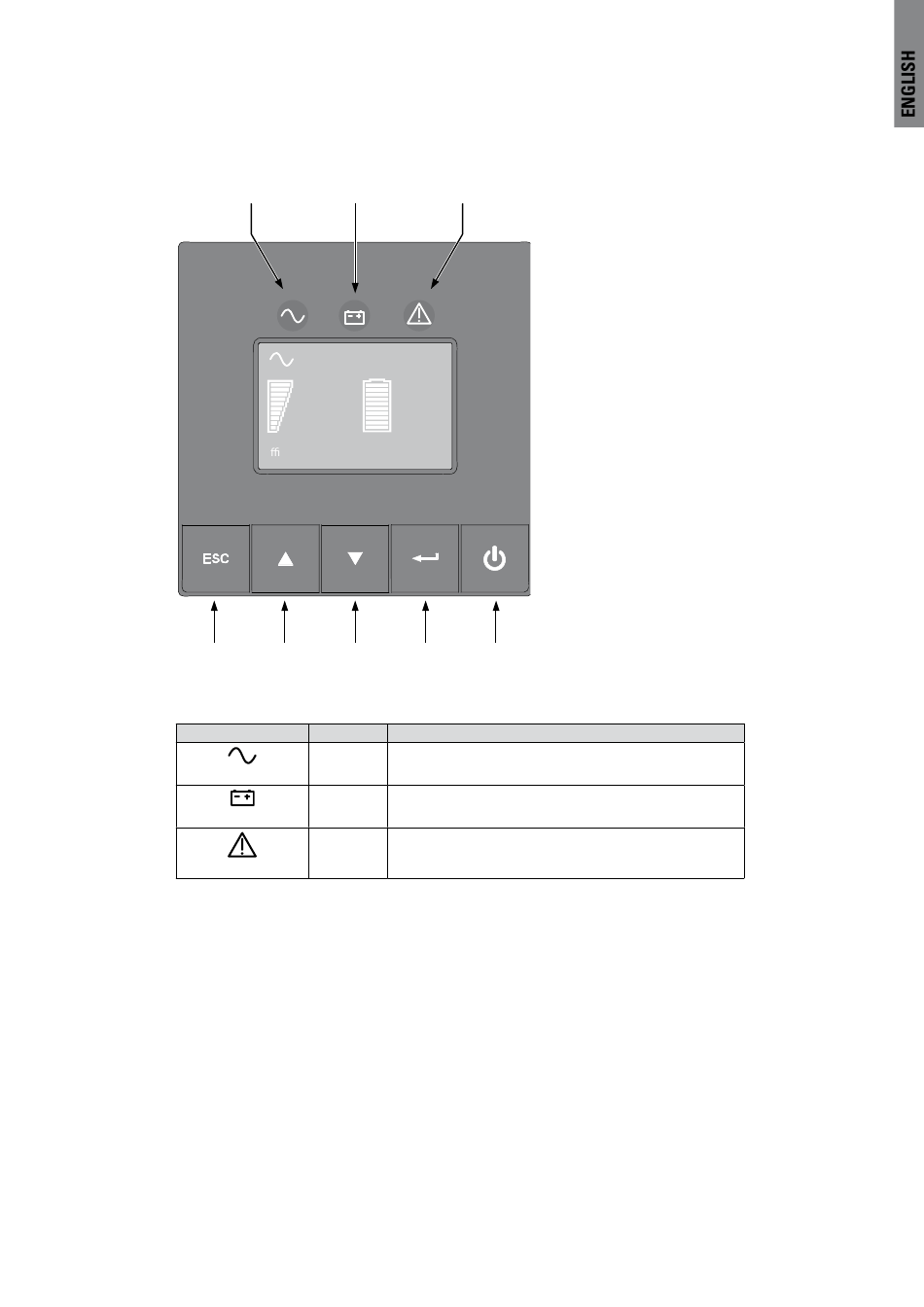

The UPS has a five-button graphical control panel.
Power On
Indicator (green)
Escape
The following table shows the indicator status and description:
Indicator
Green
Yellow
Red
881628-001 Edition 2
On battery
Indicator (yellow) Indicator (red)
Normal mode
100% 100%
2.7kW 17min
3kVA 1ERM
E ciency: ~98%
Up Down Enter
Status Description
On The UPS is operating normally.
On The UPS is on Battery mode.
The UPS has an active alarm or fault. For more
On
information, see "5.1 Troubleshooting".
Alarm
On/Off
button
