1. Overview

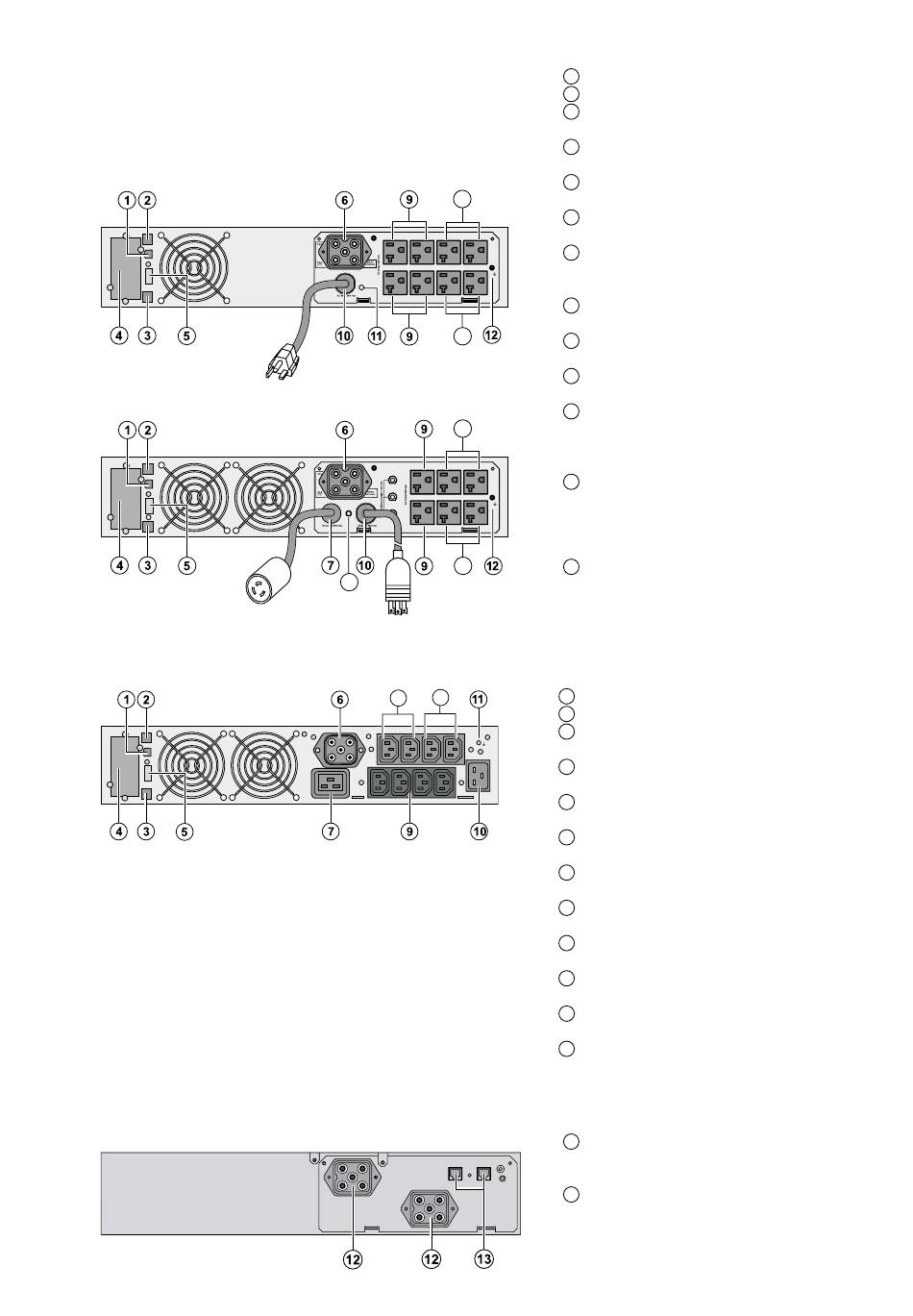

1.3 Rear panels

HPE R/T2200 G5 NA/JP UPS
HPE R/T3000 G5 LV NA/JP UPS
HPE R/T3000 G5 HV NA/JP UPS and HPE R/T3000 G5
INTL UPS
NOTE: The R/T3000 and R/T2200 have 3 programmable output
load segments. T hese are defined as Group 1, Group 2, and
Primary Group. T he load segments/groups can be configured
via software and the unit's user interface. For advice on
configuration through software, see the HPEPP software or the
Hewlett Packard Enterprise networking device documentation.
To configure the UPS through the front panel, see "2.4 User
settings". Load Groups 1 and 2 can be programmed to switch
off/on independently. The Primary Load Group controls the
outlets indicated and initiates a unit shutdown. The Primary
Load Group is intended for the most critical loads.
HPE R/T2200 G4 ERM and HPE R/T3000 G4 ERM
(optional battery module)
Page 8
8a
8b
8a
8b
11
8a 8b
USB communication port
1
RS-232 communication port
2
Connector for automatic recognition
3
of an additional battery module
Slot for optional communication
4
card
Connector for ROO (remote on/off)
5
or RPO (remote power off) control
Connector for additional battery
6
module
30A outlet (L5-30R) for connection
7
of equipment (2U R/T3000 G5 LV
NA/JP UPS only)
Group 1: Two programmable outlets
8a
for connection of equipment
Group 2: Two programmable outlets
8b
for connection of equipment
Primary Group: outlets for
9
connection of critical equipment
Attached 8-ft. input power cord for
10
AC power source
5-20P for 2200
L5-30P for 3000
LED indicating SWF (site wiring
11
fault) alarm (Although the LED
remains on the rear panel, this
feature is disabled for low voltage
models.)
12
Ground connection
USB communication port
1
RS-232 communication port
2
Connector for automatic recognition
3
of an additional battery module
Slot for optional communication
4
card
Connector for ROO (remote on/off)
5
or RPO (remote power off) control
Connector for additional battery
6
module
16A outlet for connection of
7
equipment (primary group)
Group 1: Two programmable outlets
8a
for connection of equipment
Group 2: Two programmable outlets
8b
for connection of equipment
Primary Group: 4 outlets for
9
connection of critical equipment
Outlet for connection to AC power
10
source
Ground connection
11
Connectors for battery modules
12
(to the UPS or to the other battery
modules)
Connectors for automatic
13
recognition of battery modules
881628-001 Edition 2
