Ezmax EZMP-3000 User Manual

Digital audio player
Hide thumbs Also See for EZMP-3000:
Table of Contents

Advertisement

Quick Links

Download this manual

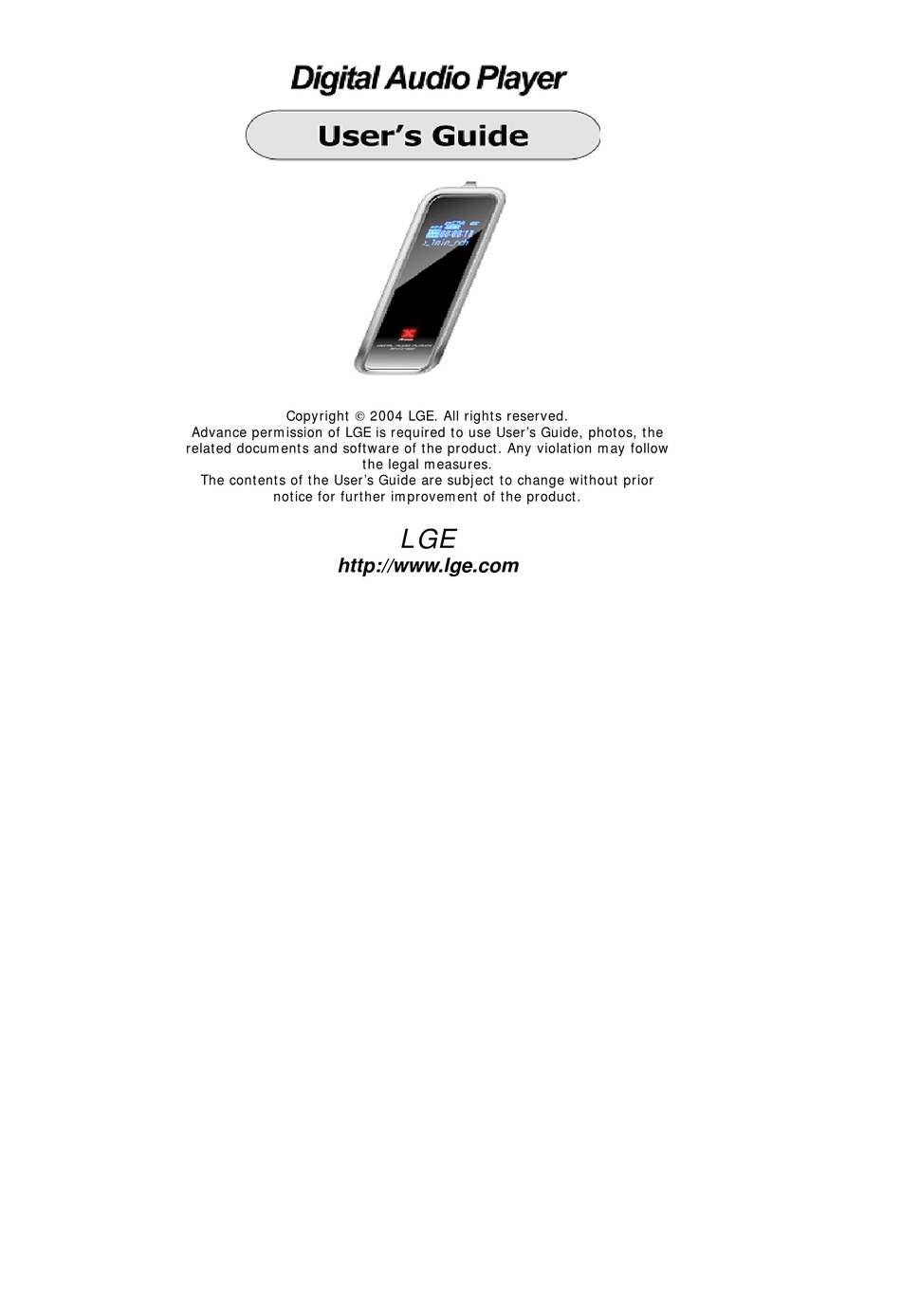

Copyright  2004 LGE. All rights reserved.
Advance permission of LGE is required to use User's Guide, photos, the
related documents and software of the product. Any violation may follow
the legal measures.
The contents of the User's Guide are subject to change without prior
notice for further improvement of the product.
LGE
http://www.lge.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EZMP-3000 and is the answer not in the manual?

Questions and answers

Related Manuals for Ezmax EZMP-3000

Summary of Contents for Ezmax EZMP-3000

  • Page 1 Copyright  2004 LGE. All rights reserved. Advance permission of LGE is required to use User’s Guide, photos, the related documents and software of the product. Any violation may follow the legal measures. The contents of the User’s Guide are subject to change without prior notice for further improvement of the product.

  • Page 2: Table Of Contents

    Table of Contents Before Use 4. Upgrade ………………………..38 1. Product & Accessories..2 2. PC System Requirement .. .3 Function Menus 3. Safety Precaution ...4 1. PLAYBACK ....41 4. Features of Product.…….…..5 2. EQUALIZER ....42 3. SRS ......43 Designation of Product 4.

  • Page 3: Product & Accessories

    1. Product & Accessories !NOTE: Accessories are subject to change without prior notice for further improvement of the product performance and quality.

  • Page 4: Pc System Requirement

    2. PC System Requirements The followings are the basic requirements of the PC to use the MP3 Player. Please carefully read and confirm the requirements. Pentium 200MHZ or above Windows 98SE / ME / 2000 / XP (Windows 98SE – Install Driver) Mac OS 9.0 / 10.0 USB (Universal Serial Bus) Port CD-ROM Drive...

  • Page 5: Safety Precaution

    3. Safety Precaution Listening to Music… The output class of the product guarantees the best possible sound of the mid-size volume. As the high volume for a long time may damage the hearing, listen to music in moderate volume. Do not exposure to the strong shock or vibration. Please take good care of handling the product and accessories.

  • Page 6: Features Of Product

    4. Features of the Product (1) Multi-Codec Player Compatible with MP3, WMA and ASF (Audio) formats Superior Sound Quality SRS (Sound Retrieval System) WOW The introduction of the SRS allows the 3D surround effect, and the user to define its own unique sound effect. Enjoy a new variety of the 3D surround effects.
  • Page 7 4. Features of the Product (2) Simple and Fancy Design Reflects the 2004 new design trend. 6 Preset Equalizer You can produce your own sound quality with the 5-band User EQ and 5 recommend EQs including Normal, Classic, Pop, Rock and Jazz. Easy Navigation A tree configuration allows the easy search and control.

  • Page 8: Front/Rear View

    1. Front/Rear View of the Product...

  • Page 9: Side View

    2. Side View of the Product...

  • Page 10: Display

    3. Display...

  • Page 11: Connecting Player To Pc

    1. Connecting Player to PC To download music files (MP3/WMA/ASF) from the PC, use USB cable to connect MP3 Player to the USB port of the PC. (Make sure to only use the USB cable supplied with the MP3 Player.) Connect ‘A’...

  • Page 12: Installing Usb Driver

    2. Installing USB Driver (1) If you insert the USB cable into the player, its display shows the following screen “WAIT”. before installing driver after installing driver 1. Follow the instruction below for the PC of which OS is one of the Windows ME, Windows 2000 and Windows XP.
  • Page 13 2. Installing USB Driver (2) 2) The “Found New Hardware Wizard” is automatically started on the PC. Click ‘Next’. 3) If “Hardware device driver installation” is shown, check in “Search driver suitable to device(recommended)” and then click “Next”.
  • Page 14 2. Installing USB Driver (3) 4) If “Search driver file” is shown, check in “Location designation” and then click “Next”. 5) If “Maker’s File Location to Copy” is C:\Winnt\Inf or C:\Windows\Inf, click ‘OK’. If the file is not in the C:\Winnt\Inf or C:\Windows\Inf, use ‘Browse…’...
  • Page 15 2. Installing USB Driver (4) 6) If “Result of searching driver file” shows its results, click “Next”. 7) Click ‘Yes’ to continue the installation of the USB Mass Storage Device.
  • Page 16 2. Installing USB Driver (5) 8) Click ‘Finish’ after completing the installation of the USB Mass Storage Device. 9) Click ‘Yes’ to continue the installation of the disk drive.
  • Page 17 2. Installing USB Driver (6) To check that the USB driver has been properly installed, click in the following order: [Start] - [Setting] - [Controller Panel] – [System] – [Hardware] – [Device Manager] then, confirm areas have been properly configured. !NOTE: The above example covers PC in which there is the first installation of a removable disc.
  • Page 18 2. Installing USB Driver (7) – win 98SE 2. As the Windows 98SE is not compatible with the removable disk unit, you shall separately install the Win98SE driver from the CD provided with the Player. 1) Do not connect the Player as yet with the USB cable. 2) Insert the installation CD into the CD-ROM drive to execute ‘install.bat’...
  • Page 19 2. Installing USB Driver (8) – win 98SE To check that the USB driver has been properly installed, click in the following order: [Start] - [Setting] - [Controller Panel] – [System] – [Hardware] – [Device Manager] And then, confirm “LGE MF-FE 460”...
  • Page 20 2. Installing USB Driver (9) - Confirmation If you have successfully installed the driver of the USB device, connect the USB cable of PC to the player to execute “My Computer” or “Windows Explorer”. If you can see “Removable Disc” in My Computer or “READY” on the display of the player, you can normally use the player.

  • Page 21: Running Basic Functions

    3. Running Basic Functions (1) As the PC recognizes the Player as a removable disk, you can easily download or delete the music files in the Windows Explorer without Manager program. 1. Download File to the Player (Download) 1) Connecting the USB cable to the Player allows the Player to be recognized as a removable disk in the Windows Explorer.
  • Page 22 3. Running Basic Functions (2) 4) Select the file you want to save, and then: ① Drag & drop to the removable disk. ② Or click right mouse button to select Copy, and select the removable disk, and then click right mouse button to select Paste. 5) The file is copied to the removable disk, showing a graphic of the file transfer.
  • Page 23 3. Running Basic Functions (3) 4. Format Player 1) Formatting in the Windows ① Select the removable disk, and then click right mouse button to select Format (FAT). ② Click Start. ※ Please note that the formatting will irrecoverably remove all contents of the Player.

  • Page 24: Installing Logo Editor & Applying Logo To Player

    Installing Logo Editor & Applying Logo to Player This program helps you design and use the logo that first appears ◎ when the player is turned on. When you are to change it, you should use the program to download the final logo file to the player. I.
  • Page 25 Installing Logo Editor & Applying Logo to Player Figure 1 Figure 2 Figure 3 II. Editing Logo 1. Setting up the logo file frame to edit. ① Select File(F) New Picture(U). (Figure 1) ② Input the frame of the logo to edit in the “Frame Setting-up” window to click “OK”.(Figure 2) (The number of the frames that can be set up is at its maximum of 60 frames, in which the size of pixel per frame(80x48) can’t be arbitrarily changed.
  • Page 26 Installing Logo Editor & Applying Logo to Player 2. Editing Logo Use “Tool” in the left of the Editor to design your own logo. 3. Opening Image File/Storing Image File - Opening Image File You can import the bitmap file(.bmp) to edit, and then download it to the player.
  • Page 27 Installing Logo Editor & Applying Logo to Player ⑥ If you turn the player on and then off with its USB cable disconnected, a new logo will be applied to the display. Figure 1 Figure 2...

  • Page 28: Basic Operation

    1. Basic Operation (1) 1) Display - Displays the operating status of the product. 2) PLAY - If the player is turned off, push this button twice long to turn it on. - When listening to the music or the recorded file, briefly press to pause the music, and then briefly press again to resume the music.
  • Page 29 1. Basic Operation (2) 3) VOL + - Adjustable in 0-20 steps. Press once at a time to increase the volume step by step. Keep pressing to increase the volume at a rapid rate. 4) VOL - - Press once at a time to reduce the volume step by step. Keep pressing to reduce the volume at a rapid rate.
  • Page 30 1. Basic Operation (3) - When listening to the music or the recorded file, briefly press to move to the previous music while keep pressing to fast move within the current playback file. - In the MENU screen, briefly press to move to the previous menu item. - When listening to the FM radio, briefly press to move to the previous frequency while keep pressing to automatically search the previous station.

  • Page 31: Power On/Off

    2. Power ON/OFF Power ON If you push the PLAY button long, the player is turned on to show its logo on the display. In which the version, total memory and the available memory of the Player appear shortly after. The above figure means that the total capacity of the memory is 256MB and its remaining(FREE) capacity is 82MB.

  • Page 32: Mode Menu

    3. MODE Menu Briefly press MENU button to open MODE menu. ◎ MODE menu consists of the followings as shown below: ◎ MUSIC (Listening to the music) FM RADIO (Listening to the FM radio) RECORDING (Recording) Briefly push towards to move between menus. ◎...
  • Page 33 3-1. MUSIC Mode (1) A mode to listen to the music files stored in the MUSIC memory ◎ Consists of TOTAL, FOLDER, VOICE, LINE and FM. ◎ If there is no music file existed, a message saying ‘No Files!’ will ◎...
  • Page 34 3-1. MUSIC Mode (2) Listening to the recorded FM radio broadcasting. Listening to the MP3 Music In the MUSIC mode, open sub-mode to listen to the music files in the relevant folder. button or button to select the next or previous music respectively.
  • Page 35 3-2. FM RADIO Mode (1) A mode to listen to the FM radio ◎ Listening to the FM Radio Briefly press MENU button and use to move to the FM RADIO mode, and then press MENU button to select. Briefly push towards change the frequency.
  • Page 36 3-2. FM RADIO Mode (2) (3) Automatic storing at PRESET If you push the FF/REW button long in the PRESET mode, all the broadcast are automatically searched to be stored at PRESET. If you push the REC button during the FM broadcasting, the FM PRESET mode is activated.
  • Page 37 3-3. RECORDING Mode (1) A mode related to the recording, which consists of VOICE REC. and ◎ LINE ENC. Recording the voice. Recording the music file being played in the external device through the LINE IN. Vocal Recording & Playback Turn the player on to step on MENU RECORDING VOICE REC, which...
  • Page 38 3-3. RECORDING Mode (2) Recording the External Device (LINE IN) Connect the external device to be recorded as shown below. Turn the player on to step on MENU→ RECORDING→ LINE ENC., which is followed by recording from a external source. When you stop recording, push the REC button long.

  • Page 39: Upgrade

    In this example, V3000 indicates the model name and 1.00 indicates the FirmWare version (Ex. 1.01, 1.02, etc.). 2. Visit the company website (www.ezmax.co.kr) to check if there is an upgraded version available for the Player (Model No. EZMP-3000). If yes, download and save in the disk.
  • Page 40 4. UPGRADE (2) 4. Copy the downloaded file to the removable disk. (The way of UPGRADE is the same as the music file is downloaded. Only when there appears the message “READY” followed by WRITE, the downloading has been normally completed.) 5.

  • Page 41: Function Menus

    Function Menu Lengthily press MENU button to open FUNCTION menu. ◎ Each menu has its sub-menu. If you push the MENU button in the sub- menu short, the applicable item is selected. If you push it long, its upper menu is displayed.

  • Page 42: Playback

    1. PLAYBACK A function to select the playback mode ◎ Playing all pieces once in order. Each piece of music stored in the memory is played just for 10 seconds to the end. A single selected piece of music alone is repeated.

  • Page 43: Equalizer

    2. EQUALIZER A function to select the sound adjustment mode during the playback ◎ Each menu has its sub-menu. If you push the MENU button in the sub- menu short, the applicable item is selected. If you push it long, its upper menu is displayed.

  • Page 44: Srs

    3. SRS (1) SRS-WOW is a general designation of the 3-dimensional virtual sound ◎ effect developed by the SRS Lab, which consists of SRS, TruBass, FOCUS and WOW. is a trademark of the SRS Labs, Inc. WOW technology is incorporated under license of the SRS Labs, Inc. The player is played with the effect of SRS not applied.
  • Page 45 3. SRS (2) Adjust the set value of the SRS. Use button to adjust in 0-10 steps. The higher value gives the stronger effect. Adjust the set value of the TruBass. button to adjust in 0-10 steps. Adjust the definition of the sound. (Low, Middle) !NOTE: USER is a function that allows the user to adjust the each level of the SRS, TruBass and WOW.

  • Page 46: Delete

    4. DELETE This is a function where a file within a memory is deleted. ◎ Note that, once it has been deleted, you can’t recover it. Select the file or folder to delete. - Use the FF/REW button to move to a folder or a file you want to delete.
  • Page 47 4. DELETE You can delete all the files including the font and logo used in the player. If you have worked on Low Formatting, download them again. You’d better use this function, only if necessary. - Push the MENU button shortly to execute “LOW LEVEL FORMAT”.

  • Page 48: Encode

    5. ENCODE LINE ENCODE ◎ Adjusting the bit rate of the voice recording file according to your need (longer hours or higher sound quality). Low bit rate reduces the file volume but lowers the sound quality while high bit rate improves the sound quality but increases the file volume to shorten the recording time.

  • Page 49: Setting

    6. SETTING (1) Set SLEEP Time ◎ Define the time to automatically turn the power OFF. Press MENU button to open the menu as shown on the right. button to adjust the time, and then use MENU button to select. The example shows the setting that the power will be off in 150 minutes after turning the power ON.
  • Page 50 6. SETTING (2) Contrast ◎ Adjust the brightness (contrast) of the Display. Press MENU button to open the menu as shown on the right. button to adjust the brightness in 10 steps, and then use MENU button to select. The higher the step is, the brighter the contrast Default Volume ◎...
  • Page 51 6. SETTING (3) FM Band ◎ Select one of the KOREA-USA, EUROPE BAND and JAPAN BAND to set the frequency range of the FM radio station. Language ◎ Select the local language of the country.
  • Page 52 6. SETTING (4) Dual Phone ◎ You can set the function to simultaneously use two earphones. Insert the second earphone into the LINE-IN jack. It is not supported when listening the FM radio station. Default ◎ You can initialize all set values with the factory default values.

  • Page 53: Display

    7. DISPLAY A function to set the time interval to automatically lit the display off ◎ since the last button operation Turning the display off when there is no operation for 10 seconds. Turning the display off when there is no operation for 20 seconds.

  • Page 54: About Battery

    1. About Battery How to Insert Battery ◎ !NOTE: Make sure the polarity (+ and -) of the battery is correctly inserted. Battery Gauge ◎ Full Gauge Mid Gauge Low Gauge Zero Gauge...

  • Page 55: How To Set Hold

    2. How to Set HOLD Use this function to prevent the misoperation by other buttons and an ◎ unnecessary battery burnout caused by the misoperation during the operation of the Player. How to Set HOLD Push the HOLD switch located on the rear side of the Player towards the Arrow mark.

  • Page 56: Trouble Shooting

    3. Trouble Shooting (1) If the product fails, please first check the followings. ◎ Power is not turning on. ・ Check if the battery is properly inserted with correct polarity. ・ Battery may be dead. Replace the battery. ・ Check if HOLD is set in the Player. (Move the switch in opposite direction to the Arrow mark to cancel the HOLD.) Unrecognizable characters are shown in the display.
  • Page 57 3. Trouble Shooting (2) No sound or noise is heard during the playback. ・ Check if the music file is stored in the memory. ・ Check if earphone is properly plugged in. Or check if its terminal is contaminated by the foreign substance. ・...

  • Page 58: Product Specification

    4. Product Specification Memory Built-in Memory 128MB/256MB/512MB DISPLAY 80x48 OLED Type Blue Color Backlight MP3 Encoding MPEG 1/2/2.5 Layer3 Compatible File Format MPEG 1/2/2.5 Layer3, WMA, ASF (Audio only) Compatible File Bit Rate 8 Kbps ~ 320 Kbps (WMA/ASF: 32 ~ 192 Kbps) Frequency 20 Hz ~ 20 KHz Headphone...

  • Page 59: Customer Service

    Gunpo city, Kyunggi-do Tel : 82-31-457-9184 Fax: 82-31-457-9187 e-mail : webmaster@ezmax.co.kr ! Note: If you want A/S due to some breakdown, you can visit our main office and receive it, or send mail(registered mail and home delivery).But, please note that we cannot give receiver-pay...

  • Page 60: Warranty Certificate

    Warranty We hereby certify as follows: 1. This product is manufactured through strict quality control and inspection process. 2. You can receive free A/S for 1 year after purchase if the product with warranty period is out of order. (If it falls under the case of paid service in this written warranty even if it is within warranty period, you should pay.) 3.
  • Page 61 FCC Compliance Statements Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
