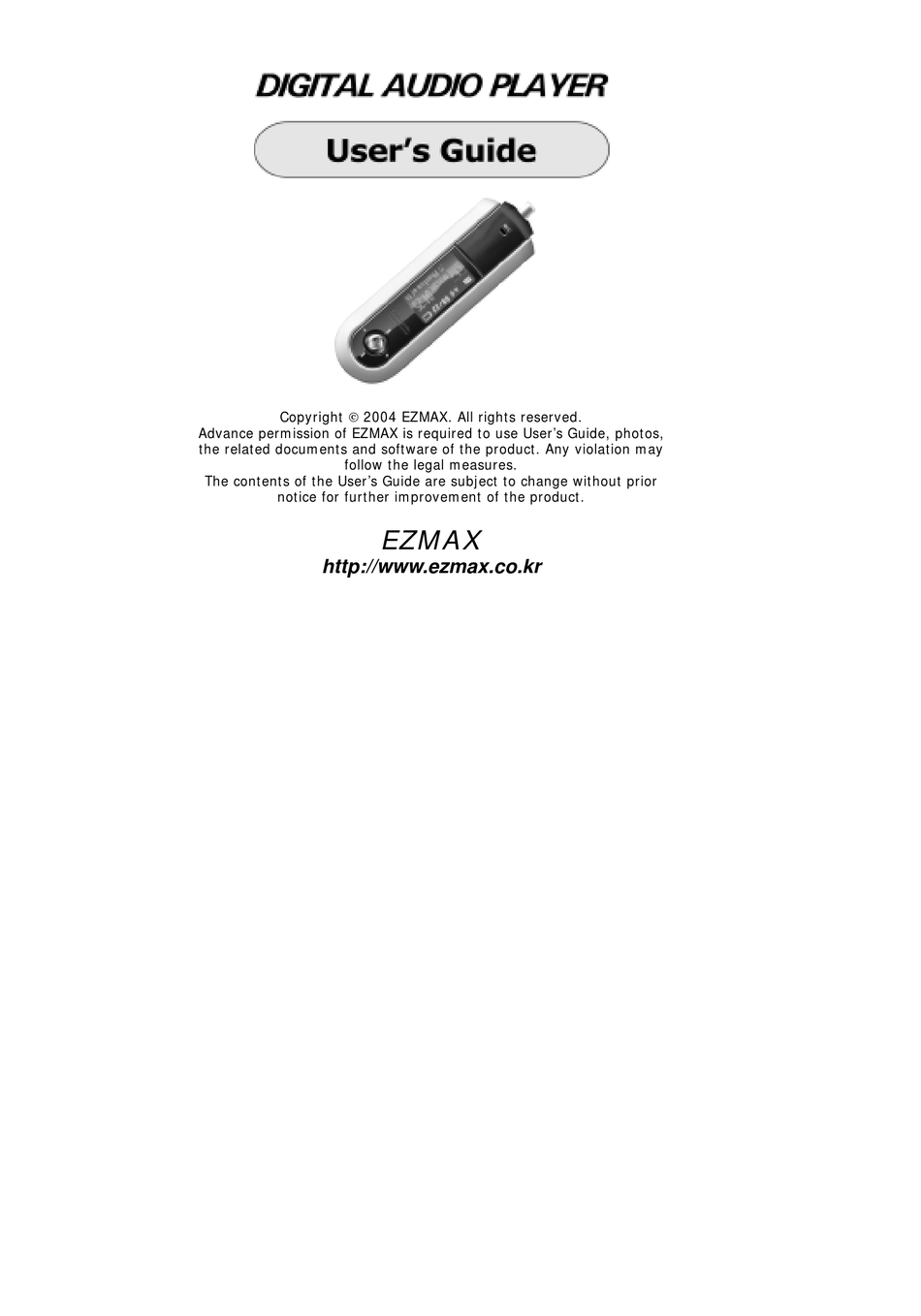

Ezmax EZMP-4000 User Manual

Digital audio player
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Copyright  2004 EZMAX. All rights reserved.
Advance permission of EZMAX is required to use User's Guide, photos,
the related documents and software of the product. Any violation may
follow the legal measures.
The contents of the User's Guide are subject to change without prior
notice for further improvement of the product.
EZMAX
http://www.ezmax.co.kr

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EZMP-4000 and is the answer not in the manual?

Questions and answers

Related Manuals for Ezmax EZMP-4000

Summary of Contents for Ezmax EZMP-4000

  • Page 1 Copyright  2004 EZMAX. All rights reserved. Advance permission of EZMAX is required to use User’s Guide, photos, the related documents and software of the product. Any violation may follow the legal measures. The contents of the User’s Guide are subject to change without prior notice for further improvement of the product.

  • Page 2: Table Of Contents

    Table of Contents Before Use 4. Record Voice & Play ……..33 1. Product & Accessories..2 5. FM Listening, Record & Play 2. PC System Requirement .. .3 ........ 34 3. Safety Precaution ...4 6. Record from External 4. Features of Product.…….…..5 Source &...

  • Page 3: Product & Accessories

    1. Product & Accessories !NOTE: Accessories are subject to change without prior notice for further improvement of the product performance and quality.

  • Page 4: Pc System Requirement

    2. PC System Requirements The followings are the basic requirements of the PC to use the MP3 Player. Please carefully read and confirm the requirements. Pentium 200MHZ or above Windows 98SE / ME / 2000 / XP (Windows 98 – Install Driver) Mac OS 9.0 / 10.0 USB (Universal Serial Bus) Port CD-ROM Drive...

  • Page 5: Safety Precaution

    3. Safety Precaution Listening to Music… The output class of the product guarantees the best possible sound of the mid-size volume. As the high volume for a long time may damage the hearing, listen to music in moderate volume. Do not exposure to the strong shock or vibration. Please take good care of handling the product and accessories.

  • Page 6: Features Of Product

    4. Features of the Product (1) Multi-Codec Player Compatible with MP3, WMA and ASF (Audio) formats Superior Sound Quality SRS (Sound Retrieval System) WOW The introduction of the SRS allows the 3D surround effect, and the user to define its own unique sound effect. Enjoy a new variety of the 3D surround effects.
  • Page 7 4. Features of the Product (2) Easy Navigation A tree configuration allows the easy search and control. 6 Preset Equalizer You can produce your own sound quality with the 5-band User EQ and 5 recommend EQs including Normal, Classic, Pop, Rock and Jazz. Caption the Text of the Song The text of the song is shown in two lines on the display during the playback.

  • Page 8: Front/Rear View

    1. Front/Rear View of the Product...

  • Page 9: Side View

    2. Side View of the Product...

  • Page 10: Functional Icon Of Display

    3. Functional Icon of Display...

  • Page 11: Connecting Player To Pc

    1. Connecting Player to PC To download music files (MP3/WMA/ASF) from the PC, use USB cable to connect MP3 Player to the USB port of the PC. (Make sure to only use the USB cable supplied with the MP3 Player.) Connect ‘A’...

  • Page 12: Installing Usb Driver

    2. Installing USB Driver (1) Connecting USB cable to the Player displays the following screen in the display(WAIT) on the Player. Before install drive After install drive 1. Follow the instruction below for the PC of which OS is one of the Windows ME, Windows 2000 and Windows XP.
  • Page 13 2. Installing USB Driver (2) 2) The “Found New Hardware Wizard” is automatically started on the PC. Click ‘Next’. 3) “Hardware Device Driver Installation” will be continued. Check in “Search for Driver suitable to Device (recommended)” to click “Next”.
  • Page 14 2. Installing USB Driver (3) 4) Select “Assigned Location” for the optional Search Location, and then click ‘Next’. 5) If “Maker’s File Location to Copy” is C:\Winnt\Inf or C:\Windows\Inf, click ‘OK’. If the file is not in the C:\Winnt\Inf or C:\Windows\Inf, use ‘Browse…’...
  • Page 15 2. Installing USB Driver (4) 6) You will see “Drive File Search Result”. If then, click “Next”. 7) Click ‘Yes’ to continue the installation of the USB Mass Storage Device.
  • Page 16 2. Installing USB Driver (5) 8) Click ‘Finish’ after completing the installation of the USB Mass Storage Device. 9) Click ‘Yes’ to continue the installation of the disk drive.
  • Page 17 2. Installing USB Driver (6) Click [Start] – [Setting] – [Control Panel] to open “System” icon, and then click “Hardware” – “Device Manager” tab to check if USB driver is properly installed. !Note: The example of installing a driver above applies to a computer which adopts a removable disc for the first time.
  • Page 18 2. Installing USB Driver (7) – windows 98 2. Windows 98 can’t support a removable storage device. You should install our Win98 Driver to use under Windows 98. 1) Don’t connect the USB cable to the player until the following is completed.
  • Page 19 2. Installing USB Driver (8) – windows 98 Click [Start] – [Setting] – [Control Panel] to open “System” icon, and then click “Hardware” – “Device Manager” tab to check if USB driver is properly installed. !Note: The example of installing a driver above applies to a computer which adopts a removable disc for the first time.
  • Page 20 “Removable Disc” in My Computer or the message “READY” on the display of the player. If then, you can enjoy the player. If not, you should check Device Manager; in case you can’t see “EZMAX EZMP-4000 USB Device" in Disc Drive of Device Manager and “USB Mass Storage Device”...

  • Page 21: Running Basic Functions

    3. Running Basic Functions (1) As the PC recognizes the Player as a removable disk, you can easily download(& upload) or delete the music files(& folder) in the Windows Explorer without Manager program. 1. Copy File(Download) 1) Connecting the USB cable to the Player allows the Player to be recognized as a removable disk in the Windows Explorer.
  • Page 22 3. Running Basic Functions (2) 5) The file is copied to the removable disk, showing a graphic of the file transfer. 2. Export File(Upload) 1) Connecting the USB cable to the Player allows the Player to be recognized as a removable disk in the Windows Explorer. 2) Select the removable disk to access to the memory area of the Player.
  • Page 23 3. Running Basic Functions (3) 4. Format Player 1) Formatting in the Windows ① Select the removable disk, and then click right mouse button to select Format (FAT). ② Click Start. ※ Please note that the formatting will irrecoverably remove all contents of the Player.

  • Page 24: Installing Logo Editor & Applying Logo To Player

    Installing Logo Editor & Applying Logo to Player (1) This program helps you design and use the logo that first appears ◎ when the player is turned on. When you are to change it, you should use the program to download the final logo file to the player. I.
  • Page 25 Installing Logo Editor & Applying Logo to Player (2) Figure 4 Figure 5 Figure 6 II. Editing Logo 1. Setting up the logo file frame to edit. ① Select File(F) New Picture(U). (Figure 1) ② Input the frame of the logo to edit in the “Frame Setting-up” window to click “OK”.(Figure 2) (The number of the frames that can be set up is at its maximum of 60 frames, in which the size of pixel per frame(128x64) can’t be arbitrarily changed.
  • Page 26 Installing Logo Editor & Applying Logo to Player (3) 2. Editing Logo Use “Tool” in the left of the Editor to design your own logo. 3. Opening Image File/Storing Image File - Opening Image File You can import the bitmap file(.bmp) to edit, and then download it to the player.
  • Page 27 Installing Logo Editor & Applying Logo to Player (4) ⑥ If you turn the player on and then off with its USB cable disconnected, a new logo will be applied to the display. Figure 1 Figure 2...

  • Page 28: Basic Operation

    1. Basic Operation (1) 1) Display - Displays the operating status of the product. 2) PLAY - Briefly press to turn the power ON. - When listening to the music or the recorded file, briefly press to pause the music, and then briefly press again to resume the music. - When listening to the FM radio broadcasting, briefly press to save the current station to the PRESET.
  • Page 29 1. Basic Operation (2) 3) VOL + - Adjustable in 0-20 steps. Press once at a time to increase the volume step by step. Keep pressing to increase the volume at a rapid rate. 4) VOL - - Press once at a time to reduce the volume step by step. Keep pressing to reduce the volume at a rapid rate.
  • Page 30 1. Basic Operation (3) - When listening to the music or the recorded file, briefly press to move to the previous music while keep pressing to fast move within the current playback file. - In the MENU screen, briefly press to move to the previous menu item. - When listening to the FM radio, briefly press to move to the previous frequency while keep pressing to automatically search the previous station.

  • Page 31: Power On/Off

    2. Power ON/OFF Power ON Briefly press PLAY button to turn the power ON and show the logo in the display in which the version, total memory and the available memory of the Player appear shortly after. Power OFF Lengthily press PLAY button to turn the power OFF while disappearing the logo.

  • Page 32: Play Music

    3. Play Music (1) The ways the player plays the stored music files include TOTAL PLAY, ◎ NAVIGATION PLAY and BOOKMARK PLAY. Push the MENU shortly to move to the mode menu. TOTAL PLAY NAVIGATION Push the MENU button in the NAVIGATION menu shortly to choose between NAVIGATION PLAY and BOOKMARK PLAY.
  • Page 33 3. Play Music (2) - Use the FF/REW button to locate on the folder you want to play. - Push the PLAY button to play the folder. (3) BOOKMARK PLAY - Push the MENU button shortly to change MODE to NAVIGATION. - Use the FF button to move to BOOKMARK.

  • Page 34: Record Voice & Play

    4. Record Voice & Play (1) When recording voice - Push the REC button long when the music is being played, and a vocal recording will be applied. - The recorded file is stored in such formats as V001.MP3 or V002.MP3 in the VOICE folder.

  • Page 35: Fm Listening, Record & Play

    5. FM Listening, Record & Play (1) (1) When listening to FM Radio - Push the MENU button shortly to move to an applicable mode, and then select FM RADIO LISTENING. - If you push the FF/REW button shortly when listening to FM Radio, you can move to the next/previous frequency.
  • Page 36 5. FM Listening, Record & Play (2) (2) When recording FM Radio - Push the REC button long when listening to FM Radio, the current broadcast program is recorded. - The recorded file is stored in such formats as F001.MP3 or F002.MP3 in the RADIO folder.

  • Page 37: Record From External Source & Play

    6. Record from External Source & Play (1) When recording from an external source - Connect the player to the source from which you record as shown in the following: - Push the MENU button long to move to the function menu. - Bit Rate Setting: Use the FF/REW button to step on SETTING ENCODE BITRATE, and then finally choose among 48/96/128/192kbps.
  • Page 38 6. Record from External Source & Play - Auto Sync. Setting: Push the MENUS button again long to move to the function menu, and then use the FF/REW button to step on SETTING ENCODE AUTO SYNC. Finally choose among ON/OFF. * You can see the details on Auto Sync.
  • Page 39 6. Record from External Source & Play (3) Listening to the file recorded from the external source (Ext. RECORDING PLAY) - Push the MENU button shortly to move an applicable mode, and then use the FF/REW button to step on RECORD PLAY LINE ENC.

  • Page 40: Function Menus

    Function Menu Lengthily press MENU button to open FUNCTION menu. ◎ Each menu has sub-menus. In the sub-menu, press MENU button for lengthily to move to the previous menu. The configuration of the functional menu is as follows :...

  • Page 41: Playback

    1. PLAYBACK A function to select the playback mode ◎ Playing all pieces once in order. Playing the first ten seconds of each piece in order for all pieces in the memory. Repeating one piece. Repeating all pieces in order. Repeating all pieces in no order.

  • Page 42: Equalizer

    2. EQUALIZER A function to select the sound adjustment mode during the playback ◎ Each menu has sub-menus. In the sub-menu, lengthily press MENU button to move to the higher menu. Press MENU button for two seconds to open FUNCTION menu. ◎...

  • Page 43: D Effect

    3. 3D EFFECT SRS-WOW is a general designation of the 3-dimensional virtual sound ◎ effect developed by the SRS Lab, which consists of SRS, TruBass, FOCUS and WOW. is a trademark of the SRS Labs, Inc. WOW technology is incorporated under license of the SRS Labs, Inc. The player is played without 3D EFFECT Enjoy the 3-dimensional sound effect.
  • Page 44 3. 3D EFFECT - USER Adjust the set value of the SRS. Use button to adjust in 0-10 steps. The higher value gives the stronger effect. Adjust the set value of the TruBass. button to adjust in 0-10 steps. Adjust the definition of the sound in 0-10 steps.

  • Page 45: Delete

    4. DELETE This is a function where a file within a memory is deleted. ◎ Note that, once it has been deleted, you can’t recover it. Select a file or a folder you want to delete. - Use the FF/REW button to move to a folder or a file you want to delete.
  • Page 46 4. DELETE You can delete all the files including the fond and logo used in the player. When they are deleted, download them again. You’d better this function, only if necessary. - Push the MENU button shortly to execute “LOW LEVEL FORMAT”.

  • Page 47: Setting

    5. SETTING (1) (1) Scrolling Speed Adjust the speed of scrolling the file name or the ID3 TAG information during the playback. button to adjust the speed in 10 steps, and then use MENU button to select. The higher the step is, the faster the speed is. (2) DISPLAY Time Select the time the display is turned off after pushing the final button.
  • Page 48 5. SETTING (2) (4) DEFAULT VOLUME You can adjust the volume with this setting. If the volume at which the player was set is larger than the one set currently, the booting will begin as the set default volume. If not so, the volume set last will be applied.
  • Page 49 5. SETTING (3) (7) SLEEP TIME This function where player automatically turned after it is played for a specified period. Using the button, you can set the time which you want, and then confirm that with the menu button. (8) VOICE REC. BIT RATE You can adjust the bit rate when recording voice.
  • Page 50 5. SETTING (4) Automatically sorting all pieces externally inputted to record in a separate file. Recording all pieces externally inputted in a file until STOP button is pressed. Adjusting the bit rate of the voice recording file according to your need (longer hours or higher sound quality).
  • Page 51 5. SETTING (5) 니다. (10) FM BAND Select one of the KOREA-USA BAND, EUROPE BAND and JAPAN BAND to set the frequency range of the FM radio station. (11) LANGUAGE Select the local language of the country. (12) DEFAULT You can initialize all set values with the factory default values.

  • Page 52: Upgrade

    In this example, V4000 indicates the model name and 1.00 indicates the FirmWare version (Ex. 1.01, 1.02, etc.). (2) Visit the company website (www.ezmax.co.kr) to check if there is an upgraded version available for the Player (Model No. EZMP- 4000). If yes, download and save in the disk.
  • Page 53 UPGRADE (2) (4) Copy the downloaded firmware file to the removable disc. (The way of UPGRADE is the same as the music file is downloaded. Only when there appears the message “READY” on the display after downloading, the downloading has been normally completed.) (5) If separating the player from the PC, there appears the following on the display to upgrade the firmware.

  • Page 54: Built-In Battery Recharge

    1. Built-in Battery Recharge (1) Recharging through the USB cable. - The connection of the USB cable to PC and the player would lead to an automatic recharge whether the player is working or not. (2) Recharging through the USB - AC adapter. - Use the USB –...

  • Page 55: How To Set Hold

    2. How to Set HOLD Use this function to prevent the misoperation by other buttons and an ◎ unnecessary battery burnout caused by the misoperation during the operation of the Player. How to Set HOLD Push the HOLD switch located on the rear side of the Player towards the Arrow mark.

  • Page 56: Trouble Shooting

    3. Trouble Shooting (1) If the product fails, please first check the followings. ◎ Power is not turning on. ・ Check if the battery is properly inserted with correct polarity. ・ Battery may be dead. Replace the battery. ・ Check if HOLD is set in the Player. (Move the switch in opposite direction to the Arrow mark to cancel the HOLD.) Unrecognizable characters are shown in the display.
  • Page 57 3. Trouble Shooting (2) No sound or noise is heard during the playback. ・ Check if the music file is stored in the memory. ・ Check if earphone is properly plugged in. Or check if its terminal is contaminated by the foreign substance. ・...

  • Page 58: Product Specification

    4. Product Specification Memory Built-in Memory 128MB/256MB/512MB DISPLAY 128x64 OLED Type Blue Color Backlight MP3 Encoding MPEG 1/2/2.5 Layer3 Compatible File Format MPEG 1/2/2.5 Layer3, WMA, ASF (Audio only) Compatible File Bit Rate 8 Kbps ~ 320 Kbps (WMA/ASF: 32 ~ 192 Kbps) Frequency 20 Hz ~ 20 KHz Headphone...

  • Page 59: Fcc Compliance Statements

    5.FCC Compliance Statements Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in...
  • Page 60 Warning : Your are cautioned that any change or modifications to the equipment not expressly approved by the party responsible for compliance could void your authority to operate such equipment. NOTE: This unit was tested with shielded cables on the peripheral device . Shield cables must be used with the unit to insure compliance.

This manual is also suitable for:
