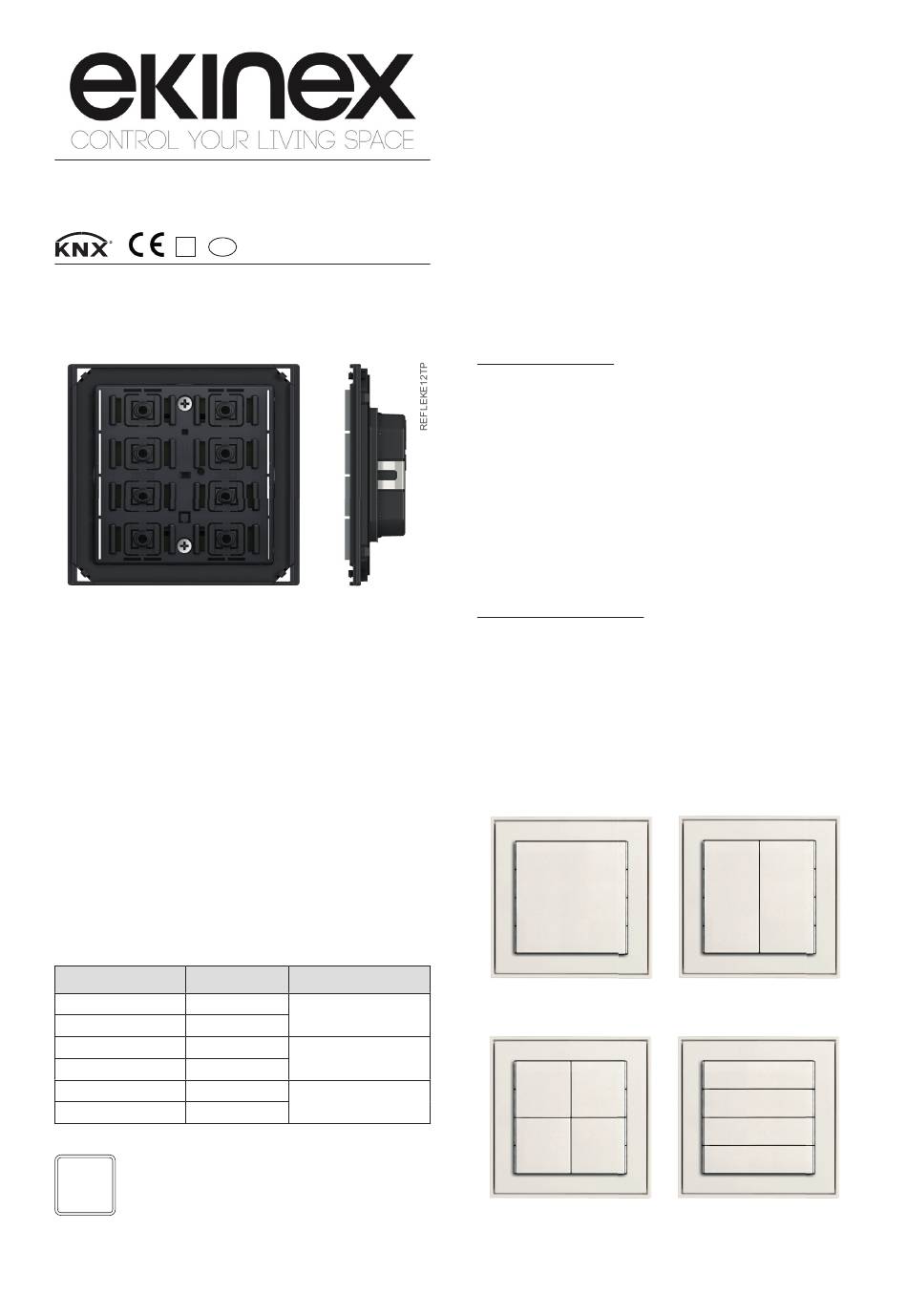

Ekinex 71 Series Datasheet

Pushbutton 71 Serie
Code: EK-E12-TP-...
S
TP1
KNX device for switching and control of single loads or
groups of loads and room temperature regulation. It has
to be used in KNX installations for control of homes and
buildings.
Description
The ekinex pushbutton of 71 Serie is a KNX S-mode de-
®
vice for on/off switching of loads, dimming of lighting de-
vices, controlling of motor drives or other programmable
switching and control functions. The integrated tempera-
ture sensor allows the use as a room or zone temperature
controller. It is equipped with an integrated KNX bus com-
munication module and is designed for wall installation
on fl ush-mounting box. Each channel can be freely con-
fi gured to carry out 1 or 2 bus functions and is provided
with programmable LED (blue/green or red/white) e.g.
as a staus feedback or orientation nightlight. Pressing a
rocker, the device sends on the bus a telegram, which
is received and executed by one or more KNX actuators
depending on the confi guration carried out. The device is
powered by the KNX bus line with a SELV voltage 30 Vdc
and does not require auxiliary power.
Versions
Device code LED colours
EK-E12-TP blue / green
EK-E12-TP-RW red / white
EK-E12-TP-BG-NF blue / green
EK-E12-TP-RW-NF red / white
EK-E12-TP-BG-NFW blue / green
EK-E12-TP-RW-NFW red / white
Note. The set of rockers, the plate and the optional
i
frame for completing the device must be ordered
separately. For more information, see also the eki-
nex ® product catalog or browse www.ekinex.com
Datasheet STEKE12TP_EN
Mounting
with frame of the
form or fl ank series
without frame ('NF series)
without frame ('NF series)
with white adapter
1
Main functional characteristics
• On/off switching of single loads or groups of loads
• Dimming of lighting devices
• Control of motor drives (for roller shutters, blinds, cur-
tains, etc.)
• Room temperature regulation
• Logic functions
• Sending on the bus of values (temperature, bright-
ness, etc.)
• Switching to forced functioning (lock)
• Recalling and saving of scenes
• Measuring of room temperature and light brightness
through integrated sensors
• Diff erent functions programmable for short pressure /
long pressure of a rocker
• Status feedback or orientation nightlight through 2-co-
lour programmable LEDs
Other characteristics
• Housing in plastic material
• Wall installation in fl ush mounting box
• Protection degree IP20 (according to EN 60529)
• Classifi cation climatic 3K5 and mechanical 3M2 (accor-
ding to EN 50491-2)
• Pollution degree 2 (according to IEC 60664-1)
• Weight 40 g (70 g with mounting support)
• Dimensions 81 x 77 x 21 mm (WxHxD)
Technical data
• Power supply 30 Vdc from KNX bus line
• Current consumption < 15 mA
• Power from bus < 360 mW
Environmental conditions
• Operating temperature: - 5 ... + 45°C
• Storage temperature: - 25 ... + 55°C
• Transport temperature: - 25 ... + 70°C
• Relative humidity: 95% not condensing
Delivery
The delivery of the pushbutton includes a metallic support
for round fl ush-mounting box, the fi xing screws (2 pairs)
and the KNX terminal block for connection of the bus line.
Device completed with square
plate, 1-fold Form frame and set of
rockers EK-T1Q-...
Device completed with square
plate, 1-fold Form frame and set of
rockers EK-T4Q-...
Device completed with square
plate, 1-fold Form frame and set of
rockers EK-T2R-...
Device completed with square
plate, 1-fold Form frame and set of
rockers EK-T4R-...
