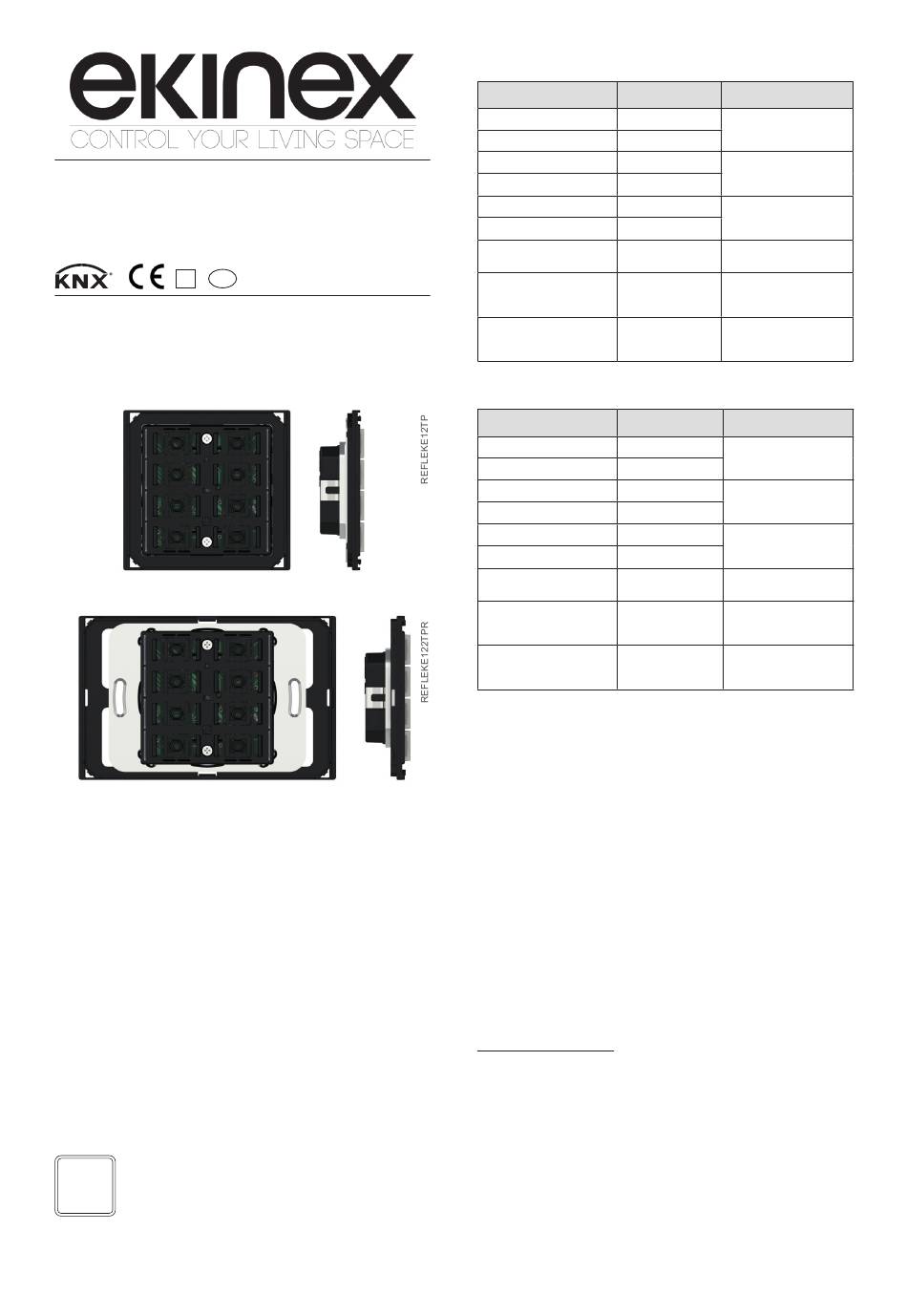

Ekinex 71 Series Quick Start Manual

Pushbutton 71 Series
Codes: EK-E12-TP-...-(R)
EK-E22-TP-...-(R)
S
TP1
KNX device for switching and control of single loads or
groups of loads and room temperature regulation. It has
to be used in KNX installations for control of homes and
buildings.
Description

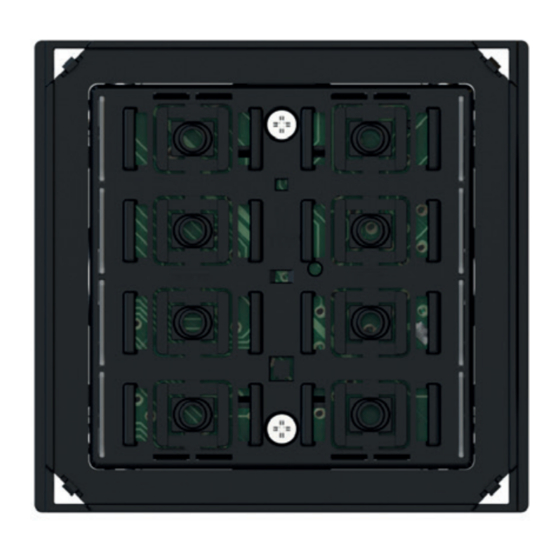

The ekinex pushbutton of 71 Series is a KNX S-mode
®
device for on/off switching of loads, dimming of lighting
devices, controlling of motor drives or other programma-
ble switching and control functions. The integrated tem-
perature sensor (for EK-E12-TP-... versions only) allows
the use as a room or zone temperature controller. It is
equipped with an integrated KNX bus communication
module and is designed for wall installation on flush-
mounting box. Each channel can be freely configured to
carry out 1 or 2 bus functions and is provided with pro-
grammable LED (blue/green or red/white) e.g. as a staus
feedback or orientation nightlight (for EK-E12-TP-... ver-
sions only). Pressing a rocker, the device sends on the
bus a telegram, which is received and executed by one
or more KNX actuators depending on the configuration
carried out. The device is powered by the KNX bus line
with a SELV voltage 30 Vdc and does not require auxiliary
power.
i
Note. The set of rockers, the plate and the optional
frame for completing the device must be ordered
separately. For more information, see also the eki-
nex product catalog or browse www.ekinex.com
®
Datasheet STEKE122TP_EN
1
Versions for round wall box mounting
Device code LED colours
EK-E12-TP blue / green
EK-E12-TP-RW red / white
EK-E12-TP-BG-NF blue / green
EK-E12-TP-RW-NF red / white
EK-E12-TP-BG-NFW blue / green
EK-E12-TP-RW-NFW red / white
EK-E22-TP
EK-E22-TP-NF
EK-E22-TP-NFW
Versions for rectangular wall box mounting
Device code LED colours
EK-E12-TP-R blue / green
EK-E12-TP-RW-R red / white
EK-E12-TP-BG-NF-R blue / green
EK-E12-TP-RW-NF-R red / white
EK-E12-TP-BG-NFW-R blue / green
EK-E12-TP-RW-NFW-R red / white
EK-E22-TP-R
EK-E22-TP-NF-R
EK-E22-TP-NFW-R
Main functional characteristics
• On/off switching of single loads or groups of loads
• Dimming of lighting devices
• Control of motor drives (for roller shutters, blinds, cur-
tains, etc.)
• Room temperature regulation (for EK-E12-TP-... ver-
sions only)
• Logic functions
• Sending on the bus of values (temperature, bright-
ness, etc.)
• Switching to forced functioning (lock)
• Recalling and saving of scenes
• Measuring of room temperature through integrated
sensor
• Different functions programmable for short pressure /
long pressure of a rocker
• Status feedback or orientation nightlight through 2-co-
lour programmable LEDs (for EK-E12-TP-... versions
only)
Other characteristics
• Housing in plastic material
• Wall installation in flush mounting box
• Protection degree IP20 (according to EN 60529)
• Classification climatic 3K5 and mechanical 3M2 (accor-
ding to EN 50491-2)
• Pollution degree 2 (according to IEC 60664-1)
• Weight 40 g (70 g with mounting support)
• Dimensions 81 x 77 x 21 mm (WxHxD)
Technical data
• Power supply 30 Vdc from KNX bus line
• Current consumption < 15 mA
Mounting
with square frame of the
Form or Flank Series
without frame ('NF Series)
housing and adapter in
black colour
without frame ('NF Series)
housing and adapter in
white colour
with square frame of the
n.a.
Form or Flank Series
without frame ('NF Series)
n.a.
housing and adapter in
black colour
without frame ('NF Series)
n.a.
housing and adapter in
white colour
Mounting
with rectangular frame of
the Form or Flank Series
without frame ('NF Series)
housing and adapter in
black colour
without frame ('NF Series)
housing and adapter in
white colour
with rectangular frame of
n.a.
the Form or Flank Series
without frame ('NF Series)
n.a.
housing and adapter in
black colour
without frame ('NF Series)
n.a.
housing and adapter in
white colour
