Ekinex SIGNUM Manual

SIGNUM KNX pushbutton with touch di-
splay
Code: EK-EV3-TP
S
TP1
KNX standard "virtual" button, based on a borderless IPS
touch display, in which each button can be customized
via a dedicated app. It is possible to change some attribu-
tes of each key even after installation, such as position,
symbols and texts.
Description

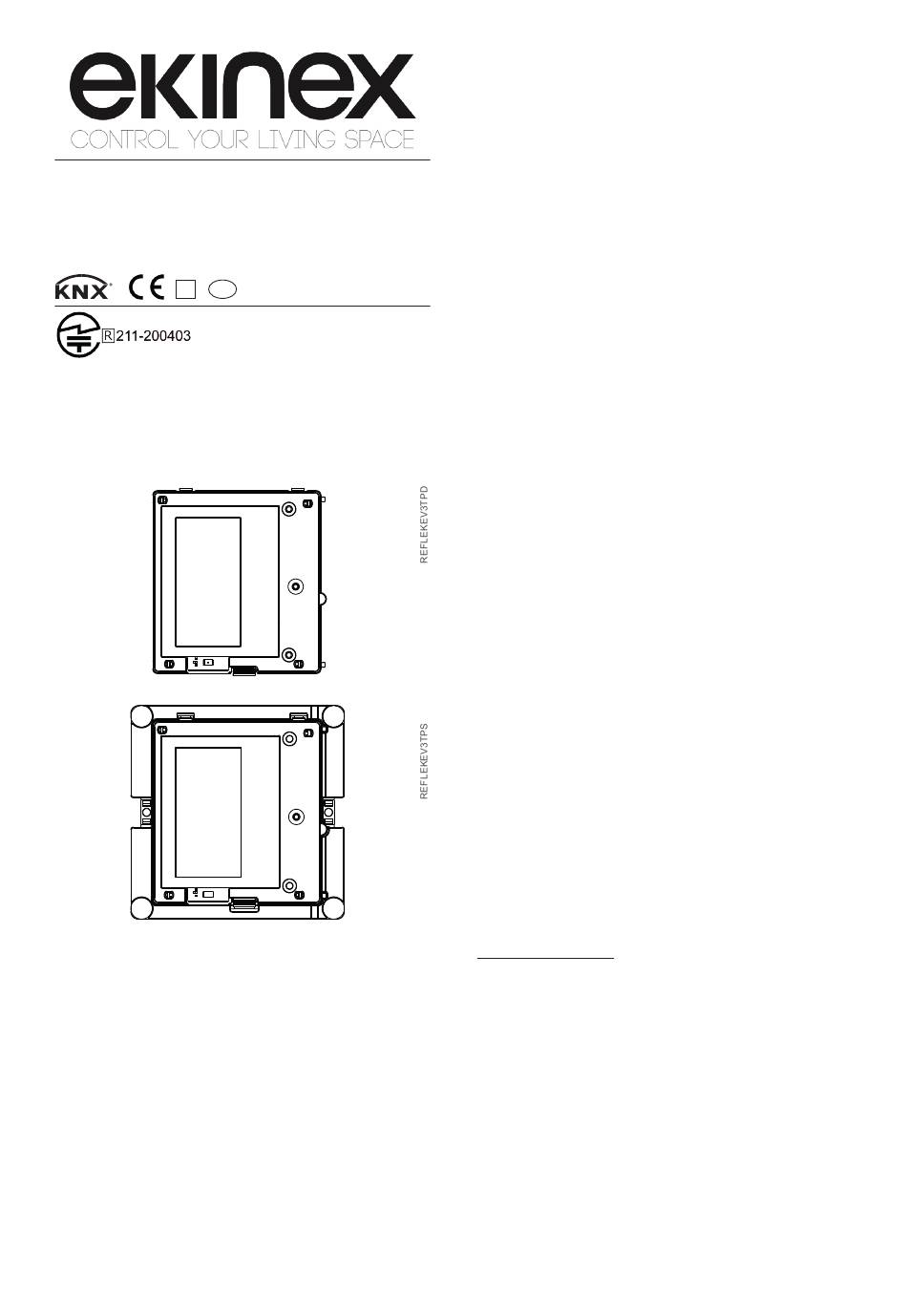

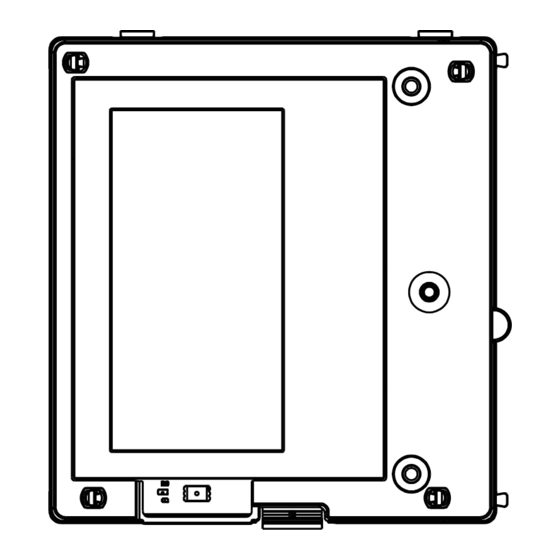

The EK-EV3-TP pushbutton with touch display of the eki-
nex SIGNUM series is a KNX device for the on / off con-
®
trol of utilities, the dimming of lighting devices, the control
of motorized drives or other programmable command
and control functions. The integrated temperature sensor
also allows it to be used as a temperature controller for
an environment or area. The integrated humidity sensor
(if available) allows measurement of environmental re-
lative humidity, with the possibility of sending the value
on the bus and controlling humidification and dehumidi-
fication. The device is intended for KNX standard home
and building automation systems, and it is equipped with
a KNX bus communication module and is designed for
wall installation on a round or square flush mounting box,
equipped with fixing holes with 60 mm center distance.
The button must be completed with a plate from the Deep
or Surface series. The 2.65", 162 x 320 pixel 262K color
Datasheet STEKEV3TP_EN
1
borderless IPS touch display with haptic feedback can be
configured to manage up to 4 buttons per page and up
to 3 total pages. Each button can be customized via the
dedicated Ekinex Tool app via BLE (Bluetooth Low Ener-
gy) and it is possible to change some attributes of each
button even after installation, such as symbols and text.
The integrated proximity sensor allows the activation of
the backlight and other functions, guarantees maximum
readability when using the pushbutton and allows visual
comfort during the night. The device is powered at SELV
30 Vdc voltage by means of the KNX bus and does not
require auxiliary power supply.
Main functional characteristics
• On/off switching of single loads or groups of loads
• Dimming of lighting devices
• Control of motor drives (for roller shutters, blinds,
curtains, etc.)
• Measuring of room temperature via integrated sensor
and temperature regulation functions
• Relative humidity measurement (if available) via inte-
grated sensor and humidification / dehumidification
functions
• Graphic interface for managing the thermostat and split
control functions of air conditioning, which can be ena-
bled via voucher
• Graphic display of the thermostat function that can be
enabled via voucher
• Backlight activation and other functions by means of an
integrated proximity sensor
• Graphical interface for audio source control, which can
be enabled via voucher
• Logic functions
• Recall and memorization of scenarios
• Different programmable functions for short press / long
press of a button
• Touch display with haptic feedback
• Programming via Bluetooth with iOS 9.1 or Android 5.1
and higher apps
• Possibility to configure up to 12 buttons arranged on 3
pages, with dedicated pages for thermostat and audio
control functions
• Customizable buttons with text or icons
• Integration with the KNX network via ekinex
supervision system or the ekinex
assistant interface
• Front cover in the same metal or Fenix NTM
as in the catalog
• Compatibility and family feeling with the Ekinex 20venti
series
Other characteristics
• Housing in plastic material
• Wall installation in flush mounting box
• Protection degree IP20 (installed device)
• Climatic 3K5 and mechanical 3M2 classification (ac-
cording to EN 50491-2)
• Pollution degree 2 (according to IEC 60664-1)
• Weight 88 g (without mounting support)
• Dimensions 77 x 83 x 37 mm (LxHxP)
Technical data
• Power supply 30 Vdc from KNX bus line
• Current consumption from bus: stand-by 8 mA
@30Vdc / max: 35 mA @30Vdc
• Max. power from bus < 1.1 W
• 2.65" IPS display, 162 x 320 pixels, 262K colors with
haptic feedback
