  • Page 1 All manuals and user guides at all-guides.com AUDIO ANALOGUE maestro CD PLAYER 192/24 CURRENT OUTPUT DAC REV2.0 OWNER’S MANUAL MANUALE D’ISTRUZIONI Manual rev1.4...
  • Page 2 All manuals and user guides at all-guides.com...
  • Page 3 Dear Audiophile, Congratulations and thank you for choosing Maestro CD 192/24. You’re now the owner of a unit that establishes a new reference in the category of high-quality and high-versatility stereophonic products. Maestro CD 192/24 provides circuital solutions with no compromises and features capable to satisfy advanced users’...
  • Page 4 All manuals and user guides at all-guides.com INTRODUCTION AF GROUP SRL does not take any responsibilities in the following cases: Whenever the operational procedures related to the use and the maintenance of the equipment as described in this manual are not respected.
  • Page 5 All manuals and user guides at all-guides.com PREMESSA AF GROUP SRL non accetta responsabilità nei casi in cui: Le procedure operative di utilizzo e manutenzione dell’apparato descritte nel manuale non siano rispettate. I danni si verifichino in seguito a riparazioni o modifiche dell’apparato eseguite da personale non autorizzato o a seguito di normale deterioramento dell’apparato.
  • Page 6 All manuals and user guides at all-guides.com Features Refined power supply with two transformers (one toroidal) and eight separated set-up sections. High-performance 192KHz/24bit D/A converter. Low-jitter, sample-rate converter. Analogical circuits with separated components. Highest-quality passive components; lowest-tolerance metallic-layered resisters (MIL standard); low-tolerance, non-polarized polyester/propylene capacitors;...

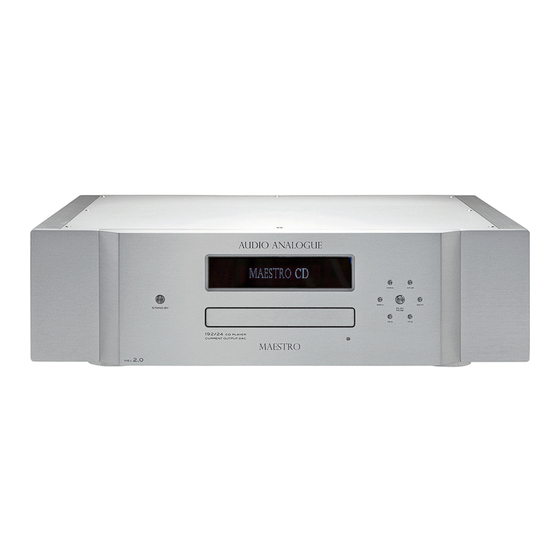

  • Page 7 All manuals and user guides at all-guides.com Front panel 1) STANDBY. When pressing this button you activate/deactivate standby mode. 2) Standby indicator. Lights blue when Standby mode is activated. PLED display is turned off. 3) VFD display. 4) CD tray. 5) IR receiver.
  • Page 8 All manuals and user guides at all-guides.com Back panel 1) S/PDIF DIGITAL OUT. Digital out connector. 2) RIGHT OUT. Unbalanced right digital out connector. 3) RIGHT BALANCED OUT. Balanced right digital out connector. 4) LEFT OUT. Unbalanced left digital out connector. 5) LEFT BALANCED OUT.
  • Page 9 All manuals and user guides at all-guides.com Remote CD functions To use the remote with the CD Player you have to select the CD mode on the remote. For such purpose simply push the switch on the remote. To check the remote mode just shake the remote and see if the switch at the top left of the remote lights is on.
  • Page 10 All manuals and user guides at all-guides.com Funzioni CD Per poter essere utilizzato con un lettore CD è necessario selezionare la modalità CD. A tal fine premere semplicemente il tasto: Per verificare che il telecomando sia in modalità CD basta scuotere il telecomando e controllare che il tasto in alto a sinistra si illumini.
  • Page 11 At last, plug the power cord into the Maestro CD 192/24 inlet and into the wall outlet. WARNING! Maestro CD 192/24 HAS NO power switch. It means that it turns on any time it is plugged to a wall outlet. Power plugging has ALWAYS to be done at last.
  • Page 12 Do not search the correct phase unless the unit is unplugged. To make plugging easy, Audio Analogue marked the Maestro CD 192/24 power cord pin that has to be plugged into the inlet phase hole. It is then sufficient to verify which outlet hole is the phase hole and plug the power cord in inserting the phase pin into the phase hole.
  • Page 13 Standby mode You can put Maestro CD 192/24 in standby mode pressing either the “STBY” button on the remote controller or the “STANDBY” button on the front panel. When the CD player is in standby mode, only the microcontroller section is powered while the rest of the circuit is off, reducing power consumption and minimizing damage risks.
  • Page 14 How to use the serial port Maestro CD 192/24 is equipped with a standard RS-232 serial port. You may remotely control the CD player connecting it to a PC or a home-automation unit through this port. This feature allows you to integrate Maestro CD 192/24 into a multi-room or house- automation system and enjoy its sound everywhere in your house.

  • Page 15: Specifications

    All manuals and user guides at all-guides.com Specifications Parameter Measurement conditions Value Channels: Maximum output voltage: Unbalanced outs Balanced outs Frequency response: +0/-1dB 2Hz-22kHz Noise level: Band limits 0Hz-20kHz Signal/noise ratio: 22Hz-22kHz Power requirements: 230V 50-60Hz or 115V 50-60Hz Power consumption: 60VA Specifiche Tecniche Parametro...

  • Page 16: Troubleshooting

    Check cords and their connection No sound between Maestro CD 192/24 and the amplifier Incorrectly selected source on the amplifier Check that Maestro CD 192/24 is correctly selected through the amplifier ins CD player works but the display is off Faulty front panel...
  • Page 17 All manuals and user guides at all-guides.com WARNING! All of our CD players may not be able to read some specific CD’s manufactured with a unique protection system against copying. If in doubt, please try to read the CD using a PC CD-ROM drive. When the CD-ROM drive is incapable of accessing the tracks on the CD, please do not play the CD in question with the our CD players.
  • Page 18 Please contact your Audio Analogue dealer who will inform you about the take-back and recycling. Small products (and apparecchiature elettriche ed elettroniche insieme ai small amounts) might be taken back by your local collection facilities. normali rifiuti domestici. Per tali prodotti è previsto un sistema di raccolta a parte.
  • Page 19 All manuals and user guides at all-guides.com...
  • Page 20 All manuals and user guides at all-guides.com Audio Analogue Distributed by: AF GROUP srl www.audioanalogue.com afgroupsrl@audioanalogue.com...
