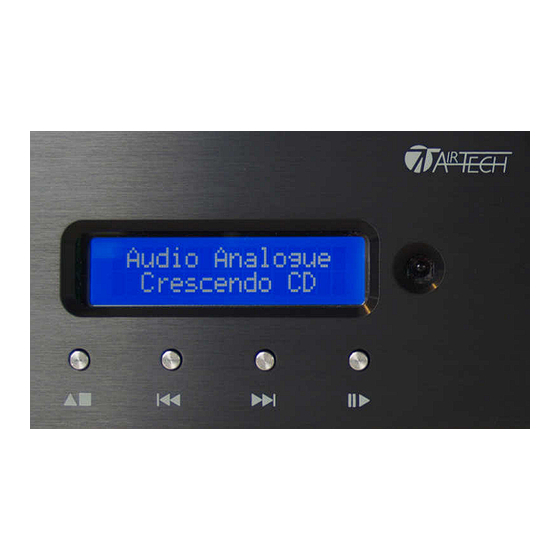

Audio Analogue Crescendo CD Owner's Manual

Compact disc player
Hide thumbs Also See for Crescendo CD:

Advertisement

Quick Links

Download this manual

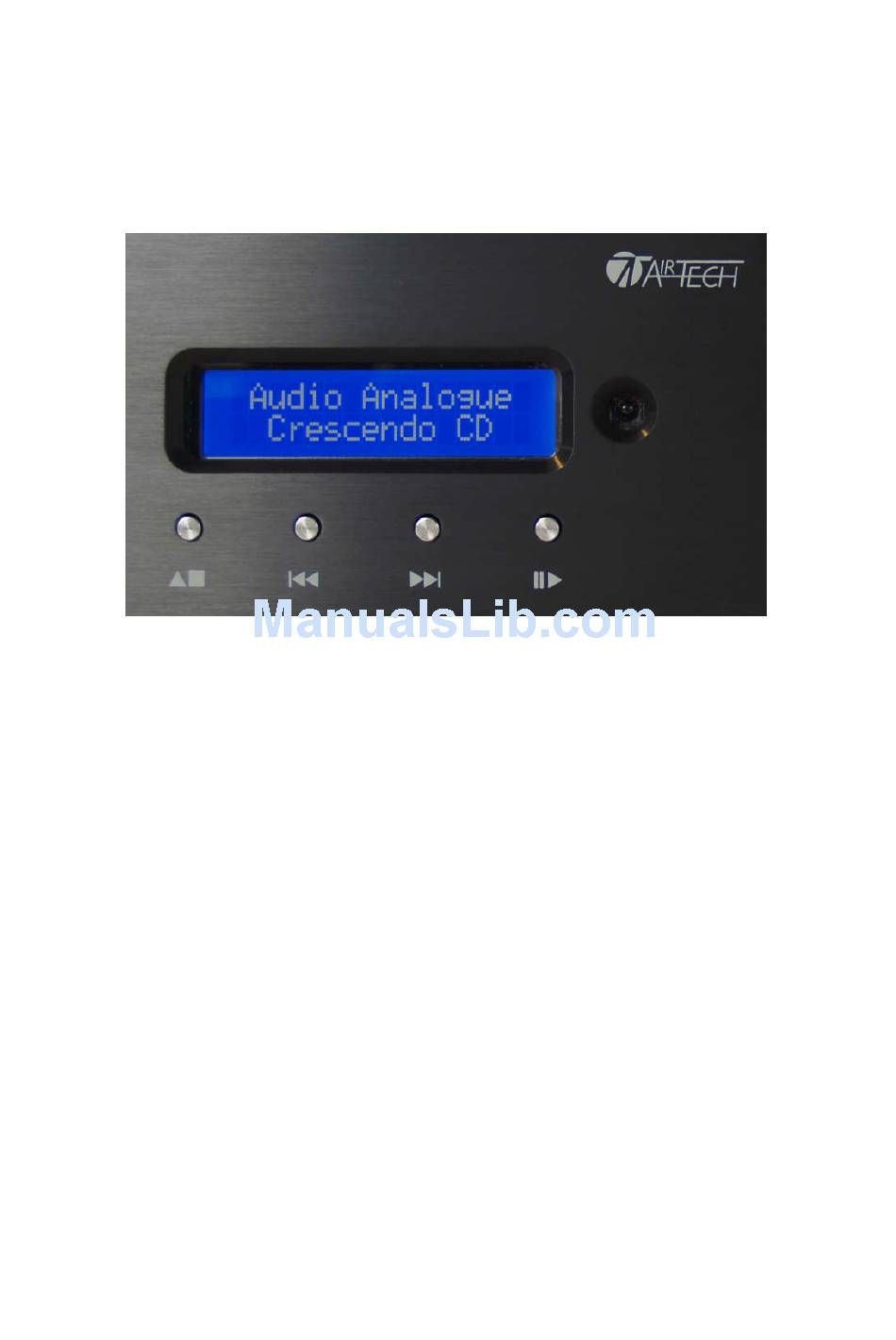

AUDIO ANALOGUE
Crescendo CD
COMPACT DISC PLAYER
OWNER'S MANUAL
MANUALE D'ISTRUZIONI
Manual rev 1.3

Advertisement

loading
Need help?

Need help?

Do you have a question about the Crescendo CD and is the answer not in the manual?

Questions and answers

Related Manuals for Audio Analogue Crescendo CD

Summary of Contents for Audio Analogue Crescendo CD

  • Page 1 AUDIO ANALOGUE Crescendo CD COMPACT DISC PLAYER OWNER’S MANUAL MANUALE D’ISTRUZIONI Manual rev 1.3...
  • Page 3 Output Stage: in this product Audio Analogue has focused a lot on the output stage and a new approach to the design has been developed. We have realized a fourth order active output filter that, together with the one pole filter inside the DAC, forms a fifth order output one.
  • Page 4 INTRODUCTION AF Group srl, AUDIO ANALOGUE distributor, does not take any responsibilities in the following cases: Whenever the operational procedures related to the use and the maintenance of the equipment as described in this manual are not respected. Whenever damages to the equipment occur because of fixing and modifications made form non-authorized staff or because of normal deterioration of the system.
  • Page 5 PREMESSA AF Group srl, distributore AUDIO ANALOGUE, non accetta responsabilità nei casi in cui: Le procedure operative di utilizzo e manutenzione dell’apparato descritte nel manuale non siano rispettate. I danni si verifichino in seguito a riparazioni o modifiche dell’apparato eseguite da personale non autorizzato o a seguito di normale deterioramento dell’apparato.
  • Page 6 Front panel Power Switch. CD tray STOP/OPEN. When playback is stooped, it allows Opens/closes CD tray. During playback Stops CD playback PREV/REW. During playback, starts previous CD track playback, a long pressure ability Fast rewind search. When playback is stopped, it allows choosing the CD track from which resuming playback or search CD tracks backward. NEXT/FFW.
  • Page 7 Description of the remote controller: CD PLAYER Functions • PLAY / PAUSE • STOP / OPEN • PREV / • NEXT / • 0123456789 (NUMERIC KEYS): According to the functioning state of the CD player you have two different actions: when the CD player is in stop it is possible to select a track pressing the number of the correspondent song (the unit waits for PLAY to be pressed).
  • Page 8 While the unit is in SLEEP MODE the icon of a watch can be seen blinking on the dispaly. TRACK 12 Θ It shows that the SLEEP function is on when the unit is in STOP mode TOTAL TIME 65:47 TRACK 02 It shows that the SLEEP function is on when the unit is in play mode.
  • Page 9 Remote controller - Descrizione del telecomando: Funzioni del CD PLAYER • PLAY / PAUSE • STOP / OPEN • PREV / • NEXT / • 0123456789 (TASTI NUMERICI): a seconda dello stato di funzionamento del CD player si hanno due differenti comportamenti: Quando il CD player è...
  • Page 10 Where to place CRESCENDO CD Player CRESCENDO CD Player is a unit that may generate heat. Please locate the unit in a well-ventilated place. In particular, you should leave at least 5cm around and above the unit and avoid placing it close to heat sources (radiators, heaters, amplifiers, television sets).
  • Page 11 Powering up CRESCENDO CD Player When you plug CRESCENDO CD Player into the power outlet and turn on the power switch on frontal panel the display will show a welcome message and after a few seconds the display will show the CD data or a “NO DISC” message. If nothing happens, please refer to the troubleshooting section of the present manual.

  • Page 12: Specifications

    Note on Trigger IN Input: The Crescendo CD Player has a Trigger In input which can turn on the Crescendo CD Player if a 12VDC voltage is applied and a current of about 40mA is supplied. The maximum current allowed is of 160mA, an internal fuse protects the trigger In circuit. To switch on and off the Crescendo CD Palyer via the trigger connection leave the main power switch on the front panel in the off state.

  • Page 13: Troubleshooting

    Fusibili di rete bruciati portafusibili della presa IEC ed eventualmente sostituire con altri dello stesso tipo Cavi di segnale tra Crescendo CD player e Controllare lo stato dei cavi e/o la corretta amplificatore non connessi correttamente connessione...
  • Page 14 WARNING! All of our CD players may not be able to read some specific CD’s manufactured with a unique protection system against copying. If in doubt, please try to read the CD using a PC CD-ROM drive. When the CD-ROM drive is incapable of accessing the tracks on the CD, please do not play the CD in question with the our CD players.
  • Page 15 If this product is used for business purposes and you want to discard it: Attenzione: il dispositivo è contrassegnato da questo Please contact your Audio Analogue dealer who will inform you about the take-back and recycling. Small products (and simbolo,...
  • Page 16 Audio Analogue Distributed by: AF GROUP srl www.audioanalogue.com info@afgroupsrl.com...
