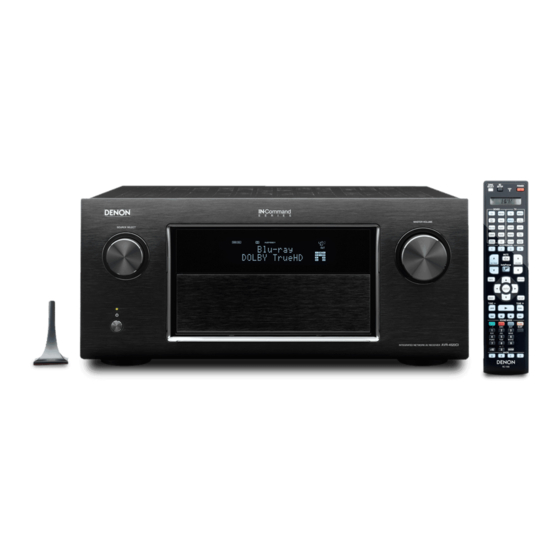

Denon AVR-4520CI Model Information

Hide thumbs Also See for AVR-4520CI:
Table of Contents

Advertisement

Quick Links

See also: Service Manual , Owner's Manual
Model Information
Index
Front Panel
Rear Panel
Remote Control
Warranty
Reset Procedure
Accessories
Protection History
Display Mode
Upgrades/Updates
Product Specifications
I/R Codes
NOTE:
This edition is missing the FAQ's content (pages 11 and 12) .................................................................7/28/2015
This edition is missing the link to the IR Codes.....................................................................................7/28/2015
MODEL:
Model Information
INTEGRATED NETWORK AV RECEIVER
AVR-4520CI
MI072815E3-1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AVR-4520CI and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Denon AVR-4520CI

Summary of Contents for Denon AVR-4520CI

  • Page 1 MODEL: AVR-4520CI Model Information Index Model Information Front Panel INTEGRATED NETWORK AV RECEIVER Rear Panel Remote Control Warranty Reset Procedure Accessories Protection History Display Mode Upgrades/Updates Product Specifications I/R Codes NOTE: This edition is missing the FAQ’s content (pages 11 and 12) ………………………………………………………..7/28/2015 This edition is missing the link to the IR Codes………………………………………………………………………..7/28/2015...

  • Page 2: Front Panel

    Front Panel  Door  Power operation button (O ) When you are using buttons and/or connectors behind the  Power Indicator door, press the bottom of the door to open it. When not (Power indicator status) using buttons and/or connectors behind the door, close it. Be careful not to catch your fingers when closing the door.

  • Page 3: Buttons And Connectors Behind The Compartment Door

    Buttons and Connectors Behind the Compartment Door   SETUP MIC jack AUX1 HDMI 7 / MHL connector  QUICK SELECT buttons  iPod/USB port   DIMMER button Headphones jack (PHONES) When the headphones are plugged into this jack, audio will no ...
  • Page 4 Display  Information display  Monitor output indicator The input source name, sound mode, setting values and other These light according to the HDMI monitor output setting. information are displayed here. When set to “Auto(Dual)”, the indicators light according to ...

  • Page 5: Rear Panel

    Analog audio connectors  Speaker terminals (AUDIO) (SPEAKERS)  FM/AM antenna terminals (ANTENNA)  RS-232C connector  Denon Link HD connector   Digital audio connectors SIGNAL GND terminal (DIGITAL AUDIO)  PRE OUT connectors  Network connectors (NETWORK) ...

  • Page 6: Remote Control

    Remote Control  Number buttons  Character buttons  Remote control signal transmitter  POWER button (O)  ZONE SELECT button  indicator  RC SETUP button  TV operation buttons  Display (TV O / TV MENU / TV INPUT) ...

  • Page 7: Denon Limited Warranty (1 Of 2)

    Length of Non-Transferable Warranty This warranty on your DENON product which is distributed and warranted by DENON ELECTRONICS (USA), LLC remains in effect for the following periods from the date of the original consumer purchase from an AUTHORIZED DENON ELECTRONICS (USA), LLC DEALER.
  • Page 8 Except as specified below, this Warranty covers all defects in material and workmanship in this product occurring during the above warranty periods. The following are not covered by the Warranty: (1) Any product which is not distributed in the U.S.A. by DENON ELECTRONICS (USA), LLC. (2) Any product which is not purchased in the U.S.A.
  • Page 9 Reset Important: Back up the settings before resetting the microprocessor. Most settings are reset to the factory default values after performing this procedure. This means that all the settings data will be completely lost if it’s not previously saved. “INFO” button Power/Standby button Reset procedure:...
  • Page 10 Accessories Sound Remote Control Sound Calibration (RC1165) Calibration Microphone Microphone Stand (ACM1HB) 30701010600AD $66.98 32401000800AD $31.99 42911002000AS $14.99 AM Loop FM Indoor Power Cord) Antenna Antenna 11601001400AS $4.46 11601001100AS $3.27 611050024005S $19.99 Safety CD ROM External Instructions Antennas For Owner’s Bluetooth/Wire Manual less...
  • Page 11 FAQ’s ( 1 of 2) HOME ACCESSORIES FAQ’s 2...
  • Page 12 FAQ’s (2 of 2) HOME FAQ’s 1 UPGRADE...
  • Page 13 Server is busy Login failed To Check for Firmware Update from the Denon server when the unit is connected to the internet via the Ethernet port (When Firmware Notification is turned off). Press “SETUP” and select “GENERAL” and then select “FIRMWARE” followed by “UPDATE” and finally, select “CHECK FOR UPDATE”.

  • Page 14: Specifications - Audio Section

    Specifications – Audio Section Audio section 150 W + 150 W (8 Ω/ohms, 20 Hz – 20 kHz with 0.05% T.H.D.) Front 190 W + 190 W (6 Ω/ohms, 1 kHz with 0.7 % T.H.D.) 150 W (8 Ω/ohms, 20 Hz – 20 kHz with 0.05% T.H.D.) Center 190 W (6 Ω/ohms, 1 kHz with 0.7 % T.H.D.) 150 W + 150 W (8 Ω/ohms, 20 Hz –...

  • Page 15: Specifications - Video Section, Tuner

    Specifications - Video section, Tuner Video section Input/output level and impedance 1 Vp-p, 75 Ω/ohms Standard video connectors 5 Hz -10MHz, 0, - 3dB (when “Video Conversion” Frequency response set to “Off”) Y signal 1 Vp-p, 75 Ω/ohms Input/output level and impedance PB/CB signal 0.7 Vp-p, 75 Ω/ohms Color component video connector...

  • Page 16: Specifications - Switching Hub Section, General Section

    Specifications – Switching Hub Section, General Section Switching Hub IEEE 802.3 (10 Base-T) - compliant Standard IEEE 802.3 (10 Base-T)-compliant IEEE 802.3u (100 Base-TX)-compliant Number of ports 4 ports General section Power supply AC 120V, 60Hz Power consumption 780W Power consumption in standby mode 0.1W Power consumption in CEC standby mode 0.5W...

  • Page 17: Specifications - Dimensions, Weight

    Specifications – Dimensions, Weight Dimensions section (Unit : inch/mm) Weight: 36 lbs 6 oz (16.5 kg) SPECIFICATIONS – HOME SPECIFICATIONS - SPECIFICATIONS - VIDEO – SPECIFICATIONS - SWITCHING HUB - AUDIO TUNER DIMENSIONS - WEIGHT GENERAL...
  • Page 18 The End NOTE: This edition is missing the FAQ’s content (pages 11 and 12) ………………………………………………………..7/28/2015 This edition is missing the link to the IR Codes………………………………………………………………………..7/28/2015 HOME...
