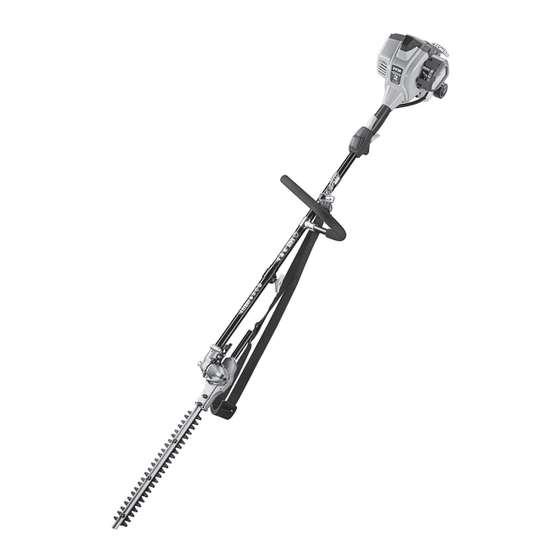

Ryobi RPHT254O Original Instructions Manual

Petrol pole hedge trimmer
Hide thumbs
Table of Contents

Advertisement

Quick Links

RBC36X26E
RPHT254O
RBC36X26E
ORIGINAL INSTRUCTIONS
Petrol Pole
Hedge Trimmer

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RPHT254O and is the answer not in the manual?

Questions and answers

Related Manuals for Ryobi RPHT254O

Summary of Contents for Ryobi RPHT254O

  • Page 1 ORIGINAL INSTRUCTIONS Petrol Pole Hedge Trimmer RBC36X26E RPHT254O RBC36X26E...
  • Page 2 Important! It is essential that you read the instructions in this manual before assembling, operating, and maintaining the product. Subject to technical modification.

  • Page 3: Intended Use

    Ryobi recommends and warnings in this manual and can be considered wide vision safety mask for use over eyeglasses or responsible for their actions.

  • Page 4: Operation

    the on/off switch to the “STOP” (off) position. entanglement in moving parts. Do not operate in poor lighting. The operator requires a OPERATION clear view of the work area to identify potential hazards. Always stop the engine, disconnect the spark plug cap Check the work area before each use.

  • Page 5: Maintenance

    that could become stale and leave varnish and gum in You may make adjustments and repairs described in the fuel system. this manual. For other repairs, contact the authorised service centre. Store the product in a cool, dry, and well-ventilated place that is inaccessible to children and well away from Consequences of improper maintenance may include sources of ignition.

  • Page 6: Risk Reduction

    Mix the fuel and 2-stroke lubricant periods, ensure you take regular breaks. thoroughly before refuelling. WHAT'S IN THE BOX Warning! Hot surface. RPHT254O Pole hedge trimmer x1 Petrol powerhead x1 Press the primer bulb. Operator's Manual x1 Blade sheath x1 J handle x1 Press the primer bulb 10 times.

  • Page 7: Symbols In This Manual

    SYMBOLS IN THIS MANUAL Parts or accessories sold separately Note Warning Do not smoke when mixing fuel or when Risk of fire Starting a cold engine by hand. Starting a warm engine by hand. Stop the product. The following signal words and meanings are intended to explain the levels of risk associated with the product.
  • Page 8 WHAT'S IN THE BOX...

  • Page 9: Know Your Product

    KNOW YOUR PRODUCT 1. Blade 11. Trigger lock 2. Lock ratchet wheel 12. Air filter cover 3. Safety lock lever 13. Primer bulb 4. Muffler 14. Starter grip 5. Spark plug 15. Spark plug cover 6. Air filter 16. E-starter housing 7.

  • Page 10: Getting Started

    GETTING STARTED 50 : 1 / 2% (50 : 1) Always wear safety goggles or safety glasses with side Use synthetic 2-stroke lubricant only. Do not use shields when operating the product. Failure to do so could automotive lubricant or 2-stroke outboard lubricant. Mix result in objects being thrown into your eyes resulting in 2% synthetic 2-stroke lubricant into the petrol.
  • Page 11 GETTING STARTED Install the lower shaft. Loosen the fuel cap. Remove the fuel cap. Carefully pour fuel mixture into the tank. Avoid spillage. Immediately replace fuel cap and hand tighten. Remove the blade sheath.
  • Page 12 OVERVIEW Starting a cold engine Starting a warm engine Starting a cold engine by e-starter p.12 p.13 p.14 Starting a warm engine by Operating the pole hedge Operating the pole hedge e-starter trimmer trimmer p.16 p.18 p.20...
  • Page 13 OVERVIEW Cleaning the pole hedge Cleaning the spark Spark plug replacement trimmer arrestor p.23 p.24 p.27 Cleaning the air filter Storing the pole hedge trimmer p.28 p.29...

  • Page 14: Starting A Cold Engine

    OPERATION STARTING A COLD ENGINE 1. Lay the product on the ground. Ensure that the cutting means will not contact anything when it starts to rotate. Press the primer bulb 10 times. NOTE: After the 7th press, the fuel should be visible in the primer bulb. If not, continue pressing until the fuel is visible.

  • Page 15: Starting A Warm Engine

    OPERATION STARTING A WARM ENGINE 1. Lay the product on the ground. Ensure the cutting means will not contact anything when it starts to rotate. Press the primer bulb 10 times. Set the choke lever to position 2. Hold down the throttle lock and then squeeze the throttle trigger completely and pull the starter grip until the engine starts.
  • Page 16 OPERATION STARTING A COLD ENGINE BY ELEC- TRICAL STARTER (OPTIONAL) WARNING: Only use RYOBI OES18 electrical starter. Use of any other starts may damage the engine and cause serious personal injury. WARNING: Before using the electrical starter to start the product, please read...
  • Page 17 OPERATION 4. Hold down the throttle lock and then squeeze the throttle trigger completely with your left hand and keep the throttle trigger squeezed completely through steps 6. Use your right hand to put the starter bit shaft to the shaft hole on the engine. Make sure the starter bit is properly engaged.
  • Page 18 OPERATION STARTING A WARM ENGINE BY ELEC- TRICAL STARTER 1. Install the starter bit into the electrical starter with the pentagon bit facing outside. Push the F/R button to the left until the pentagon symbol shows on the F/R button. 2.
  • Page 19 OPERATION 4. Hold down the throttle lock and then squeeze the throttle trigger completely with your left hand and keep the throttle trigger squeezed completely. Use the right hand to put the electrical starter shaft into the shaft hole on the engine. Make sure the starter is properly engaged.

  • Page 20: Operating The Pole Hedge Trimmer

    OPERATION (50’) OPERATING THE POLE HEDGE TRIMMER CAUTION: DANGER! Risk of electrocution! Do not operate within 10 m of overhead electrical lines. Position the product at an angle of 60° or less, depending on the specific situation. Keep bystanders at least 15 m away. CAUTION: Always use two hands to operate the pole hedge trimmer.
  • Page 21 OPERATION 3. Secure with the safety lock lever. 4. Remove the blade sheath from the blade. 5. Hold down the throttle lock and then squeeze the throttle trigger to start the engine. NOTE: For starting the engine, refer to page 14-19. 6.
  • Page 22 OPERATION ROTATING THE POLE HEDGE TRIMMER 1. Press the switch to the STOP position to stop the engine. 2. Cover the blade with the blade sheath. 3. Remove the lower shaft. 4. Rotate the lower shaft 180 degrees and install it again. 180º...
  • Page 23 OPERATION 5. Lay the product on the ground. 6. Adjust the pole hedge trimmer until it snaps securely into place. 7. Secure with the safety lock lever. 8. Remove the blade sheath from the blade.
  • Page 24 OPERATION 9. Hold down the throttle lock and then squeeze the throttle trigger to start uthe engine. NOTE: For starting the engine, refer to page 14-19. 10. Use the pole hedge trimmer for cutting in a slow, sweeping action from left to right.

  • Page 25: Maintenance

    MAINTENANCE CLEANING THE POLE HEDGE TRIMMER 1. Press the switch to the STOP position to stop the engine. 2. After each use, clean the body and handles of the product with a soft, dry cloth and a brush. WARNING: Do not clean the blade with water.

  • Page 26: Cleaning The Spark Arrestor

    MAINTENANCE CLEANING THE SPARK ARRESTOR 1. Press the switch to the STOP position to stop the engine. 2. Remove the rear housing of the 3. Loosen the screws from the cylinder. shield.
  • Page 27 MAINTENANCE 5. Use the brush to clean the exhaust hole of the cylinder and intake hole of the muffler. 6. Loosen the screws securing the spark arrestor, and then detach it from the muffler. 7. Clean the spark arrestor with a small wire brush.
  • Page 28 MAINTENANCE shield. powerhead, and then tighten the screws to secure. 11. Place the rear housing and secure it with...

  • Page 29: Replacing The Spark Plug

    MAINTENANCE REPLACING THE SPARK PLUG 1. Press the switch to the STOP position to stop the engine. 2. Hold the front portion of the rubber protect boot and pull it away from the housing. Pull the rubber protect boot upward to release the hook.

  • Page 30: Cleaning The Filter

    MAINTENANCE CLEANING THE FILTER 1. Press the switch to the STOP position to stop the engine. 2. Remove the air filter cover and the air filter. 3. Clean the air filter with warm, soapy water. Rinse, and let the air filter dry completely.

  • Page 31: Storing The Hedge Trimmer

    STORAGE STORING THE HEDGE TRIMMER NOTE: Clean all foreign materials from the product. 1. Press the switch to the STOP position to stop the engine. 2. Loosen and remove the fuel cap. Drain all the fuel from the tank into a container approved for petrol.
  • Page 32 STORAGE 4. Remove the lower shaft. 5. Store the product in a cool, dry, and well- ventilated place that is inaccessible to children and well away from sources of ignition.

  • Page 33: Product Specifications

    PRODUCT SPECIFICATIONS REPLACEMENT PART Spark plug RCJ6Y Petrol hedge trimmer Model RPHT254O Engine displacement 25.4 cm Max Engine Performance (in 0.75 kW accordance with ISO 8893) Engine speed (rotational 2,600 - 3,400 min frequency) at idle Fuel Consumption (in accordance 0.38 kg/h...

  • Page 34: Maintenance Schedule

    MAINTENANCE SCHEDULE Every 3 Every 6 Every year Every 25 Before month or months or months or or after 300 hours of each use 20 hours of 50 hours of 100 hours of hours of operation operation operation operation operation Check if fastener is fully tightened Check: Cutting...

  • Page 35: Troubleshooting

    TROUBLESHOOTING Problem Possible cause Solution Engine will not start. No spark Check for spark. Remove the spark plug. Reattach the spark plug cap and lay spark plug on metal cylinder. Pull the starter rope and watch for spark at spark plug tip. If there is no spark, repeat test with a new spark plug.
  • Page 36 Imported by: Techtronic Industries Australia Pty Ltd 31 Gilby Road, Mount Waverley, VIC 3149 Melbourne, Australia Techtronic Industries N.Z. Limited 2 Landing Drive, Mangere Auckland, 2022, New Zealand 960405052-01...
