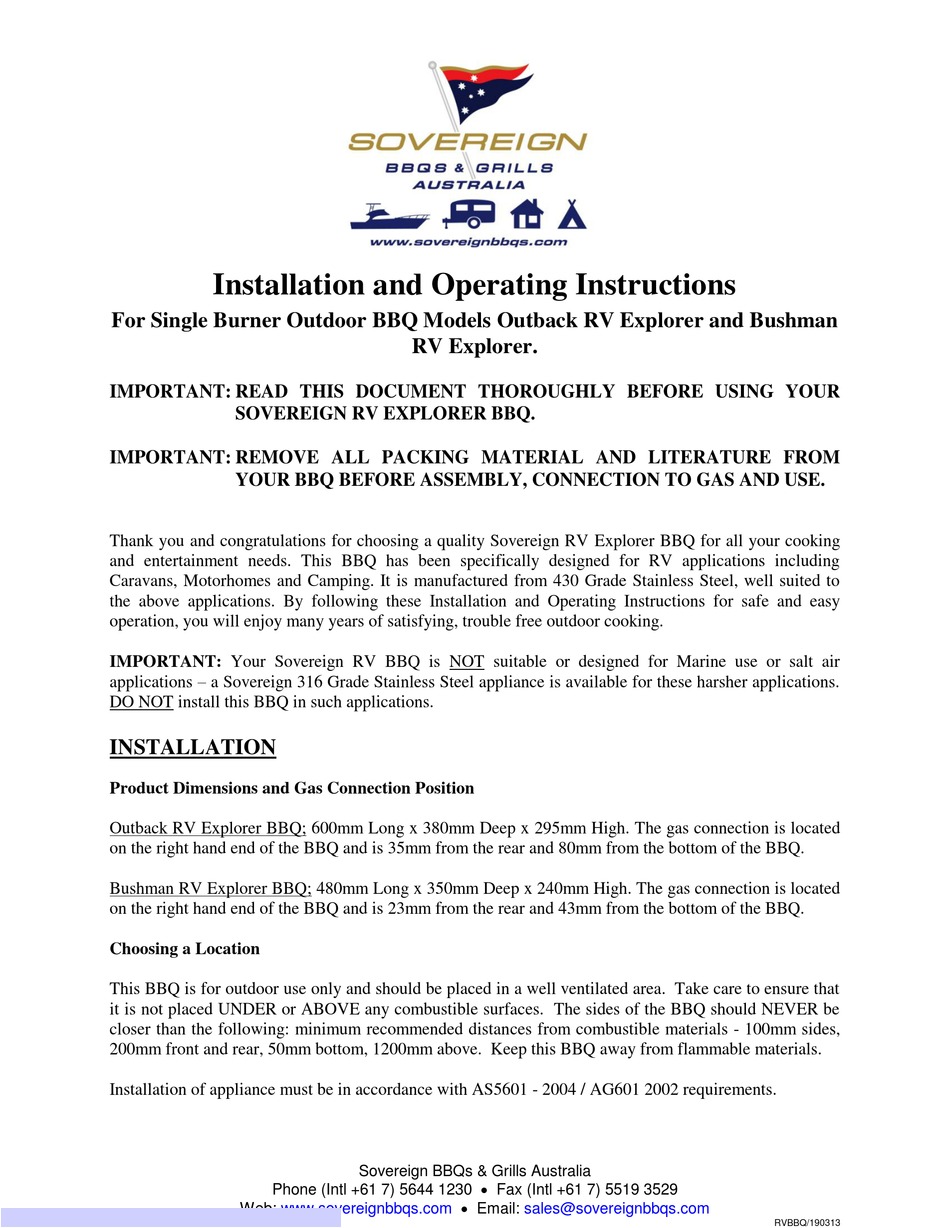

Installation and Operating Instructions
For Single Burner Outdoor BBQ Models Outback RV Explorer and Bushman
IMPORTANT: READ THIS DOCUMENT THOROUGHLY BEFORE USING YOUR
SOVEREIGN RV EXPLORER BBQ.
IMPORTANT: REMOVE ALL PACKING MATERIAL AND LITERATURE FROM
YOUR BBQ BEFORE ASSEMBLY, CONNECTION TO GAS AND USE.
Thank you and congratulations for choosing a quality Sovereign RV Explorer BBQ for all your cooking
and entertainment needs. This BBQ has been specifically designed for RV applications including
Caravans, Motorhomes and Camping. It is manufactured from 430 Grade Stainless Steel, well suited to
the above applications. By following these Installation and Operating Instructions for safe and easy
operation, you will enjoy many years of satisfying, trouble free outdoor cooking.
IMPORTANT: Your Sovereign RV BBQ is NOT suitable or designed for Marine use or salt air
applications – a Sovereign 316 Grade Stainless Steel appliance is available for these harsher applications.
DO NOT install this BBQ in such applications.
INSTALLATION
Product Dimensions and Gas Connection Position
Outback RV Explorer BBQ; 600mm Long x 380mm Deep x 295mm High. The gas connection is located
on the right hand end of the BBQ and is 35mm from the rear and 80mm from the bottom of the BBQ.
Bushman RV Explorer BBQ; 480mm Long x 350mm Deep x 240mm High. The gas connection is located
on the right hand end of the BBQ and is 23mm from the rear and 43mm from the bottom of the BBQ.
Choosing a Location
This BBQ is for outdoor use only and should be placed in a well ventilated area. Take care to ensure that
it is not placed UNDER or ABOVE any combustible surfaces. The sides of the BBQ should NEVER be
closer than the following: minimum recommended distances from combustible materials - 100mm sides,
200mm front and rear, 50mm bottom, 1200mm above. Keep this BBQ away from flammable materials.
Installation of appliance must be in accordance with AS5601 - 2004 / AG601 2002 requirements.
