Sovereign Alpha Installation And Operating Instructions Manual

Single burner outdoor bbq
Hide thumbs Also See for Alpha:

Advertisement

Quick Links

Download this manual

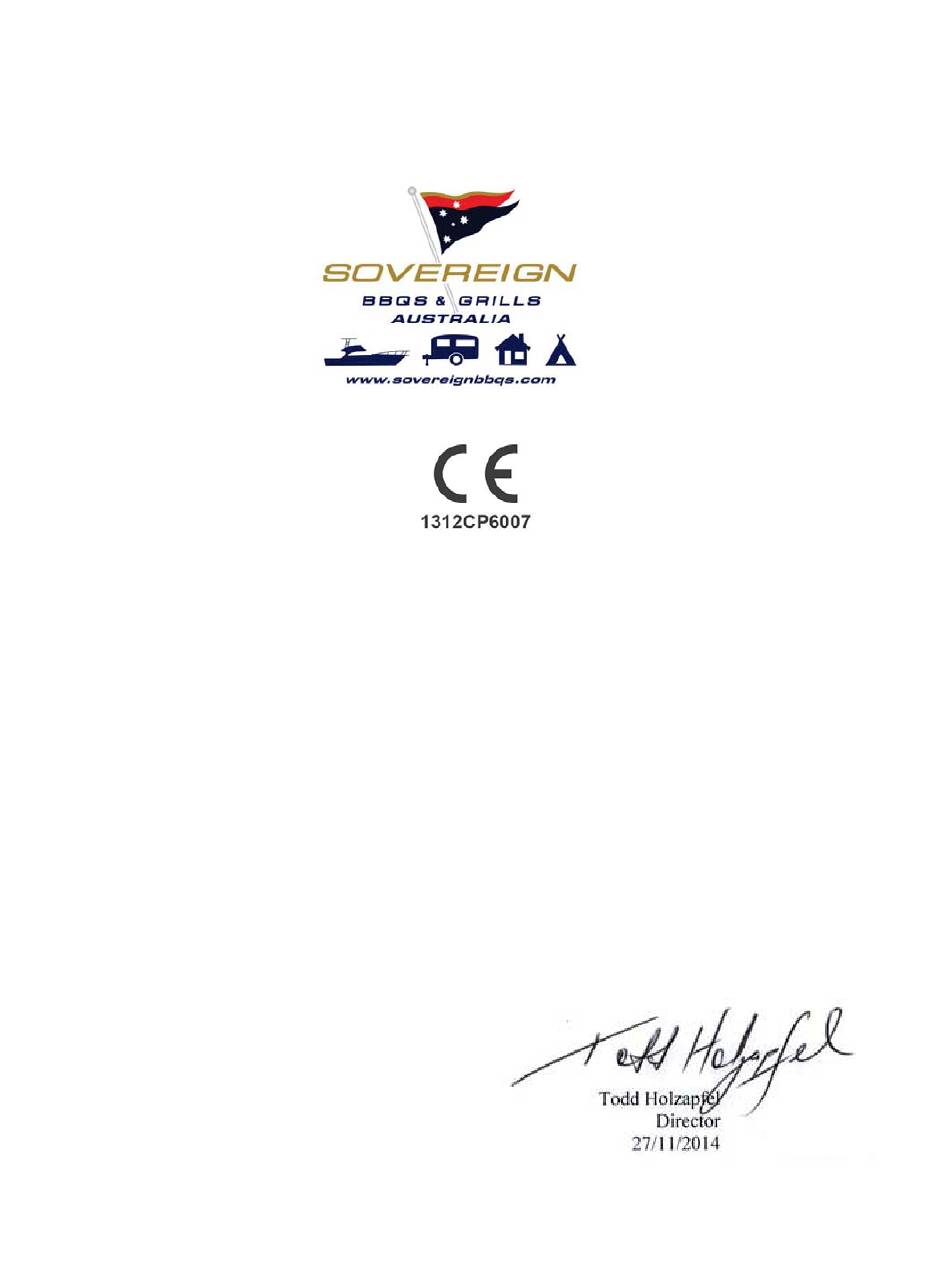

EC DECLARATION OF CONFORMITY

We,
Sovereign BBQs and Grills Australia
Po Box 1055
Oxenford
Queensland
4210
Australia
Ph: +61 7 5644 1230
Fax: +61 7 5519 3529
declare that the BBQs Alpha and Bravo sold under Sovereign BBQs
to which this declaration relates is in conformity with the following standard(s) or
« Certificat d'examen CE »n° 1312CP6007 issue the 19.11.2014
following the provisions of:
Directive 2009/142/EC (30/11/2009)

Advertisement

loading
Need help?

Need help?

Do you have a question about the Alpha and is the answer not in the manual?

Questions and answers

Related Manuals for Sovereign Alpha

Summary of Contents for Sovereign Alpha

  • Page 1: Ec Declaration Of Conformity

    Ph: +61 7 5644 1230 Fax: +61 7 5519 3529 declare that the BBQs Alpha and Bravo sold under Sovereign BBQs to which this declaration relates is in conformity with the following standard(s) or « Certificat d’examen CE »n° 1312CP6007 issue the 19.11.2014...

  • Page 2: Installation

    Product Dimensions and Gas Connection Position Alpha BBQ; 600mm Long x 380mm Deep x 295mm High. The gas connection is located on the right hand end of the BBQ and is 35mm from the rear and 80mm from the bottom of the BBQ.
  • Page 3 Gas Supply Information Your Sovereign BBQ is intended for connection to a reticulated gas supply (eg a gas system which supplies other appliances, including gas refrigerators and gas water heaters for example). A reticulated gas supply system should be supplied, installed and certified only by a qualified gas technician.
  • Page 4 Please note your Sovereign BBQ is intended for use with either Propane Gas or Butane Gas (Refer to the data label on the left hand end of your BBQ for the correct gas type to use with your BBQ).
  • Page 5 Mounting Options Your Sovereign BBQ can be mounted from the front, centre or rear using either standard or custom made fittings to suit your nominated installation location. As outlined above, Sovereign BBQs manufacture a range of standard mounting options for both rail and deck mounting marine installations. These can be purchased with your chosen BBQ.
  • Page 6 All front mounting options (whether rail or deck orientated) locate/slide into a dedicated recess at the front two (2) corners of your chosen Sovereign BBQ model (110mm in depth for the Bravo Model, and 140mm in depth for the Alpha Model). For installation purposes, the front mounting centres for the Bravo Model are 394mm, whilst the Alpha Model is 523mm.
  • Page 7 It is important to ensure that your chosen mounting position/location can comfortably sustain the weight of the BBQ (especially in the case of rail mounting your BBQ). If in doubt, Sovereign BBQs recommend supporting/bracing the BBQ with a Telescopic Rod. (Sovereign BBQs manufacture a standard adjustable length Telescopic Rod to suit most applications, or you can have a custom made brace manufactured to suit your specific requirements).
  • Page 8 The below diagrams will assist with testing your Sovereign BBQ for any leaks. If the correct installation or performance cannot be obtained, contact Sovereign BBQs & Grills Australia. Sovereign BBQs & Grills Australia...
  • Page 9 Flat/Grill Model Sovereign BBQ without the disperser installed. As the above diagram shows, the flame disperser clips in place on the left hand side of your Sovereign Flat/Grill BBQ, with the recessed/lowest part of the disperser (inclusive of larger drain holes) sitting over the fat tray (as shown above).
  • Page 10 BBQ adjacent the control knob). Bravo Burner Primary Air Intake Setting: Please ensure correct air intake setting for optimum performance. Sovereign BBQs & Grills Australia Phone (Intl +61 7) 5644 1230 Fax (Intl +61 7) 5519 3529 Web: www.sovereignbbqs.com...
  • Page 11 If ignition does not occur, turn the control knob to the OFF position and wait minimum 60 seconds before trying again. The below diagrams will assist you in lighting your selected Sovereign BBQ. Optimum Cooking Temperatures WARNING: always use the low temperature setting when cooking with the lid closed. The BBQ will reach much greater temperatures with the lid closed.

  • Page 12: Cleaning And Maintenance

    Removing excess fat from foods before cooking will reduce flare-ups (Be aware that some sausages can produce excessive fat during cooking). The only recommended lining for the fat tray is aluminium foil. Sovereign BBQs & Grills Australia Phone (Intl +61 7) 5644 1230 Fax (Intl +61 7) 5519 3529 Web: www.sovereignbbqs.com...
  • Page 13 Unscrew fixing on left hand side of burner. Lift the left side of the burner and slide to the left. The below diagrams will assist you in removing the burner from your selected Sovereign BBQ. Ancillary Service Information Your BBQ should be serviced at 12 month intervals (or sooner as required) by an authorised gas technician to ensure its ongoing safe operation.
  • Page 14 Do not move appliance during use. Turn off the gas supply at the gas cylinder after use. Do not obstruct any of the ventilation openings in your Sovereign BBQ body. DISCLAIMER The “Installation and Operating Instructions” are provided on the understanding that: Sovereign BBQs are not responsible for the results of any actions taken relying on the information in these Installation and Operating Instructions, or for any error in or omission from these Installation and Operating Instructions.
  • Page 15 PIECES DE RECHANGES / REPLACEMENTS PARTS ALPHA BRAVO A. ALPHA BRULEUR / BURNER A. BRAVO BRULEUR / BURNER (REBURNA) (REBURNB) B. POIGNE / HANDLE B. POIGNE / HANDLE (REPLASTH) (REPLASTH) C. BOUTON D’ALLUMAGE / C. BOUTON D’ALLUMAGE / CONTROL KNOB (RECOK) CONTROL KNOB (RECOK) D.

This manual is also suitable for:

Bravo
