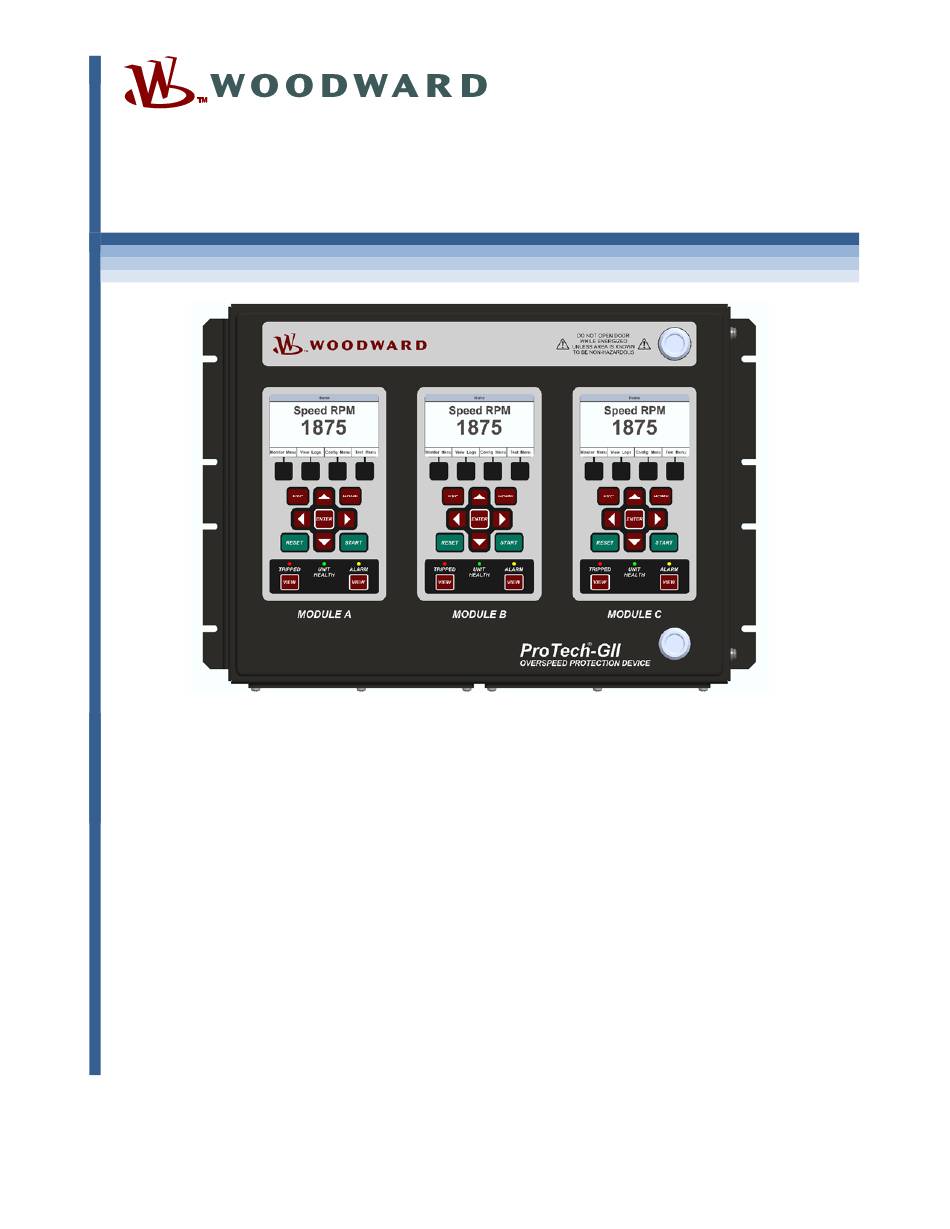

Product Manual 35086
(Revision -, 2/2018)
Original Instructions

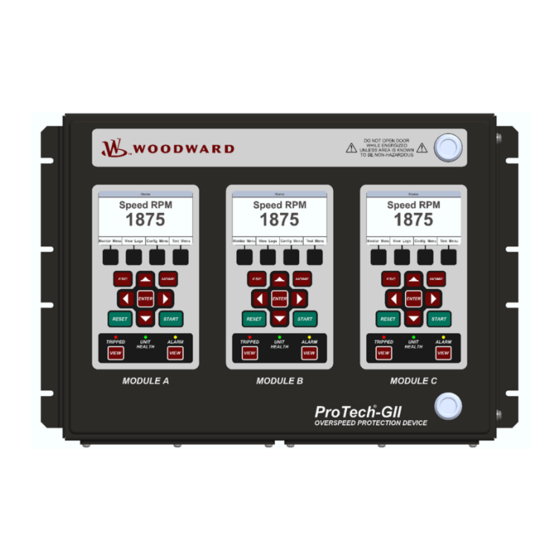

ProTech-GII Overspeed Protection Device
with Math Enhancements
Installation and Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 8237-2594 and is the answer not in the manual?

Questions and answers

Related Manuals for Woodward 8237-2594

Summary of Contents for Woodward 8237-2594

  • Page 1 Released Product Manual 35086 (Revision -, 2/2018) Original Instructions ProTech-GII Overspeed Protection Device with Math Enhancements Installation and Operation Manual...
  • Page 2 Revisions— A bold, black line alongside the text identifies changes in this publication since the last revision. Woodward reserves the right to update any portion of this publication at any time. Information provided by Woodward is believed to be correct and reliable. However, no responsibility is assumed by Woodward unless otherwise expressly undertaken.

  • Page 3: Table Of Contents

    RONT ANEL Introduction ..............................94   Editing Configuration Settings from the Front Panel ................... 95   Configure Menu Page ..........................95   Configuration Procedure ..........................96   6. T ...................... 113  HAPTER OUTINES Test Modes Menu ............................. 113   Woodward...
  • Page 4 Product Service Options ........................... 174   Returning Equipment for Repair ....................... 175   Replacement Parts ............................ 176   Engineering Services ..........................176   Contacting Woodward’s Support Organization ..................176   Technical Assistance ..........................177   13. A .................... 178  HAPTER SSET ANAGEMENT Product Storage Recommendations ......................
  • Page 5 ONFIGURATION ORKSHEET ........................191  EVISION ISTORY .......................... 192  ECLARATIONS The following are trademarks of Woodward, Inc.: ProTech Woodward The following are trademarks of their respective companies: Modbus (Schneider Automation Inc.) Pentium (Intel Corporation) Illustrations and Tables Figure 1-1. Typical ProTech-GII Application (Voted Trip Relay Models) ............ 16  ...
  • Page 6 Figure 4-32. Reset Logs Screen Example ....................93   Figure 5-2. Configure Menu Screen Example..................... 95   Figure 5-3. Save Configuration Screen Example..................97   Figure 5-4. Configure Display Screen Example ..................97   Figure 5-5. Configure Speed Submenu Screen Example ................98   Woodward...
  • Page 7 Figure 7-26 Options Displayed When No Changes are Detected ............136   Figure 7-27 Options Displayed When Changes are Detected ..............136   Figure 7-28 Incorrect Log-In Level ......................137   Figure 7-29 Configuration Error ........................ 137   Figure 7-30 Module is not Tripped ......................137   Woodward...
  • Page 8 Table 9-4. Boolean Write Addresses (Code 05) ..................159   Table 9-5. Boolean Read Addresses (Code 02) ..................159   Table 9-6. Analog Read Addresses (Code 04) ..................162   Table 10-1. Trip Relay Safe State Configuration ..................163   Table 10-2. SIL Specifications ........................163   Woodward...
  • Page 9 ProTech-GII with Math Functions Table 10-3. ProTech-GII SIL3 Numbers: ....................164   Table 10-4. Failure Rate ........................... 164   Table 11-1. I/O Troubleshooting ....................... 167   Table 11-2. Trip Indications ........................170   Table 11-3. Alarm Indications ........................172   Woodward...

  • Page 10: Warnings And Notices

    Be prepared to make an emergency shutdown when starting the engine, turbine, or other type of prime mover, to protect against runaway or overspeed with possible personal injury, loss of life, or property damage. Start-up Woodward...

  • Page 11: Electrostatic Discharge Awareness

    Do not touch the components or conductors on a printed circuit board with your hands or with conductive devices. To prevent damage to electronic components caused by improper handling, read and observe the precautions in Woodward manual 82715 , Guide for Handling and Protection of Electronic Controls, Printed Circuit Boards, and Modules.

  • Page 12: Regulatory Compliance

    TÜV certified for SIL-3 per IEC 61508 Parts 1-7, Functional Safety of TÜV: Electrical / Electronic / Programmable Electronic Safety Related Systems. Other Compliance IEC60068-2-60:1995 Part 2.60 Methods 1 and 4 (conformal coating) Gas Corrosion: API670, API612, & API-611 compliant Machinery Protection: Woodward...
  • Page 13 II, III, or IV. Explosion Hazard—Do not connect or disconnect while circuit is live unless area is known to be non-hazardous. Substitution of components may impair suitability for Class I, Division 2 or Zone 2 applications. Woodward...
  • Page 14 Classe I, applications Division 2 ou Zone 2. Safety Symbols Direct Current Alternating Current Both Alternating and Direct Current Caution, risk of electrical shock Caution, refer to accompanying documents Protective conductor terminal Frame or chassis terminal Woodward...

  • Page 15: Acronyms And Definitions

    Revolutions Per Minute Remote Terminal Unit Transmission Protocol Settings File A file that contains the configuration settings loaded with the ProTech Programming and Configuration Tool (“.wset” is the filename extension) Speed Fail Override Speed Redundancy Manager ProTech Overspeed Protection Device Woodward...

  • Page 16: Chapter 1. General Information

    There are several ways to interface with the ProTech-GII. The front panel allows the user to view current values, and to perform configuration and test functions. All of the features and most of the information Woodward...

  • Page 17: Applications

    ProTech GII, Bulkhead Mount, HV/HV, Voted Relays, Voted Inputs MATH 8237-2597 ProTech GII, Panel Mount, HV/HV, Voted Relays, Voted Inputs MATH 8237-2601 Spare Module for ProTech models 8237-2594, -2598 (GII H/L Indep Relay/Voted 5437-2126 Input) Spare Module for ProTech models 8237-2595, -2599 (GII H/H Indep Relay/Voted...

  • Page 18: Figure 1-1. Typical Protech-Gii Application (Voted Trip Relay Models)

    Released Manual 35086 ProTech-GII with Math Functions Figure 1-1. Typical ProTech-GII Application (Voted Trip Relay Models) Figure 1-2. Typical ProTech-GII Application (Independent Trip Relay Models) Woodward...

  • Page 19: What's New

    The address numbering (Boolean and register) changed to be consecutive, removing huge gaps in numbering. Spare Boolean read registers were added to prevent errors experienced by devices that queried in increments of 16. Added pre-scaled values for Speed and Acceleration. Woodward...
  • Page 20 The firmware of compatible ProTech GII units can be field upgraded, but requires use of specialized software tools and must be performed by authorized Woodward personnel. If you have any questions about this issue or wish to upgrade, please contact one of our Woodward facilities and refer to Application Note 06946.

  • Page 21: Chapter 2. Installation

    Enter the configuration mode and configure all settings to the specific application’s requirements. Perform a full system checkout by verifying that all system trips, alarms, and test routines function correctly before starting the machinery/system. When ready, start the turbine/machinery, following the equipment manufacturer’s recommended starting procedure. Woodward...

  • Page 22: Enclosures

    With these models, field wiring access is located on the ProTech-GII control’s back side, and a back cover is included to protect wiring terminals after installation. Figures 2-4 and 2-5 display the Panel-Mount ProTech-GII model’s layout and mounting pattern. Figure 2-1. Typical ProTech-GII Bulkhead Package—Front View Woodward...

  • Page 23: Figure 2-2A. Typical Protech-Gii Bulkhead Package-Front Door Open

    Released Manual 35086 ProTech-GII with Math Functions Figure 2-2a. Typical ProTech-GII Bulkhead Package—Front Door Open Figure 2-2b. Bulkhead Schematic Showing Front Panel A Connection to Module A and Front Panel C Connection to Module C—Top View Woodward...

  • Page 24: Figure 2-3. Mounting Outline Diagram For Bulkhead-Mounted Models

    Released Manual 35086 ProTech-GII with Math Functions   Figure 2-3. Mounting Outline Diagram for Bulkhead-Mounted Models Note: The outline drawings for the TPS and GII are identical. The TPS is shown for reference. Woodward...

  • Page 25: Module Removal And Installation-Bulkhead Mount Package

    Currently, display circuit boards are not replaceable. Users should not attempt to remove or install any display board. If a display board is unresponsive, contact Woodward for a recommendation regarding service options. DO NOT ATTEMPT TO REPAIR! Follow this procedure for module removal and installation: Removal: Disconnect power from the module to be removed.
  • Page 26 Released Manual 35086 ProTech-GII with Math Functions Remove module by pulling the two handles simultaneously. Remove by pulling from handles Woodward...
  • Page 27 ProTech-GII with Math Functions Installation: Insert module into slot by pressing firmly on handles. The module has guides to assist in location. Tighten four module retention screws. Install terminal blocks. Insert power terminal block and observe that the power LED is ON. Woodward...

  • Page 28: Figure 2-4A. Typical Protech-Gii Panel Mount Package-Front View

    Released Manual 35086 ProTech-GII with Math Functions Figure 2-4a. Typical ProTech-GII Panel Mount Package—Front View Figure 2-4b. Typical ProTech-GII Panel Mount Package—Rear View with Cover Woodward...

  • Page 29: Figure 2-4C. Typical Protech-Gii Panel Mount Package-Rear View Without Cover Showing Module

    Modules Displays Figure 2-4d. Panel Mount Schematic Showing Front Panel A Connection to Module A and Front Panel C Connection to Module C—Top View Woodward...

  • Page 30: Figure 2-5A. Mounting Outline Diagram For Panel-Mount Models

    Released Manual 35086 ProTech-GII with Math Functions Figure 2-5a. Mounting Outline Diagram for Panel-Mount Models Woodward...

  • Page 31: Figure 2-5B. Mounting Outline Diagram For Panel-Mount Models

    Released Manual 35086 ProTech-GII with Math Functions Figure 2-5b. Mounting Outline Diagram for Panel-Mount Models Woodward...

  • Page 32: Figure 2-5C. Panel Cutout Diagram For Panel-Mount Models

    Released Manual 35086 ProTech-GII with Math Functions Figure 2-5c. Panel Cutout Diagram for Panel-Mount Models Woodward...

  • Page 33: Module Removal And Installation-Panel Mount Package

    Disconnect power from the module to be removed. Remove four back panel-retaining screws. Remove back panel. Verify power removed by observing power LED is OFF. Remove terminal blocks from module terminals. Loosen four module retaining screws. Remove module by pulling the two handles simultaneously. Woodward...

  • Page 34: Mounting Location Considerations

    Protection from high-voltage or high-current devices which produce electromagnetic interference  Avoidance of vibration  A location that has H S and SO gases at or below the levels classified in international standard IEC 721-3-3 1994 - environment Class 3C2  Maximum purge pressure: 4 psi Woodward...

  • Page 35: Power Supply Requirements

    0.25 Arms @ 110 Vdc 0.18 Arms @ 150 Vdc 10 A at 115 Vac, 20 A @ 220 Vac Inrush Current Reverse Polarity Yes, for DC connection Protection 45 ms, when operating on one power supply only Interrupt Time Woodward...
  • Page 36 Each ProTech-GII module will function normally with power sourced to both or either power supply input independently, however Woodward recommends that both input power sources be used to improve system availability. Please refer to Table 1-1 for available ProTech-GII models.

  • Page 37: Input/Output Specifications

    10 k, input suitable for use with open collector probe outputs (see Internal Pull-up Resistor Note) < 2 V Input Threshold (Vlow) > 4 V Input Threshold (Vhigh) 500 Vac from input to chassis and input to all other circuits Isolation Woodward...
  • Page 38 24 V (32 V max) Voltage Rating 500 Vac from output to chassis and output to all other circuits Isolation Must be limited to 1000 ft / 305 m (low capacitance 16 AWG / 1.3 mm²) Signal Cable Length Woodward...
  • Page 39 500 Vac from output to chassis and output to all other circuits Isolation Must be limited to 1500 ft / 305 m RS-485 (low capacitance 16 AWG / Signal Cable Length 1.3 mm²), 50 ft / 15 m RS-232 Woodward...

  • Page 40: Shielded Wiring

    Installations with severe electromagnetic interference (EMI) may require relay and discrete input wiring to be shielded, conduits and/or double shielded wire may be needed, or other precautions may have to be taken. These additional precautions may be implemented in any installation. Contact Woodward for more information.

  • Page 41: Figure 2-6. Screw Connection Terminal Block

    Field wiring access for panel-mounted models is located on the back of the ProTech-GII enclosure. To allow proper installation of the unit’s back cover plate, Woodward recommends that all field wiring be routed from the bottom of the package. The units back cover must be installed. Refer to Figure 2-5 for field wiring access information.

  • Page 42: Figure 2-7. Inside View Of Protech-Gii

    Figure 2-7. Inside View of ProTech-GII Woodward...

  • Page 43: Figure 2-8. Protech-Gii Control Wiring Diagram

    Released Manual 35086 ProTech-GII with Math Functions Figure 2-8. ProTech-GII Control Wiring Diagram Woodward...

  • Page 44: Figure 2-9. Trip Module-Included Within Voted Trip Relay Units Only

    Released Manual 35086 ProTech-GII with Math Functions   Figure 2-9. Trip Module—Included within Voted Trip Relay Units Only Figure 2-10a. Power Supply Field Wiring Routing & Stress Relief Diagram Woodward...

  • Page 45: Figure 2-10B. I/O Wiring Routing & Stress Relief Diagram

    To sense speed, each ProTech-GII module (A, B, C) accepts a signal from a speed sensor mounted on a gear connected to the turbine rotor or engine crankshaft. Speed sensors may be any of the following:  Passive magnetic pickup unit (MPU)  Active proximity probe  Eddy current probe Woodward...

  • Page 46: Figure 2-11A. Example Mpu (Passive Magnetic Pickup Unit) Wiring

    0.25 to 1.02 mm (0.010 to 0.040 inch) from tooth face to pole piece. For information on selecting the correct MPU or gear size, please refer to Woodward manual 82510. Refer to Figure 2- 11a of this manual for wiring information.

  • Page 47: Figure 2-11B. Example Proximity Probe (Active Magnetic Pickup Unit) Wiring (Internal Power)

    Figure 2-11b. Example Proximity Probe (Active Magnetic Pickup Unit) Wiring (Internal Power) Figure 2-11c. Example Proximity Probe (Active Magnetic Pickup Unit) Wiring (External Power, Non-preferred) +24V Active Probe Configured Eddy Current Probe Bently Proximitor Active Probe Configured Sensor Figure 2-11d. Example Eddy Current Probe (Active Magnetic Pickup Unit) Wiring Woodward...

  • Page 48: Figure 2-12A. Example Standard Discrete Input Wiring (Internal Power Option)

    The Dedicated Discrete Inputs are Start, Reset, and Speed-Fail-Override. Refer to the Functionality Chapter (Chapter 3) of this manual for information on each discrete input’s functionality. ProTech Module Figure 2-12a. Example Standard Discrete Input Wiring (Internal Power Option) ProTech Module Figure 2-12b. Example Standard Discrete Input Wiring (External Power Option) Woodward...

  • Page 49: Figure 2-13. Example Analog Output Wiring

    However, de-energize to trip is a safer way to fail so that a total power loss to the control will trip the prime mover. TRIP RELAY OUTPUT LOCATION FOR INDEPENDENT VOTED MODELS TRIP RELAY OUTPUT LOCATION FOR 2-o-o-3 VOTED MODELS Figure 2-14a. Example Trip Relay Output Wiring Woodward...

  • Page 50: Figure 2-14B. Example Trip Relay Wiring (Per Module) (Independent Trip Relay) (Internal Supply)

    ProTech’s 2-out-of-3 voted relay module, and the third output per module dedicated as the module’s alarm relay output. See the “Monitor Alarms” section of this manual for information on what events cause the Alarm relay output to change state. Woodward...

  • Page 51: Figure 2-14D. Example Trip Relay Wiring (Voted Trip Relay Models)

    In both the Independent and Voted Trip Relay versions, each of the three modules (A, B, C) has an alarm output. The alarm relay output has normally-open type contacts and is rated for 24 Vdc @ 1 A. Refer to Figure 2-14e or 2-14f for wiring information. Figure 2-14e. Example Alarm Relay Wiring (Internal Supply) Woodward...

  • Page 52: Chapter 3. Functionality

    (wiring to) three modules, two modules or only one module and using the sharing and voting logic to manage logic in all three modules. Refer to Figure 3-1 for more information on module to module sharing logic. Woodward...

  • Page 53: Figure 3-1. Module Diagram Without Speed Redundancy Manager Configured

    Calculation Overspeed Overspeed Trip Trip Acceleration Over Acceleration Over Acceleration Trip Latch Trip Trip Trip Relay Speed Fail Start Logic Trip Config Start Dedicated Speed Fail Discrete Override Speed Fail Inputs Timeout Trip Config Reset Reset Figure 3-1. Module Diagram without Speed Redundancy Manager Configured Woodward...

  • Page 54: Figure 3-2. Module Diagram With Speed Redundancy Manager Configured

    Compare module configuration settings for differences.  Verify the health and state of the other modules before allowing a module test to be performed.  Pass a “module test token” between modules when performing an “Auto Sequence Test” routine. Woodward...

  • Page 55: Product Models

    2-out-of-3 voted trip block assemblies or 2-out-of-3 voted trip string relay logic. Speed Input Module 2 Solid State Trip Relays Speed Input Module 2 Solid State Trip Relays Speed Input Module 2 Solid State Trip Relays Figure 3-3. Basic Functional Overview of Independent Trip Relay Models Woodward...

  • Page 56: Figure 3-4. Functional Diagram Of Single Protech-Gii Module With Independent Trip Relay Outputs

    Trip & Alarm Serial Port Relay Logic CAN Sharing Other ProTech Modules Port Service Service Tool Computer Port Front Panel Interface - Display - Keypad - LEDs Figure 3-4. Functional Diagram of Single ProTech-GII module with Independent Trip Relay Outputs Woodward...

  • Page 57: Figure 3-5. Example Tmr Trip Block Assembly Interface

    Released Manual 35086 ProTech-GII with Math Functions Figure 3-5. Example TMR Trip Block Assembly Interface Woodward...

  • Page 58: Figure 3-6. Basic Functional Overview Of Voted Trip Relay Models

    Two redundant “Form-C” 2oo3 voted relays are used in these models providing four isolated relay output signals with normally open and normally closed contacts. Speed Input Module 2-out- Speed Input of 3 “Form-C” Module Voted Trip Relays Relays Speed Input Module Figure 3-6. Basic Functional Overview of Voted Trip Relay Models Woodward...

  • Page 59: Figure 3-7. Functional Diagram Of Single Protech-Gii Module With Voted Trip Relay Outputs

    Released Manual 35086 ProTech-GII with Math Functions Figure 3-7. Functional Diagram of Single ProTech-GII Module with Voted Trip Relay Outputs Woodward...

  • Page 60: Figure 3-8. Simplex Trip Block Assembly

    Released Manual 35086 ProTech-GII with Math Functions Figure 3-8. Simplex Trip Block Assembly Woodward...

  • Page 61: Inputs And Outputs

    “ORed” logic. This type of redundancy allows users the choice of using one, two or three speed sensors and connecting to (wiring to) three modules, two modules or only one module and using the sharing and voting logic to manage logic in all three modules. Woodward...
  • Page 62 (start, reset, and speed fail override) or the “ORed” result of its local discrete inputs and the other two modules’ discrete inputs. This is useful if only one or two discrete contacts are available from a specific circuit or application. Woodward...

  • Page 63: Overspeed And Over-Acceleration Detection Logic

    Each ProTech-GII includes overspeed and over-acceleration functionality and can be configured to meet specific application overspeed and over-acceleration requirements. The ProTech-GII senses speed and then compares the sensed or voted speed to its programmed overspeed trip setpoint to detect an overspeed condition and generate a trip command. Woodward...

  • Page 64: Figure 3-10. Over-Acceleration Enabling Diagram

    Note: If a speed probe is not connected to a ProTech-GII module the “Probe type” setting must be set to “Not Used”. If the unit is configured for only two probes (or just one probe), there will be a configuration mismatch and associated alarm. This alarm can be disabled in the Configuration Management Menu. Woodward...
  • Page 65 The configuration/use of the Acceleration Redundancy Manager is not required. If the ProTech-GII’s acceleration redundancy manager is not configured for use, then each module simply uses its local speed sensor signal, and compares its calculated acceleration rate to the modules’ over-acceleration setpoint to determine an over-acceleration event. Woodward...

  • Page 66: Speed Diagnostics

    Start Logic The start signal is generated by selecting the START button on the module front panel or by closing the dedicated Start contact input. The start signal is edge- triggered and re-selecting Start will reset the timer. Woodward...

  • Page 67: Figure 3-11. Start Logic Diagram

    If the “Speed Fail Trip” is configured as ‘Used’, the Speed-Fail-Override is used to override the speed fail trip logic. When the contact is open, the voted speed must exceed the Speed Fail Setpoint, otherwise a Speed Fail Trip occurs. Figure 3-12. Speed Fail Trip Diagram Woodward...

  • Page 68: Test Routines

    Auto Simulated Speed Test. The Auto Sequence Test function that will automatically run the Auto Simulated Speed Test on all three modules at a user-defined interval. For test commands issued via the Modbus interface, a start confirmation is required and an abort is also provided. Woodward...
  • Page 69 “forgetting” to disable this test. The timeout can be configured from 0 to 30 minutes. When the test is enabled the timer starts, if it reaches the timeout value, the test is automatically aborted. The operator can abort the test at any time. Woodward...

  • Page 70: Alarm And Trip Latches

    This is useful if only one or two discrete contacts are available from a specific circuit or application. The shared reset function is automatically internally connected to numerous functions including the alarm latch, trip latch, and redundancy managers. Woodward...
  • Page 71 The user can reset a trip by pressing the RESET button on the unit's front panel, or by activating the discrete input that is dedicated to the reset function. Woodward...

  • Page 72: System Logs

    This includes the speed and acceleration levels sensed during an automatic or manual overspeed testing routine. This log can be reset from the front panel with the use of the Config Level Password. Woodward...

  • Page 73: Protech-Gii Response Time Performance

    Redundancy Manager function is configured. Refer to below graphs to understand the system response differences. Independent Trip Relay Models—Response Graphs Figure 3-14. Total System Response Time Based on Sensed Frequency Level for Independent Trip Relay Models when Speed Redundancy Manager Function is not Configured Woodward...

  • Page 74: Figure 3-15. Total System Response Time Based On Sensed Frequency Level For Independent Trip Relay Models When Speed Redundancy Manager Function Is Configured

    Figure 3-15. Total System Response Time Based on Sensed Frequency Level for Independent Trip Relay Models when Speed Redundancy Manager Function is Configured Voted Trip Relay Models—Response Graphs Figure 3-16. Total System Response Time Based on Sensed Frequency Level for 2oo3 Voted Trip Relay Models when Speed Redundancy Manager Function is not Configured Woodward...

  • Page 75: Figure 3-17. Total System Response Time Based On Sensed Frequency Level For 2Oo3 Voted Trip Relay Models When Speed Redundancy Manager Function Is Configured

    Frequency = (RPM) * (number of teeth) / 60 Figure 3-18. Response Time Definition Analog Output The response time of the analog output is less than 12 ms measured from a change in speed to a change in the output current. Woodward...

  • Page 76: Chapter 4. Front Panel Interface

    Monitor Menu—View configuration settings, real time values, and status indications.  View Logs—View all logged events with corresponding time stamps.  Config Menu—Configure basic functions such as overspeed, acceleration trip, etc.  Test Menu—Perform system tests. Overspeed, Simulated Speed, Auto Sequence, and Lamp Test. Woodward...

  • Page 77: Screen Layout

    Depending on the screen, the soft keys may be used to select different views, enter data such as setpoints or passwords, select from a list of options, or initiate a function such as performing a test or copying a module’s configuration. Woodward...

  • Page 78: Keypad Functions

    Illuminates GREEN when there are no errors in the safety functionality. Unit Health Illuminates RED if there is an error in the safety functionality. Off indicates a Indicator communication or power failure either to the display or to the module. Illuminates YELLOW when an Alarm condition exists. Alarm Indicator Woodward...

  • Page 79: Navigation

    “Home” screen. Repeatedly pressing the front panel’s “ESC” button navigates up through the menu hierarchy until the “Home” screen is displayed. Home Screen Page (with an Alarm condition indicated) Figure 4-4. Home screen (with Alarm) Home Screen Page (with a Trip condition indicated) Figure 4-5. Home screen (with Trip) Woodward...

  • Page 80: Passwords

    Default Test Level Password: AAAAAA (as shipped from factory) Default Config Level Password: AAAAAA (as shipped from factory) Woodward...

  • Page 81: Monitor Menu

     Speed Readout  Start Input Sharing  Reset Input Sharing  Speed Fail Override Input Sharing  Modbus  Date/Time  System Status  Module Information Detailed information on the content of each screens with screen examples follows. Woodward...

  • Page 82: Figure 4-8. Monitor Summary Screen Example

    This page displays the status of each Trip Latch input and indicates which input was sensed first (First Out condition). If the trip latch is configured as “Latching”, trip conditions are latched and require a reset command to clear the fault indication. Woodward...

  • Page 83: Figure 4-10. Monitor Alarm Latch Screen Example

    The following alarms are always active and displayed if sensed:  Internal Fault Alarm: Indicates a failure internal to the ProTech-GII module. Additional details on the fault cause are provided in the Module Faults Log, accessible via the PCT. Woodward...

  • Page 84: Figure 4-11. Monitor Dedicated Discrete Inputs Screen Example

    Only provided when the module’s Speed Redundancy Manager function block is configured for use.  Module Trip: Indicates that the module’s Trip Latch is in its “Tripped” state. Monitor Dedicated Discrete Inputs Page Figure 4-11. Monitor Dedicated Discrete Inputs Screen Example Woodward...

  • Page 85: Figure 4-12. Monitor Speed Input Screen Example

    Acceleration: Indicates the local acceleration, calculated from the locally sensed speed input. Monitor Speed Redundancy Manager Page Figure 4-13. Monitor Speed Redundancy Manager Screen Example This page provides a screen from which to monitor the module’s Speed Redundancy Manager functional logic inputs, outputs, and current logic state. Woodward...

  • Page 86: Figure 4-14. Monitor Acceleration Redundancy Manager Screen Example

    A reset may be required to restore the signal.  Base Function: Indicates the function when all inputs are valid (3 good inputs).  Fallback Function: Indicates the function when 2 inputs are valid (2 good inputs). Woodward...

  • Page 87: Figure 4-15. Monitor Speed Fail Timer Screen Example

    Note: The Speed Fail Timer function is reset by a reset command received from any source (front panel, discrete input, or Modbus). If the Speed Fail Timer function is active, the Home screen will display the time remaining. Speed Readout (Home) Figure 4-16. Monitor Speed Readout (Home) Screen Example Woodward...

  • Page 88: Figure 4-17. Monitor Shared Start Input Screen Example

    Input 3: Indicates the values of the input. The block output (right side of block): Output: Indicates the value of the output. Monitor Shared Reset Input Page Figure 4-18. Monitor Shared Reset Input Screen Example This page provides information on the Shared Reset Input. Woodward...

  • Page 89: Figure 4-19. Monitor Shared Speed Fail Override Input Screen Example

    Input 2: Indicates the values of the input.  Input 3: Indicates the values of the input. The block output (right side of block): Output: Indicates the value of the output. Monitor Modbus Page Figure 4-20. Monitor Modbus Screen Example Woodward...

  • Page 90: Figure 4-21. Monitor/Set Date & Time Screen Example

    Figure 4-22. Edit/Change Mode Active Screen Example 1. On the Monitor/Set Date & time page press the “ENTER” key to enter Edit/Change mode. The field to be edited will then be highlighted. 2. Press the Up/Down/Right/Left Arrow keys to highlight the field to be edited. Woodward...

  • Page 91: Figure 4-23. Highlight Time Field To Edit Screen Example

    Figure 4-24. Ready to Apply Changes Screen Example 6. Press the “Set Time” soft key to accept all date and time changes or press the “Cancel” soft key or the ESC key to reject all date and time changes. Woodward...

  • Page 92: Figure 4-25. Monitor System Status

    Module memory failure Module data bus failure Module Information Page Figure 4-26. Monitor Module Information This page displays the module’s coded identification.  Product ID: Indicates the module hardware model.  Module S/N: Indicates the module hardware serial number. Woodward...

  • Page 93: View Logs

    Logs Menu:  Overspeed/Acceleration Log  Trip Log  Alarm Log  Peak Speed/Acceleration Log  Reset Logs Menu Detailed information on the contents of these screens and examples follows: Overspeed/Acceleration Log Page Figure 4-28. Overspeed/Over-Acceleration Log Screen Example Woodward...

  • Page 94: Figure 4-29. Trip Log Screen Example

    An asterisk (*) symbol in the Test column indicates that the event occurred while the module was in a test mode. Alarm Log Page Figure 4-30. Alarm Log Screen Example This page displays a log of the last 50 alarm events and the associated time and date stamp information. Woodward...

  • Page 95: Figure 4-31. Peak Speed/Acceleration Log Screen Example

    If the Reset soft key was pressed, the user will be prompted to enter a password. To reset all logs, the Test Level Password or the Config Level Password must be entered. To reset Peak Speed/Acceleration, the Config Level Password must be entered. After the correct password is entered, press the Enter soft key to reset the log(s). Woodward...

  • Page 96: Chapter 5. Configuration Using The Front Panel

    Modbus Communication settings Password Change Acceleration Redundancy Power Supply 1 & 2 Alarms Manager [No/Yes]   Test Level Password Input Selections Configuration Management    Config Level Password Function selections Overview  Compare feature  Copy feature Woodward...

  • Page 97: Editing Configuration Settings From The Front Panel

    If an attempt is made to adjust a parameter setting outside of its permitted range, the value is changed to its closest valid value and the message “LIMIT REACHED” appears for 5 seconds. Configure Menu Page Figure 5-2. Configure Menu Screen Example Woodward...

  • Page 98: Configuration Procedure

    At this point the user can press the respective soft button to choose the desired action: Save: This action saves any configuration changes, exits Configuration Mode, then displays the Home screen. Discard: This action does not save any configuration changes, exits Configuration Mode, then displays the Home screen. Woodward...

  • Page 99: Figure 5-3. Save Configuration Screen Example

    Select Which Home Screen to Use: Used to select which screen to use as the “Home Screen”. The “Home Screen” is displayed if the “Jump To Home Screen On Trip” is configured “YES”, when the front panel HOME is pressed or when power up is complete. Valid values: Woodward...

  • Page 100: Figure 5-5. Configure Speed Submenu Screen Example

    Start Logic: This page is used to enable and configure the speed fail logic and speed fail override logic.  Speed Redundancy: This page is used to configure the speed redundancy.  Acceleration Redundancy: This page is used to configure the acceleration redundancy. Woodward...

  • Page 101: Figure 5-6. Configure Speed Input Screen Example

    Speed Input (Probe Type, Nr of Gear Teeth, or Gear Ratio) will automatically force the signal to “INVALID” on all modules (A, B, and C). While “INVALID”, that signal is removed from the voting selection until a Reset command is issued. Woodward...

  • Page 102: Figure 5-7. Configure Acceleration Screen Example

    Trip Latch function when speed is below the Speed Fail Setpoint and the Speed Fail Override discrete input is not closed. Typically used to detect a failed speed sensor. Valid values: NOT USED or USED Woodward...

  • Page 103: Figure 5-9. Configure Speed Redundancy Manager Screen Example

    Difference Alarm Time: Used to set the period of time the Speed Difference Alarm is allowed to exist before the difference alarm is issued. Valid values: 4 - 10000 milliseconds. Note: LSS means Low Signal Select while HSS means High Signal Select. Woodward...

  • Page 104: Figure 5-10. Configure Acceleration Redundancy Manager Screen Example

    If configured as “LATCHING”, the Trip Latch function will latch to a true state if any Trip Latch input signal goes true then back false. When configured for this action, a Reset command must be issued to reset (un-latch) the Trip Latch function’s output. Woodward...

  • Page 105: Figure 5-12. Configure Alarm Latch Screen Example

    Figure 5-13. Configure Dedicated Discrete Submenu Screen Example  Start Input Sharing: This page is used to configure sharing START dedicated discrete input of other module(s).  Reset Input Sharing: This page is used to configure sharing RESET dedicated discrete input of other module(s). Woodward...

  • Page 106: Figure 5-14. Configure Start Input Sharing Screen Example

    Figure 5-15. Configure Reset Input Sharing Screen Example This page is used to configure other modules that can provide a Reset signal. Input 1-3: Used to specify the source of the Reset signal. Valid values: MODULE A, MODULE B, MODULE C or NOT USED. Woodward...

  • Page 107: Figure 5-16. Configure Speed Fail Override Input Sharing Screen Example

    Valid values: 00:00:00 – 00:30:00 hh:mm:ss  Simulated Speed Timeout: Used to set how long the unit will stay in the Auto or Manual Simulated Speed Test before aborting the test. Valid values: 00:00:00 – 00:30:00 hh:mm:ss Woodward...

  • Page 108: Figure 5-18. Configure Auto-Sequence Test Screen Example

    1. This test can only be configured on module A. Modules B and C automatically use the settings from Module A. 2. The Auto Sequence Test mode requires that all modules not be in a tripped or alarm state and not running a test. Woodward...

  • Page 109: Figure 5-19. Configure Modbus Screen Example

    Figure 5-20. Configure Power Supply Alarms Screen Example This page is used to enable or disable the power supply input failed alarms.  Enable Power Supply 1 Alarm: Used to enable or disable the Power Supply 1 Fault alarm. Valid values: YES or NO Woodward...

  • Page 110: Figure 5-21. Configuration Management Menu Screen Example

    This page displays the CRC codes associated with the overall configuration and with individual (sub- component) configurations. The CRC is a value calculated from the configuration data, so that if the data changes, the CRC will change. CRC codes that do not match represent dissimilar configurations, and matching CRC codes represent identical configurations. Woodward...

  • Page 111: Figure 5-23. Configuration Compare Screen Example

    Valid values: USED or NOT USED. Note: If each of the modules is deliberately configured differently to meet a specific application’s requirements, this setting should be set to “NOT USED”. Woodward...

  • Page 112: Figure 5-24. Configuration Copy Screen Example

    Note: The Configuration Compare function may still report a MATCH even if the Overall CRC differs between modules because the function compares only the CRC for specific blocks between modules. In this case, the function will not alarm. See exclusion details in the “Configure Compare/Copy Exclusions” section above. Woodward...

  • Page 113: Figure 5-25. Configuration Copy Screen Example

    Test Level Password: Used to set the Test Level Password.  Config Level Password: Used to set the Config Level Password. Both the Test Level Password and the Config Level Password meet NERC (North American Electric Reliability Corporation) cyber security requirements. Woodward...
  • Page 114 Default Test Level Password: AAAAAA (as shipped from factory) Default Config Level Password: AAAAAA (as shipped from factory) There is no means to reset the password if it is forgotten. Units requiring a password reset must be returned to Woodward. Woodward...

  • Page 115: Chapter 6. Test Routines

    Auto Simulated Speed Test: This page allows users to initiate the Auto Simulated Speed Test function.  Auto-Sequence Test: This page allows users to initiate the Auto-Sequence Test function.  Lamp Test: This page allows users to initiate the Lamp Test function. Temporary Overspeed Setpoint Test Figure 6-2a. Temporary Overspeed Test Screen Example Woodward...
  • Page 116 A user can end this function at any time and restore the Overspeed Trip Setpoint to its normal level by pressing the “End Test” soft key. If the “Test Time Remaining” timer expires before the test has ended, the Screen Message, “Test Time Expired”, will be displayed and the display will revert back to the Start test screen. Woodward...

  • Page 117: Figure 6-2B. Temporary Overspeed Test Screen Examples

    Temporary Overspeed Trip Setpoint Active: This message indicates the Temporary Overspeed Trip Test is active and the current speed is less than the “Overspeed Trip” setpoint. Expired: This message indicates the “Test Time Remaining” timer has reached zero Test Time (expired). Woodward...

  • Page 118: Manual Simulated Speed Test

    Table 6-1. Simulated Speed Resolution Resolution (RPM) 9.5E-5 .0016 1000 0.16 10000 32000 20.5 The resolution of the internal frequency generator is described in the following graph. The discontinuities in the chart occur when different internal clock scaling occurs to optimize resolution. Woodward...

  • Page 119: Figure 6-4. Test Frequency Resolution

    Press the “Apply” soft key to initiate this test or press the “Cancel” soft key to exit the screen. a. The local input speed channel is then switched from sensing actual rotating equipment speed to sensing the module’s internal frequency generator, automatically set to a simulated speed of 100 RPM below the local “Overspeed Trip” level setting. Woodward...

  • Page 120: Auto Simulated Speed Test

    10 RPM/second until the Overspeed Trip function issues a trip command to step the module to its trip state. This test validates operation of the module’s input speed sensing circuitry, overspeed trip function, and output trip relay. Woodward...
  • Page 121 Users can alternatively view the “Overspeed/Acceleration Log” screen to verify sensed trip speed, maximum speed sensed during the event, sensed acceleration at trip point, and maximum acceleration sensed during event. See “General Testing Notes” below for information on related messages and their meaning. Woodward...

  • Page 122: Auto-Sequence Test

    The sequence test can be initiated from the front panel and at a configured time interval. To initiate a sequence test, all modules must have all alarms and trip conditions cleared. The sequence test will be inhibited if any module is in an alarm or trip state. Woodward...
  • Page 123 When the Periodic Test Timer function is re-enabled and no modules are tripped, in alarm, or in a test mode, the Periodic Test Timer function will continue to operate as normal. See “General Testing Notes” below for information on related messages and their meaning. Woodward...

  • Page 124: Lamp Test

    Other Module In Alarm! Test Aborted: This message indicates that the test cannot be started or that a running test was aborted because another module is in an alarm condition. Other Module In Test Mode! Test Aborted: This message indicates that the test cannot be started because another module is in a test mode. Woodward...

  • Page 125: Chapter 7. Programming And Configuration Tool (Pct)

    Also known as the ProTech-GII Service Tool, the PCT must be installed on a host computer. The tool consists of a combination of Woodward’s “ToolKit” HMI (Human Machine Interface) software program and a special ProTech-GII application file. Although the PCT is provided with each ProTech-GII on an included software installation CD, it can also be obtained from Woodward’s Internet website,...

  • Page 126: Pct Levels Of Operation

    When the PCT is disconnected from the ProTech-GII, the PCT operates off line. When used as such:  A communication link between the PC and a ProTech-GII module is not required.  A password is not required.  The PCT is used to create, modify, or compare a Settings File. Woodward...

  • Page 127: Using The Pct

    To start the PCT, double-click on the “ProTech-GII.wstool” file. The following introduction screen will be displayed. Figure 7-4. ProTech-GII PCT Off-Line Window Accessing Tool Help On-Line help is available and can be accessed by selecting the “Help” menu located along the top of the main tool window. Woodward...

  • Page 128: Figure 7-5. Button Status (Connected)

    In the bottom-left corner of the main tool window, there is an informational status bar that displays. From left to right, the connection status, the “Details...” tab and a blank area reserved for parameter ranges when the “Edit/View Configuration” window is displayed. Figure 7-7. Information Status Bar (Not Connected) Figure 7-8. Information Status Bar Example (Connected) Woodward...

  • Page 129: Figure 7-9. Protech-Gii Pct Off-Line Window

    Ensure a serial interface cable has been installed between a PC serial port and a module service port. In the PCT, establish communication by clicking the “Connect” button along the top of the main tool window. Figure 7-10. Status Bar and Button Status before Connection Woodward...

  • Page 130: Figure 7-11. Pct Connect Options Window

    “Disconnect” button along the top of the main window is clicked. 10. After communication has been established, the On-Line Menu is displayed. This window provides access to the ProTech-GII Logs. Additionally, this window can be used to monitor or change device configuration. Woodward...

  • Page 131: Figure 7-14. Drop-Down Menu "Settings

    When operating the PCT on line with “Config Level Password” permissions, the management of log files are active and the following selections can be used:  New from SID Specification Defaults...  Save from Device to File...  Edit Settings File...  Load Settings File to Device...  Compare Settings file Differences... Woodward...

  • Page 132: Figure 7-15. Prompt To Set Settings File Default Values

    The “Browse” button is used to select the location and name of the Settings File to which the parameters are to be saved. Settings Files are named with a “.wset” filename extension. If the PCT is already operating on line, the transfer of the settings from the module starts immediately upon selecting the “Next >” button. Woodward...

  • Page 133: Figure 7-17. Prompt To Connect

    Upon completion of editing and/or viewing parameters, the Settings File must be saved by using the drop- down menu, “File”, followed by “Save” or “Save As”. Settings Files are named with a “.wset” filename extension. Assign a file location and name, save the file on the PC and close the Settings Editor window. Woodward...

  • Page 134: Figure 7-19. Prompt For Settings File To Load

    Once the PCT is operating on line, the transfer of the settings to the module starts immediately therein. To load a Settings File to a module, the module must be in a trip condition and the PCT must be operating with “Config Level Password” permissions. Otherwise, uploading is inhibited. Woodward...

  • Page 135: Figure 7-20. Configuration Error

    The “Browse” buttons are used to select the location and name of the Settings File to load. Settings Files are named with a “.wset” filename extension. The following sub-window is displayed, which shows all differences between the files: Figure 7-22. Settings File Differences Woodward...

  • Page 136: Figure 7-23. Pct On-Line Window

    Selecting the “Reset Peak Speed/Acceleration” button will clear the Peak Speed/Acceleration. The button is only visible when logged in with “Config Level Password” permissions. If desired, the logs can be cleared from the front panel user interface (see “Logs Menu” soft key). Woodward...

  • Page 137: Figure 7-24. Edit/View Configuration On-Line Window Example

    After selecting one of the buttons, the associated sub-screen is displayed in which particular parameters for the selected function can be checked and modified as necessary. Sub-screen examples are included with the parameter descriptions in the Configuration Using the PCT chapter. Woodward...

  • Page 138: Figure 7-25 Valid Range Display For Sudden Speed Loss Threshold Setting

    For configuration information on all parameters, refer to the Configuration Using the PCT chapter. Errors When Applying Changes If the new configuration settings are not accepted, there are three possibilities:  Incorrect log-in level.  Configuration error.  The module is not in a trip condition. Incorrect Log-In Level Woodward...

  • Page 139: Figure 7-28 Incorrect Log-In Level

    Module Not Tripped If the module is not in a trip condition, the following pop-up window appears: Figure 7-30 Module is not Tripped For safety purposes, on-line changes are only allowed when a module is in a “tripped” state. Woodward...

  • Page 140: Figure 7-31. Configuration Error Log Example

    Note: Since the “Configuration Error Log” is stored in the module volatile memory, the log is cleared when the module is powered off. So, if the configuration has not been changed since the last power cycle, the log will be empty. Figure 7-31. Configuration Error Log Example Woodward...

  • Page 141: Figure 7-32. Trip And Alarm Log Example

    (select “Logs Menu” soft key). Be aware that this function will not reset any faults, it simply clears the contents of the logs in the device. Each log can be saved to an html file using the associated “Export...” button. Woodward...

  • Page 142: Figure 7-33. Overspeed/Acceleration Log Example

    Selecting the “Clear Module Faults Log” button will clear the log. This button is only visible when logged in with “Test Level Password” permissions or higher. The log can be saved to an html file using the “Export...” button. Woodward...

  • Page 143: Figure 7-34. Module Faults Log Example

    Clearing of the Module Faults Log should not be performed if any internal faults are currently active. Doing so will erase valuable troubleshooting information. Figure 7-34. Module Faults Log Example Woodward...

  • Page 144: Chapter 8. Configuration Using The Pct

    “tripped” state. Changing the configuration settings in the ProTech-GII is permissible only when the affected module is in a trip condition and with “Config Level Password” permission. Otherwise, configuration changes are inhibited. Woodward...

  • Page 145: Configuration Settings

    CRC calculation can be different between modules as the Home Screen setting, Home Screen on Trip setting, Language, Speed Filter, Password settings, and Modbus slave addresses are expected to be different between modules. When enabled, the configuration mismatch alarm is automatically connected internally to the alarm latch. Woodward...
  • Page 146 Valid values: 0.004-10. Remaining parameters can be set by selecting an applicable button. After selecting one of the buttons, a sub-screen is displayed in which particular parameters for the selected function can be checked and modified if necessary. Woodward...

  • Page 147: Input Configuration

    32000 Hz or a configuration error will occur. Valid values: 0 - 80000 RPM.  Sudden Speed Loss: Select action to take when an instantaneous speed loss is detected. A sudden speed loss is an instantaneous loss of speed of the module’s local speed input. The Woodward...
  • Page 148 A reset is required to restore an invalid signal.  Speed RM Trip: Boolean signal. Set true when block issues a trip command. True with no valid inputs or with two failed inputs and configured to trip. Woodward...
  • Page 149 Output: Analog signal. Acceleration selection is based on the number of valid/good inputs and the configured selection criteria.  Input 1-3 Invalid: Boolean signal (x3). Indicates the input is not valid and has been removed from the voting scheme. A reset is required to restore an invalid signal. Woodward...

  • Page 150: Figure 8-3. Input Sharing Selection Configuration Example

    Inputs 1-3: This selection creates the “ORed” state for the dedicated discrete Speed Fail Override input from each module. Selections are Module A Speed Fail Override, Module B Speed Fail Override, Module C Speed Fail Override, or Not Used. Woodward...

  • Page 151: Figure 8-4. Modbus Configuration Example

    Enable Write Commands: Set to “Yes” to allow Modbus commands to be written to the ProTech (e.g. Reset, Initiate Auto Simulated Speed Test). See the Monitor and Control Section in the Modbus Communications Chapter. When set to “No”, the Modbus interface becomes monitor-only. Valid values: Yes or No. Woodward...

  • Page 152: Functions Configuration

    Sequence Test can only be configured on Module A.  Lamp Test The lamp test verifies the front-panel LED functionality by cycling through the color combinations. The test can be repeated as needed and an “End Test” option is provided to cancel the test. Woodward...
  • Page 153 “No”, the test cannot be manually stopped. This setting is used to allow temporary disable of the periodic execution of the Auto-Sequence Test. Valid values: Yes or No. Indications for Auto Sequence Test Active and Auto Sequence Timeout are automatically connected internally to the alarm latch. Woodward...

  • Page 154: Figure 8-6. Start Logic & Power Supply Alarms Configuration Example

    For Speed Fail Alarm, local speed is required (speed “Probe Type” cannot be set to “Not Used”). For Speed Fail Trip and Speed Fail Timeout Trip, speed must be configured using either the Speed Redundancy Manager or local speed. Woodward...

  • Page 155: Figure 8-7. Other Outputs Configuration Example

    Speed @ 4 mA: The speed value at the minimum 4-mA output for scaling the analog output. Valid values: 0 - 80000 RPM.  Speed @ 20 mA: The speed value at the maximum 20-mA output for scaling the analog output. Valid values: “0 – 80000” RPM. Woodward...

  • Page 156: Configuration Checks

    Error – <block identifier> has an invalid value. Condition: The identified block has an invalid configuration value. This error applies to the Overspeed Trip Setting and the Temporary Overspeed Trip Setting. The calculated frequency equivalent of the RPM setting [i.e., (RPM*GearTeeth*GearRatio)/60] is greater than 32000. Woodward...

  • Page 157: Error Messages

    Error – <block identifier> configuration contains data that is invalid (out-of-range). Condition: A setting has been detected that is out of the range. This error condition needs to be corrected in the PCT and should be reported to Woodward for correction. Error Messages Configuration Error Figure 8-8.

  • Page 158: Chapter 9. Modbus Communications

    Test Routines” commands only. Modbus communication ports are independent of each other and can be used simultaneously. To ensure that a Modbus-based command to trigger a module test is valid, an Initiate Test command followed by a Confirm Test command must be received to initiate a test routine. The Confirm Test Woodward...

  • Page 159: Modbus Interface

    This list consists of Boolean Write, Boolean Read, and Analog Read parameters. Analog Write parameters are not used nor available with this device. Reserved address ranges can be read, but they are undefined for ProTech-GII. Woodward...
  • Page 160 While selected analogs are described below, the full list available to read are listed in Table 8-5. Scaled Speed and Acceleration Values (3:0001 to 3:0012) Scaled values of the sensed speed, calculated acceleration and RM-selected speed and acceleration are provided as analog signals. Woodward...
  • Page 161 Speed Probe Open Wire Trip 1:0004 Speed Lost Trip 1:0005 Speed Fail Trip 1:0006 Speed Fail Timeout Trip 1:0007 Resettable Trip Input Trip 1:0008 Internal Fault Trip 1:0009 Power Up Trip 1:0010 Configuration Trip 1:0011 Parameter Error Trip 1:0012 Woodward...
  • Page 162 1:0293 Speed Fail Override 1:0294 Overspeed 1:0295 Overacceleration 1:0296 Speed Fail Trip Non-Latched 1:0297 Speed Fail Timeout 1:0298 Speed Lost Alarm Non-Latched 1:0299 Speed Lost Trip Non-Latched 1:0300 Speed Probe Open Wire Trip Non-Latched 1:0301 Tmp Ovrspd Setpoint On Woodward...
  • Page 163 Accel Red Mgr Input 2 Invalid 1:0667 Accel Red Mgr Input 3 Invalid 1:0668 Speed Probe Open Wire Alarm Non-Latched 1:0669 Speed Red Mgr Trip Non-Latched 1:0670 Shared Reset 1:0671 Shared Start 1:0672 Shared Speed Fail Override 1:0673 to 1:0691 Spare(ok to read) Woodward...
  • Page 164 Last Trip Minute minute 0 to 59 3:0091 Last Trip Second second 0 to 59 3:0092 Last Trip Milli-Second millisecond 0 to 999 3:0093 Unit Health Status Enum 0 to 2 3:0094 Auto-Sequence Test Status Enum 0 to 4 Woodward...

  • Page 165: Chapter 10. Safety Management

    PFH = Probability of a dangerous Failure per Hour (High Demand or Continuous mode of operation) PFD and PFH calculations have been performed on the ProTech-GII according IEC61508. For SIL3, IEC states the following requirements. Table 10-2. SIL Specifications Type SIL 3 Value to 10 to 10 > 90% Woodward...

  • Page 166: Failure Rate Data

    The ProTech-GII is intended for use according to the requirements of a safety lifecycle management process such as IEC61508 or IEC61511. The safety performance numbers in this chapter can be used for the evaluation of the overall safety lifecycle. Woodward...

  • Page 167: Restrictions

    All persons involved in the initial design or modification of the programmable software, installation and maintenance must have appropriate training. Training and guidance materials include this manual, the ProTech-GII Programming and Configuration Tool, and training programs available at Woodward. See Chapter 12 (Service Options) for more information.
  • Page 168 Chassis isolation checks using resistance measurement. Measure from terminals 66, 67 to a point on the ProTech-GII chassis (the grounding braid is a good place for this measurement): < 1 . 10. Perform a lamp test from front panel Test Menu. Woodward...

  • Page 169: Chapter 11 Troubleshooting

    The redundancy manager blocks with display these as ‘Invalid’ inputs. Additionally internal fault alarms will be indicated for both software version mismatch and heartbeat error, due to loss of inter-module communications. Woodward...
  • Page 170 Internally supplied wetting Measure voltage from terminal 1 to voltage fault. terminal 81 and verify it is 23 V ±2 V. If out of range, return unit to Woodward. Woodward...
  • Page 171 LO wires are terminated to the correct terminals for RS-485 and likewise for TXD and RXD for RS-232. Also verify the terminations jumpers are installed for RS-485 mode Configuration Using the PCT or front panel, verify the correct settings are selected. Woodward...
  • Page 172 Log. This log expands the Internal Fault annunciation. In general, it is not possible to fix internal faults without returning the unit to Woodward. Power Up Trip The module has lost Power source Verify power source, (if configured for De-energize to...
  • Page 173 Override contact operation. contact input is input operation not open while speed is correct. below the user configured Speed Incorrect speed fail See manual for description of Fail Setpoint. setpoint configured, function. Use PCT to verify proper configuration settings. Woodward...
  • Page 174 Use PCT or front panel to verify proper configuration settings. Speed Lost Alarm Sudden Speed Loss is Wiring fault or probe Check wiring continuity and configured as Alarm fault. probe integrity. and the module has detected a sudden speed loss. Woodward...
  • Page 175 Auto Sim Spd Test Indicates the Internal problem with the Return unit to Woodward. Failed automated simulated unit. overspeed test failed. Auto Sequence Test Indicates the User enabled the auto...

  • Page 176: Chapter 12. Product Support And Service Options

     An Authorized Independent Service Facility (AISF) provides authorized service that includes repairs, repair parts, and warranty service on Woodward's behalf. Service (not new unit sales) is an AISF's primary mission.  A Recognized Turbine Retrofitter (RTR) is an independent company that does both steam and gas turbine control retrofits and upgrades globally, and can provide the full line of Woodward systems and components for the retrofits and overhauls, long term service contracts, emergency repairs, etc.

  • Page 177: Returning Equipment For Repair

    All repair work carries the standard Woodward service warranty (Woodward Product and Service Warranty 5-01-1205) on replaced parts and labor.

  • Page 178: Replacement Parts

     The unit serial number, which is also on the nameplate Engineering Services Woodward offers various Engineering Services for our products. For these services, you can contact us by telephone, by email, or through the Woodward website.  Technical Support ...

  • Page 179: Technical Assistance

    ProTech-GII with Math Functions Technical Assistance If you need to contact technical assistance, you will need to provide the following information. Please write it down here before contacting the Engine OEM, the Packager, a Woodward Business Partner, or the Woodward factory: General...

  • Page 180: Chapter 13. Asset Management

    Woodward recommends that your product be sent back to Woodward or to a Woodward authorized service facility after every five to ten years of continuous service for inspection and component upgrades. Please refer to the service programs in the following chapter.

  • Page 181: Appendix A. Modbus Ethernet Gateway Information

    Appendix A. Modbus Ethernet Gateway Information Introduction For customers who want to use Modbus Ethernet communications or put the ProTech on the plant network, Woodward recommends the following Ethernet-to-Serial Gateways: B&B Electronics – Model: MESR901 Serial: RS-232, RS-485, or RS-422 Power Input: 10–48 Vdc...

  • Page 182: Figure A-1. Wiring

    Released Manual 35086 ProTech-GII with Math Functions RS-232 Figure A-1. Wiring Note: The Serial DB9 connection is used for RS-232 communication only. Figure A-2. RS-485 2-wire Note: Use the terminal block for wiring of RS-485 communications. Woodward...

  • Page 183: Figure A-3. Network Settings

    14—15 and 18—19 to activate the termination. Configuration – Configuration of the MESR901 is done through Vlinx Modbus Gateway Manager. The configuration software is provided with the device. Figure A-3. Network Settings Figure A-4. Modbus TCP Settings Woodward...

  • Page 184: Figure A-5. Serial Communication Settings

    Released Manual 35086 ProTech-GII with Math Functions Figure A-5. Serial Communication Settings Note:—For RS-485 communication, select RS-485 under Mode, and use the terminal block connections. The DB9 port is for RS-232 communications only. Figure A-6. Serial Modbus Settings Woodward...

  • Page 185: Lantronix Setup

    485/422, you will need to assign each module a unique node address, which can be found on the front- panel Modbus configuration screen on the ProTech. Figure A-7. RS-232 Wiring Verify that the dipswitch on the front of the device is in the up position, indicating RS-232 communications. Woodward...

  • Page 186: Figure A-8. Rs-285 2-Wire Wiring

    When configuring for RS-485, termination resistors (120) are needed at each end of the network. Note the location of the resistor on the device. The ProTech has the termination resistor built into the module, jumpers are necessary between terminals 14—15 and 18—19 to activate the termination. Woodward...

  • Page 187: Figure A-9. Overview

    Released Manual 35086 ProTech-GII with Math Functions Configuration Configuration of the UDS100-Xpress DR IAP is done through DeviceInstaller. The configuration software is provided with the device. Figure A-9. Overview Figure A-10. Network Menu Woodward...

  • Page 188: Figure A-11. Serial Settings Menu

    Manual 35086 ProTech-GII with Math Functions Figure A-11. Serial Settings Menu Note: For RS-485 communications, choose option 3 under interface type and do not forget to set the dipswitch on the front of the device. Figure A-12. Modem Control Menu Woodward...

  • Page 189: Figure A-13. Advanced Menu

    Released Manual 35086 ProTech-GII with Math Functions Figure A-13. Advanced Menu Woodward...

  • Page 190: Appendix B. Protech-Gii Configuration Worksheet

    ProTech-GII Part Number:__________________ Date:_____________ ProTech-GII Serial Number:________________ Site/Application:______________________ CONFIGURATION FUNCTIONS (Minimum Required) Configuration of the unit can be done directly on the front panel display or the PCT software. PASSWORD CHANGE: Test Level Password _______________ Config Level Password _______________ Woodward...
  • Page 191 Start Input Sharing Module A Start / Module Not Used DISCRETE INPUTS B Start / Module C Start Not Used / Speed Fail Override Module A SFO / Module Not Used Input Sharing B SFO / Module C SFO Woodward...
  • Page 192 DISPLAY Yes / No Option Speed Filter Tau (sec) 0.004 to 10.0 Enable Configuration CONFIG Yes / No Compare COMPARE Speed at 4 mA 0 - 80000 RPM ANALOG OUTPUT Speed at 20 mA 0 - 80000 RPM 32000 Woodward...

  • Page 193: Revision History

    Released Manual 35086 ProTech-GII with Math Functions Revision History New Manual—  Woodward...
  • Page 194 Released Manual 35086 ProTech-GII with Math Functions Declarations Woodward...
  • Page 195 Email and Website—www.woodward.com Woodward has company-owned plants, subsidiaries, and branches, as well as authorized distributors and other authorized service and sales facilities throughout the world. Complete address / phone / fax / email information for all locations is available on our website.

This manual is also suitable for:

8237-2598Protech-gii8237-25958237-25998237-25968237-2600 ... Show all

Table of Contents
