OFFLINE
Using Add Fixtures from Library
1. Click Add Fixtures from Library.
2. Select the root nodes and place on the canvas. The search bar can be used to filter fixtures.
3. Press Tab to start associating sub-fixtures. Repeated presses of Tab or the Next Port button advances
through the ports.
4. The type of fixture can be selected from the Library menu. Select the sub-fixtures and add them to the
canvas.
5. Repeat steps 3 and 4 until all your fixtures are placed.
6. Press Enter or Escape to confirm the association.
Once fixtures are connected to the processor, the root nodes can be associated. Strings of root nodes appear
the same as strings of normal fixtures in the Add Fixtures From Network tool. See
Project" on page 53 for more information.
When a root node is associated, its outputs is automatically reconfigured with the correct types of sub-fixtures
drawn in the topology, and sub-fixtures are automatically associated.
ONLINE
Using Add Fixtures from Network
This option restricts the addition of sub-fixtures to the configuration of the root node. The processor does not
receive information regarding the number of connected sub-fixtures.
1. Click Add Fixtures from Network
2. Select the port for connected fixtures.
3. Select the root node and associate it to the canvas. This step is not necessary but is useful if the root
node configuration needs to be changed.
4. Select the sub-fixtures.
5. Select the root node where the sub-fixtures are connected.

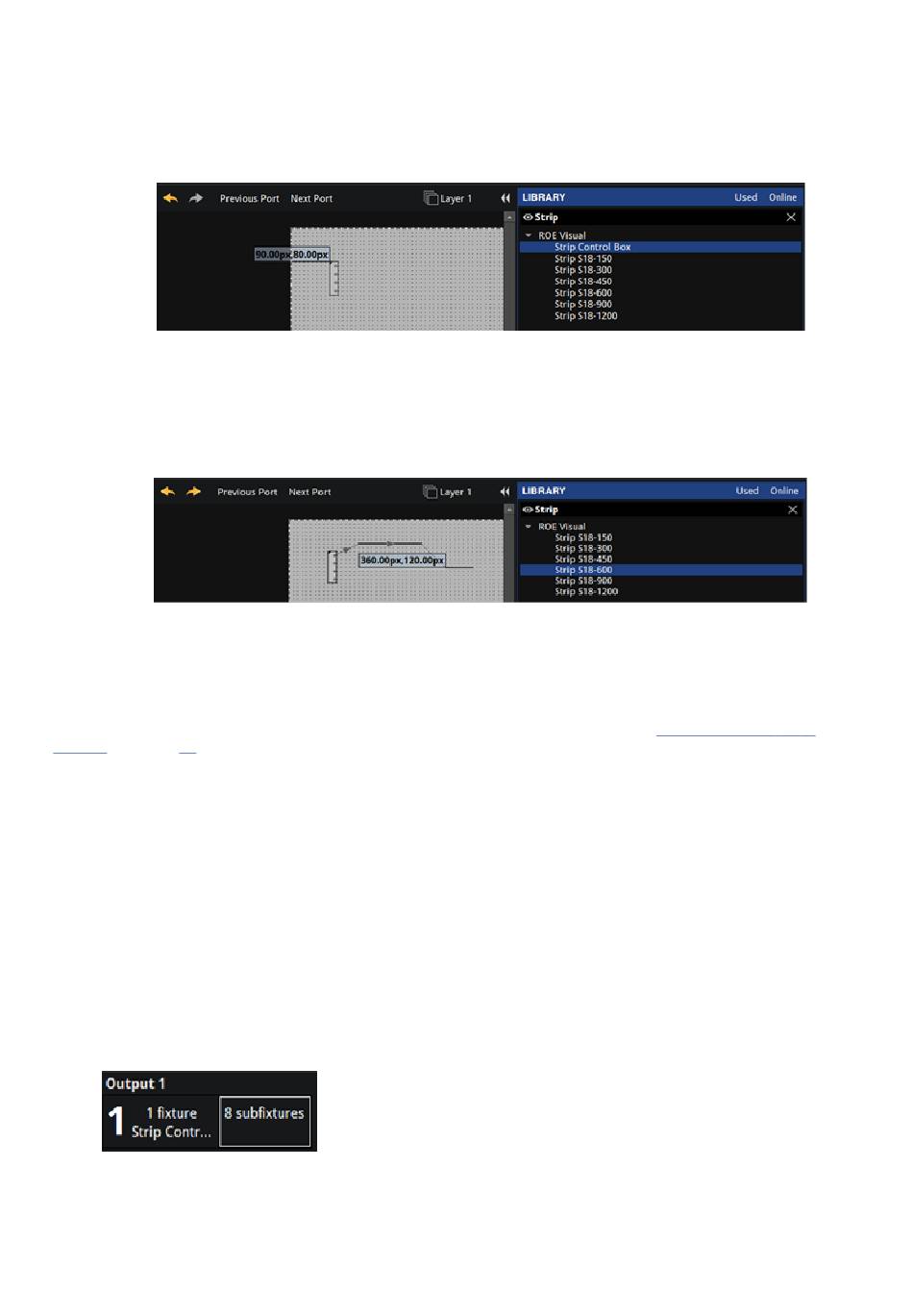

Figure 7-24. Adding a Root node to canvas
Figure 7-25. Adding a sub-fixture to canvas
