CONNECTING FIXTURES
1. Ensure that all fixtures are connected to the processor with the desired topology, taking into
consideration the output port's capacity limit.
2. Click the Add Fixtures From Network button. The canvas toolbar is replaced with a row of currently
connected fixtures. When using Add Fixtures From Network, strings of fixtures are highlighted with
colours corresponding to the ones shown in the UI. Each string is assigned a unique numeric code which
appears on the first fixture of the string during association.
3. Entering this code on the processor (using number keys or numpad) selects the corresponding string for
association. The string is then ready to be drawn in the canvas using the cursor.
4. The first fixture in the string is highlighted white, while other fixtures display varying shades of the same
colour to denote the order of the fixtures in the string - from brightest to darkest.
5. Click on the canvas to add fixtures one by one. The currently selected fixture is highlighted in white on
the LED panel.

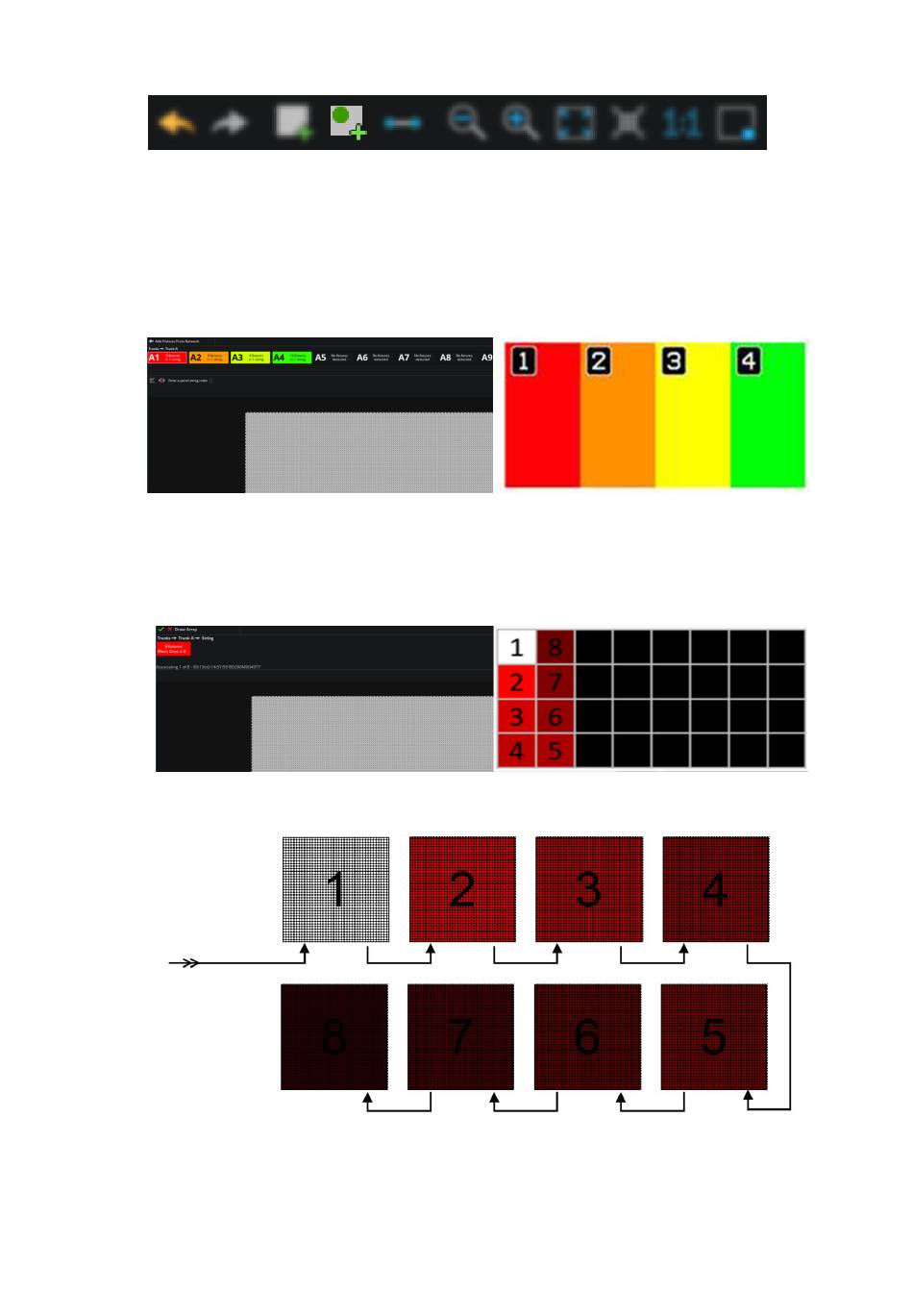

Figure 3-4. Add Fixtures from Network button
Figure 3-5. The Add Fixtures From Network toolbar, the right-side shows connected fixtures whilst in Add Fixtures
Figure 3-7. A highlighted Recoloured string
From Network menu.
Figure 3-6. Associating Fixtures
