Altronix 6062 Installation Instructions page 2

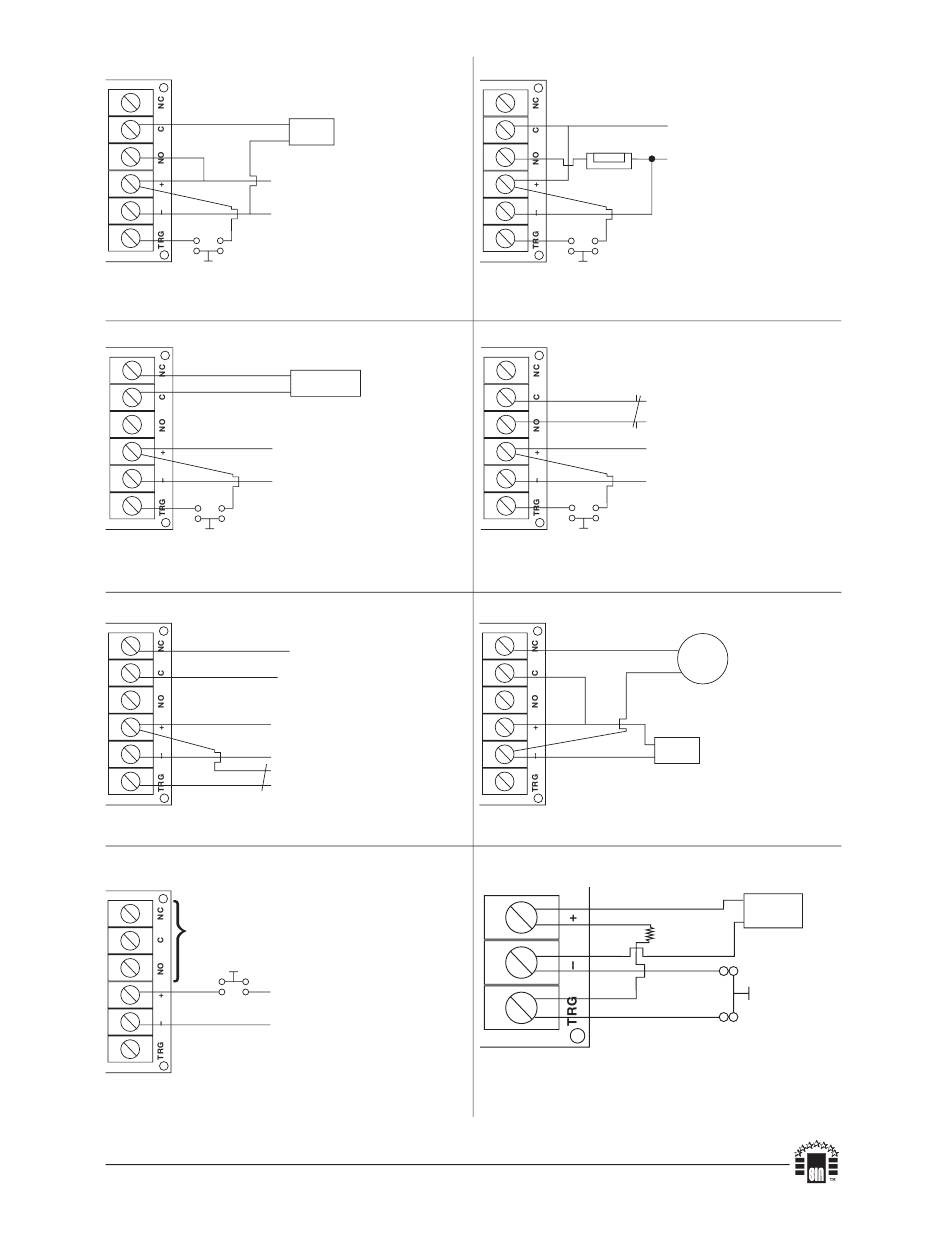

Fig. 1 - Timed Door Annunciator:
+
Pos (+) and Neg (- - )
terminals constant
12VDC or 24VDC
- - -
Normally Open
Door Contacts
For this application Switch #1 and Switch #4
should be in the OFF position.
Fig. 2 - Guard Tour Supervisory Timer:
+
Pos (+) and Neg (- - )
terminals constant
12VDC or 24VDC
- - -
Normally Open
Switch Contacts
For this application Switch #1 and Switch #4
should be in the OFF position.
Fig. 3 - Swinger Eliminator:
Control Panel
+
Pos (+) and Neg (- - )
terminals constant
12VDC or 24VDC
- - -
Protective
Circuit
For this application Switch #1 should be in the OFF position
and Switch #4 should be in the ON position.
Fig. 4 - Delay Timer: Use for Door Ajar Alarm, Delayed
Activation of Digital Dialer, Defrost Cycle Timer, etc...
Use appropriate contacts
to reporting devices
Normally Open
Triggering Device
+
Pos (+) and Neg (- - )
terminals constant
12VDC or 24VDC
- - -
For this application Switch #1 should be in the ON
position and Switch #4 is not used in this application.
Altronix is not responsible for any typographical errors.
140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056
website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty | Made in U.S.A.
II6062 - Rev. 032211
- 2 -
All manuals and user guides at all-guides.com
6062 Typical Applications:
+
CHIME
- - -
DIALER OR
TRANSMITTER
Closed
Circuit
Zone on
Fig. 5 - Timed Door Strike:
+ - - -
Door Strike
Normally Open
Door Contacts
For this application Switch #1 should be in the OFF
position and Switch #4 should be in the ON position.
Fig. 6 - Timed Shunt for a Door: Use to bypass alarm contacts.
Door Contacts
Protective
+
Pos (+) and Neg (- - )
terminals constant
12VDC or 24VDC
- - -
Normally Open
Switch Contacts
For this application Switch #1 should be in the OFF
position and Switch #4 should be in the ON position.
Fig. 7 - Bell Cut Off Timer:
Control Panel
12VDC or 24VDC
For this application Switch #1 should be in the ON position
and Switch #4 is not used in this application.
Fig. 8 - Closed Circuit Trigger Option:
Pull up
Resistor
For this application a resistor [for 12VDC - 2K (2,000 ohm)
or for 24VDC - 4.7K (4,700 Ohm)] must be installed as
shown (resistor not supplied).
L01Q
+
Pos (+) and Neg (- - )
terminals constant
12VDC or 24VDC
- - -
Circuit
+
Bell
or
Siren
- - -
Bell
Output
+
Power
Supply
- - -
Closed
Circuit
Contact
