www.ti.com

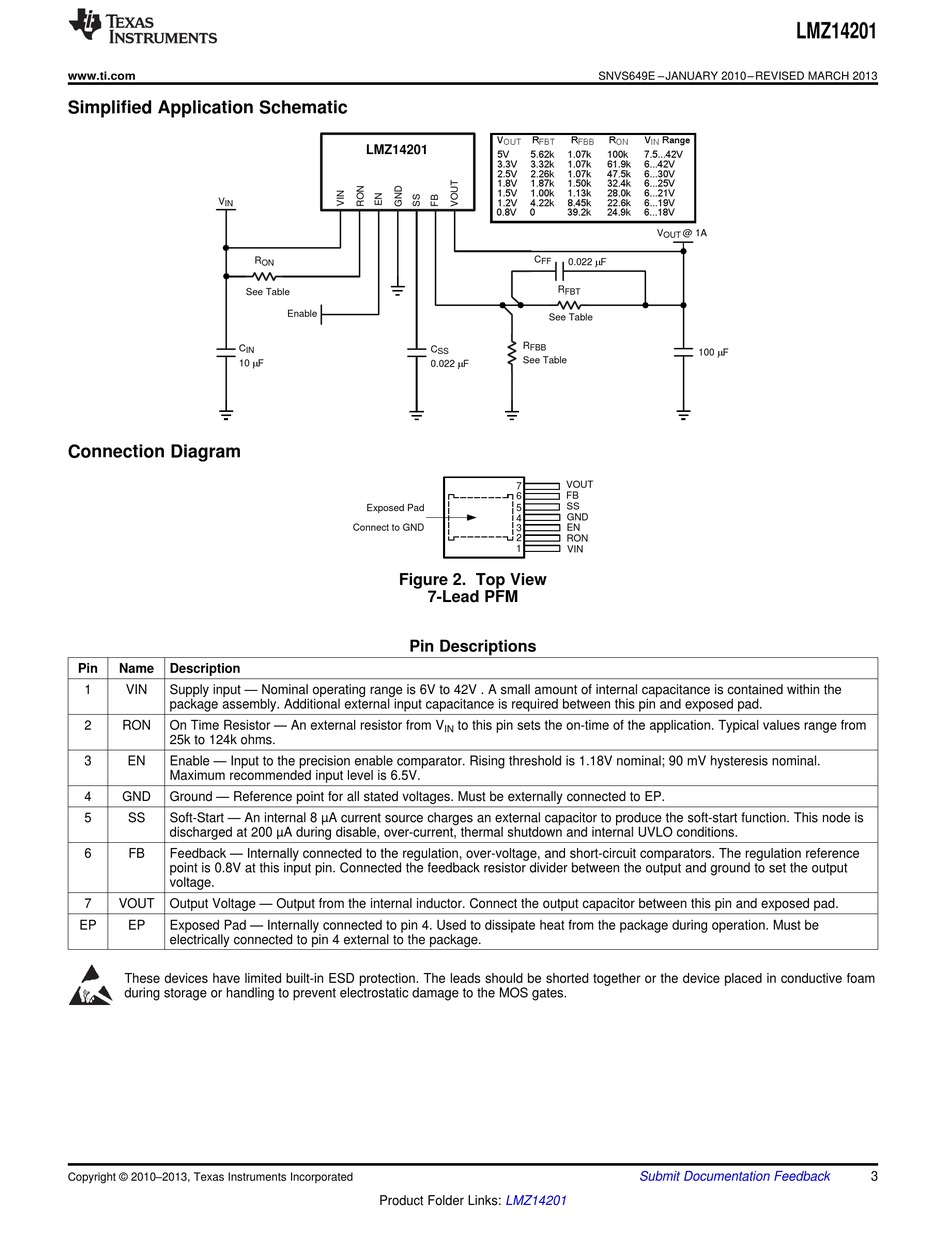

Simplified Application Schematic
V
IN
See Table
C
IN
10 PF

Connection Diagram

Pin Name Description
1 VIN Supply input — Nominal operating range is 6V to 42V . A small amount of internal capacitance is contained within the
package assembly. Additional external input capacitance is required between this pin and exposed pad.
2 RON On Time Resistor — An external resistor from V
25k to 124k ohms.
3 EN Enable — Input to the precision enable comparator. Rising threshold is 1.18V nominal; 90 mV hysteresis nominal.
Maximum recommended input level is 6.5V.
4 GND Ground — Reference point for all stated voltages. Must be externally connected to EP.
5 SS Soft-Start — An internal 8 µA current source charges an external capacitor to produce the soft-start function. This node is
discharged at 200 µA during disable, over-current, thermal shutdown and internal UVLO conditions.
6 FB Feedback — Internally connected to the regulation, over-voltage, and short-circuit comparators. The regulation reference
point is 0.8V at this input pin. Connected the feedback resistor divider between the output and ground to set the output
voltage.
7 VOUT Output Voltage — Output from the internal inductor. Connect the output capacitor between this pin and exposed pad.
EP EP Exposed Pad — Internally connected to pin 4. Used to dissipate heat from the package during operation. Must be
electrically connected to pin 4 external to the package.
These devices have limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam
during storage or handling to prevent electrostatic damage to the MOS gates.
Copyright © 2010–2013, Texas Instruments Incorporated
LMZ14201
R
ON
Enable
C
0.022 PF
Exposed Pad
Connect to GND
Figure 2. Top View
7-Lead PFM
Pin Descriptions
Product Folder Links:
SNVS649E – JANUARY 2010 – REVISED MARCH 2013
V R R R
OUT FBT FBB ON
5V 5.62k 1.07k 100k
3.3V 3.32k 1.07k 61.9k
2.5V 2.26k 1.07k 47.5k
1.8V 1.87k 1.50k 32.4k
1.5V 1.00k 1.13k 28.0k
1.2V 4.22k 8.45k 22.6k
0.8V 0 39.2k 24.9k
C
FF 0.022 PF
R
FBT
See Table
R
FBB
SS
See Table
VOUT
7
6 FB
SS
5
GND
4
3 EN
2
RON
1 VIN
to this pin sets the on-time of the application. Typical values range from
IN
LMZ14201
LMZ14201
V Range
IN
7.5...42V
6...42V
6...30V
6...25V
6...21V
6...19V
6...18V
V @ 1A
OUT
100 PF
Submit Documentation Feedback 3
