Introduction

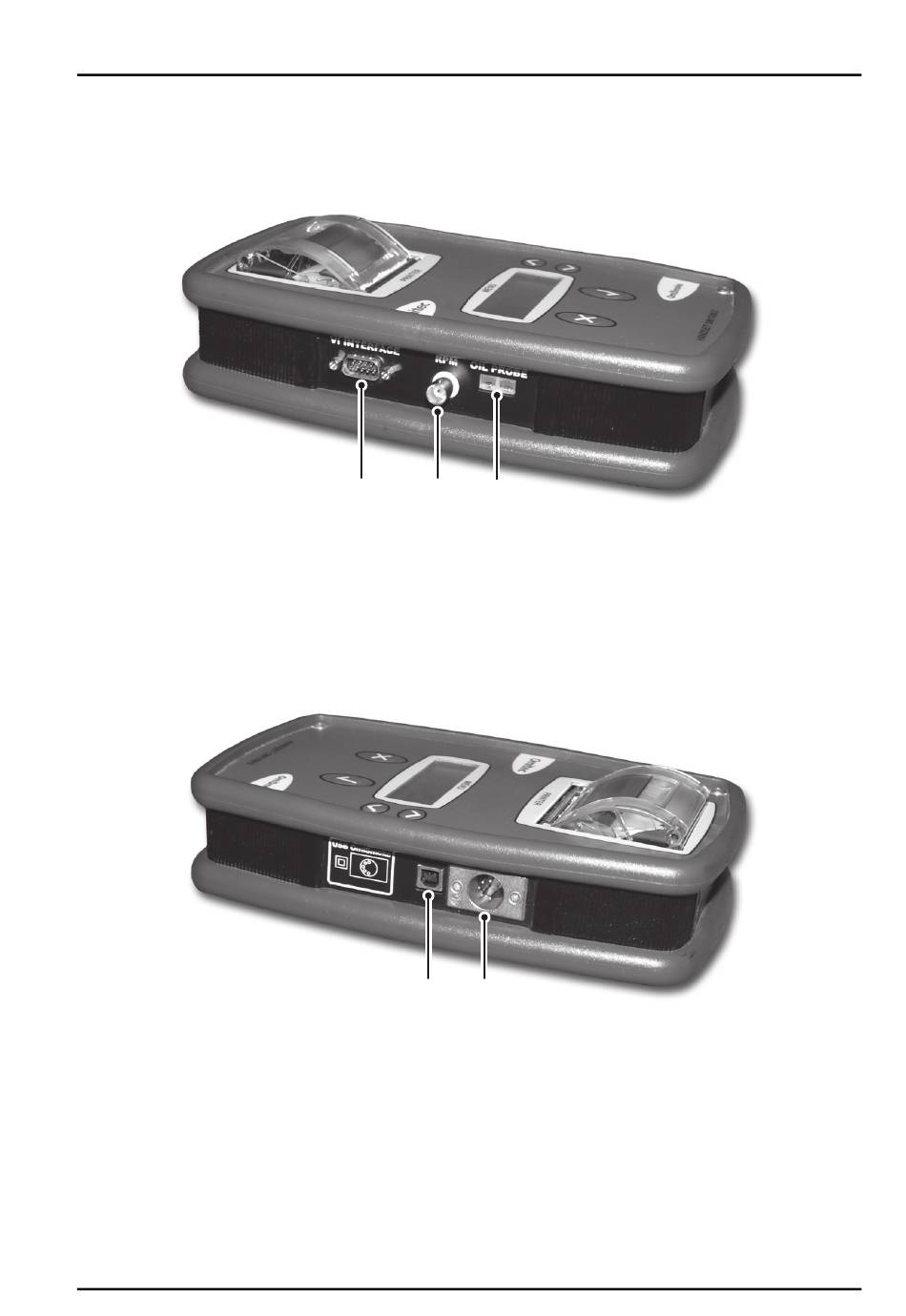

There are 5 connectors located on the sides of the handset:
3
2
1
OM0379
1. Engine oil temperature sensor connector
2. Engine RPM sensor (OmiSpeed) BNC connector
3. 9-pin D type VI Card reader input
OM0380
2
1
1. Smokemeter 5-pin XLR connector
2. USB port
