Summary of Contents for Water Soft ISOBAR II

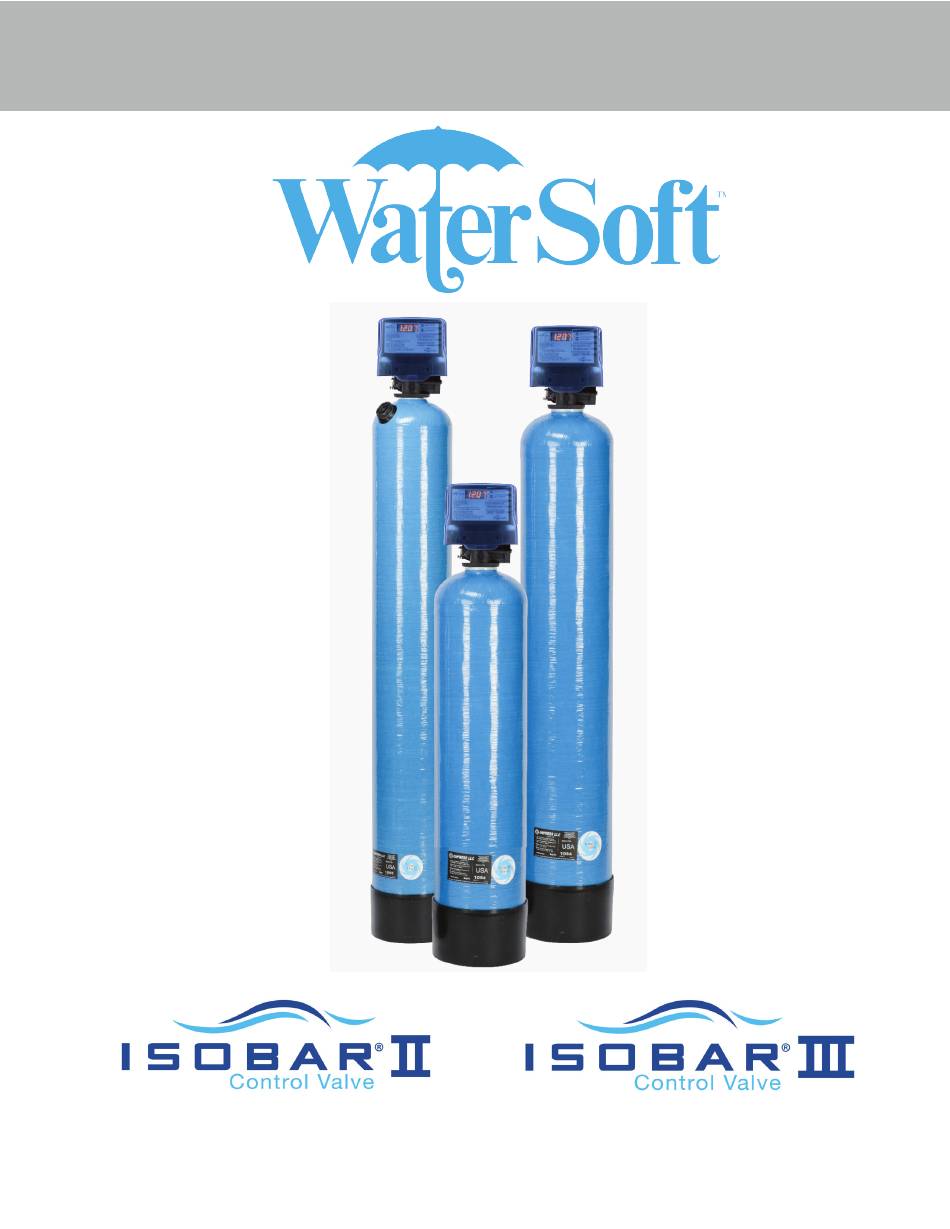

- Page 1 Filter Manual Installation / Operation Manual...
-
Page 2: Table Of Contents
General Specifications............Page 3 Filter Media................Page 4 Installation Requirements............Page 5 Programming the Control Valve..........Page 9 Utilizing Bluetooth..............Page 11 Master Programming............... Page 14 Control Valve Powerhead Assy. ISO II & ISO III....Page 15 Valve Body Assembly ISO II............ Page 16 Bypass Assembly ISO II............ -
Page 3: General Specifications
Filter Specifications General Specifications G9-3 G10-3 G12-3 G13-3 G14-3 Less Filter Media Filtration Filter Media Capacity (cu ft) Mineral Tank (Vortech ™) 9 X 48 10 X 54 12 X 52 13 X 54 13 X 65 Service Flow Rate - Continuous (gpm) Service Flow Rate -... -
Page 4: Filter Media
Filter Media Ship Wt. Media Description Handles... Used in... (lbs) Sediment Granular / White-Black / Filter Ag Plus and Katalox Light SmartBlend PROVECTR ® Iron (clear & red) SB75 / Max life expectancy about 8-10 years but is dependent Soft ‘N’ Filter w/ Mid-Vortech Manganese (clear &... -
Page 5: Installation Requirements
Installation Installation Requirements • A level floor position ahead of piping into water heater. • Unit must be installed at least 10’ ahead of the inlet to a water heater to prevent damage due to back-up of hot water. • DO NOT install the unit in an area of direct sunlight or where freezing temperatures may occur! (See Installation Diagrams for proper placement and plumbing connections.) - Page 6 Installation Note: • If household plumbing is galvanized and you intend to make the installation with copper (or vice versa), obtain di-electric unions to prevent dissimilar metal corrosion. • All plumbing lines not requiring “soft” water should be connected “upstream” of the softener, if installed. (See Typical Installation Diagrams.) Caution: •...
- Page 7 Installation Installation Procedure - Water Supply Connection and Bypass Valve - To allow for filter servicing, swimming pool filling or lawn sprinkling, a manual Bypass Valve has been installed at the factory. The Bypass allows raw water to be manually routed around the filter. 1.
- Page 8 Installation - Drain Line Connection - 1. The drain line flow control assembly is pre-assembled for your convenience. Should you choose to hard plumb the drain line, please remove the barb fitting. The flow control housing can be removed by removing the clip and pulling straight out on housing.
-
Page 9: Programming The Control Valve
Programming the Control Valve - Final Checkout - 1. Be certain that the bypass valve is in Service position and main valve is completely on. 2. Check electrical supply to be certain the cord is connected to an uninterrupted 115 volt outlet. 3. - Page 10 Programming the Control Valve Normal Operation 1. Home Display a. Alternates between the display of Time of Day and Number of Days until the Next Backwash. (Metered Softeners will alternate between time of days and gallons remaining until next regeneration) - Days Remaining until the Next Backwash will count down from the entered value until it reaches 1 day remaining.
-
Page 11: Utilizing Bluetooth
Utilizing Bluetooth Control For simplified set up and control, please install the Legacy View on a compatible Bluetooth 4.0+ enabled smart phone or tablet. 1. Download and install the Legacy View app from the Google Play Store, Apple App Store 2. - Page 12 Set Up Utilizing Bluetooth App Change Time of Day (Press “SET” to set time automatically based on device). For Filters: Set Backwash Frequency This sets the amount of day between backwash cycles Set Regeneration Time Example: For 2a.m., just type 2, choose a.m., and press ‘OK’ Note: If you have a filter and a softener the valves should be set to regenerate at different times.
- Page 13 Set Up Utilizing Bluetooth App Status and History From the Status and History, all items in ORANGE can be reset. Pressing this icon will show a list of the data that is in the graph. Touch any graph to enlarge and see details.
-
Page 14: Master Programming
Master Programming Mode Master Programming Mode To enter Master Programming Mode, press and hold both buttons for 5 seconds. Note: All Master Programming functions have been preset at the factory. Unless a change is desired, it is NOT necessary to enter Master Programming Mode. 1. -
Page 15: Control Valve Powerhead Assy. Iso Ii & Iso
Control Valve Powerhead Assembly LETTERS IN DIAGRAM REPRESENT WIRING CONNECTIONS * "F" Port is for softener flow meter connection (flow meter not shown) Description Part Number Power Head Assy. 20942C100 Filter Circuit Boad Assy. 20942C102 Encoder 20001X124 Front Plate 20001X004 Encoder Wheel 20001X007 Main Gear... -
Page 16: Valve Body Assembly Iso
Valve Body Drive Assy. (Filter Version) Description Part # Qty. R e f Piston Assembly 20001X231 10-24 X 13/16” Screw 20001X226 Seal and Spacer Kit Incl (5) #3 20561X253 & (4) #4 End Spacer Flow Control Button 5.0 GPM 20251X272 Flow Control Button 6.0 GPM 20251X274 Flow Control Button 7.0 GPM... -
Page 17: Bypass Assembly Iso
Bypass Assembly Ref # Description Part # Plastic Bypass Valve Assembly 20561X292 Bypass Valve 3/4” Stainless Steel 20561X270 Bypass Valve 1” Stainless Steel 20561X283... -
Page 18: Valve Body Assembly Iso
Valve Body Drive Assy. (Filter Version) Description Part # Qty. R e f Piston Assembly 20001X231 10-24 X 13/16” Screw 20001X226 Seal and Spacer Kit Incl (5) #3 20561X253 & (4) #4 End Spacer Flow Control Button 5.0 GPM 20251X272 Flow Control Button 6.0 GPM 20251X274 Flow Control Button 7.0 GPM... -
Page 19: Bypass Assembly Iso
Bypass Assembly Description Part No. D15 Bypass 20017X283 1” Female Straight Slip Set 20017X288 (optional) 1” NPT Elbow Set 20017X284 1” NPT Straight Set 20017X289 (optional) Elbow, Vertical Adapter 20017X295 (optional) Blank Elbow, Vertical Adapter 20017X294 (optional) 1/4” NPT Tapped... -
Page 20: Service Instructions
Service Instructions / Instructional Videos Available at www.watersoftinc.com General Preliminary Instructions PERFORM BEFORE ALL SERVICING OPERATIONS 1. Turn off water supply to conditioner. -If the conditioner installation has a “three valve” bypass system, first open the valve in the bypass line, then close the valves at the conditioner inlet and outlet. -
Page 21: Troubleshooting
Troubleshooting Guide To Replace Meter 1. Follow steps A1 - A3 2. Unplug meter cable from front of circuit board. 3. Unscrew meter assembly nut from valve body. 4. Remove meter from valve body and clean or replace as necessary. 5. -
Page 22: Error Codes
Error Codes Control Valve Error Code Diagnosis Under normal operating conditions, when your control valve is in the “in service” position, the display should alternate between the current time of day and the number of days remaining (for filters and time clock softeners) or gallons remaining (for metered softeners) until the next regeneration. -
Page 23: Warranty Information
Warranty... - Page 24 710 Orange Street, Ashland, OH 44805 PH 419.289.1500 FAX 419.289.1515 www.watersoftinc.com 0419TV...
