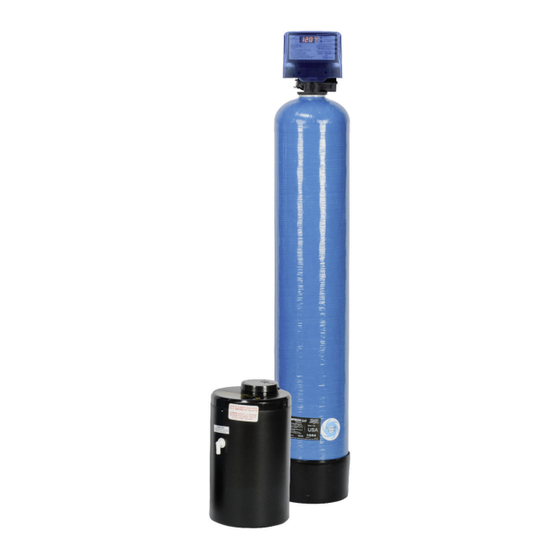

Summary of Contents for Water Soft ISOBAR II

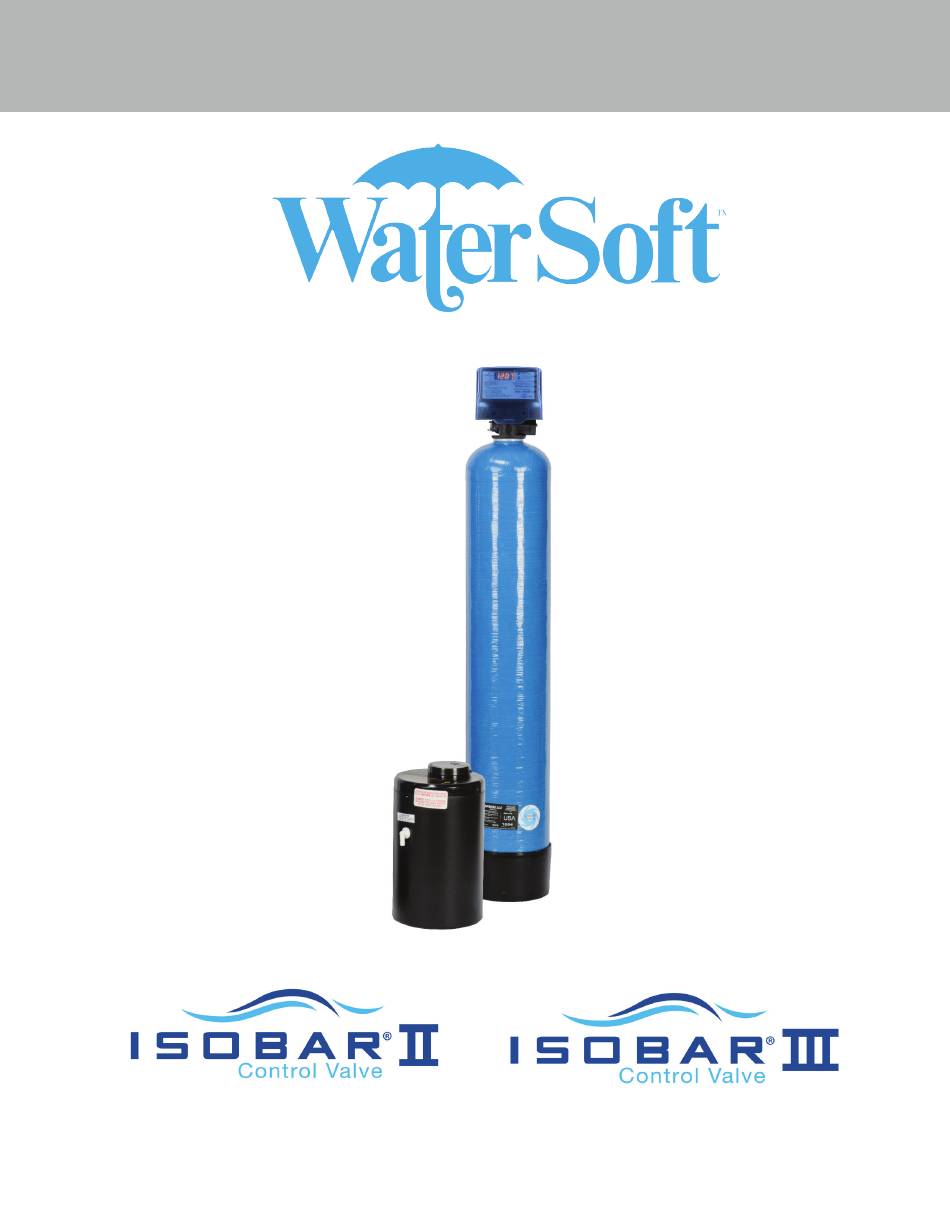

Page 1 Greensand PlusManual Installation / Operation Manual...
Page 2: Table Of Contents
General Specifications............Page 3 Installation Requirements............Page 4 Programming the Control Valve..........Page 7 Master Programming............... Page 11 Utilizing Bluetooth..............Page 12 Control Valve Powerhead Assy. ISO II & ISO III....Page 15 Valve Body Assembly ISO II............ Page 16 Bypass Assembly ISO II............
Page 3 Greensand Plus Iron Specifications General Specifications G10I G12I G9I-3 G10I-3 G12I-3 Filter Media Greensand Plus ™ Filter Media Capacity (cu ft) 1.00 1.50 2.00 Garnet Sand Underbed (lbs) Mineral Tank (Vortech ™) 9 x 48 10 x 54 12 x 52 Potassium Permanganate Solution Tank Size 10 x 16 Removal Capacities Iron / Sulfur...
Page 4 Installation Greensand Plus Iron Filter is capable of removing dissolved iron, manganese and hydrogen sulfide from water through oxidation and filtration. The maximum practical limit of iron (Fe) and / manganese (Mn) in raw water is 10 ppm. The maximum practical limit of hydrogen sulfide (h2S) is 3ppm. Raw water pH should be 6.8 to 8.8. Manganese treated greensand works as an oxidizing filter to remove the dissolved minerals above.
Page 5: Installation Requirements
Installation -Installation Requirements- Feed Pot Tank • A level floor position between the well pump and pressure tank. (See Typical Installation Diagram.) • DO NOT install in an area of direct sunlight or where freezing temperatures may occur! Filter Tank •...
Page 6 Installation Caution: Raised arrows located on the sides of control valve body and bypass valve indicate proper direction of water flow. Install inlet and outlet piping in direction of arrows. It is recommended that a vacuum breaker be installed on the inlet plumbing. Bypass - Shown 5.
Page 7 Installation -Chemical Feed Line and Overflow Connections- 1. Position Potassium Permanganate Tank (KMNO4) on a smooth, level surface near the filter media tank. If necessary, the KMNO4 tank can be placed at a higher level than the resin tank, but never at a lower level. 2.
Page 8: Programming The Control Valve
Installation -Pressurizing The System - 2. Slowly rotate handle of the bypass valve to the SERVICE position. 3. Open the nearest faucet to evacuate air from plumbing lines. 4. Check for leaks! If water is observed leaking from bypass, o-rings on valve body may not be seated properly. Exercise bypass valve.
Page 9 Programming the Control Valve Main Menu 12:00 1. To enter Main Menu, press the Menu/Enter button. (Time of Day will flash) 2. To set the Time of Day, press the Set/Change button. (First digit will flash) Example (12:00) To change digit value, press the Set/Change button. To accept the digit value, press the Menu/Enter button.
Page 10 Programming the Control Valve Starting Extra Regeneration Cycle 1. To Start Delayed Extra Cycle Example ( 1 ) If Days Remaining Until Next Backwash does not read ‘1’, press and hold the Set/Change button for 3 seconds until the display reads ‘1’. Backwash cycle will initiate at the next designated backwash time.
Page 11: Master Programming
Master Programming Mode Master Programming Mode To enter Master Programming Mode, press and hold both buttons for 5 seconds. Note: All Master Programming functions have been preset at the factory. Unless a change is desired, it is NOT necessary to enter Master Programming Mode. 1.
Page 12: Utilizing Bluetooth
Utilizing Bluetooth Control For simplified set up and control, please install the Legacy View on a compatible Bluetooth 4.0+ enabled smart phone or tablet. 1. Download and install the Legacy View app from the Google Play Store, Apple App Store 2.
Page 13 Set Up Utilizing Bluetooth App Change Time of Day (Press “SET” to set time automatically based on device). For Filters: Set Backwash Frequency This sets the amount of day between backwash cycles Set Regeneration Time Example: For 2a.m., just type 2, choose a.m., and press ‘OK’ Note: If you have a filter and a softener the valves should be set to regenerate at different times.
Page 14 Set Up Utilizing Bluetooth App Status and History From the Status and History, all items in ORANGE can be reset. Pressing this icon will show a list of the data that is in the graph. Touch any graph to enlarge and see details.
Page 15 Control Valve Powerhead Assembly LETTERS IN DIAGRAM REPRESENT WIRING CONNECTIONS * "F" Port is for softener flow meter connection (flow meter not shown) Description Part Number Power Head Assy. 20943C100 Softener Circuit Boad Assy. 20943C102 Encoder 20001X124 Front Plate 20001X004 Encoder Wheel 20001X007 Main Gear...
Page 16 Valve Body Assy. Description Part # Qty. R e f Piston Assembly 20001X231 10-24 x 13/16 Screw 20001X226 Seal & Spacer Kit 20561X253 End Spacer Flow Control Button 5.0 GPM 20251X272 Flow Control Button 6.0 GPM 20251X274 Flow Control Button 7.0 GPM 20251X273 Plastic Flow Control Housing 20017X100...
Page 17: Bypass Assembly Iso
Bypass Assembly Ref # Description Part # Plastic Bypass Valve Assembly 20561X292 Bypass Valve 3/4” Stainless Steel 20561X270 Bypass Valve 1” Stainless Steel 20561X283...
Page 18 Valve Body Drive Assy. 21/22...
Page 19 Valve Body Drive Assy. Description Part No. Piston Assembly 20001X231 10-24 X 13/16 Hex Head 20001X226 Seal and Spacer Kit 20561X253 Bottom Spacer DLFC 5.0 Button 20251X272 DLFC 6.0 Button 20251X274 DLFC 7.0 Button 20251X273 Flow Control Assembly 5.0 20017X262 Flow Control Assembly 6.0 20017X263 Flow Control Assembly 7.0...
Page 20 Description Part No. D15 Bypass 20017X283 1” Female Straight Slip Set 20017X288 (optional) 1” NPT Elbow Set 20017X284 1” NPT Straight Set 20017X289 (optional) Elbow, Vertical Adapter 20017X295 (optional) Blank Elbow, Vertical Adapter 20017X294 (optional) 1/4” NPT Tapped...
Page 21: Service Instructions
Service Instructions / Instructional Videos Available at www.watersoftinc.com General Preliminary Instructions PERFORM BEFORE ALL SERVICING OPERATIONS 1. Turn off water supply to conditioner. -If the conditioner installation has a “three valve” bypass system, first open the valve in the bypass line, then close the valves at the conditioner inlet and outlet.
Page 22 Service Instructions / Instructional Videos Available at www.watersoftinc.com To Service Injector and Screen 1. Follow steps A1-A2. 2. Unscrew injector cover screws and remove injector cover. 3. Remove injector screen and clean or replace. 4. Remove injector and clean or replace. 5.
Page 23: Troubleshooting
Troubleshooting Guide SYMPTOM PROBABLE CAUSE CORRECTION Power supply plugged into Connect to constant power source intermittentent or dead power source 1.Softener Fails to Disconnected meter cable Reconnect cable Regenerate Improper control valve Reset program settings programming Automatically Defective power supply Replace power supply Meter is dirty or defective Clean or replace meter assembly...
Page 24: Error Codes
Error Codes Control Valve Error Code Diagnosis Under normal operating conditions, when your control valve is in the “in service” position, the display should alternate between the current time of day and the number of days remaining (for filters and time clock softeners) or gallons remaining (for metered softeners) until the next regeneration.
Page 25 Warranty...
Page 28 710 Orange Street, Ashland, OH 44805 PH 419.289.1500 FAX 419.289.1515 www.watersoftinc.com 0419TV...
