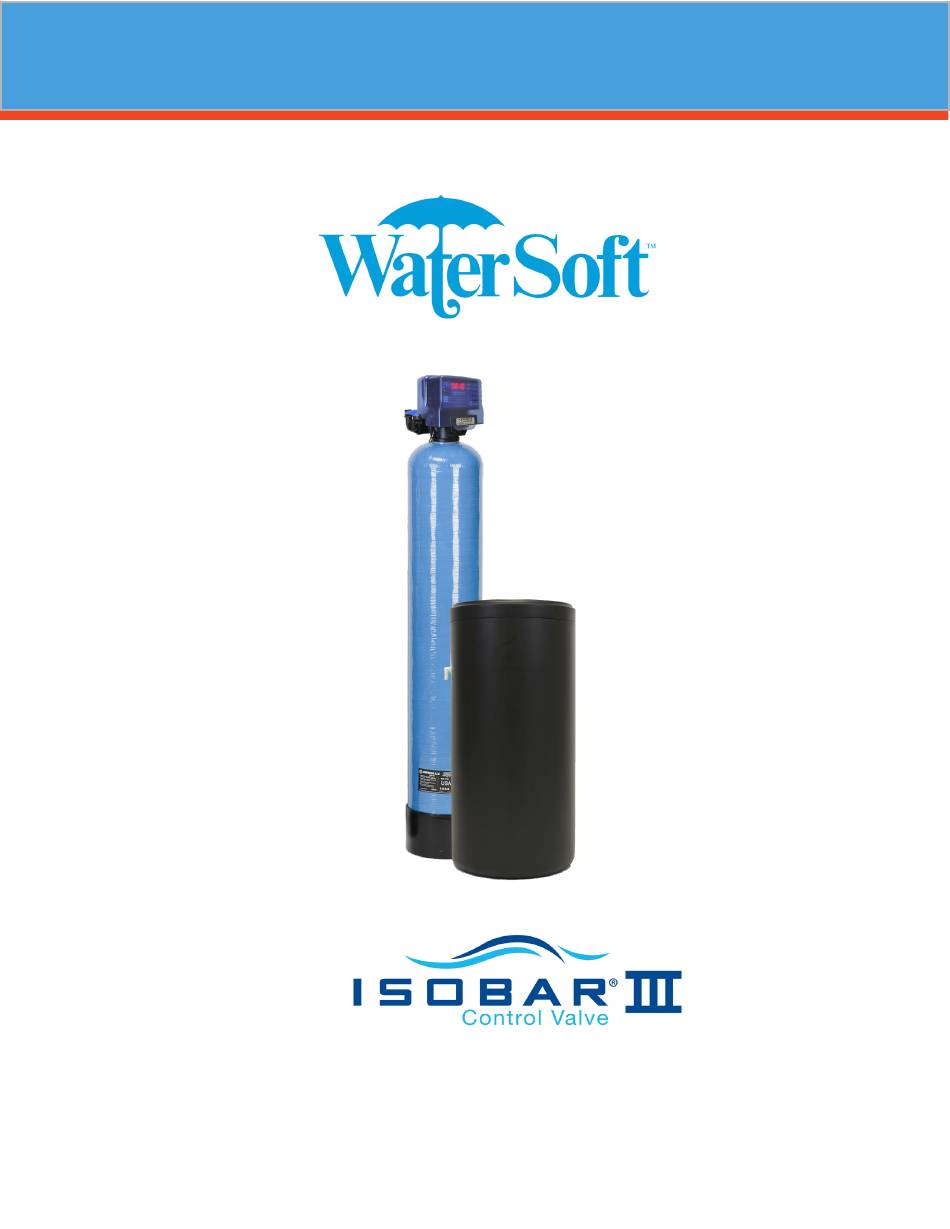

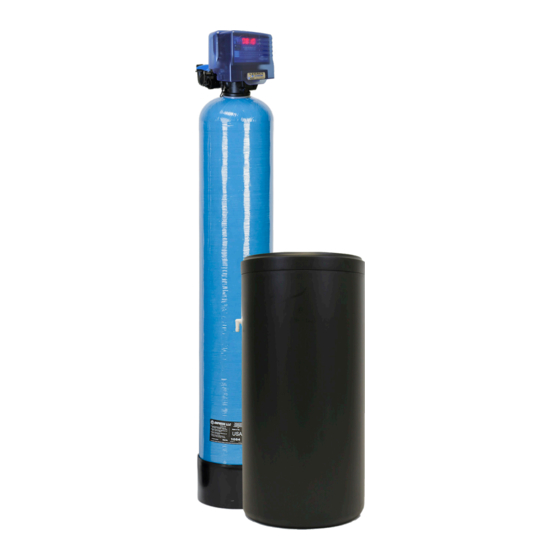

  • Page 1 Softener Manual Installation / Operation Manual...

  • Page 2: Table Of Contents

    Softener Specifications............Page 3 Softener Installation..............Page 5 Programming the Control Valve..........Page 10 Control Start-Up Procedures........... Page 12 Master Programming............... Page 13 Utilizing Bluetooth..............Page 14 Control Valve Powerhead Assy. ISO III........Page 18 Valve Body Assembly ISO III........... Page 19 Bypass Assembly ISO III............

  • Page 3: Softener Specifications

    Softener Specifications DS24-3 DS32-3 DS48-3 DS64-3 General Specifications DS24V-3 DS32V-3 DS48V-3 DS64V-3 DS96V-3 Grains Capacity - Regeneration / Lbs Salt Used* 20,000 / 7.5 27,000 / 9 40,000 / 15 54,000 / 18 81,000 / 27 Maximum Raw Water Hardness (grains) Maximum Clear Iron / Manganese Exchange Resin (cu ft per tank) Mineral Tank Size...
  • Page 4 Softener Specifications PLEASE NOTE THESE SPECIFICATIONS BEFORE PROCEEDING OPERATING PRESSURE RANGE : 20 - 125 PSI OPERATING TEMPERATURE RANGE : 33º F - 120º F INLET / OUTLET PIPE SIZE : 3/4: FNPT PLEASE COMPLY WITH ALL APPLICABLE PLUMBING CODES PROTECT THE SOFTENER AND PIPING FROM FREEZING TEMPERATURES Please read the entire Owner’s Manual and Instruction before installation.

  • Page 5: Softener Installation

    Installation -Pre-Installation Check List- A water test should always be performed in order to determine total water hardness (in gpg) and total dissolved iron (in parts per million - ppm). This is critical for proper equipment selection, sizing and for determining the program for regeneration frequency.
  • Page 6 Installation -Softener Location / Other Requirements- • Locate the unit near an unswitched, 120 volt / 60 Hz grounded electrical outlet. • Check for distance and proper drain installation (e.g. floor drain, washing machine standpipe). • Determine type and size of piping required for softener connection (e.g. copper, galvanized, PVC plastic). Note •...
  • Page 7 Installation -Installation Procedure- - Water Supply Connections and Bypass Valve - To allow for softener servicing, swimming pool filling or lawn sprinkling, a manual bypass valve has been installed at the factory. The bypass allows hard water to be manually routed around the softener. 1.
  • Page 8 Installation - Drain Line Connection - 1. The drain line flow control assembly is pre-assembled for your convenience. Should you choose to hard plumb the drain line, please remove the barb fitting. The flow control housing can be removed by removing the clip and pulling straight out on housing.
  • Page 9 Installation - Electrical Connection - Connect the power cord and plug power supply into a 115 volt / 60 Hz receptacle. Note : Do not plug into an outlet controlled by a wall switch or pull chain that could inadvertently be turned off Electronic Connections P = Power Supply...

  • Page 10: Programming The Control Valve

    Programming the Valve Main Menu 12:00 1. To enter Main Menu, press the Menu/Enter button. (Time of Day will flash) 2. To set the Time of Day, press the Set/Change button. (First digit will flash) Example [12-00] To change digit value, press the Set/Change button. To accept the digit value, press the Menu/Enter button.
  • Page 11 Programming the Valve Normal Operation 1. Home Display The home display will alternate between the Time of Day and Gallons left until the next regeneration. The meter will count down to zero (0000) and then regenerate at the scheduled time set. Starting Extra Regeneration Cycle 1.

  • Page 12: Control Start-Up Procedures

    Salt of this grade is virtually free from dirt and other particulates that would eventually cause the softener to malfunction. A pellet type salt is recommended, although any high quality water soft- ener salt (such as solar salt) will suffice. If iron is present in raw water, use of iron inhibiting salt is recom- mended.

  • Page 13: Master Programming

    Master Programming Mode Master Programming Mode To enter Master Programming Mode, press and hold both buttons for 5 seconds. Note: All Master Programming functions have been preset at the factory. Unless a change is desired, it is NOT necessary to enter Master Programming Mode. 1.

  • Page 14: Utilizing Bluetooth

    Utilizing Bluetooth Control For simplified set up and control, please install the Legacy View on a compatible Bluetooth 4.0+ enabled smart phone or tablet. 1. Download and install the Legacy View app from the Google Play Store, Apple App Store 2.
  • Page 15 Set Up Utilizing Bluetooth App Change Time of Day (Press “SET” to set time automatically based on device). For Filters: Set Backwash Frequency This sets the amount of day between backwash cycles Set Regeneration Time Example: For 2a.m., just type 2, choose a.m., and press ‘OK’ Note: If you have a filter and a softener the valves should be set to regenerate at different times.
  • Page 16 Set Up Utilizing Bluetooth App Status and History From the Status and History, all items in ORANGE can be reset. Pressing this icon will show a list of the data that is in the graph. Touch any graph to enlarge and see details.
  • Page 17 Master Programming Mode - Final Check - 1. Be certain the bypass valve is in the SERVICE position. 2. Make sure the power supply is connected to an uninterrupted 115-volt outlet. 3. Check that the time of day is set 4.

  • Page 18: Control Valve Powerhead Assy. Iso

    Control Valve Assembly LETTERS IN DIAGRAM REPRESENT WIRING CONNECTIONS DESCRIPTION PART NO. Metered Power Head Assy. 20943C100 Softener Circuit Boad Assy. 20943C102 Encoder 20001X124 Front Plate 20001X004 Encoder Wheel 20001X007 Main Gear 21001X120 Power Supply 20001X125 Back Plate 20001X005 Lower Front Base For Cover 20111X002 Legacy View Motor Assy.

  • Page 19: Valve Body Assembly Iso

    Valve Body Assembly...
  • Page 20 Valve Body Assembly DESCRIPTION PART NO. Piston Assembly 20001X231 10-24 X 3/4” Screw SST 20001X001 Seal and Spacer Kit 20561X253 End Spacer Flow Control Button 1.5 20251X266 Flow Control Button 2.0 20251X267 Flow Control Button 2.4 20251X268 DLFC Assy. 20017X100 90 Degree Hose Barb Elbow 20017X266 Drain Retainer...

  • Page 21: Bypass Assembly Iso

    Bypass Assembly DESCRIPTION PART NO. D15 Bypass (included with all units) 20017X283 1” NPT Elbow Set (included with all units) 20017X284 1” Female Straight Slip Set (optional) 20017X288 1” NPT Straight Set (optional) 20017X289 3/4” NPT Straight Set (optional) 20017X307 3/4”...

  • Page 22: Service Instructions

    Service Instructions / Instructional Videos Available at www.watersoftinc.com General Preliminary Instructions PERFORM BEFORE ALL SERVICING OPERATIONS 1. Turn off water supply to conditioner. -If the conditioner installation has a “three valve” bypass system, first open the valve in the by pass line, then close the valves at the conditioner inlet and outlet.
  • Page 23 Service Instructions / Instructional Videos Available at www.watersoftinc.com To Service Injector and Screen 1. Follow steps A1-A2. 2. Unscrew injector cover screws and remove injector cover. 3. Remove injector screen and clean or replace. 4. Remove injector and clean or replace. 5.

  • Page 24: Troubleshooting

    Troubleshooting Guide SYMPTOM PROBABLE CAUSE CORRECTION Power supply plugged into Connect to constant power source intermittent or dead power source 1. Softener Fails to Disconnected meter cable Reconnect cable Regenerate Improper control valve Reset program settings Automatically programming Defective power supply Replace power supply Meter is dirty or defective Clean or replace meter assembly...
  • Page 25 Troubleshooting Guide SYMPTOM PROBABLE CAUSE CORRECTION Scaling / fouling of inlet pipe Clean or replace pipeline. Pretreat to prevent. 6. Loss of Water Fouled resin Clean resin. Pretreat to prevent. Pressure Improper backwash setting Backwash more frequently Plugged drain line or drain line Check flow to drain.

  • Page 26: Error Codes

    Error Codes Control Valve Error Code Diagnosis Under normal operating conditions, when your control valve is in the “in service” position, the display should alternate between the current time of day and the number of days remaining (for filters and time clock softeners) or gallons remaining (for metered softeners) until the next regeneration.
  • Page 27 Error Codes No Display If your display is blank, there is no power going to the circuit board due to one of the following factors: • The electrical outlet is not powered or is switched off • The power cable has come unplugged from the circuit board •...

  • Page 28: Warranty Information

    WHAT IS COVERED BY THIS WARRANTY OTHER THAN THOSE EXPRESSLY CONTAINED IN THIS WARRANTY AGREEMENT. WATERSOFT LLC (“WATER SOFT”) warrants that at the time of manufacture, the water treatment equipment shall be free from ADDITIONAL WARRANTY LIMITATIONS defects in material and workmanship as follows: ANY IMPLIED WARRANTIES THE PURCHASER MAY HAVE, Thermoplastic Mineral Tanks ..........10 yrs.
