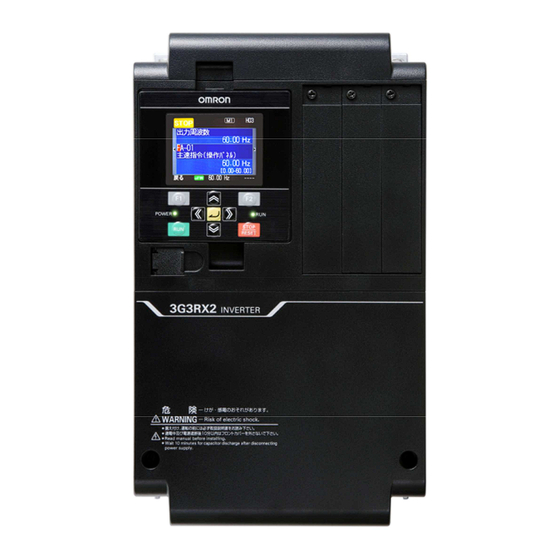

Omron 3G3RX2 Series Quick Start Manual

Hide thumbs Also See for 3G3RX2 Series:
Table of Contents

Advertisement

Quick Links

See also: Instruction Manual , User Manual
RX2
The Driving Evolution
Model: 3 G 3 RX2
200 V Class Three-Phase Input 0.4 to 55 kW
400 V Class Three-Phase Input 0.75 to 132 kW
Quick Start Guide

Advertisement

Table of Contents
loading

Related Manuals for Omron 3G3RX2 Series

Summary of Contents for Omron 3G3RX2 Series

  • Page 1 The Driving Evolution Model: 3 G 3 RX2 200 V Class Three-Phase Input 0.4 to 55 kW 400 V Class Three-Phase Input 0.75 to 132 kW Quick Start Guide...

  • Page 2: Introduction Introduction

    Moreover, because OMRON is constantly striving to improve its high-quality products, the information contained in this manual is subject to change without notice. Every precaution has been taken in the preparation of this manual. Nevertheless, OMRON assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained in this publication.

  • Page 3: Terms And Conditions Agreement

    (a) Exclusive Warranty. Omron’s exclusive warranty is that the Products will be free from defects in materials and workmanship for a period of twelve months from the date of sale by Omron (or such other period expressed in writing by Omron). Omron disclaims all other warranties, express or implied.
  • Page 4 Product. Errors and Omissions. Information presented by Omron Companies has been checked and is believed to be accurate; however, no responsibility is assumed for clerical, typographical or proofreading errors or omissions. 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)

  • Page 5: S S S S Pecial Information Pecial Information

    Additionally there may be significant property damage. Indicates a potentially hazardous situation which, Caution if not avoided, may result in minor or moderate injury or in property damage. 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 6 This symbol indicates a compulsory item (an item that must be done). The specific instruction is indicated using an illustration or text inside or near The symbol shown to the left indicates “grounding required.” 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 7 Doing so may result in a burn. *1. 10 minutes: For models 3G3RX2-A2004 to A2220 and 3G3RX2-A4007 to A4220 *2. 15 minutes: For models 3G3RX2-A2300 to A2550 and 3G3RX2-A4300 to B413K 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 8 Place covers on the openings or take other precautions to make sure that no metal objects such as cutting bits or lead wire scraps go inside when installing the PG Unit and wiring. 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)

  • Page 9: Precautions Precautions

    • When building a system, check the specifications for all devices and equipment that will make up the system and make sure that the OMRON products are used well within their rated specifications and performances. Safety measures, such as safety circuits, must be implemented in order to minimize the risks in the event of a malfunction.

  • Page 10: Related Manuals

    3G3RX2-series inverter, set parameters needed to General-purpose Inverter High-function operate the inverter, and remedies User’s Manual General-purpose to be taken and inspection methods Inverters. to be used in case that problems occur. 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)

  • Page 11: Table Of Contents

    5.9. Electronic Thermal Setting ........... 87 5.10. Acceleration/Deceleration Settings ........94 Advanced Settings ........ Advanced Settings ........99 99 99 99 Advanced Settings Advanced Settings ..............6.1. V/f Control (Constant Torque Characteristics) ......99 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 12 6.7. Analog Input ............ 114 6.8. Output Terminal Function ........119 6.9. Analog Output Terminal Adjustment ....... 123 Parameter List Parameter List ........ Parameter List Parameter List ....................... 126 ..3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)

  • Page 13: Appearance And Part N Appearance And Part Names Appearance And Part N Ames Ames

    1. Appearance and part Names Appearance and part Names Appearance and part Names Appearance and part Names 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)

  • Page 14: 2.1. Upon Receipt

    3 x 200 V A2110 A2150 18.5 18.5 A2185 18.5 AX-FIR2110-RE A2220 A2300 AX-FIR2145-RE A2370 A2450 AX-FIR3250-RE A2550 AX-FIR3320-RE A4007 0.75 A4015 AX-FIR3010-RE A4022 A4040 11.1 12.6 A4055 14.8 17.5 A4075 AX-FIR3030-RE A4110 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 15 A4150 18.5 18.5 3 x 400 V A4185 18.5 AX-FIR3053-RE A4220 A4300 AX-FIR3064-RE A4370 AX-FIR3100-RE A4450 A4550 AX-FIR3130-RE B4750 B4900 AX-FIR3250-RE B411K B413K AX-FIR3320-RE 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)

  • Page 16: Standard Specifications

    2.2. Stand Stand Stand Standard Specifications ard Specifications ard Specifications ard Specifications 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 17 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 18 *14. For insulation distance, comply with UL and CE standards *15. When a clock function is used, the optional battery (CR2032, 3V) is required. When you purchase, this LCD operator does not come with the battery. 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)

  • Page 19: Class Specifications

    The value of the sensor-less vector control applied to the ND rating in the Standard motor. Torque characteristics may vary depending on the control method and the motor used. Based on self-declaration. 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)

  • Page 20: Class Specifications

    The value of the sensor-less vector control applied to the ND rating in the Standard motor. Torque characteristics may vary depending on the control method and the motor used. Based on self-declaration. 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)

  • Page 21: External Dimensions

    2.5. External Dimensions External Dimensions External Dimensions External Dimensions 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 22 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 23 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 24 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 25 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 26 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 27 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 28 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)

  • Page 29: Wiring Sizes And Protection

    A4450,A4550 A2550, B4750 to B413K Screw Size Torque 0.7 N·m (max. 0.8) 1.2 N·m (max. 1.4) 2.4 N·m (max. 4.0) 4.5 N·m (max. 4.9) 8.1 N·m (max. 8.8) 20.0 N·m (max. 22.0) 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)

  • Page 30: Terminal Symbols, Screw Size And Tightening Torque

    4/0 (Prepared wire only) or 20.0 A4370 20.0 A2450 A4450 Parallel of 1/0 A2550 350 kcmil (Prepared wire 19.6 A4550 only) or Parallel of 2/0 B4750 Parallel of 1/0 B4900 B411K Parallel of 3/0 35.0 B413K 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)

  • Page 31: Installation Environment

    3.3. Installation Environme Installation Environme Installation Environme Installation Environment nt nt nt 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 32 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)

  • Page 33: Wiring Overview

    3.4. Wiring overview Wiring overview Wiring overview Wiring overview 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)

  • Page 34: Arrangement And Function Of Main Circuit Terminal Block

    3.5. Arrangement and Function of Main Circuit Terminal Block Arrangement and Function of Main Circuit Terminal Block Arrangement and Function of Main Circuit Terminal Block Arrangement and Function of Main Circuit Terminal Block 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)

  • Page 35: Arrangement And Function Of Control Circuit Terminal Block

    3.6. Arrangement and Function of Control Circuit Terminal Block Arrangement and Function of Control Circuit Terminal Block Arrangement and Function of Control Circuit Terminal Block Arrangement and Function of Control Circuit Terminal Block 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 36 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 37 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 38 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 39 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 40 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 41 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 42 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 43 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)

  • Page 44: Arrangement Of Main Circuit Terminals

    3.7. Arrangement of Main Circuit Terminals Arrangement of Main Circuit Terminals Arrangement of Main Circuit Terminals Arrangement of Main Circuit Terminals The arrangement of inverters’ main circuit terminals are shown in the following diagrams. 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 45 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 46 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 47 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 48 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 49 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 50 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 51 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)

  • Page 52: Input Terminals And Programmable Controller Connection

    3.8. Input Terminals and Programmable Controller Connection Input Terminals and Programmable Controller Connection Input Terminals and Programmable Controller Connection Input Terminals and Programmable Controller Connection 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)

  • Page 53: Output Terminals And Programmable Controller Connection

    3.9. Output Terminals and Programmable Controller Connection Output Terminals and Programmable Controller Connection Output Terminals and Programmable Controller Connection Output Terminals and Programmable Controller Connection 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)

  • Page 54: Overview Of Lcd Operator

    4. Overview of LCD Operator Overview of LCD Operator Overview of LCD Operator Overview of LCD Operator 4.1. Names of Operation Keys Names of Operation Keys Names of Operation Keys Names of Operation Keys 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)

  • Page 55: Lcd Display

    4.2. LC LC LC LCD Display D Display D Display D Display 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 56 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 57 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 58 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 59 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 60 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)

  • Page 61: Transition Of Screen Display

    4.3. Transition of Screen Display Transition of Screen Display Transition of Screen Display Transition of Screen Display 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)

  • Page 62: How To Set Battery And The Time Setting

    4.4. How to Set Battery and the Time Setting How to Set Battery and the Time Setting How to Set Battery and the Time Setting How to Set Battery and the Time Setting 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 63 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)

  • Page 64: Scroll Mode

    4.5. Scroll Mode Scroll Mode Scroll Mode Scroll Mode 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 65 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 66 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 67 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)

  • Page 68: Concurrent Monitor Mode

    4.6. Concurrent Monitor Mode Concurrent Monitor Mode Concurrent Monitor Mode Concurrent Monitor Mode 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 69 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)

  • Page 70: Three-Line Monitor Screen

    4.7. Three Three Three Three- - - - line Monitor Screen line Monitor Screen line Monitor Screen line Monitor Screen 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)

  • Page 71: Inverter Load Rating Settings

    5. Basic Parameter Settings Basic Parameter Settings Basic Parameter Settings Basic Parameter Settings 5.1. Inverter Load Rating Settings Inverter Load Rating Settings Inverter Load Rating Settings Inverter Load Rating Settings 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 72 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)

  • Page 73: Language Selection

    On the screen that is displayed upon power-on, press the F1 (1) key to navigate to the menu screen "M01". Then, select the R/W function by pressing the SEL (O) key or right (▷) key. Item Data Descriptions Language selection Controller English Japanese Francais Espanol Turkce Jezyk polski Cesky jazyk 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)

  • Page 74: Inverter Initialization

    5.3. Inverter Initialization Inverter Initialization Inverter Initialization Inverter Initialization 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 75 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 76 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)

  • Page 77: Motor Basic Settings

    5.4. Motor Basic Settings Motor Basic Settings Motor Basic Settings Motor Basic Settings 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 78 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 79 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)

  • Page 80: Motor Constant Setting

    5.5. Motor Constant Setting Motor Constant Setting Motor Constant Setting Motor Constant Setting 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 81 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)

  • Page 82: Auto-Tuning Of Motor

    5.6. Auto Auto Auto Auto- - - - tuning of Motor tuning of Motor tuning of Motor tuning of Motor 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 83 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 84 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)

  • Page 85: Types Of Operation Commands

    5.7. Types of Operation Commands Types of Operation Commands Types of Operation Commands Types of Operation Commands 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)

  • Page 86: Frequency Command Selection

    5.8. Frequency Command Selection Frequency Command Selection Frequency Command Selection Frequency Command Selection 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)

  • Page 87: Electronic Thermal Setting

    5.9. Electronic Thermal Setting Electronic Thermal Setting Electronic Thermal Setting Electronic Thermal Setting 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 88 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 89 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 90 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 91 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 92 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 93 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)

  • Page 94: Acceleration/Deceleration Settings

    5.10. Acceleration/Deceleration Settings Acceleration/Deceleration Settings Acceleration/Deceleration Settings Acceleration/Deceleration Settings 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 95 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 96 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 97 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 98 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)

  • Page 99: V/F Control (Constant Torque Characteristics)

    6. Advanced Settings Advanced Settings Advanced Settings Advanced Settings 6.1. V/f Control (Constant Torque Characteristics) V/f Control (Constant Torque Characteristics) V/f Control (Constant Torque Characteristics) V/f Control (Constant Torque Characteristics) 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 100 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)

  • Page 101: V/F Control (Reducing Torque Characteristics)

    6.2. V/f Control (Reducing Torque Characteristics) V/f Control (Reducing Torque Characteristics) V/f Control (Reducing Torque Characteristics) V/f Control (Reducing Torque Characteristics) 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 102 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)

  • Page 103: V/F Control (Free V/F)

    6.3. V/f Control (Free V/f) V/f Control (Free V/f) V/f Control (Free V/f) V/f Control (Free V/f) 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 104 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 105 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)

  • Page 106: Manual Torque Boost

    6.4. Manual Torque Boost Manual Torque Boost Manual Torque Boost Manual Torque Boost 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)

  • Page 107: Automatic Torque Boost

    6.5. Automatic Torque Boost Automatic Torque Boost Automatic Torque Boost Automatic Torque Boost 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 108 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)

  • Page 109: Input Terminal Selections

    You can switch a contact for an input signal with the Contacts a/b selection functions of [CA-21] to [CA-31]. When a function is selected for many targets, the targets will be set to 00 [without allocation], excluding the finally set function selection. 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 110 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 111 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 112 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 113 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)

  • Page 114: Analog Input

    6.7. Analog Input Analog Input Analog Input Analog Input 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 115 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 116 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 117 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 118 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)

  • Page 119: Output Terminal Function

    6.8. Output Terminal Function Output Terminal Function Output Terminal Function Output Terminal Function 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 120 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 121 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 122 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)

  • Page 123: Analog Output Terminal Adjustment

    6.9. Analog Output Terminal Adjustment Analog Output Terminal Adjustment Analog Output Terminal Adjustment Analog Output Terminal Adjustment 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 124 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 125 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)

  • Page 126: Parameter List

    Deceleration time setting 1, 1st-motor 0.00～3600.00（s） 0.01s 00 (Switching by [2CH] terminal) /01 (Switching by setting) /02 (Switching only when rotation is AC215 Select method to switch to Accel2/Decel2 Profile, 2nd-motor ― reversed) 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 127 00 (Setting by parameter) /01 (Option-1) /02 (Option-2) /03 (Option-3) ― AE-11 Stop position of Home search function 0～4095 AE-12 Speed reference of Home search function 0.00～120.00（Hz） 0.01Hz AE-13 Direction of Home search function 00（forward）/01（reverse） ― 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 128 00 (Disable) /01 (Enable(Power side)) /02 (Enable(Motor side)) 0.01s AF121 Run delay time, 1st-motor 0.00～2.00（s） 0.01s AF122 Contactor off delay time, 1st-motor 0.00～2.00（s） 0.01s AF123 Contactor answer back check time, 1st-motor 0.00～5.00（s） 0.01s 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 129 AG110 Acceleration stop frequency setting, 1st-motor 0.00～590.00（Hz） 0.01Hz AG111 Acceleration stop time setting, 1st-motor 0.00～60.00（s） 0.1s AG112 Deceleration stop frequency setting, 1st-motor 0.00～590.00（Hz） 0.1s AG113 Acceleration stop time setting, 1st-motor 0.00～60.00（s） 0.1s 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 130 [Ai3]) /04 (Setting by Terminal [Ai4]) /05 (Setting by Terminal [Ai5]) /06 (Setting by Terminal [Ai6]) AH-71 PID1 output variable 0.00～100.00（%） 0.01% AH-72 PID1 Deviation over level 0.00～100.00（%） 0.01% AH-73 PID1 Feedback compare signal turn-off level 0.00～100.00（%） 0.01% AH-74 PID1 Feedback compare signal turn-on level 0.00～100.00（%） 0.01% 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)
  • Page 131 0.01% AJ-56 PID4 output variable 0.00～100.00（%） 0.01% AJ-57 PID4 Deviation over level 0.00～100.00（%） 0.01% AJ-58 PID4 Feedback compare signal turn-off level 0.00～100.00（%） 0.01% AJ-59 PID4 Feedback compare signal turn-on level 0.00～100.00（%） 0.01% 3G3RX2 Series High-function General-purpose Inverter User’s Manual (I620)

This manual is also suitable for:

3g3rx-v1 series

Table of Contents
