- Page 1 TE0726 TRM Revision: Date: 29-May-2017 09:02...
-
Page 2: Table Of Contents
Document Change History ____________________________________________________________ 19 Disclaimer ___________________________________________________________________________ 20 Document Warranty __________________________________________________________________ 20 Limitation of Liability _________________________________________________________________ 20 Copyright Notice ____________________________________________________________________ 20 Technology Licenses _________________________________________________________________ 20 Environmental Protection _____________________________________________________________ 20 REACH, RoHS and WEEE ____________________________________________________________ 21 Copyright © 2017 Trenz Electronic GmbH Page http://www.trenz-electronic.de... -
Page 3: Overview

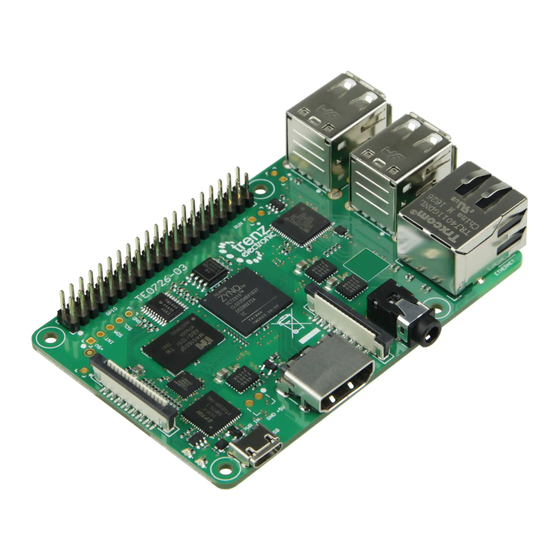

The Trenz Electronic TE0726 "ZynqBerry" is a industrial-grade Raspberry Pi form-factor compatible FPGA SoM (System on Module) based on Xilinx Zynq-7010 SoC (XC7Z010 System on Chip) with up to 512 MByte DDR3L SDRAM, 4 x USB 2.0 ports, 10/100 Mbit Ethernet port and 16 MByte Flash memory. -
Page 4: Block Diagram
TE0726 TRM Revision: V.3 Block Diagram Copyright © 2017 Trenz Electronic GmbH Page http://www.trenz-electronic.de... -
Page 5: Main Components
512 MByte DDR3L SDRAM, U8 Lattice Semiconductor MachXO2 System Controller CPLD, U11 Dual high-speed USB to multipurpose UART/FIFO, U3 2 Kbit Microwire compatible serial EEPROM, U6 Low-power, programmable oscillator @ 12.000000 MHz, U7 Copyright © 2017 Trenz Electronic GmbH Page http://www.trenz-electronic.de... -
Page 6: Initial Delivery State
Fiducial mark PM5 Initial Delivery State Up on delivery from Trenz Electronic System Controller CPLD is programmed with the standard firmware and FTDI FT2232H EEPROM contains pre-programmed Digilent license needed by Xilinx software tools for JTAG access, all other programmable devices are empty. -
Page 7: Signals, Interfaces And Pins
TE0726 TRM Revision: V.3 Signals, Interfaces and Pins Camera Serial Interface (CSI-2) The TE0726-03 module has CSI-2 specification compatible serial camera interface routed from Zynq SoC bank 34 to the connector J3. FPGA Bank Zynq Pin Signal Name Connected To... -
Page 8: Hdmi Interface
3.5mm stereo socket J7 SD Card Socket Micro SD memory card connector J9 with detect switch is connected to the Zynq Soc PS MIO bank 500. See also section Default MIO Mapping Copyright © 2017 Trenz Electronic GmbH Page http://www.trenz-electronic.de... -
Page 9: Fpga Io Banks Pin Mapping
J8 Pin GPIO Zynq Pin J8 Pin GPIO2 GPIO15 GPIO3 GPIO16 GPIO4 GPIO17 GPIO5 GPIO18 GPIO6 GPIO19 GPIO7 GPIO20 GPIO8 GPIO21 GPIO9 GPIO22 GPIO19 GPIO23 GPIO11 GPIO24 GPIO12 GPIO25 GPIO13 GPIO26 GPIO14 GPIO27 Copyright © 2017 Trenz Electronic GmbH Page http://www.trenz-electronic.de... -
Page 10: Default Mio Mapping
System Controller CPLD pin 28 MIO9 System Controller CPLD pin 29 SD_D0 Serial data 0. SD_CMD Command/Response. SD_CLK Serial clock. SD_D1 Serial data 1. SD_D2 Serial data 2. SD_D3 Serial data 3. Copyright © 2017 Trenz Electronic GmbH Page http://www.trenz-electronic.de... -
Page 11: Led's
I C clock to I C MUX. MUX_SDA I C data to/from I C MUX. MIO52 System Controller CPLD pin 20 MIO53 System Controller CPLD pin 21 LED's There are two LEDs on TE0726 module: Signal Name Color CPLD Pin Notes GLED Green CPLD bank 3. -
Page 12: On-Board Peripherals
External 25 MHz crystal input. Hi-speed USB 2.0 and 10/100 Mbit Ethernet The TE0726-03 has on-board SMSC LAN9514 controller featuring USB 2.0 hub and 10/100 Mbit Ethernet controller. USB hub has four downstream ports and one upstream port, fully compliant with Universal Serial Bus Specification Revision 2.0. -
Page 13: 4-Channel I2C Multiplexer
Each slave channel of TCA9544A has its own dedicated interrupt signal in order for the master to detect an interrupt on the INT output pin that can result from any of the slave devices connected to the INT0-INT3 input pins. Copyright © 2017 Trenz Electronic GmbH Page http://www.trenz-electronic.de... -
Page 14: Boot Process
At least FSBL must be loaded from on-board SPI Flash, later all boot process can continue from SD Card. The easiest solution is to let FSBL to load bitstream and u-boot from SPI Flash, and then let u-boot to load Linux or any other OS image from SD Card. Copyright © 2017 Trenz Electronic GmbH Page http://www.trenz-electronic.de... -
Page 15: Power And Power-On Sequence
To power-up a module, 5.0V power supply with minimum current capability of 1A is recommended. Power Supply TE0726 needs one single power source via micro-USB jack J1. However it is recommended to not use any USB equipment below USB standard 2.0 to power the module. Also two-pin header J5 can be used to provide power source if needed. -
Page 16: Variants Currently In Production
Flash Ethernet Temperature Range TE0726-03R XC7Z010-1CLG225C 128 MByte 16 MByte Commercial grade TE0726-03M XC7Z010-1CLG225C 512 MByte 16 MByte 10/100 Mbit Commercial grade TE0726-03-07S-1C XC7Z007S-1CLG225C 512 MByte 16 MByte 10/100 Mbit Commercial grade Copyright © 2017 Trenz Electronic GmbH Page http://www.trenz-electronic.de... -
Page 17: Technical Specifications
Revision: V.3 Technical Specifications If TE0726 module is powered by micro-USB connector J1 V pin, which voltage level is controlled by supplying host according to the USB standards and should be 5V, there is not much user can control here if using standard USB equipment. -
Page 18: Physical Dimensions
Highest part on PCB: approximately 2.5 mm. Please download the step model for exact numbers. All dimensions are shown in millimeters. Additional sketches, drawings and schematics can be found here Weight Variant Weight in g Note TE0726-03M Plain module. TE0726-03R Plain module. TE0726-03-07S-1C Plain module. Copyright © 2017 Trenz Electronic GmbH Page http://www.trenz-electronic.de... -
Page 19: Revision History
Hardware revision number is printed on the PCB board next to the module model number separated by the dash. Document Change History Date Revision Contributors Description 2017-05-24 Jan Kumann Absolute maximum ratings. Layout redesign. 2017-05-24 John Hartfiel Weight. 2017-05-24 Jan Kumann Initial version. Copyright © 2017 Trenz Electronic GmbH Page http://www.trenz-electronic.de... -
Page 20: Disclaimer
Limitation of Liability In no event will Trenz Electronic, its suppliers, or other third parties mentioned in this document be liable for any damages whatsoever (including, without limitation, those resulting from lost profits, lost data or business interruption) arising out of the use, inability to use, or the results of use of this document, any documents linked to this document, or the materials or information contained at any or all such documents. -
Page 21: Reach, Rohs And Weee
(goods). Moreover and under normal and reasonably foreseeable circumstances of application, the goods supplied to you shall not release any substance. For that, Trenz Electronic is obliged to neither register nor to provide safety data sheet. According to present knowledge and to best of our knowledge, no...
