UniFocus Time Clock Installation & Mounting Manual page 3

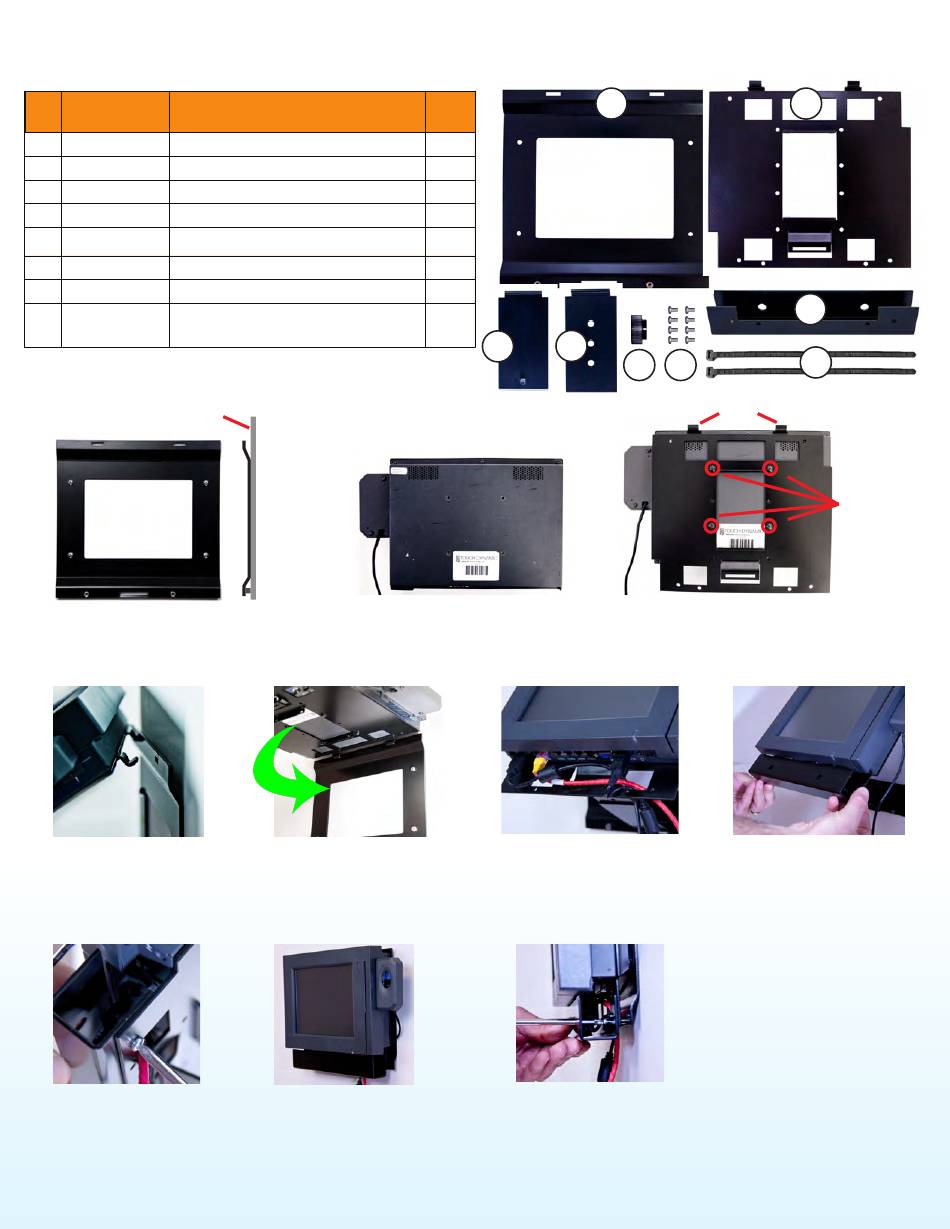

Wall/Flat Mount Assembly Instructions
Please be sure your mount kit has the following parts:
ITEM PART
NO. NUMBER
1 PT81000A
2 PT81000B
3 PT81000C
4 PT81000D STUDDED ADJUSTMENT PLATE
5 PT81000E PERFORATED ADJUSTMENT PLATE
6 PT81000F
7
M4 X 0.7 X 8 PAN HEAD MACHINE
8
SCREW, PHILLIPS, ZINC, STEEL
Wall
Begin with the Base Mount
securely fastened to the wall.
(fasteners not included)
Lift the PC/Mount Plate as
shown. Insert the TABS into
the slots at the top of the
Base Mount attached to the
wall.
Secure the Cord Guard by
installing two screws on the
back side of the Mount Plate.
2
DESCRIPTION
BASE MOUNT
MOUNT PLATE
CORD GUARD
TENSION KNOB
14" ZIP TIE
Place the PC face down on a
protected/padded surface.
Once both TABS are fully
inserted, lower the PC at an
angle. For safety, do not
leave the PC "hanging" on
the Mount Plate TABS.
Lower the PC flat against the
Mount Plate.
1
QTY
1
1
1
1
1
1
2
8
5
4
Run cables through the
cut-outs in the Mount Plate
before installing Cord Guard.
Install two screws on the
front through the access
holes in the Cord Guard. A
magnetic tip screwdriver may
be helpful.
6 8
Tabs
Place the Mount Plate as you see
above. Be sure the TABS are pointed
up. Install screws in the 4 positions
noted.
Place the Cord Guard over the
cords and align with the holes
on the Mount Plate.
2
3
7
Screws
