BOB Weather Shield Instructions

Congratulations on your
purchase of the BOB
Weather Shield. It is
designed to provide your
child with protection from
inclement weather. Proper
installation and care will
provide years of reliable
service.
Before attempting to use
or attach your new
Weather Shield, read and
understand these
instructions completely
to insure proper
assembly and operation.
If you are unclear on any
point, contact your dealer
or BOB before use.
Warnings
. This product is designed
exclusively for use with
BOB Duallie and
Ironman Duallie
strollers. It is not
intended for use with
other strollers or
products.
. The Weather Shield is
made of a non-
breathable material. To
avoid danger of
suffocation and
excessive temperatures,
follow all assembly
instructions.
. Always make sure all
vents are unobstructed,
as indicated in Fig.1.
. The Weather Shield is
not designed to work
with optional Infant Car
Seat Adapter and car
seat.
. Do not use Weather
Shield when
temperatures exceed
o o
65 F/18 C. Use in higher
temperatures can cause
unsafe conditions inside
the Weather Shield.
. Never leave child
unattended.
. When not in use, keep
out of reach of children.
. When the Weather
Shield is used, the rear
canopy flap must be in
correct position as
described below. This
will insure proper airflow
and avoid danger of
suffocation.
OMA27
du duallie Wea allie Weather Shield ins
(800) 893-2447 www.bobgear.com email- info@bobgear.com Ph: (208) 375-5171
Fax: (208) 375-5172, BOB Trailers, Inc. 5475 Gage St. Boise, ID 83706

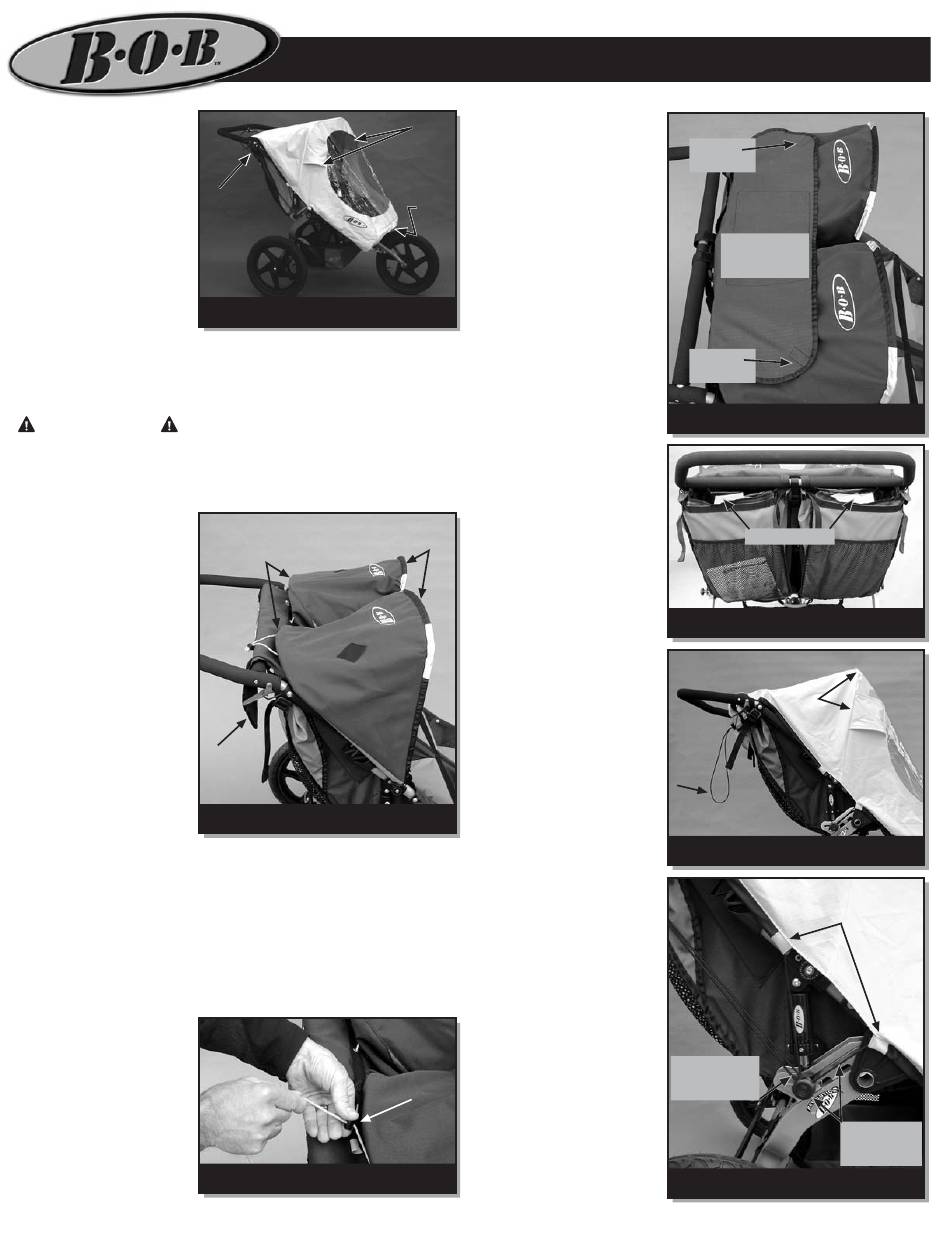

Rear
Vents
Fig. 1 Keep all Vents unobstructed.
Aft Canopy Forward Canopy
Supports fully
rotated back
Rear
Canopy
Flap
Fig. 2 Canopy Supports in position.
Cinch each
Cord Lock
tight against
each Canopy
Fig. 3 Canopy Drawstring Adjustment
ther Shield instr
INSTALLATION
Side
INSTRUCTIONS:
Vents
1.
Set stroller Parking
Brake (refer to Parking
Front
Brake section of stroller
Vent
Owner’s Manual). Place
each sun canopy into
position to receive the
Weather Shield as
shown in Fig.2.
2.
Pull each canopy
drawstring in order to
gather extra material
under canopy. Cinch
cord lock against
canopy to retract and
hold material, as shown
in Fig. 3.
Very important: when
the Weather Shield is
used, the rear canopy
flap must be in correct
position as described
below. This will insure
proper airflow and
Supports
avoid danger of
suffocation.
3.
Locate rear canopy
flap and fold forward.
Attach canopy flap
velcro on flap to
respective velcro mate
on top outboard side of
each canopy as shown
in Fig. 4). Warning tag
on rear canopy flap also
describes and illustrates
this critical step.
4.
Inspect opening at
back of stroller to make
sure the air passages
between top of seat
back and canopy are
unobstructed (see Fig.
5). We recommend
reclining each seat back
slightly to optimize
airflow (refer to
Reclining Seat section
of stroller Owner’s
Manual).
5.
Place Weather
Shield on the stroller so
the rear flap drapes over
back (between the
handlebars) and the
seam above the window
is aligned with the
forward Sun Canopy
supports (see Fig. 6).
6.
Stretch the elastic
cord on each side under
each respective black
shock knob as shown in
Fig. 7. There is an
tructions uctions
Velcro
Fastened
Rear Canopy
Flap folded
over top
Velcro
Fastened
Fig. 4 Rear Canopy Flap in position.
Air Passages
Fig. 5 Rear Vents unobstructed.
Align Weather Shield Seam with
Forward Canopy Supports
Elastic
Cord
End
Loop
Fig. 6 Shield placed on Canopy
Silver
Reflective
Fabric
Elastic Loop
Around Black
Shock Knob
Elastic Cord
Under Black
Shock Knob
Fig. 7 Elastic cord attachment
