Display Panel Installation ALC-1
•
Mounting Display Panel:
1.
The ALC incorporates sensors that measure the boat's movement. The ALC display panel must be
mounted on a flat surface which is perpendicular to a straight plane from stern to bow with the rear of
display facing the bow in a vertical mounting or top of display facing bow in a flat mounting. The display
may be mounted at angles between upright to a flat surface as shown below in the left diagram. The
display should not be rotated at angles left to right as shown below in the right diagram top two
configurations.
2.
Locate the display panel at the helm where it is convenient to access and view the LED indicators.
3.
The mounting hole diagram has two 3/16" (4.5mm) holes and one 2" (50mm) as shown below for the
two mounting studs and display connector.
4.
Mount the display with the washers and nuts provided.
Important:
connecting to the ALC. Switch off the main dc circuit breaker before starting the connection.
Mounting Display:

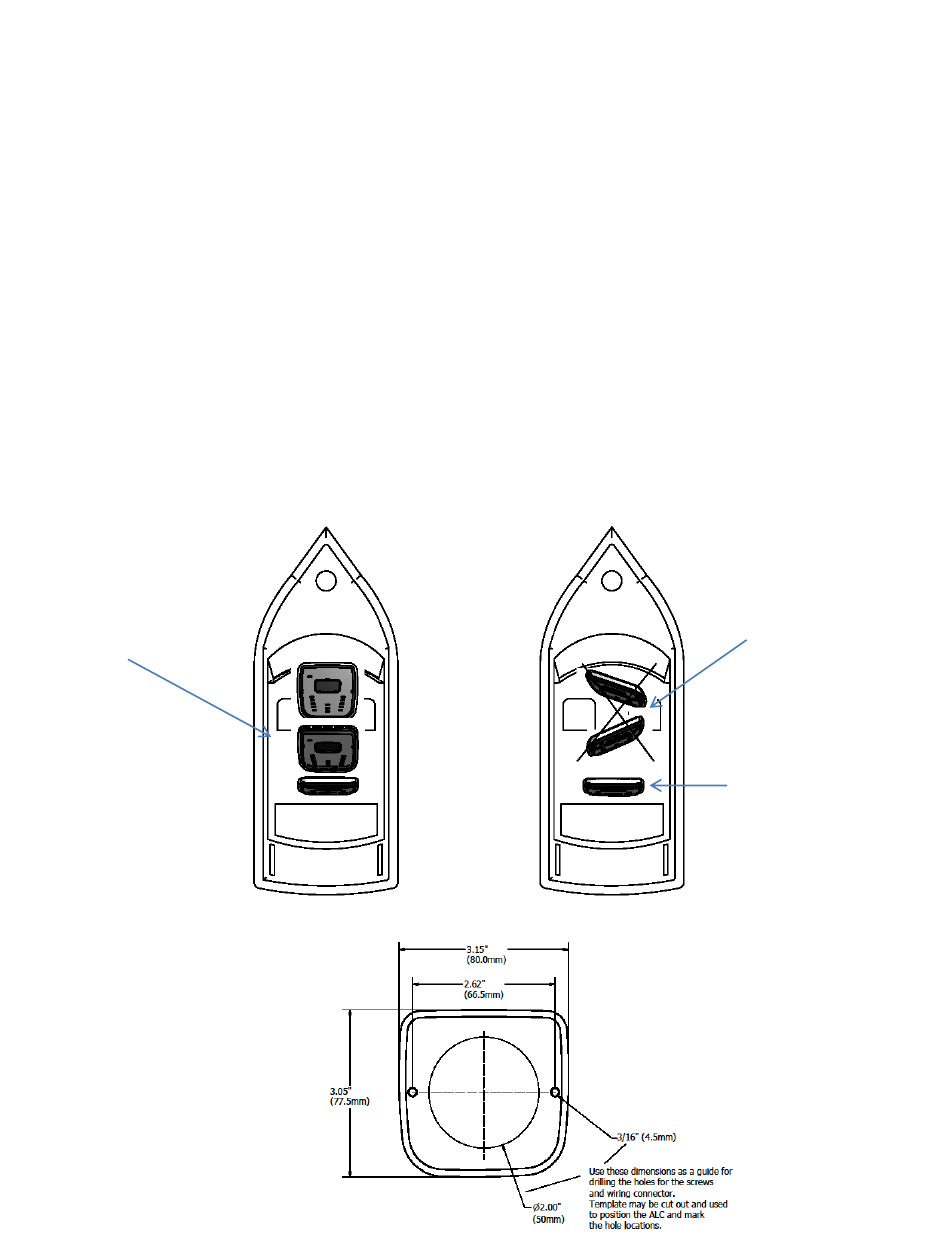

Correct position for mounting
ALC display panel is from flat to
vertical at any angles in
between as shown.
Do not use this example as a mounting
template cutout (dimensional reference
only). Display kit will include actual size
template to use as a cutout.
For ALC-1 (single actuator, single station display only)
For retrofit installations, always disconnect the wires from the original control panel before
6
Incorrect Mounting:
not mount ALC at angles as
shown in top two
configurations.
Correct Mounting
Do
