ALC-1 Wiring Connection to Other Brands
For ALC-1 (single actuator/tab, single station display only)
•
Bennett Refit Wiring:

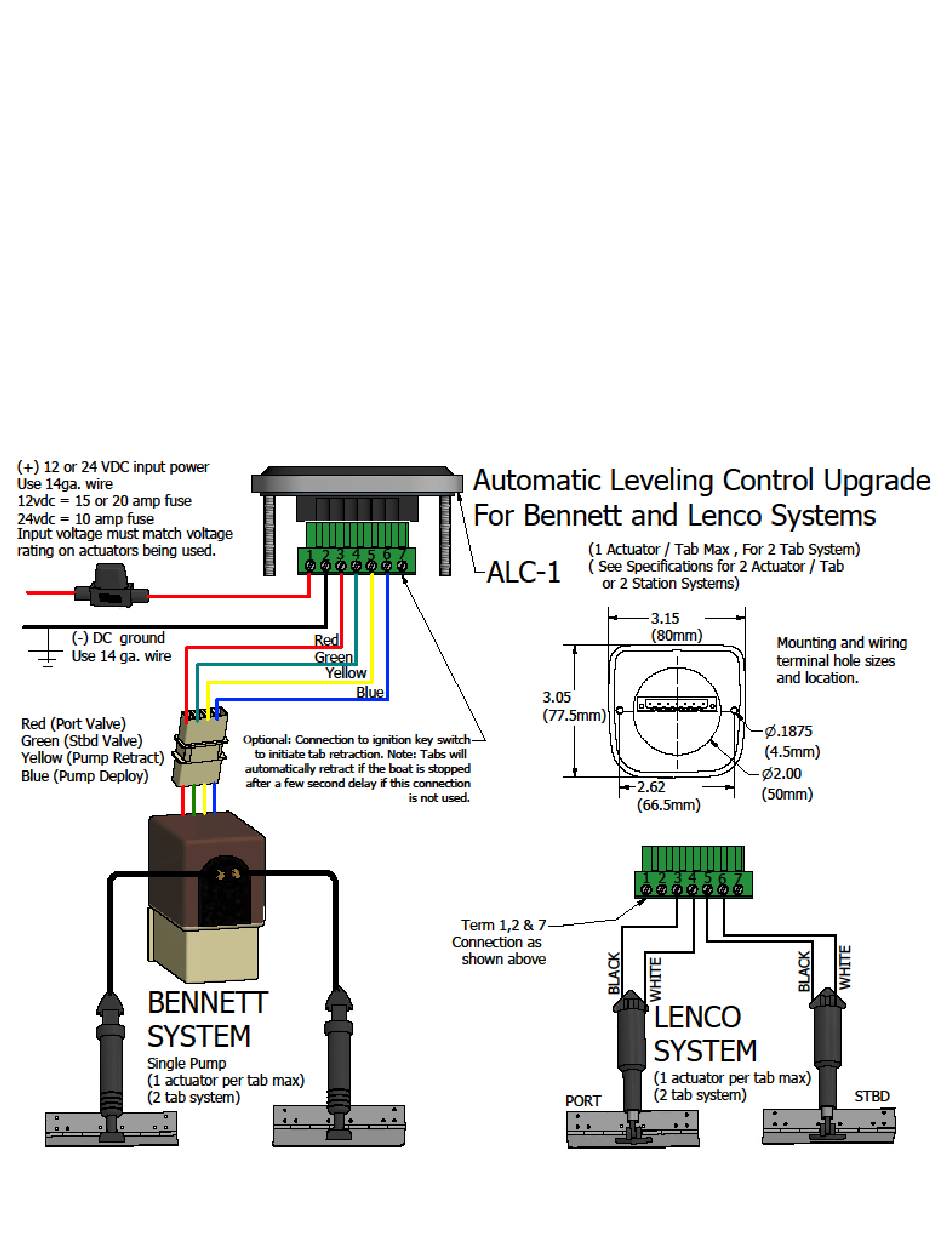

1. Refer to wiring diagram as shown below for the Bennett wiring connections.
2. The Orange or Orange with Yellow stripe , removed from the Bennett control switch, should be connected from
the boat's fuse panel (+12vdc or +24vdc) and connected to terminal #1 on green connector. An additional black
wire must be connected from the ground or battery negative buss bar to terminal #2 green connector (14 AWG
(2.5mm²)).
•
Lenco Refit Wiring:
1. Refer to wiring diagram as shown below for the Lenco wiring connections.
2. Remove the red wire from the Lenco control box (connects to fuse panel) and connect to terminal #1 on the
green connector. Remove the black wire from the Lenco control box (connects to battery neg. (-)) and connect to
terminal #2 on the green connector. Actuator wire color may match the diagram below or port actuator may be
white w/red stripe (shown as white port) and black w/red stripe (shown as black port). Starboard may be similar
with green stripes.
