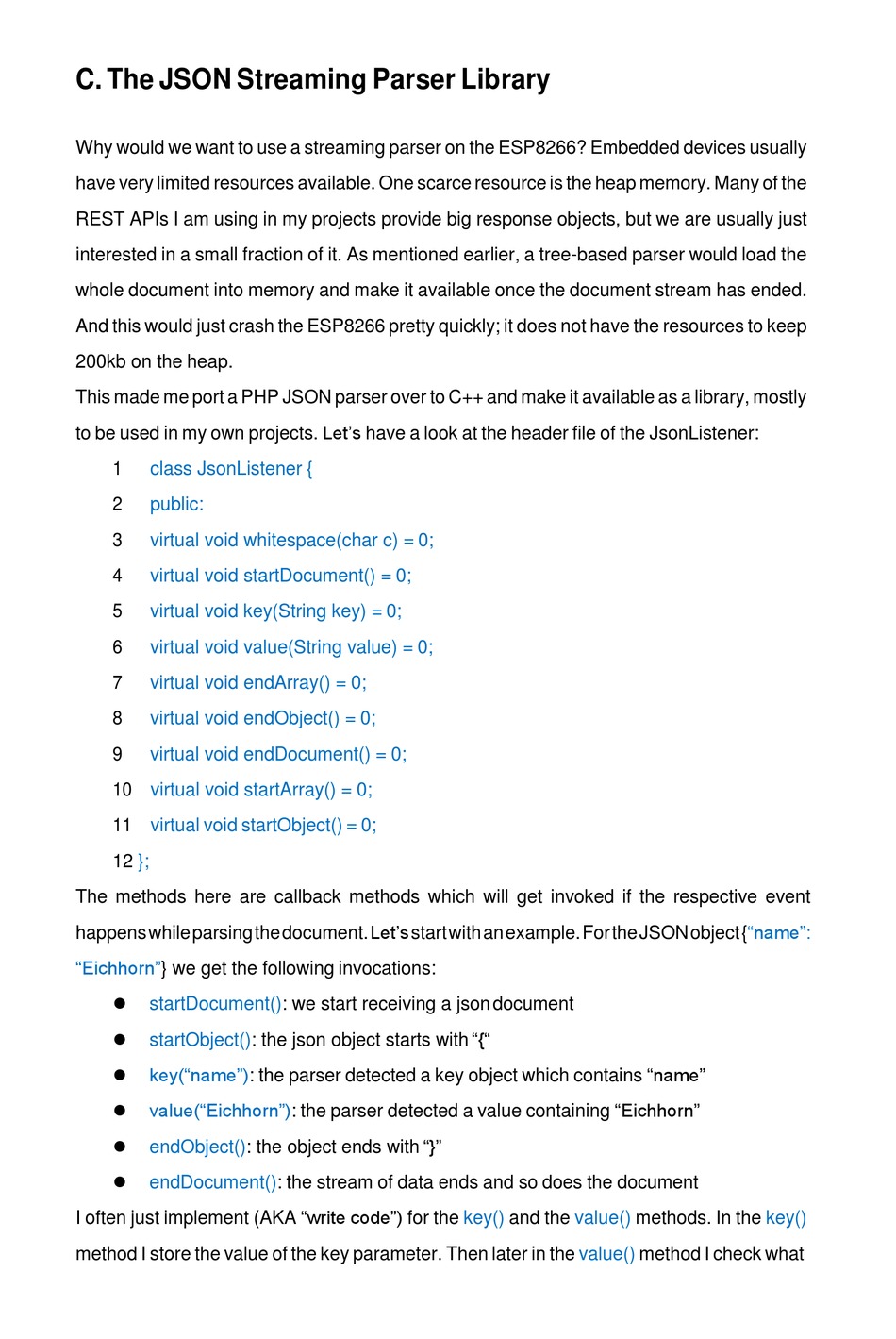

C. The JSON Streaming Parser Library
Why would we want to use a streaming parser on the ESP8266? Embedded devices usually
have very limited resources available. One scarce resource is the heap memory. Many of the
REST APIs I am using in my projects provide big response objects, but we are usually just
interested in a small fraction of it. As mentioned earlier, a tree-based parser would load the
whole document into memory and make it available once the document stream has ended.
And this would just crash the ESP8266 pretty quickly; it does not have the resources to keep
200kb on the heap.
This made me port a PHP JSON parser over to C++ and make it available as a library, mostly
to be used in my own projects. Let's have a look at the header file of the JsonListener:
1 class JsonListener {
2 public:
3 virtual void whitespace(char c) = 0;
4 virtual void startDocument() = 0;
5 virtual void key(String key) = 0;
6 virtual void value(String value) = 0;
7 virtual void endArray() = 0;
8 virtual void endObject() = 0;
9 virtual void endDocument() = 0;
10 virtual void startArray() = 0;
11 virtual void startObject() = 0;
12 };
The methods here are callback methods which will get invoked if the respective event
happens while parsing the document. Let's start with an example. For the JSON object
"Eichhorn"} we get the following invocations:
⚫
startDocument(): we start receiving a json document
⚫ startObject(): the json object starts with "{"
⚫ key("name"): the parser detected a key object which contains "name"
⚫ value("Eichhorn"): the parser detected a value containing "Eichhorn"
⚫ endObject(): the object ends with "}"
⚫
endDocument(): the stream of data ends and so does the document
I often just implement (AKA "write code") for the
method I store the value of the key parameter. Then later in the
key() and the value()
value()
{"name":
methods. In the key()
method I check what
