- Page 1 DOLPHINN Steam Sterilizer Operation Manual Technical Publications DOLPHINN Steam Sterilizer Operation Manual ASS090 REV-B Operation Documentation © 2015 By Woson Medical Instrument Co., Ltd.
-
Page 2: Regulatory Requirement
DOLPHINN Steam Sterilizer Operation Manual Regulatory Requirement This product complies with regulatory requirements of the following European Directive 93/42/EEC concerning medical devices. Revision History ISSUE DATE REASON FOR CHANGE Rev-A 2013.05.18 First Issue Rev-B 2015.11.27 Second Issue Please verify that you are using the latest revision of this document. Information pertaining to this document is maintained on manufactory. -
Page 3: Regulatory Requirement
DOLPHINN Steam Sterilizer Operation Manual Regulatory Requirement Conformance Standard The content of this manual is fit for the sterilizers. Above sterilizer accords with the requirements of European Class N: 93/ 42/ EEC 97/ 23/ EC EN 61010 -1 EN 61010 -2 -040... -
Page 4: Table Of Contents
DOLPHINN Steam Sterilizer Operation Manual Table of Content Regulatory Requirement ....................1 Revision History ......................1 Regulatory Requirement ....................2 Chapter 1 Introduction ....................4 1.1 Attention ......................4 1.2 Usage Indication .................... 4 1.3 Contraindication ..................... 4 Chapter 2 Safety ......................5 2.1 Explanation Symbol .................. -
Page 5: Chapter 1 Introduction
DOLPHINN Steam Sterilizer Operation Manual Chapter 1 Introduction 1.1 Attention This manual contains necessary and sufficient information to operate equipment safely, such as optimal usage, secure and reliable operation, regular and correct servicing requirements. Read and understand all instructions in this manual before attempting to operate equipment. -
Page 6: Chapter 2 Safety
DOLPHINN Steam Sterilizer Operation Manual Chapter 2 Safety 2.1 Explanation Symbol Device Icon Description “ATTENTION” – Consult accompanying documents, alert the user to refer to the manual or other instructions when complete information cannot be provided on the label. “ATTENTION” – Pay attention to the high temperature in the chamber, and to the sterilizer exterior when exhausting system is running. -
Page 7: General Safety Recommendation
DOLPHINN Steam Sterilizer Operation Manual Manual Prompt Note Indicates that concerning information which easier or helpful in the operation. Indicates that a potential hazard may exist which through inappropriate conditions or actions will or can cause: • Minor injury; Caution •... -
Page 8: Operation Risk
DOLPHINN Steam Sterilizer Operation Manual ❖ During the transportation, the sterilizer should be carried by two people in case of turning over. ❖ Do not use the equipment for cooking. 2.3 Operation Risk Please take attention on avoid operation risk during operation. -
Page 9: Chapter 3 Receiving And Installation
DOLPHINN Steam Sterilizer Operation Manual Chapter 3 Receiving and Installation 3.1 Check the Package Please check package carefully when you receive the equipment. Front Flank Item 18 L Packing Size 600x460x455mm 25/28 KGs N./G. Weight 3.2 Unpacking the Accessory Open the door and take out all the accessories, item listed below:... -
Page 10: Installation Environment
DOLPHINN Steam Sterilizer Operation Manual 3.3 Installation Environment After remove the package, the sterilizer should be set in a level place which at least has 5 cm distance with each side( 20cm of the top) as followed: The sterilizer should be set in a place with good ventilation;... -
Page 11: Chapter 4 Description And Specification

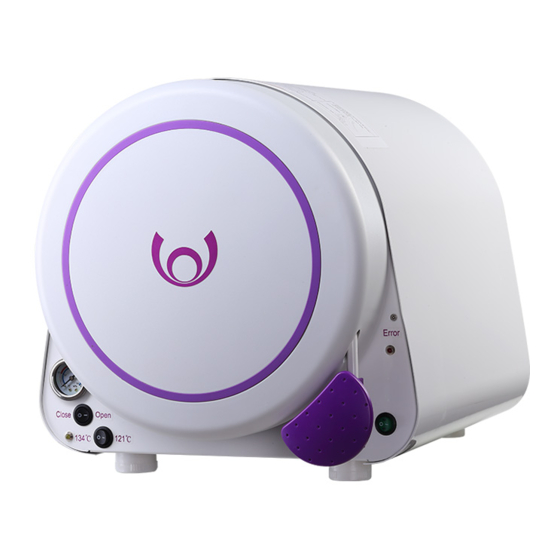

DOLPHINN Steam Sterilizer Operation Manual Chapter 4 Description and Specification 4.1 Overview Error Close Open 134℃ 121℃ Item Description Power Switch Turn on and off power Door Handle Push to close the door Turn Red to report error Alarm Lamp... -
Page 12: Specification
DOLPHINN Steam Sterilizer Operation Manual 4.2 Specification Basic specification Rated Voltage: AC 220V/ 50~60Hz/ 4A, or AC 110V/ 50~60Hz/ 8A if request. Rated Power: 1600VA Fuse: T10A AC220V /T25A AC110V Operation Temperature: 5～40℃ The Board Affording Weight: 4000 N/m Noise :< 50db The Max. -
Page 13: Chapter 5 Panel And Function
DOLPHINN Steam Sterilizer Operation Manual Chapter 5 Panel and Function 5.1. Adjust the both fore pads to ensure that the front part of Autoclave is higher than rear. Fore pad 5.2. Open the door and make sure that there is no dust or impurity left inside chamber, fill 600-800ml distilled water into the chamber. - Page 14 DOLPHINN Steam Sterilizer Operation Manual Air Exhausting Switch Open Close 134℃ 121℃ Waste Water Tank 5.4. Load the trays into the chamber with tray removal tool, and put the instruments which need to be sterilized on the trays. 5.5. Close the door.
- Page 15 DOLPHINN Steam Sterilizer Operation Manual 5.8. Please turn off the power switch and take the instruments out. Rev-A Page 14 of 17...
- Page 16 DOLPHINN Steam Sterilizer Operation Manual Chapter 6 Working Phase and Troubleshooting Phase Description LED Description Buzzer Solution Turn off the power, Red, green and yellow Self-test when power-on Rings 1 time then restart the lights blink in turn 10s equipment...
- Page 17 DOLPHINN Steam Sterilizer Operation Manual instruments Rings 1 time at the beginning of In process of heating or Green light blinks working, steam air exhausting discharging and sterilizing Rings at the In state of constant beginning and temperature and Green light blinks...
-
Page 18: Appendix Piping And Circuit Diagram
DOLPHINN Steam Sterilizer Operation Manual Appendix Piping and Circuit Diagram Piping Diagram 安全阀 排气接头 排气电磁阀（常闭） 蒸汽温度压力表 温度传感器(PT100) Code Name Code Name Relief Valve Manometer Air Exhausting Port Temperature Sensor Solenoid Valve (Normal-Close) Rev-A Page 17 of 17... -
Page 19: Circuit Diagram
DOLPHINN Steam Sterilizer Operation Manual Circuit Diagram Rev-A Page 18 of 17...
