SEL-2BFR, -2/BFR

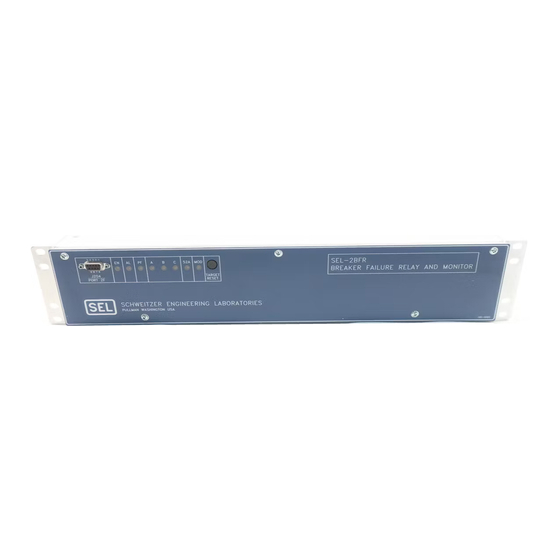

BREAKER FAILURE RELAY AND MONITOR
INSTRUCTION MANUAL
20030207
SCHWEITZER ENGINEERING LABORATORIES
2350 NE HOPKINS COURT
PULLMAN, WA USA 99163-5603
TEL: (509) 332-1890
FAX: (509) 332-7990
