- Page 1 Safeel Zero Dash Cam USER MANUAL PSFZ - V2.0...
- Page 2 If you meet any questions, please feel free to contact us anytime, we'll try our best to help you all the time based on our 24/7 customer service. Mirror Mount Contact Us thieye.us@thieye.com thieye.fr@thieye.com US Marketplace: FR Marketplace: thieye.uk@thieye.com thieye.it@thieye.com...
-
Page 3: Table Of Contents
Contents Part 01 - Get Started Part 03 - Menu Settings Instruction ..........01 1. Packing List 1. Video Settings ..............12 ........02 2. Product Overview a. Resolution ..............13 ..........03 3. LCD Screen b. Loop Recording ............13 ...........04 4. LED Indicators c. Motion Detection ............13 d. - Page 4 3. System Menu Settings ............18 a. Screen Saver ..............19 b. Auto Power Off ..............19 c. Frequency ...............19 d. Beep Sound ..............20 e. Language ................20 f. Screen Rotation ...............20 g. Date/Time ................20 h. Format ................21 i. Default Setting ..............21 j. Upgrade Firmware ............21 Part 04 - Installation ........22...
-
Page 5: Part 01 - Get Started
Part 01 - Get Started 1. Packing List Dash Cam Suction Cup Mount Adhesive Mount Static Stickers Car Charger with Micro USB Cable User Manual Additional USB... -
Page 6: Product Overview

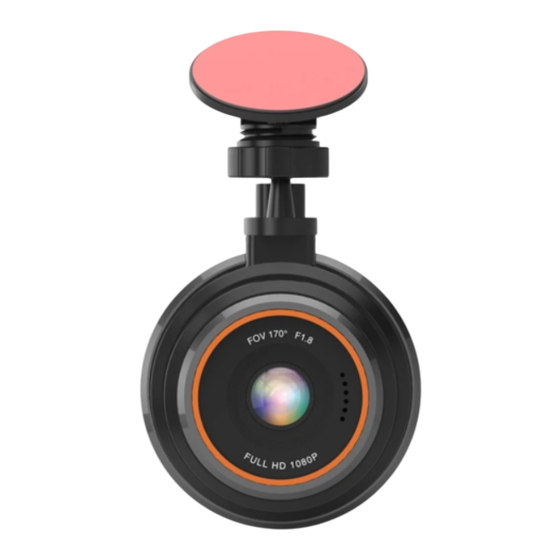

2. Product Overview Threaded Insert Speaker Down Button Reset Micro SD Slot 1.5” LCD Screen 170° Wide Angle Lens Power / Mode Button Micro USB Port Microphone Up Button Status Indicator OK Button... -
Page 7: Lcd Screen
3. LCD Screen File Lock Icon Motion Detection Icon Video Resolution TF Card Icon Battery Status 1080P 30FPS Microphone Icon Date/Time 00：02:58 2019/02/03 04:56:06 Recording Status: When Recording 00：00:00 2019/02/03 04:56:06 Recording Status: When Not Recording... -
Page 8: Led Indicators
4. LED Indicators Status Blue Indicator Light When Recording Continuous Flash When Not Recording Constant ON Part 02 - Basic Operation 1. Insert TF Card Insert the Micro SD Card ★ We recommend to use up to 32G Class 10 or UHS-1 Micro SD Card. Please format the Micro SD Card ★... -
Page 9: Power On/Off
Cautions To keep your Micro SD card in good condition, please format it regularly. As reformatting ★ erases all of your contents, be sure to back up your photos and videos first. Ensure that the device is completely power off before removing the Micro SD card to avoid ★... -
Page 10: Mode Switching
Manual Power On/Off - To manually turn the camera on/off, press and hold the power button ★ for at least 3 seconds. · Switching the camera OFF manually and pulling off the car charger is required for vehicles where the vehicle’s power socket provides continuous power after the engine is turned OFF. 3. - Page 11 Tips The blue indicator light FLASHING means the dash cam is recording, and it’s CONSTANT ON means the dash cam is not recording. 1080P 30FPS Button Function When not recording: Switch to Photo/Playback/Settings Mode POWER / MODE When recording: Manually Lock File Enable/Disable Audio Start / Stop Video Recording 00：02:58...
-
Page 12: Photo Mode
5. Photo Mode ★ When being powered on, the dash cam enters into the video mode and automatically starts recording. ★ Press OK Button to stop recording. ★ Press Power/Mode Button to switch to photo mode. The photographing icon is displayed on the upper left corner of the screen. -
Page 13: Playback Mode
6. Playback Mode ★ When being powered on, the dash cam enters into the video mode and automatically starts recording. ★ Press OK Button to stop recording. ★ Press Power/Mode Button twice to switch to playback mode. ★ When you preview the recorded files, the default is to preview Unlocked files, if you need to preview the Locked files, please LONG PRESS Up Button. -
Page 14: Settings Mode
7. Settings Mode ★ When being powered on, the dash cam enters into the video mode and automatically starts recording. ★ Press OK Button to stop recording. ★ Press Power/Mode Button to switch to settings mode. ★ Short press OK Button to enter menu settings. Button Function Switch to Video Recording Mode, and... -
Page 15: Part 03 - Menu Settings Instruction
Part 03 - Menu Settings Instruction Menu Switching ★ When the dash cam is Powered ON, it’ll automatically start recording. ◇ Short press OK Button to stop recording. ◇ Repeatedly press Power / Mode Button to switch to Settings. ◇ Press OK Button to enter menu settings, there will be: ◇... - Page 16 1. Video Settings When the camera is Powered ON, it enters into the video mode and automatically starts ★ recording. Short press OK Button to stop recording. Repeatedly press Power / Mode Button to switch to Settings mode, then you MUST Press OK ★...
- Page 17 ① Video Resolutions: FHD 1080P 30fps / HD 720P 30fps ② Loop Recording Default: 3 Minutes In the case of recording and saving at interval of 3 / 5 / 10 minutes, the dash cam will automatically overwrite the earliest file in the memory card once the card is full. Tips If you turn off the loop recording function, the dash cam will record every five-minute segment of video when recording.
- Page 18 Tips · If you turn on the motion detection function, it only works when the dash camera is Powered ON, the camera will record when it detects motion, which will cause discontinuous recording. · If you need record continuously, we suggest you to turn off the motion detection function. ④...
-
Page 19: G-Sensor
⑥ G-sensor Default: Medium G-sensor will lock the file when detecting a collision during the recording, please check the “Lock” file in the card and back up your important files regularly in case of overwritten by loop recording once the card is full. The G-sensor sensitivity can be selected OFF / High / Medium / Low in the menu. -
Page 20: Parking Monitor
⑦ Parking Monitor Default: OFF When the car is parked and the Parking Monitor has been turned on, the dash cam will activate and start recording automatically once it detects motion. And it will turn off after continuously recording about 20 seconds. Tips Only turn on the Parking Monitor while parking, the dash cam will record when detecting a collision. -
Page 21: Photo Settings
2. Photo Settings When being powered on, the dash cam enters into ★ the video mode and automatically starts recording. Capture Mode gle shot Then press OK Button to stop recording. Repeatedly press Power / Mode Button to switch to Resolution ★... -
Page 22: System Menu Settings
③ Sequence Once set in photo burst mode, the camera will take 3 shots in a row every time the OK button is pressed. Otherwise, the camera only takes one photo every time the OK button is pressed. (Default: OFF) ④... - Page 23 ① Screen Saver Default: 1 Minute · When recording If you turn on Screen Saver Mode, the screen display will be turned off after a period of inactivity, but the camera is still recording when the screen display turns off. You can see the Blue Indicator Light is flash during recording.
-
Page 24: Language
④ Beep Sound This setting enables/disables a beep sound when you press any button on the camera. Default value: ON ⑤ Language This setting determines the language used for dash cam setting and interface. Default value: English ⑥ Screen Rotation This setting enables the screen to rotate when you turn the camera upside down. -
Page 25: Format
⑩ Upgrade Firmware · Please download the latest firmware from ThiEYE website (thieye.com/support.html) and upgrade the camera according to the instruction in the file. -
Page 26: Part 04 - Installation
Part 04 - Installation 1. Connect the Dash Cam and the Mount 2.Install the Dash Cam ① Clean the area on the windshield where the dash cam will be installed. ② You can attach the suction cup mount or adhesive mount to the windshield where it will not obstruct the driver’s view. -
Page 27: Part 05 - Connect To Computer
③ The car charger with additional USB, you can keep the dash cam charging on the go, and at the same time charge your smartphone or pad with the same charger. Convenient! Part 05 - Connect to Computer With TF card inserted, when connected to computer, three options will be available: Mass Storage, PC Camera, REC-mode. -
Page 28: Part 06 - Frequently Asked Questions
Part 06 - Frequently Asked Questions Solutions This reason is that you’ve turned on the Motion Detection. · The Motion Detection only works when the dash camera Why won’t the camera is Powered ON, the camera will record when it detects record continuously? motion, which will cause discontinuous recording. - Page 29 Due to the huge HD video data, please use the When recording, high-speed SD card. It will stop automatically. We recommend to use up to Class 10 Micro SD Card and please format the card on the camera before first use. This is caused by setting the wrong “Frequency”.
