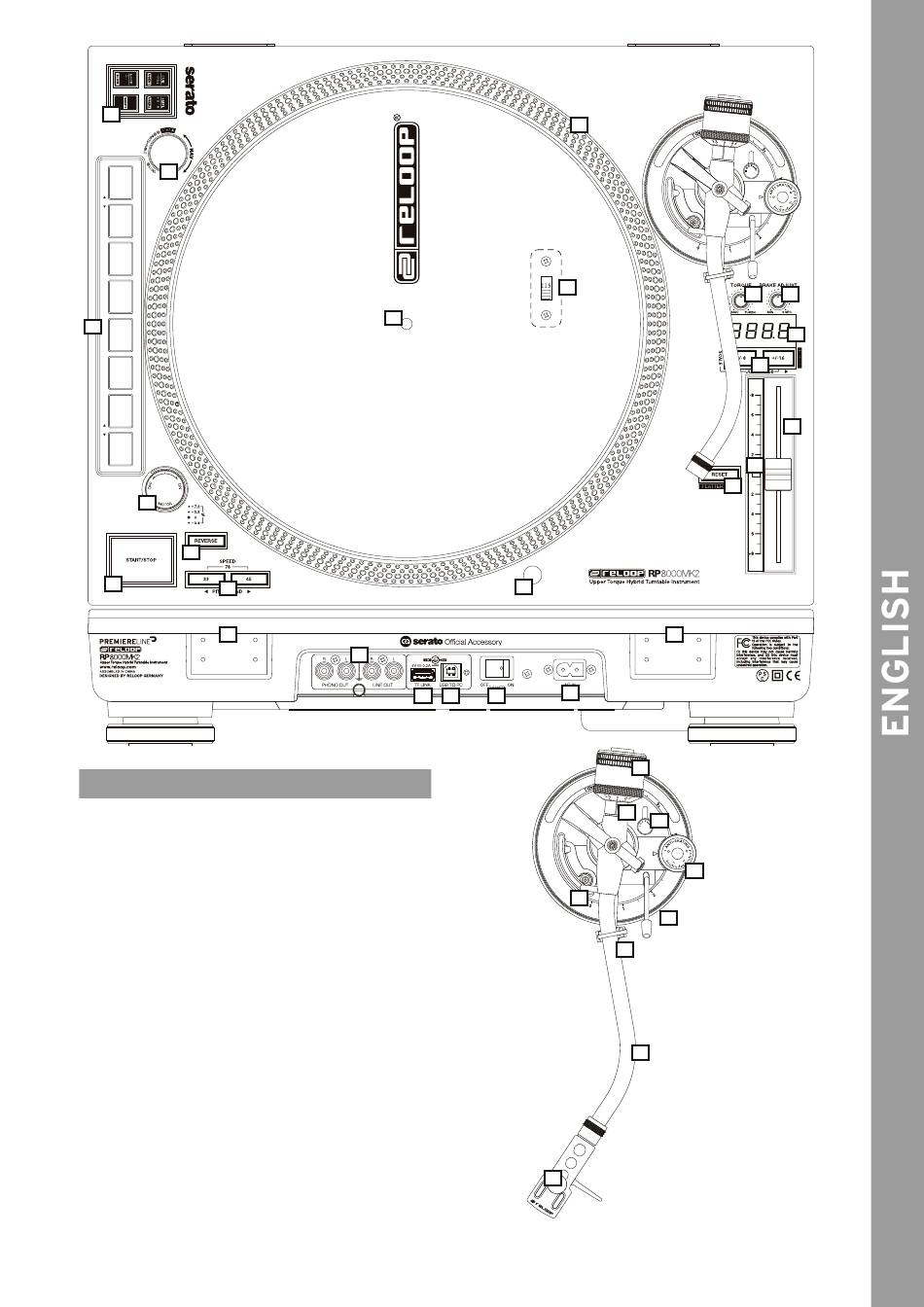

DESIGNATION
1. Turntable
2. Hub
3. Motor ON/OFF Button on Turntable Illumination
4. START/STOP Button
5. 33/45/78 Switch
6. Stylus Illumination and Socket for Stylus Illumination
7. Dial for Stop Speed
8. Dial for Torque
9. Reverse Switch
10. Pitch Range Select Switch
11. Pitch Reset Switch
12. Pitch Reset LED
13. Pitch Fader
14. Headshell (Not included in scope of delivery)
15. Tone Arm
16. Tone Arm Ring
17. Tone Arm Rest
18. Tone Arm Lift
19. Anti-Skating Wheel
20. Tone Arm Ring Locking Mechanism
21. Counterweight Scale
22. Counterweight
23. Pitch LCD
24. Performance Mode Select Button
25. Trigger Drum Pads Section
26. Navigation Push Encoder
27. Audio Output (RCA) (with groundscrew)
28. USB to computer Port
29. TT-Link Port*
30. Voltage Selector Switch
31. Mains Cable Connection
32. Turntable Cover Mount
33. Power ON/OFF Switch
* The maximum voltage/current power output is 5V, 0,2A. Please make sure the connected device's power consumption is not higher to avoid any damage.
2
6
27
29 28 33
1
30
32
31
22
21
20
19
16
18
17
15
14
8 7
23
10
13
12
11
9
