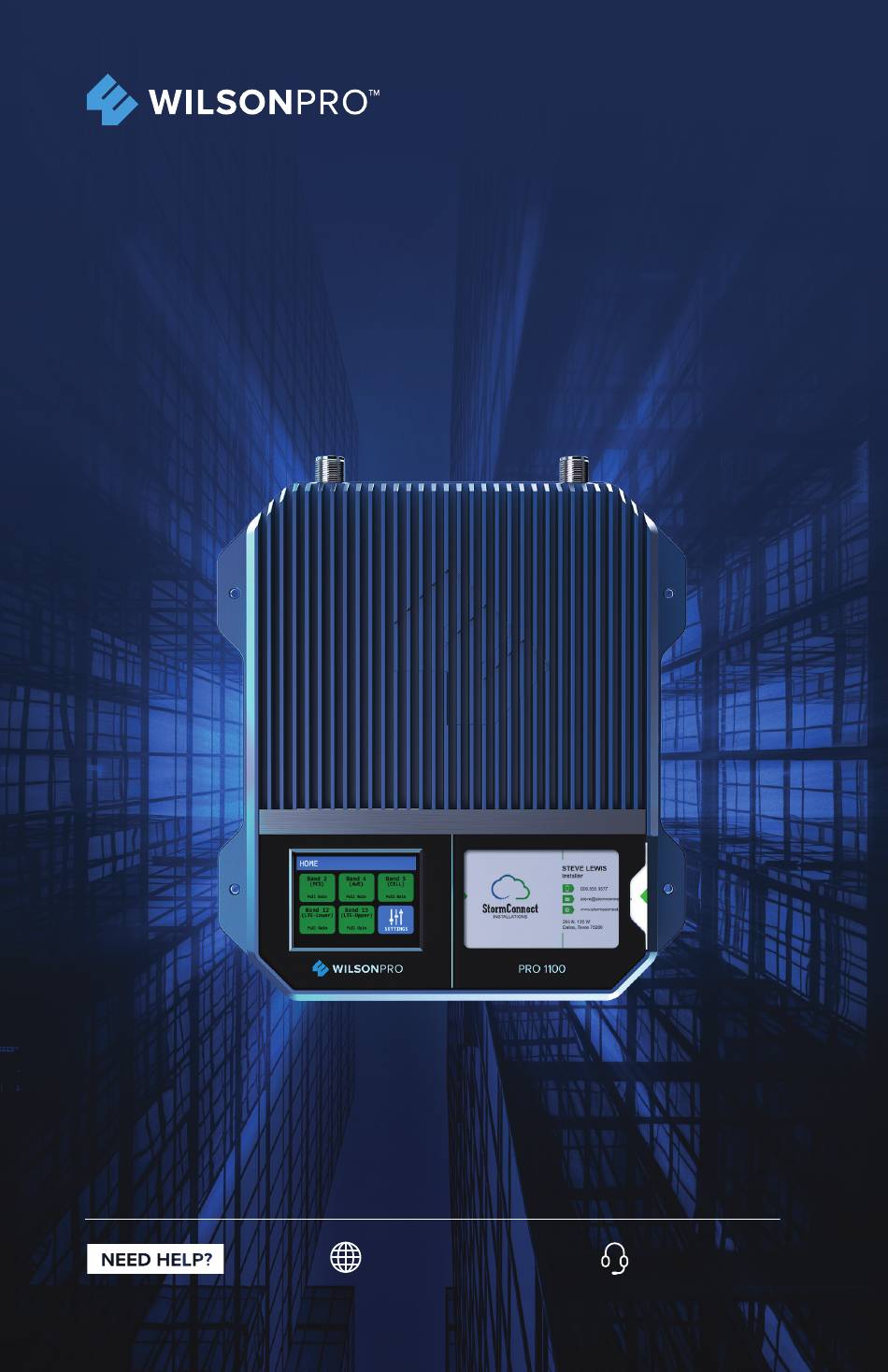

- Page 1 A Wilson Electronics Brand PRO 1100 In-Building Cell Signal Amplifi er Installation Guide wilsonpro.com 866.294.1660...
-
Page 2: Table Of Contents
Index Package Contents About The Pro 1100 Key Features Post Install Setup Menu System Safety Guidelines Warranty... -
Page 3: Package Contents
Wilson 400 Cable 2’ Wilson Lightning Surge Protector Kit 461147 75Ω Pro 1100 Wide Band Directional Dome Antenna + Antenna + 75’ 50’ RG11 Cable RG11 Cable 2’ Wilson 2’ Wil Lightning Surge RG11 Protector PRO 1100 IN-BUILDING CELL SIGNAL AMPLIFIER... - Page 4 Pro 1100 In-Building Cell Signal Amplifi er Up to +25 dBm uplink power for maintaining connections with far-away cell towers Up to +15 dBm downlink power for improved indoor cell coverage area eXtended Dynamic Range (XDR) for Continuous Connectivity Color touch screen, for easy installation and displaying detailed amplifi...
- Page 5 The Pro 1100 also incorporates Wilson Electronics’ state-of-the-art XDR (eXtended Dynamic Range) technology that prevents signal overload conditions which can, in accordance with regulations, force the amplifi er to shut down. When the Pro 1100 senses that any incoming cell signal is too strong and threatens to overload the system, XDR automatically reduces amplifi...
-
Page 6: Key Features
Features Extended Dynamic Range (XDR) for continuous connectivity: XDR lets the Pro 1100 system work with an incoming signal and never shuts down due to a strong outside signal. Simple Wall-Mount Installation: An indoor and outdoor port are located on top of the amplifi er for easy antenna connections, while an exposed mounting fl... -
Page 7: Post Install Setup
Post Install Setup The Pro 1100 is designed with advanced internal programming, which allows it to automatically adjust for a variety of conditions, while still amplifying weak signals. Once the antenna cables are connected, turn the unit on by connecting the power supply cord, at the bottom. - Page 8 Connect it to suitable ground and in line, between the Outside Antenna and the Signal Amplifi er. Outside Directional Antenna Inside Dome Antenna Pro 1100 to power A Lightning Surge Protector is recommended for all building installations. PRO 1100...
-
Page 9: Menu System
Menu System The Pro 1100 takes about 5 seconds to boot up. Once boot up is complete, the home screen will appear, showing the amplifi cation and status of each port and band. Home Screen HOME Band 2 Band 4... - Page 10 (increase separation between indoor and outdoor antennas, and point in opposite directions) and then reboot (turn the unit off & on) the Pro 1100 to reactivate the band and maximize performance. When adequate separation is achieved, the red light(s) will return to green upon reboot.
- Page 11 4? Enabled Enabled Enabled Band 12 Band 13 (LTE-Lower) (LTE-Upper) Band 12 Band 13 (LTE-Lower) (LTE-Upper) Enabled Enabled HOME Enabled Enabled HOME SW Version: 4.03r.28 SW Version: 4.03r.28 Serial Number: 460047B0123456789 Serial Number: 460047B0123456789 PRO 1100 IN-BUILDING CELL SIGNAL AMPLIFIER...
- Page 12 Full Gain Full Disabled Full Gain Band 12 Band 13 (LTE-Lower) (LTE-Upper) Full Gain Full Gain SETTINGS Signal Note: The direction of the outside antenna should be adjusted until the “DL” bar is maximized. PRO 1100 IN-BUILDING CELL SIGNAL AMPLIFIER...
- Page 13 Cycle power to restart (PCS) (AWS) (CELL) system. Full Gain Disabled Shutdown For additional assistance, contact Band 12 Band 13 WilsonPro technical support. (LTE-Lower) (LTE-Upper) US & Canada 866-294-1660 Full Gain Full Gain SETTINGS PRO 1100 IN-BUILDING CELL SIGNAL AMPLIFIER...
-
Page 14: Safety Guidelines
This device may operate in a fi xed location only, for in-building use. FOR MORE INFORMATION ON REGISTERING YOUR SIGNAL AMPLIFIER WITH YOUR WIRELESS PROVIDER, PLEASE SEE BELOW: Sprint: http://www.sprint.com/legal/fcc_boosters.html T-Mobile/MetroPCS: https://support.t-mobile.com/docs/DOC-9827 Verizon Wireless: http://www.verizonwireless.com/wcms/consumer/register-signal-booster.html AT&T: https://securec45.securewebsession.com/attsignalbooster.com/ U.S. Cellular: http://www.uscellular.com/uscellular/support/fcc-booster-registration.jsp PRO 1100 IN-BUILDING CELL SIGNAL AMPLIFIER... - Page 15 Antenna Kit Options The following accessories are certifi ed by the FCC to be used with the PRO 1100. Kit 301111-400170 OUTSIDE FIXED Yagi Antenna 301111 With 170’ Wilson 400 Kit 314411-40075 Wide Band Directional Antenna Kit 304421-17410 With 75’ Wilson 400 Omni Consumer 304421 With 10’...
- Page 16 (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifi cations not expressly approved by weBoost could void the authority to operate this equipment. PRO 1100 IN-BUILDING CELL SIGNAL AMPLIFIER...
- Page 17 Notes support.wilsonpro.com 866.294.1660 NEED HELP? PRO 1100 IN-BUILDING CELL SIGNAL AMPLIFIER...
- Page 18 Notes support.wilsonpro.com 866.294.1660 NEED HELP? PRO 1100 IN-BUILDING CELL SIGNAL AMPLIFIER...
-
Page 19: Warranty
MARKETING APPROVAL: Installer and end customer hereby grants to Wilson Electronics the express right to use installers or end customers company logo in marketing, sales, fi nancial, and public relations materials and other communications solely to identify Customer as a Wilson Electronics customer. PRO 1100 IN-BUILDING CELL SIGNAL AMPLIFIER... - Page 20 A Wilson Electronics Brand 3301 East Deseret Drive, St. George, UT 3301 East Deseret Drive, St. George, UT www.wilsonpro.com | support.wilsonpro.com www.wilsonpro.com | support.wilsonpro.com Copyright © 2016 Wilson Electronics. All rights reserved. Copyright © 2017 Wilson Electronics. All rights reserved. Wilson Electronics products covered by U.S.
