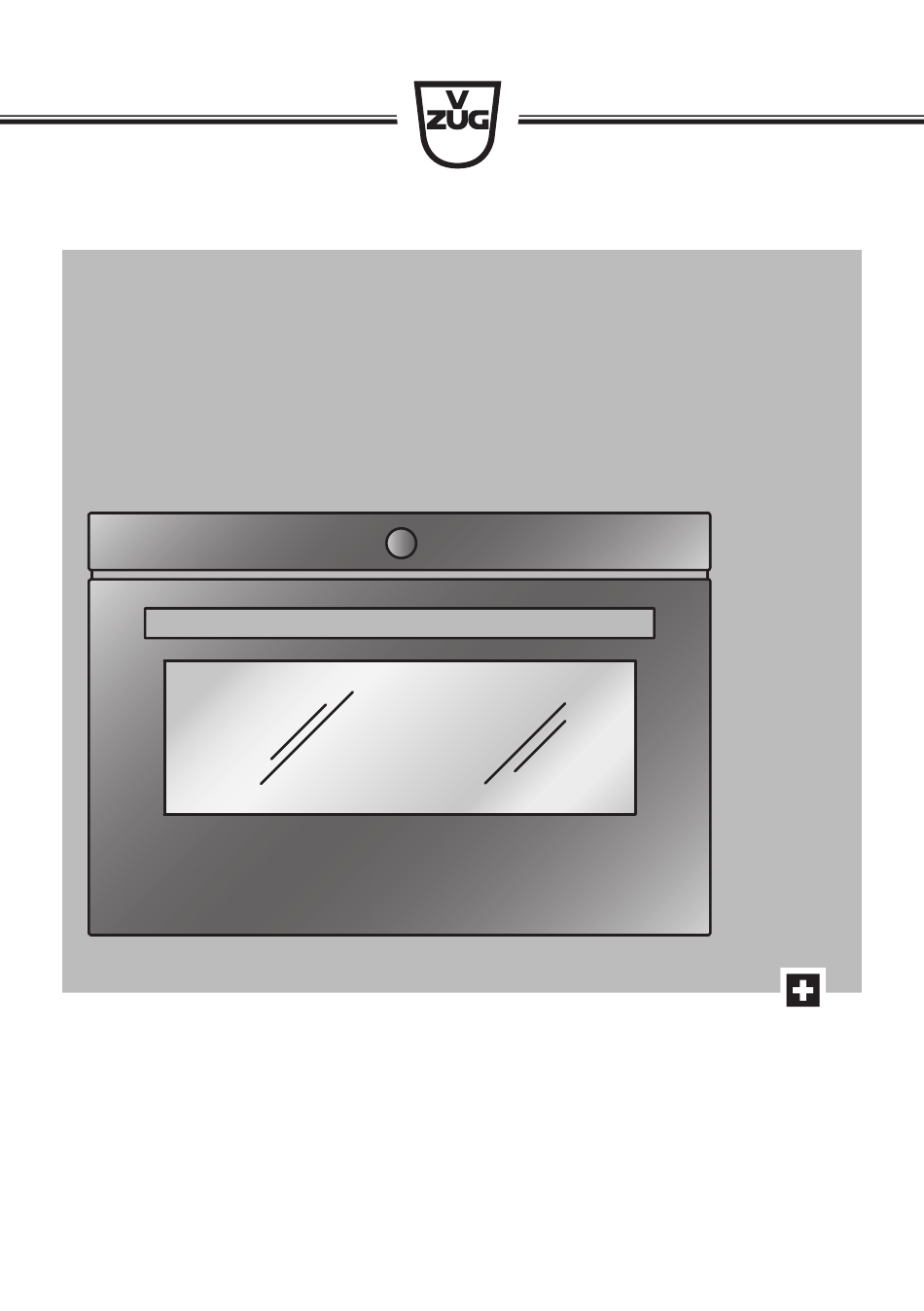

  • Page 1 Operating instructions Steam HSE Steam cooker...
  • Page 2 These operating instructions apply to: Type Product family Size system STHSE 23001 55-381 STHSE60 23002 60-381 Variations depending on the model are noted in the text. Colour operating instructions can be downloaded from the internet from www.vzug.com. © V-ZUG Ltd, CH-6301 Zug, 2017...

  • Page 3: Table Of Contents

    Table of contents Selecting and starting favourites... 20 Safety precautions  5 Changing favourites......... 20 Symbols used .......... 5 Deleting favourites ........ 21 General safety precautions ...... 5 Tips and tricks  21 Appliance-specific safety precautions .. 6 General tips .......... 21 Instructions for use ........ 7 Saving energy ........... 21 Using for the first time  9 User settings...
  • Page 4 11.2 After a power failure .......  32 Accessories and spare parts  33 12.1 Accessories.......... 33 12.2 Special accessories........  34 12.3 Spare parts.......... 34 Technical data  34 13.1 Note for testing institutes.......  34 13.2 Temperature measurement.... 35 13.3 EcoStandby .......... 35 13.4 Reference to «Open Source»...

  • Page 5: Safety Precautions Symbols Used

    Safety precautions Symbols used derstood the hazards in- volved. Children shall not Denotes important safety precau- tions. play with the appliance. Failure to observe said precautions Cleaning and user mainten- can result in injury or in damage to ance shall not be undertaken the appliance or fittings! by children without supervi- Information and precautions that...

  • Page 6: Appliance-Specific Safety Precautions

    1 Safety precautions Appliance-specific safety ▪ Do not use aggressive or ab- precautions rasive cleaning agents or sharp metal scrapers for cleaning the glass in the oven door as they could ▪ READ THE IMPORTANT scratch the surface. This can SAFETY PRECAUTIONS destroy the glass.

  • Page 7: Instructions For Use

    1 Safety precautions pliance. If the appliance is not working ▪ WARNING: Never heat food properly or in case of a repair order, or liquids in sealed contain- follow the instructions given in the ers such as cans or bottles «Service &...
  • Page 8 1 Safety precautions Caution: Risk of burns! ▪ For hobs: A hob guard can be fitted to protect small children. Hob guards are ▪ The appliance gets very hot when in available from specialist retailers. use. The appliance door also gets hot. ▪...

  • Page 9: Using For The First Time

    Using for the first time Before operating the newly installed appliance for the first time, the following steps should be taken: ▸ Remove packaging and transport materials as well as any protective blue film from out of the cooking space. ▸...

  • Page 10: Appliance Description

    3 Appliance description Appliance description Construction Operating and display elements Ventilation opening Door handle Appliance door Operating and display elements 12:00 Display Action buttons Menu buttons Adjusting knob / switching on appliance Digital display (duration/timer/time) Overview of touch buttons Operating modes EasyCook Favourites User settings...

  • Page 11: Cooking Space

    3 Appliance description Cooking space Using protective inserts or aluminium foil can damage the appliance. Do not place any protective insert or aluminium foil on the floor of the cooking space. Appliance door Steam vent Door seal Water tank compartment Knurled nut Levels Temperature sensor...

  • Page 12: Operating Modes Overview Of Operating Modes

    4 Operating modes ▸ Push the cooking tray with the openings 1 against the back of the cooking space. When it is pulled out, it will click into place. ▸ Lift the cooking tray in order to pull it out of the cooking space fully.

  • Page 13: Using The Appliance

    5 Using the appliance Possible to cook on several levels simultaneously. ▸ Place the stainless steel tray underneath the perforated cooking tray. ▪ Cooking vegetables, rice, cereal products, pulses, meat and mussels ▪ Extracting juice from fruit and berries ▪ Defrosting and cooking vegetables simultaneously ▪...

  • Page 14: Filling The Water Tank

    5 Using the appliance Filling the water tank Do not use demineralized (filtered) or distilled water. ▸ If the appliance is switched off: first press the adjusting knob. ▸ Remove the water tank to fill it. ▸ Slot the filled water tank into position in the water tank compartment. ▪...

  • Page 15: Checking And Changing The Settings

    5 Using the appliance Display overview 1 Operating mode settings 2 Press and go 3 Operating mode with symbol 4 Current position of the adjusting knob / selected setting 5 Set values / recommended values 6 Symbols for settings Checking and changing the settings ▸...

  • Page 16: Cancelling/Ending The Operating Mode Before Time

    5 Using the appliance Setting a delayed start ▸ Select in the operating mode settings. – The current end time calculated using the duration is displayed. ▸ Set the desired end and confirm. – The time remaining to the start of operation is displayed. –...

  • Page 17: End Of Operation

    5 Using the appliance The timer can be set for: ▪ up to 10 minutes in 10-second intervals, e.g. = 9 minutes and 50 seconds; ▪ over 10 minutes in 1-minute intervals, e.g. = 1 hour and 12 minutes; ▪ over 10 hours in 1-hour intervals, e.g. = 18 hours. The maximum timer duration is 99 hours.

  • Page 18: Switching The Appliance Off

    5 Using the appliance You can adjust the appliance end time individually (see page 22). – As long as the temperature is above 80 °C, « Residual heat» appears in the display. Food can be kept warm with residual heat for some time. As soon as the temperature falls below 80 °C, all the displays go out.

  • Page 19: Emptying The Water Tank

    6 EasyCook The appliance is switched off if none of the touch buttons are illuminated any more and the display is dark. The cooling fan can continue to run. 5.11 Emptying the water tank Risk of scalding! The water in the tank may be hot. If «Please do not remove the water tank» ap- pears in the display, the temperature of the residual water is too high.

  • Page 20: Selecting And Starting Foods

    7 Favourites Selecting and starting foods ▸ If the appliance is switched off, first press the adjusting knob. ▸ Press the touch button. – The overview of food groups is displayed. ▸ Select the food group. ▸ Select the desired type of food. ▸...

  • Page 21: Deleting Favourites

    8 Tips and tricks ▸ Enter the favourite name or overwrite as appropriate. – The changed favourite is saved. Deleting favourites ▸ If the appliance has another menu open, press the touch button. ▸ Select . ▸ Select the favourite to be deleted. –...

  • Page 22: Adjusting User Settings

    9 User settings Adjusting user settings ▸ If the appliance is switched off, first press the adjusting knob. ▸ Press the touch button. ▪ The user settings main menu appears in the display: ▸ Select the desired user setting or submenu. ▸...

  • Page 23: Date

    9 User settings Date The date can be called up and changed. Clock The following time functions are available: ▪ Time ▪ Time format ▪ Time display ▪ Mains synchronization Time format The time can be displayed in the European 24-hour time format or the US 12‑hour format (a.m./p.m.).

  • Page 24: Loudness

    9 User settings There are three settings for water hardness: Type Water hardness [°fH] Water hardness [°dH] Water hardness [°eH] ▪ Hard 36 to 50 21 to 28 26 to 35 ▪ Medium 16 to 35 9 to 20 12 to 25 ▪...

  • Page 25: Demo Mode

    10 Care and maintenance ▪ The operating data: – number of descaling processes already performed – date and time of the last descaling process – steam operating time to date 9.15 Demo mode In demo mode, almost all the appliance functions are available but it is not possible to cook with the appliance.

  • Page 26: Cleaning The Appliance Door

    10 Care and maintenance ▸ To remove dried-on soiling more easily, switch the appliance on for about 30 minutes beforehand, setting it to the operating mode and a temperature of 80 °C. This will soften the soiling. ▸ For stubborn soiling, e.g. chicken, clean the cooking space when cold with a grease- dissolving spray cleaner or cream cleaner in accordance with the manufacturers' in- structions.

  • Page 27: Cleaning The Door Seal

    10 Care and maintenance 10.4 Cleaning the door seal ▸ Clean the door seal with a soft cloth dampened with water, but do not use any clean- ing agent. ▸ Wipe dry with a soft cloth. 10.5 Replacing the door seal For safety reasons, the door seal must be replaced by our Customer Services.
  • Page 28 10 Care and maintenance We recommend descaling the appliance whenever the warning appears in the display. Continued to descale the appliance will likely impair its functions or cause damage to the appliance. Descaling takes about 45 minutes. Descaling interval The time interval between descaling depends on the hardness of the water and fre- quency of use.
  • Page 29 10 Care and maintenance Starting the descaling process The appliance must have cooled down before descaling. Remove accessories, cookware or other objects from the cooking space. Do not leave the appliance unattended: during the descaling process, the descaler must be filled and the water tank must be emptied. The appliance door must be kept closed during descaling.

  • Page 30: Trouble-Shooting

    11 Trouble-shooting For the operating mode, after descaling, the water that is pumped back into the water tank may not be clear. This will not affect the cooking or baking charac- teristics nor the quality of the food being cooked or baked. Trouble-shooting 11.1 What to do if …...
  • Page 31 11 Trouble-shooting … the appliance makes noises during operation Possible cause Solution ▪ The appliance may emit noise Such noise is normal. when operating (e.g. switching and pumping noises). … the clock is not running correctly Possible cause Solution ▪ Irregular mains frequency ▸...

  • Page 32: After A Power Failure

    11 Trouble-shooting ... the following appears in the display Residual heat Do not remove the water tank. Possible cause Solution ▪ Water temperature in the ▸ Wait for it to cool down (this can take up to boiler is too high. 30 minutes).

  • Page 33: Accessories And Spare Parts

    12 Accessories and spare parts The appliance goes through its initial set-up process after a prolonged power failure. However, only the language and time need to be reset to enable the appliance to be operated again. It is not necessary to make any other settings. –...

  • Page 34: Special Accessories

    13 Technical data 12.2 Special accessories For information see: www.vzug.com 12.3 Spare parts Shelf guides left/right Knurled nut Lid for water tank Water tank durgol swiss steamer descaler The descaler is also available from specialist retailers. Technical data Dimensions ▸ See installation instructions Electrical connection ▸...

  • Page 35: Temperature Measurement

    14 Disposal The usable volume within the meaning of EN 50304 / EN 60350 is obtained with the shelf guides disassembled. General note Maximum load capacity: 2 kg 13.2 Temperature measurement The temperature inside the cooking space is measured when the cooking space is empty according to an internationally accepted standard.

  • Page 36: Index

    Index Accessories ..........11, 33 EasyCook ..........19, 33 Cleaning ............ 27 Food groups .......... 19 Acoustic signals ..........23 EcoStandby............35 Appliance disposal ......... 35 Electrical connection ........34 End ..............15 Appliance door Extending operation ........17 Cleaning ............ 26 Removing .............
  • Page 37 15 Index Preheating ............21 Cleaning ............ 27 Press and go ..........15, 24 Emptying............ 19 Product family............ 2 Queries ............. 39 Quick instructions ........... 40 Safety precautions Appliance-specific ........ 6 Before using for the first time.....  7 Correct use ............  7 General ............

  • Page 38: Notes

    Notes...

  • Page 39: Service & Support

    Your repair order Call the free service number 0800 850 850 to contact your nearest V-ZUG service centre. You can arrange an onsite visit by us by phone if you wish. General queries, accessories and service agreement V-ZUG will be happy to help you with any general administrative or technical queries, to ac- cept your orders for accessories and spare parts and to inform you about our progressive service agreements.
  • Page 40 The function buttons give you direct access to independent functions such as the timer  or switching off the appliance  J23001013-R09 V-ZUG Ltd, Industriestrasse 66, CH-6301 Zug Tel. +41 58 767 67 67, Fax +41 58 767 61 61 info@vzug.com, www.vzug.com Service Centre: Tel. 0800 850 850...
