Installation; Configuration & Programming - Autoleads ControlPRO CP2-UNI User Manual

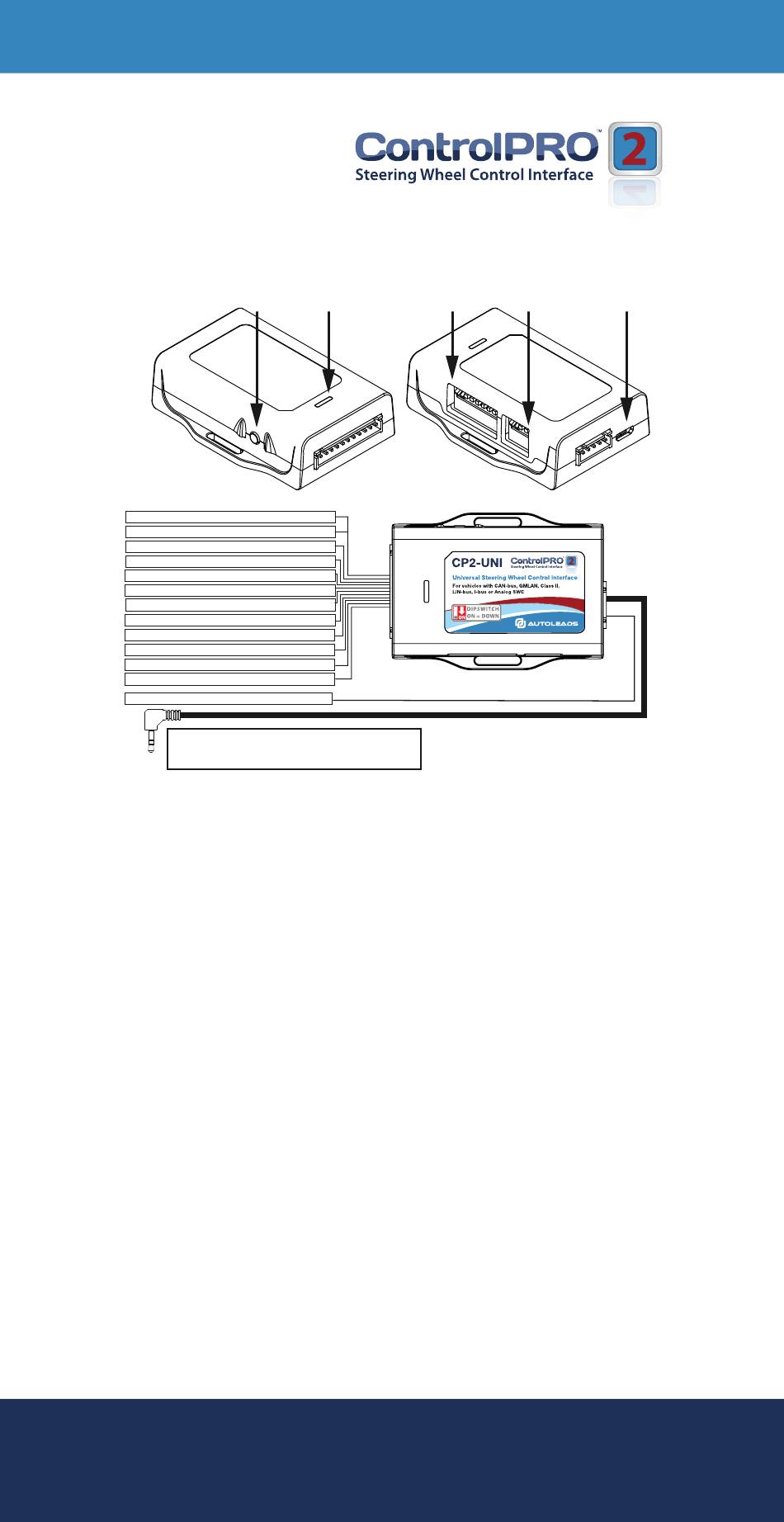

Interface & Wiring Overview
Programming
Button
Red (+) Accessory 12v Input
Black
(-) Analog SWC Ground
Black (-) Chassis Ground
Red/White (+) Accessory 12v Output
(-) Analog SWC Input 1
White
Yellow (+) Constant 12v Input
Pink/Black
Data 2 Input
(CAN-low)
Pink Data 1 Input
(LAN, MSCAN, SWCAN, LEFT)
Light Green (+) 12v Analog SWC Input
(-) Analog SWC Input 3
White/Red
White/Black (-) Analog SWC Input 2
Purple
Data 2 Input
(LIN, IBUS, CLASSII, SERIAL)
Blue/Yellow
SWC Output - Kenwood/Newer JVC
SWC Output - Alpine, JVC, Clarion,
3.5mm Jack
Pioneer, Sony, Boyo, Dual, Advent,
Lightning Audio or Visteon

Installation

www.autoleads.co.uk/controlpro
Please visit
to download the PC application or phone app that
provides vehicle specific wiring and vehicle dipswitch
configurations
Configuration & Programming
This is the fastest and most convenient way to
program the module. This method only requires you to
look up the dipswitches and wiring via the PC, Android
or Apple application, set the dipswitches and then
connect it to the vehicle/radio for it to function. Both
vehicle and radio dipswitch settings must be set
before the module is connected to the vehicle.
Vehicle
Status LED Dipswitches
email - technical.eu@aampglobal.com
(continued)
Radio
Dipswitches USB Port
